Base gasket, OEM 11241-05311. A, 20mm thick. Fits 15 listed machines.

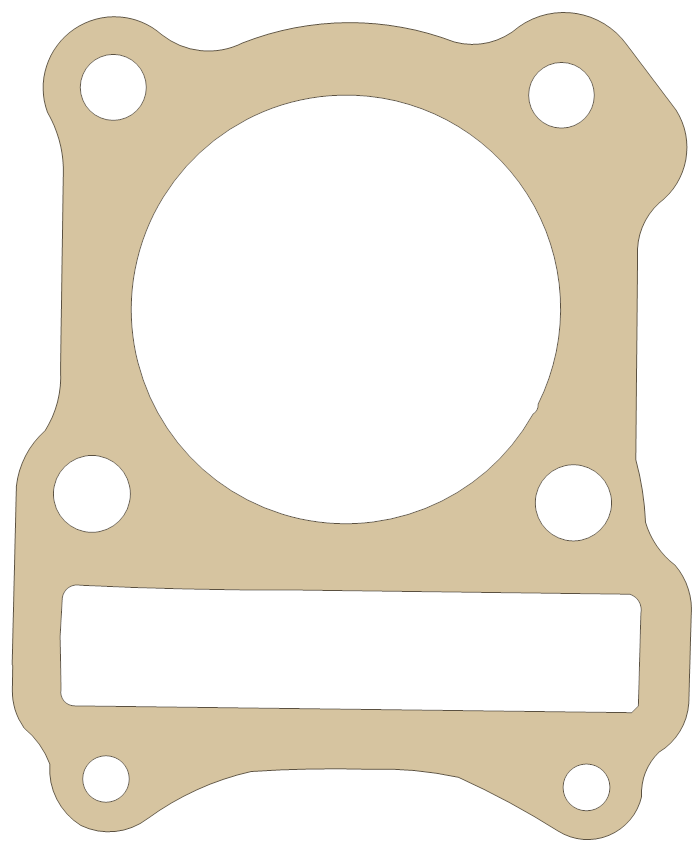

Outline shown for identification — not to scale. The cut file is available to subscribers.
| OEM Number | 11241-05311 |
|---|---|
| Gasket Type | Base |
| Material | A |
| Thickness | 20 mm |
| Gaskets in Set | 1 |
| Gasket Code | 05311 |
| Make | Model | Years |
|---|---|---|
| Suzuki | ALT125 | 1983 - 1986 |
| Suzuki | DR100 | 1983 - 1990 |
| Suzuki | DR125 | 1982 |
| Suzuki | DR125E | 1986 - 1988 |
| Suzuki | DR125E | 1995 - 1996 |
| Suzuki | DR125S | 1982 |
| Suzuki | DR125SE | 1994 |
| Suzuki | GN125 | 1982 - 1983 |
| Suzuki | GN125E | 1991 - 1997 |
| Suzuki | LT125 | 1983 - 1987 |
| Suzuki | SP100 | 1983 |
| Suzuki | SP125 | 1986 |
| Suzuki | X5222 | 1983 |
| Suzuki | X5232 | 1983 |
| Suzuki | X5233 | 1984 |
The cut file for this gasket is available to subscribers. Specifications above are free to view.
Subscribe to Download
