R. Crankcase Cover OEM 11394-428-000

R. Crankcase Cover gasket, OEM 11394-428-000. A, 20mm thick. Fits 7 listed machines.

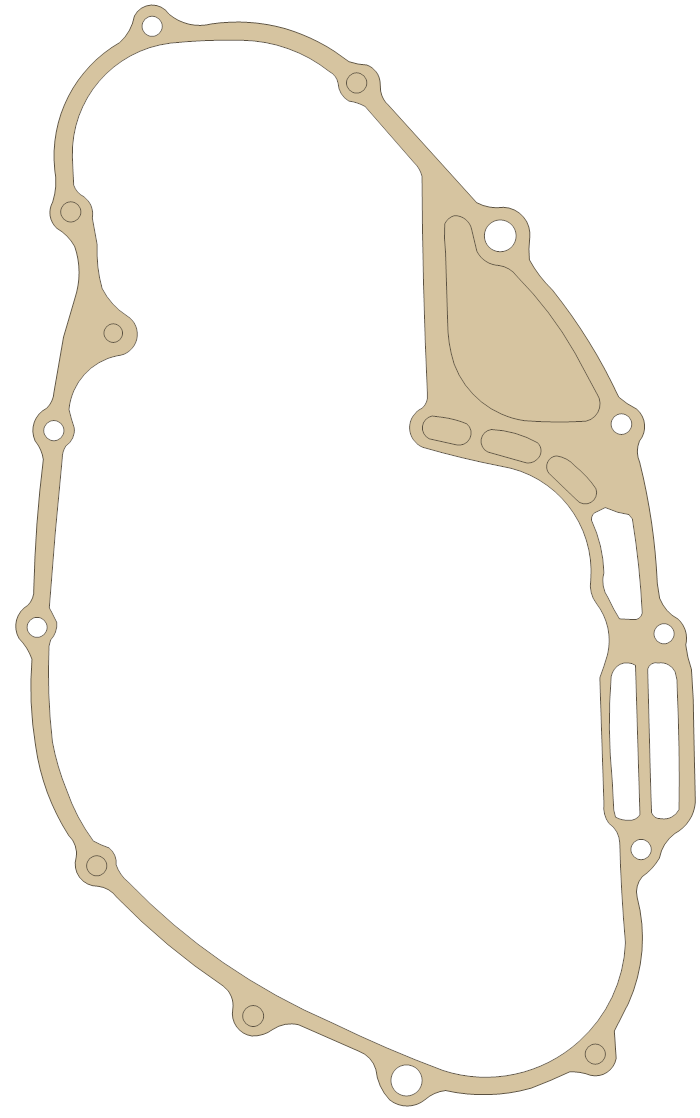

Honda R. Crankcase Cover gasket outline, OEM 11394-428-000, A material

Outline shown for identification — not to scale. The cut file is available to subscribers.

Specifications

OEM Number 11394-428-000
Gasket Type R. Crankcase Cover
Material A
Thickness 20 mm
Gaskets in Set 1
Gasket Code 2034-3

Fits 7 machines

Make Model Years
Honda XL250S 1978 - 1981
Honda XL500 1979 - 1982
Honda XR250A 1980
Honda XR250R 1981
Honda XR250S 1979 - 1980
Honda XR250Z 1979
Honda XR500 1979 - 1982

Cut File

The cut file for this gasket is available to subscribers. Specifications above are free to view.

Subscribe to Download
