Crankcase Cover 3 OEM 1AE-15461-00

Crankcase Cover 3 gasket, OEM 1AE-15461-00. A, 20mm thick. Fits 4 listed machines.

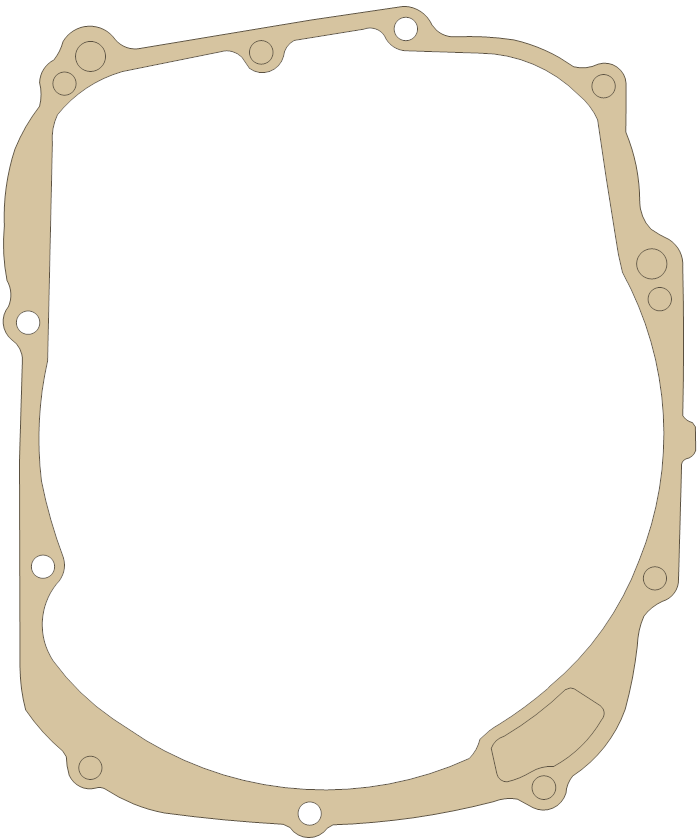

Yamaha Crankcase Cover 3 gasket outline, OEM 1AE-15461-00, A material

Outline shown for identification — not to scale. The cut file is available to subscribers.

Specifications

OEM Number 1AE-15461-00
Gasket Type Crankcase Cover 3
Material A
Thickness 20 mm
Gaskets in Set 1
Gasket Code 1ae-154

Fits 4 machines

Make Model Years
Yamaha FZ700T 1987
Yamaha FZ750 1985 - 1990
Yamaha FZR750R 1987 - 1988
Yamaha FZX750 1987

Cut File

The cut file for this gasket is available to subscribers. Specifications above are free to view.
