Water Manifold OEM 3003-242

Water Manifold gasket, OEM 3003-242. A, 20mm thick. Fits 4 listed machines.

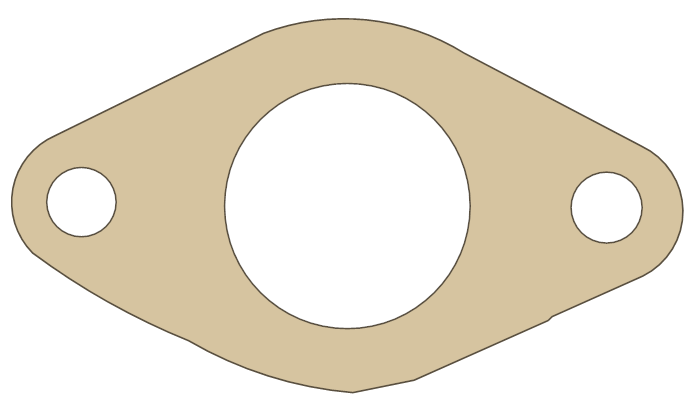

Arctic Cat Water Manifold gasket outline, OEM 3003-242, A material

Outline shown for identification — not to scale. The cut file is available to subscribers.

Specifications

OEM Number 3003-242
Gasket Type Water Manifold
Material A
Thickness 20 mm
Gaskets in Set 1
Gasket Code 3003-242

Fits 4 machines

Make Model Years
Arctic Cat 530cc 1986 - 1991
Arctic Cat Cheetah 1986 - 1991
Arctic Cat El Tigre 1986 - 1991
Arctic Cat EXT 1986 - 1991

Cut File

The cut file for this gasket is available to subscribers. Specifications above are free to view.

Subscribe to Download
