Water Manifold OEM 3003-514

Water Manifold gasket, OEM 3003-514. B, 30mm thick. Fits 3 listed machines.

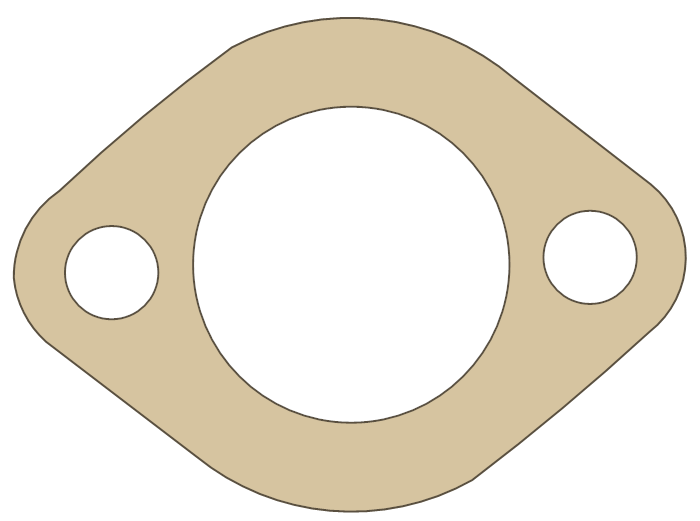

Arctic Cat Water Manifold gasket outline, OEM 3003-514, B material

Outline shown for identification — not to scale. The cut file is available to subscribers.

Specifications

OEM Number 3003-514
Gasket Type Water Manifold
Material B
Thickness 30 mm
Gaskets in Set 1
Gasket Code 3003-514

Fits 3 machines

Make Model Years
Arctic Cat Thunder Cat 1000cc 1995 - 2002
Arctic Cat Thunder Cat 800cc 1995 - 2002
Arctic Cat Thunder Cat 900cc 1995 - 2002

Cut File

The cut file for this gasket is available to subscribers. Specifications above are free to view.

Subscribe to Download
