ATK 250LQ Gaskets

5 gasket listings for the ATK 250LQ. Material, thickness, number in set and OEM cross-reference for each.

Gasket OEM Number Material Thickness Years

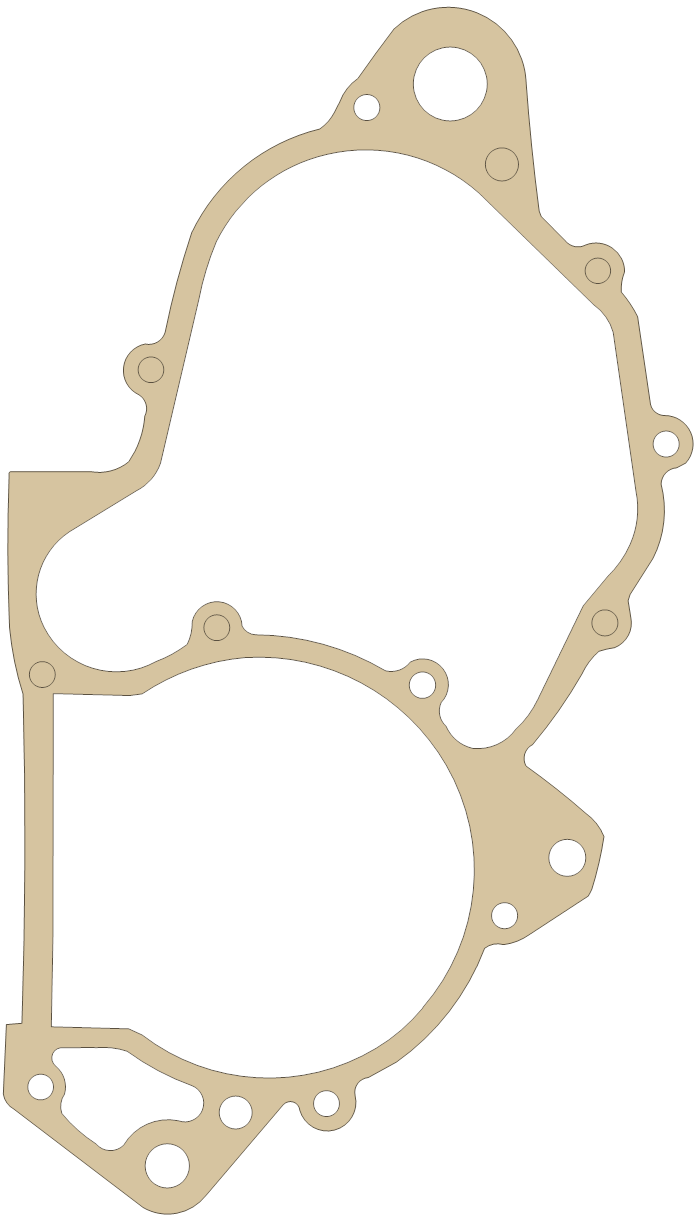

ATK 250LQ Center Case gasket outline Center Case 250820 A 20 mm 1995 - 2002

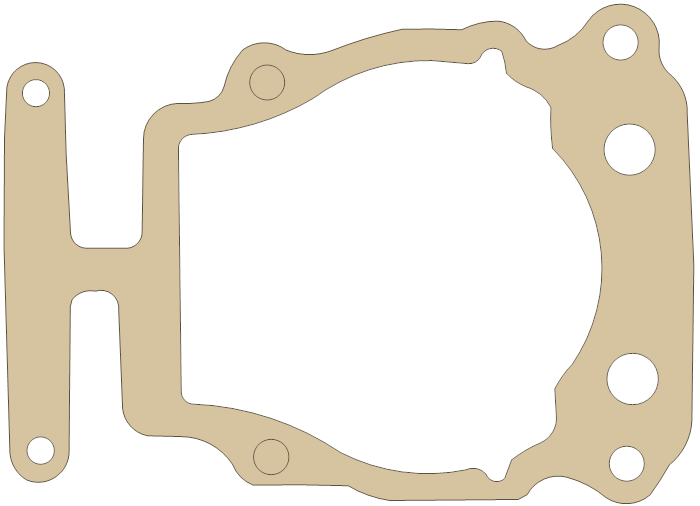

ATK 250LQ Cylinder gasket outline Cylinder 250745 A 20 mm 1995 - 2002
ATK 250LQ Cylinder gasket outline Cylinder 250747 B 30 mm 1995 - 2002

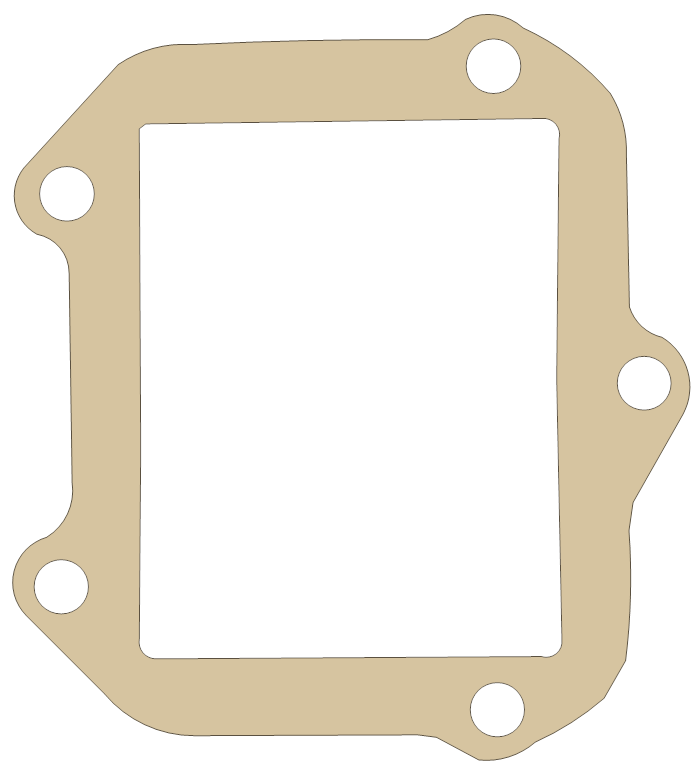

ATK 250LQ Intake gasket outline Intake 250521 B 30 mm 1995

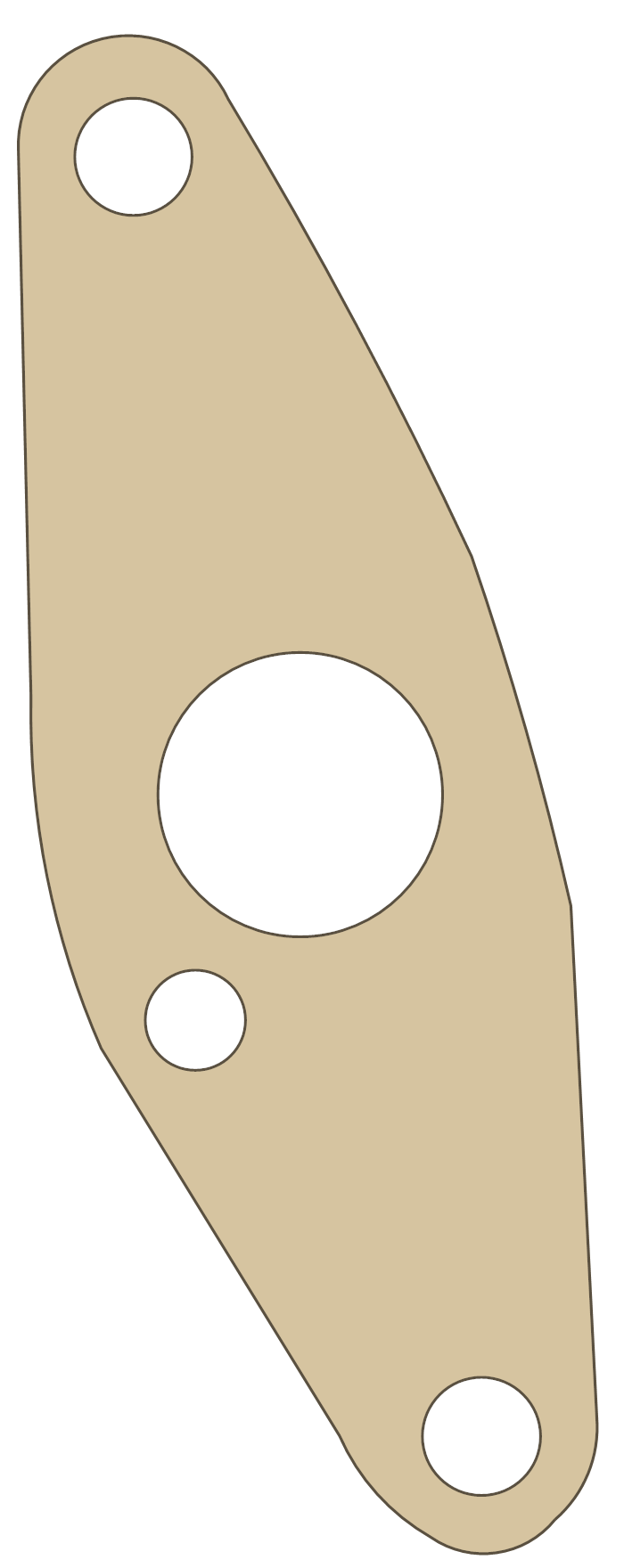

ATK 250LQ Power Valve gasket outline Power Valve 250231 B 30 mm 1995 - 2002

Cut Files

Ready-to-cut files for every gasket listed here are available to subscribers. Specifications are free to view.
