Harley Davidson Columbia Gaskets

5 gasket listings for the Harley Davidson Columbia. Material, thickness, number in set and OEM cross-reference for each.

Gasket OEM Number Material Thickness Years

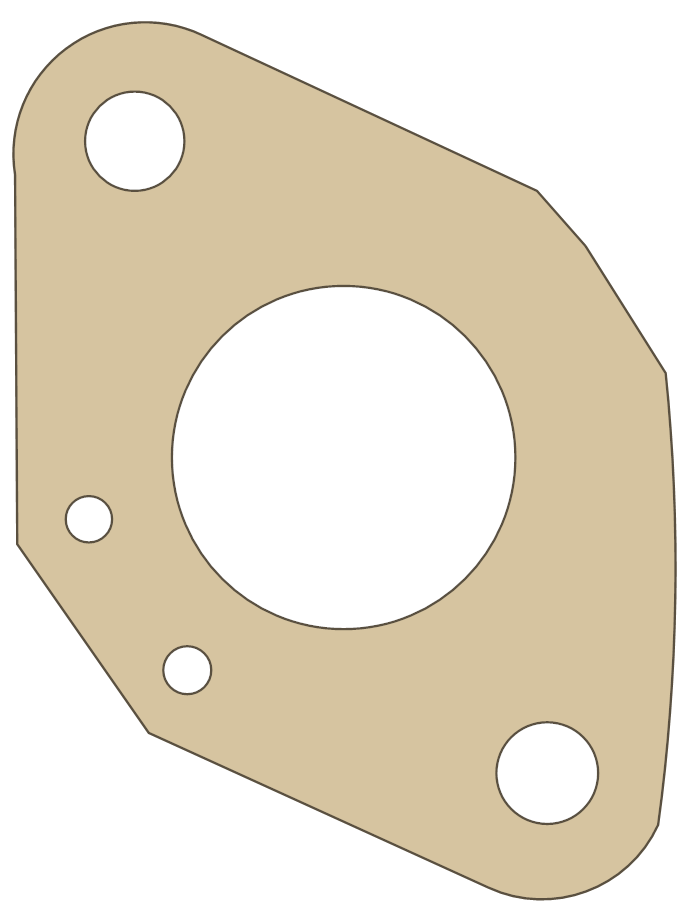

Harley Davidson Columbia Carburetor Mt. gasket outline Carburetor Mt. 27071-63 B 30 mm 2001
Harley Davidson Columbia Cover gasket outline Cover 4726 B 30 mm 2001
Harley Davidson Columbia Crankcase gasket outline Crankcase 24495-82 A 20 mm 2001

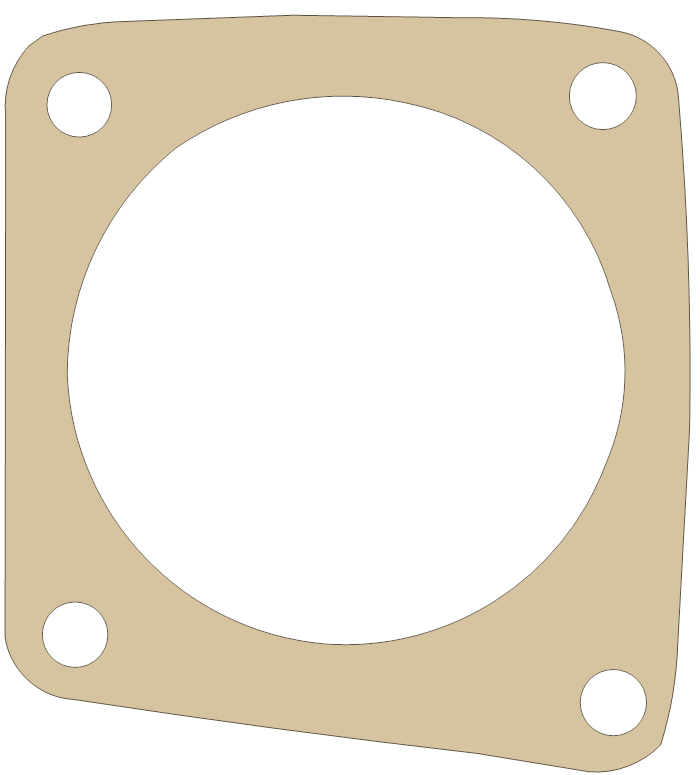

Harley Davidson Columbia Manifold gasket outline Manifold 27069-63A D 15 mm 2001
Harley Davidson Columbia Reed Plate gasket outline Reed Plate 26908-71 A 20 mm 2001

Cut Files

Ready-to-cut files for every gasket listed here are available to subscribers. Specifications are free to view.
