3 gasket sets and 13 individual gaskets for the Harley Davidson Shovelhead. Material, thickness and OEM cross-reference for each.
| Set | Gaskets in Set | Material | Years |
|---|---|---|---|
| SET A | 9 | B | 1966 - 1984 |
| SET B | 3 | A | 1966 - 1984 |
| SET C | 4 | D | 1966 - 1984 |
| Gasket | OEM Number | Material | Thickness | Years | |
|---|---|---|---|---|---|
|
|

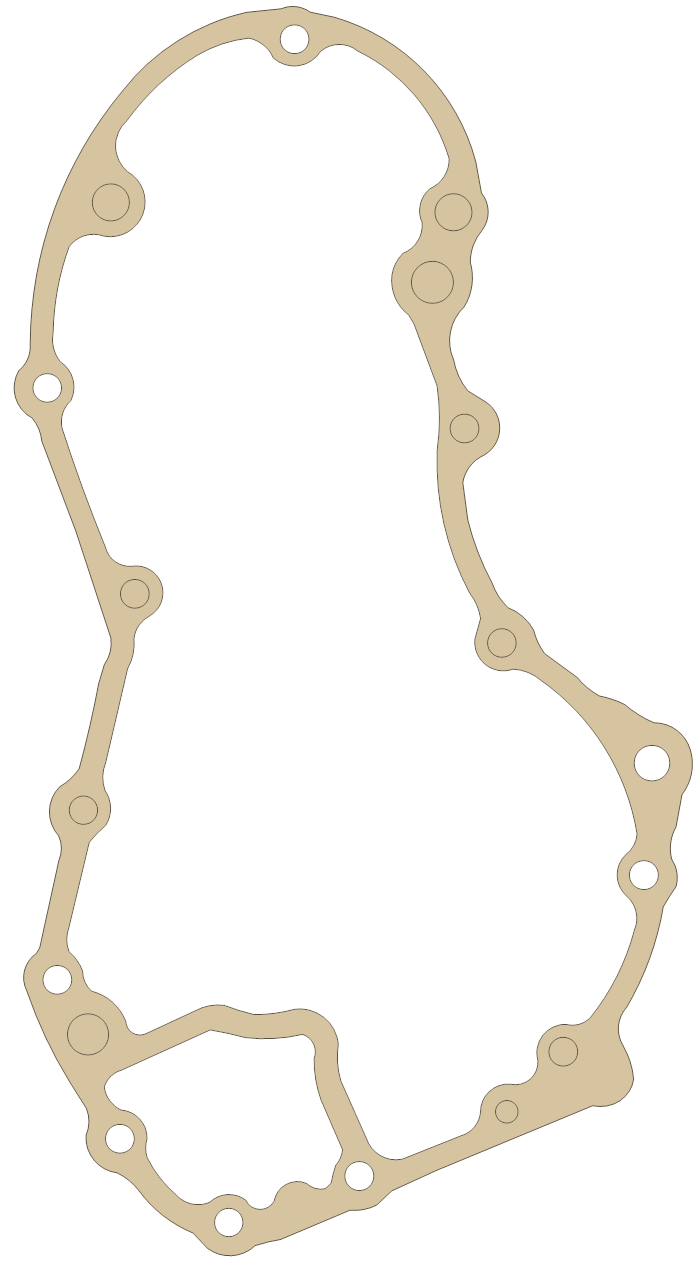

1 | — | A | 20 mm | 1966 - 1984 |
|
|

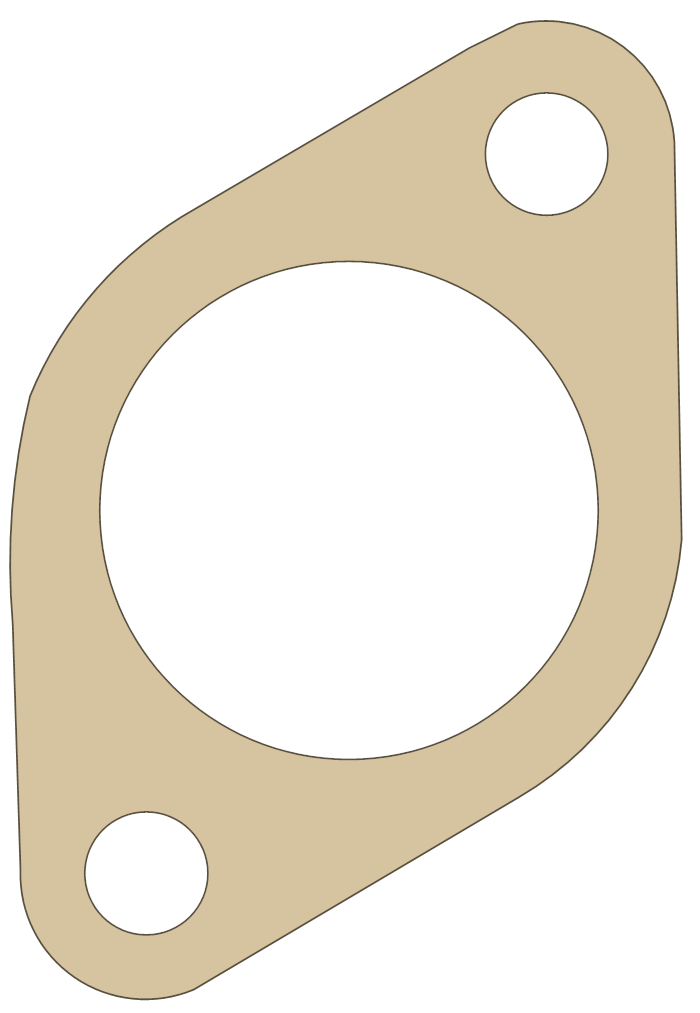

11 | — | D | 15 mm | 1966 - 1984 |
|
|

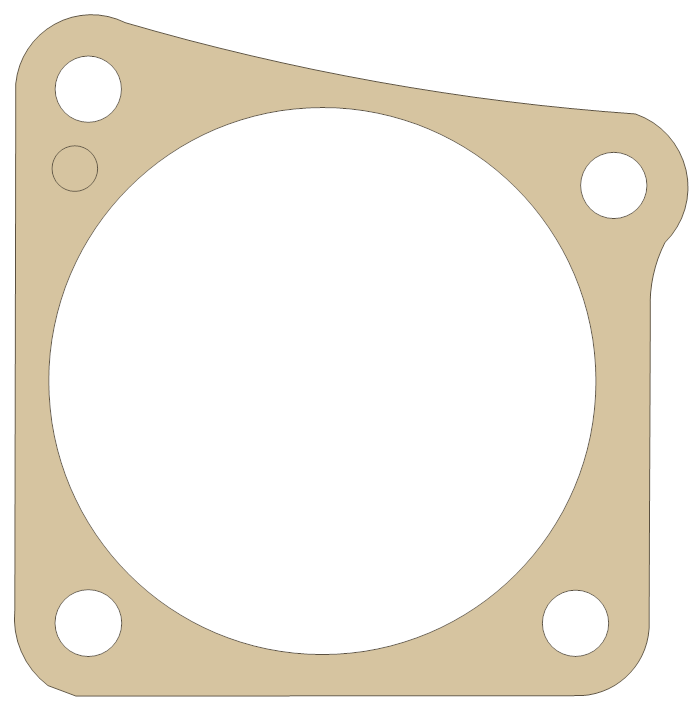

13 | — | A | 20 mm | 1966 - 1984 |
|
|

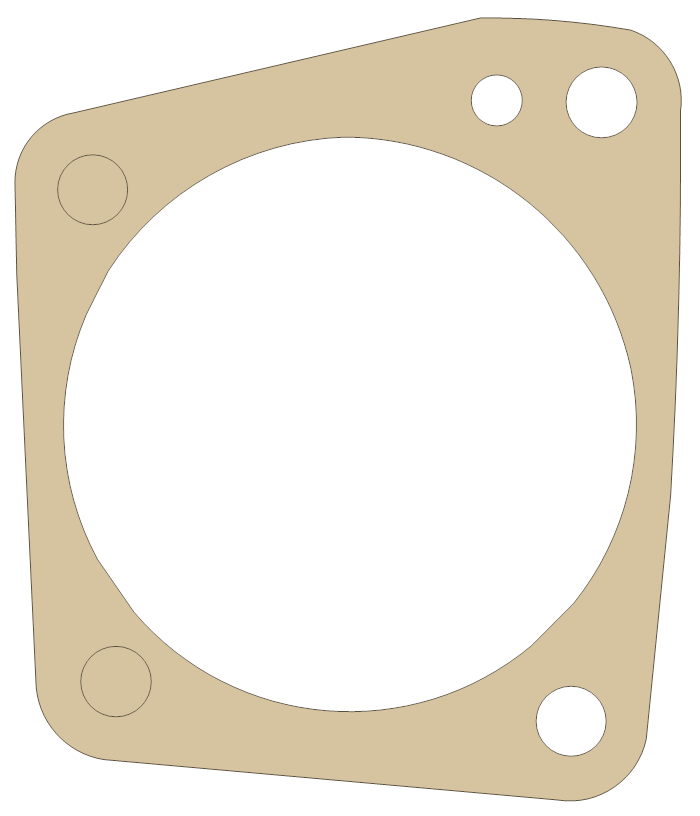

14 | — | A | 20 mm | 1966 - 1984 |
|
|

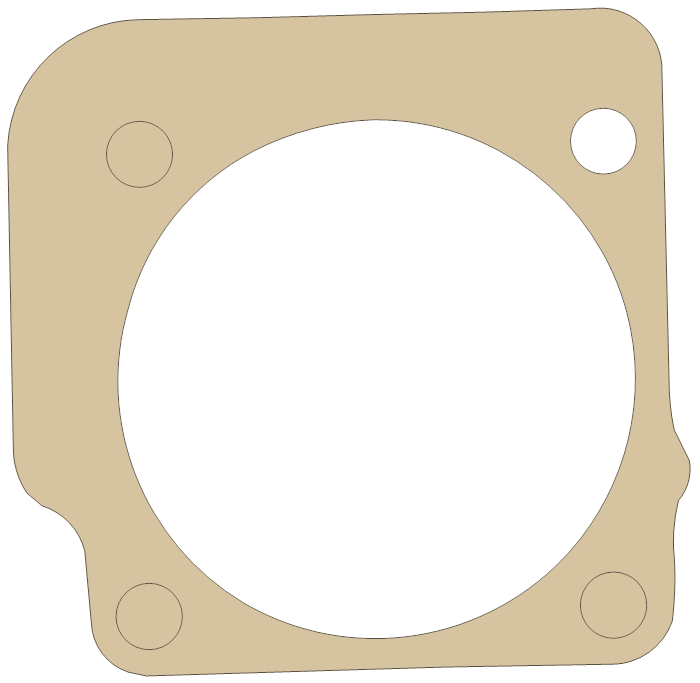

15 | — | B | 30 mm | 1966 - 1984 |
|
|

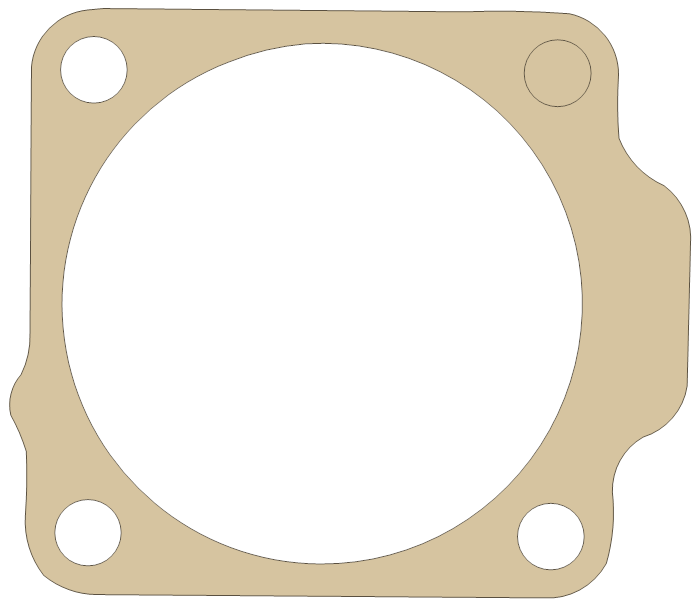

16 | — | B | 30 mm | 1966 - 1984 |
|
|

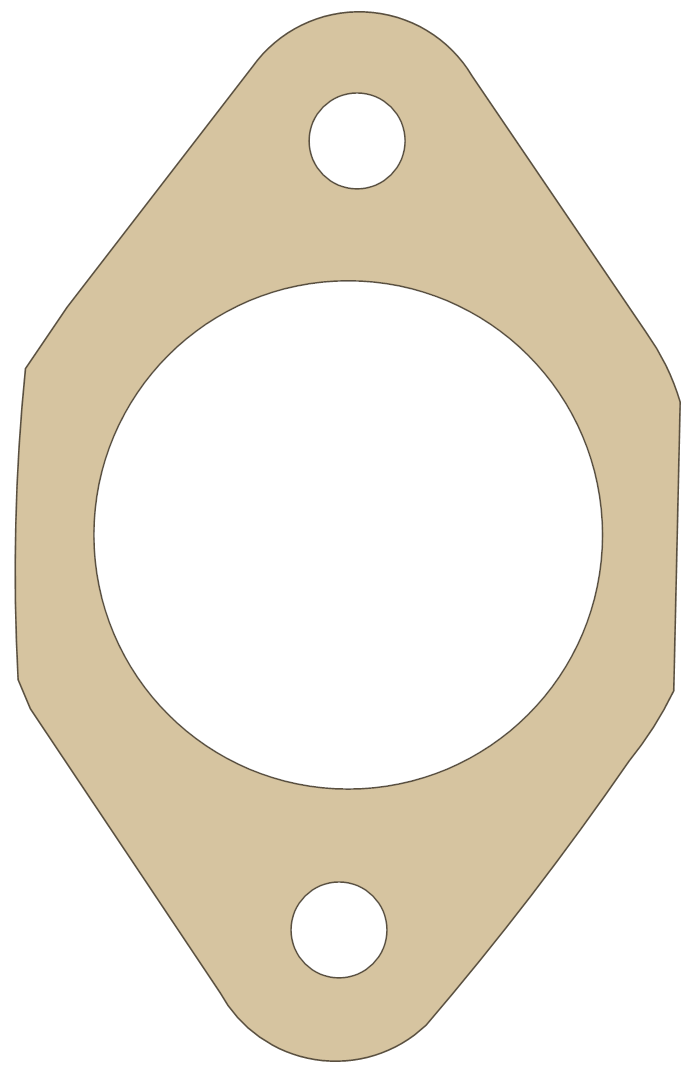

18 | — | B | 30 mm | 1966 - 1984 |
|
|

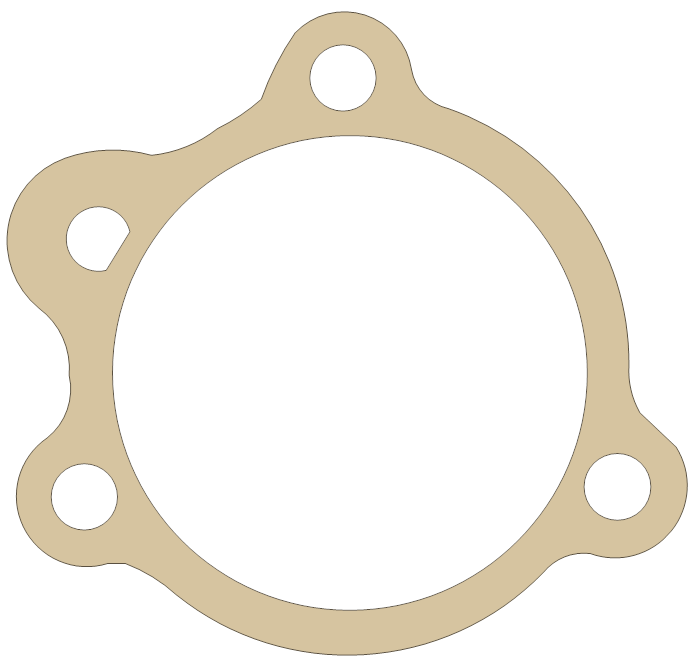

19 | — | B | 30 mm | 1966 - 1984 |
|
|

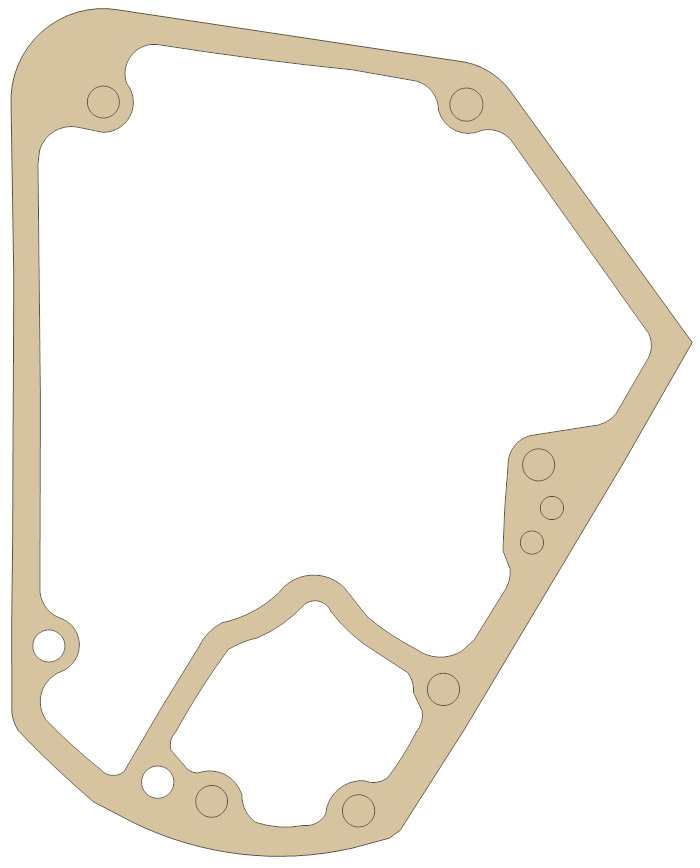

2 | — | B | 30 mm | 1966 - 1984 |
|
|

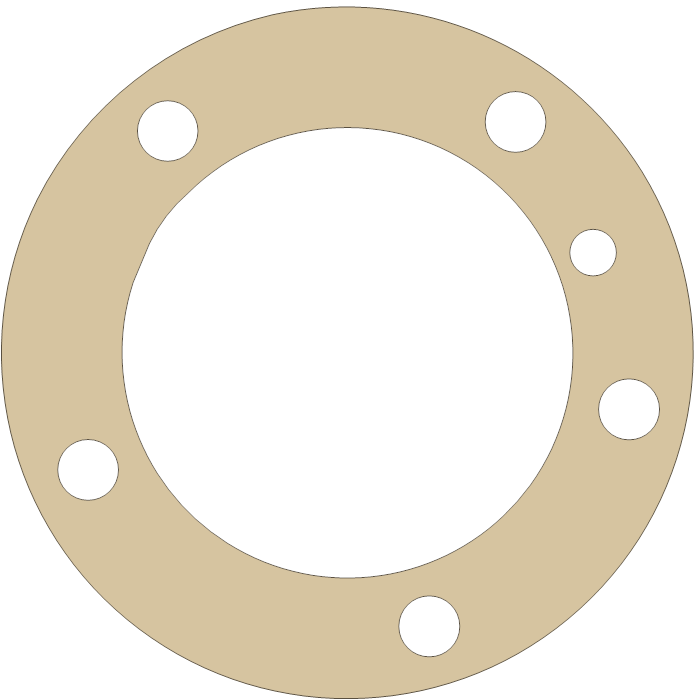

3 | — | B | 30 mm | 1966 - 1984 |
|
|

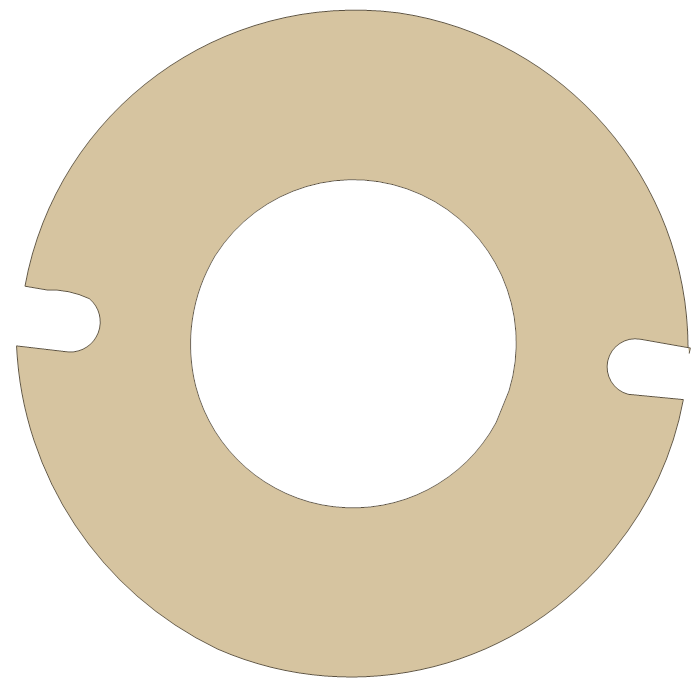

Generator Mount | 30143-58 | D | 15 mm | 1966 - 1984 |
|
|

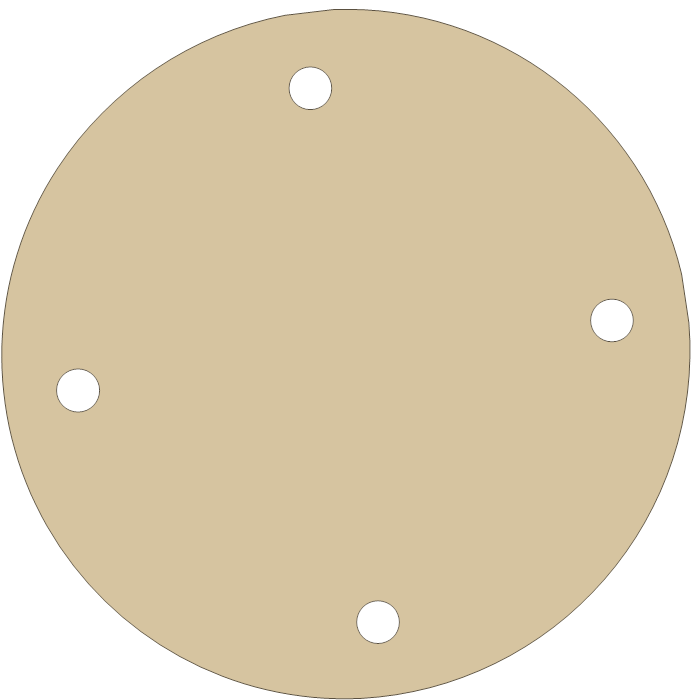

Ignition Timing Cover | 32591-80 | B | 30 mm | 1966 - 1984 |
|
|

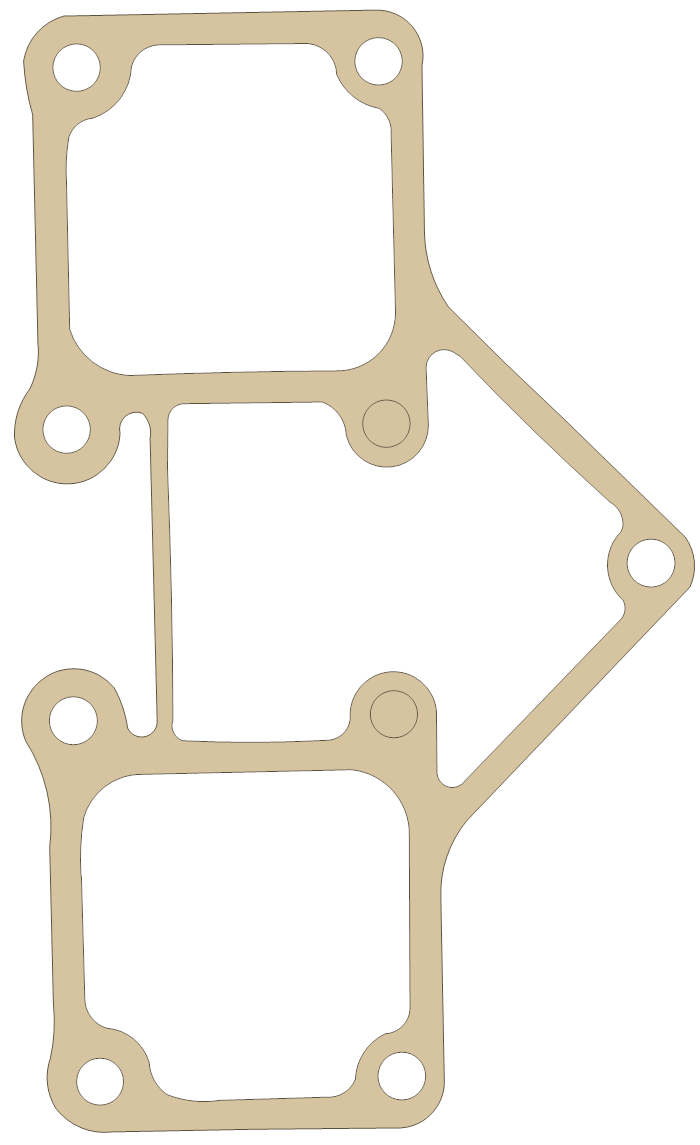

Rocker Arm Cover | 17540-69 | D | 15 mm | 1966 - 1984 |
Ready-to-cut files for every gasket listed here are available to subscribers. Specifications are free to view.
