3 gasket sets and 11 individual gaskets for the Honda ATC200M. Material, thickness and OEM cross-reference for each.
| Set | Gaskets in Set | Material | Years |
|---|---|---|---|
| SET A | 5 | A | 1984 - 1985 |
| SET B | 1 | A | 1984 - 1985 |
| SET C | 1 | B | 1984 - 1985 |
| Gasket | OEM Number | Material | Thickness | Years | |
|---|---|---|---|---|---|
|
|

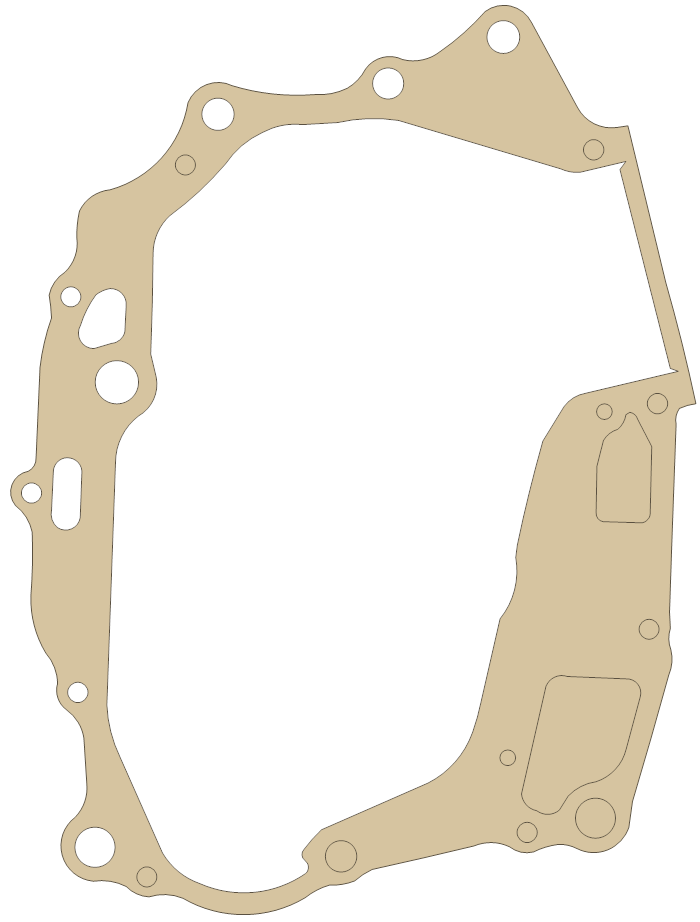

Crankcase | 11191-437-020 | A | 20 mm | 1984 - 1985 |
|
|
Crankcase | 11191-437-020 | A | 20 mm | 1981 - 1983 |
|
|

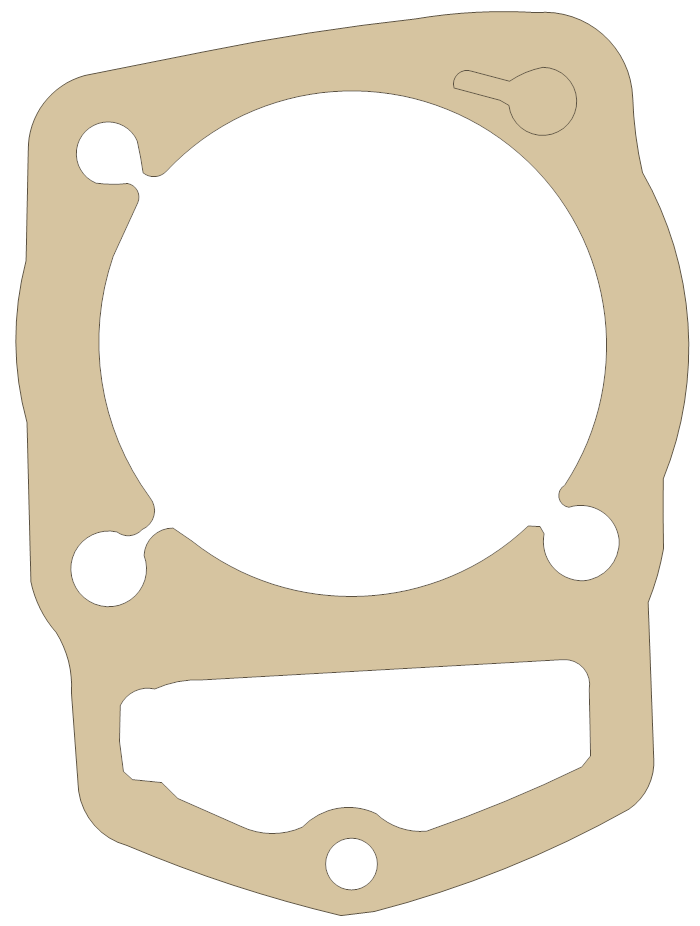

Cylinder | 12191-KT0-710 | A | 20 mm | 1984 - 1985 |
|
|
Cylinder Base | 12191-437-010 | A | 20 mm | 1984 - 1985 |
|
|

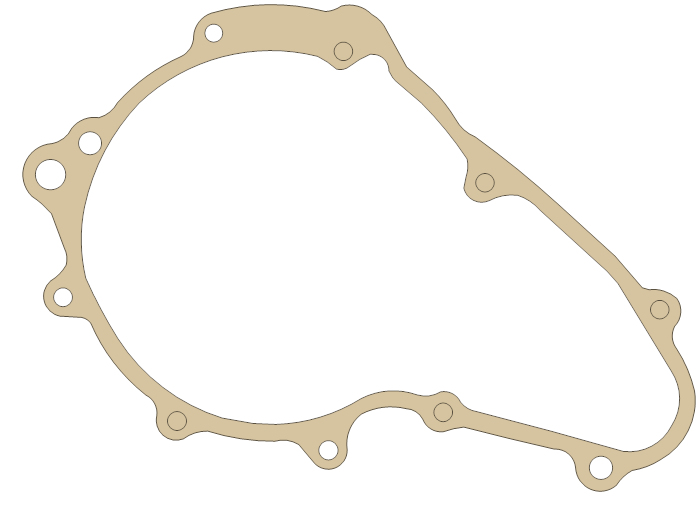

L. Cover | 11396-958-680 | A | 20 mm | 1984 - 1985 |
|
|

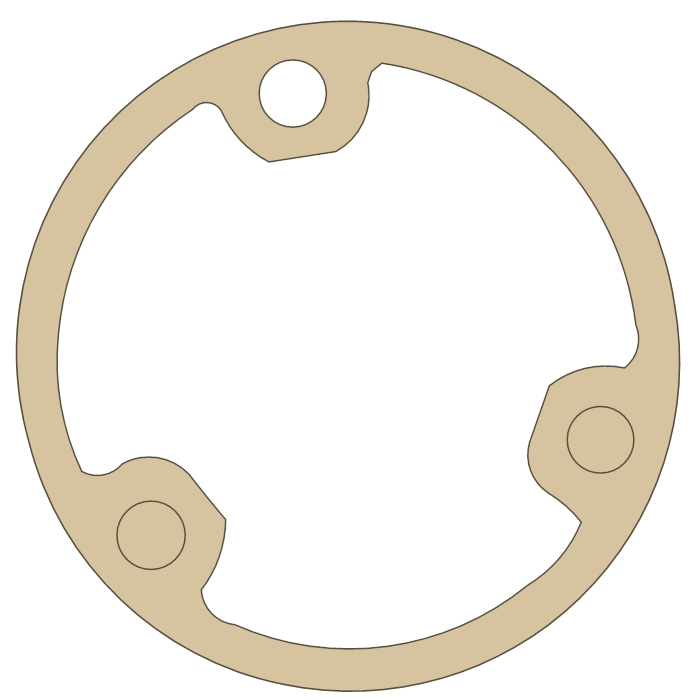

Oil Filter | 15459-958-000 | A | 20 mm | 1984 - 1985 |
|
|
Pulse Alternator Cover | 12339-KT0-710 | A | 20 mm | 1984 - 1985 |
|
|

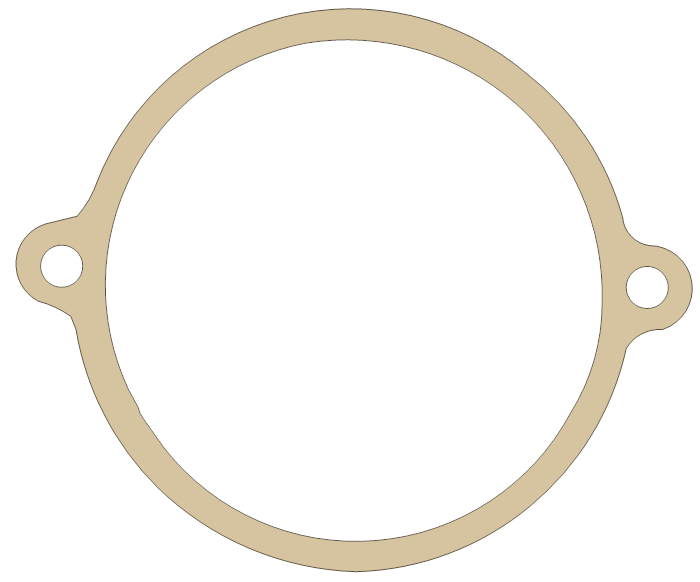

Pulse Generator | 12339-437-003 | A | 20 mm | 1984 - 1985 |
|
|

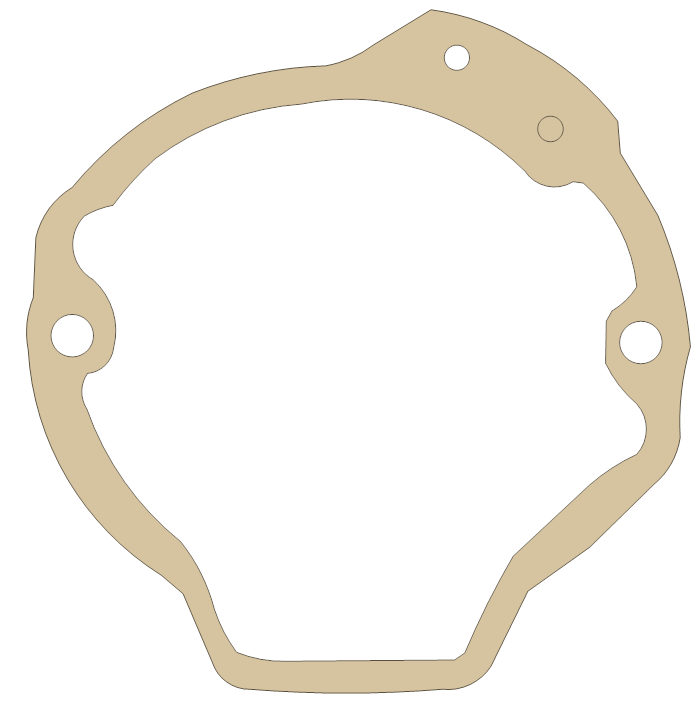

Pulse Generator Cover | 30372-KA2-000 | B | 40 mm | 1984 - 1985 |
|
|

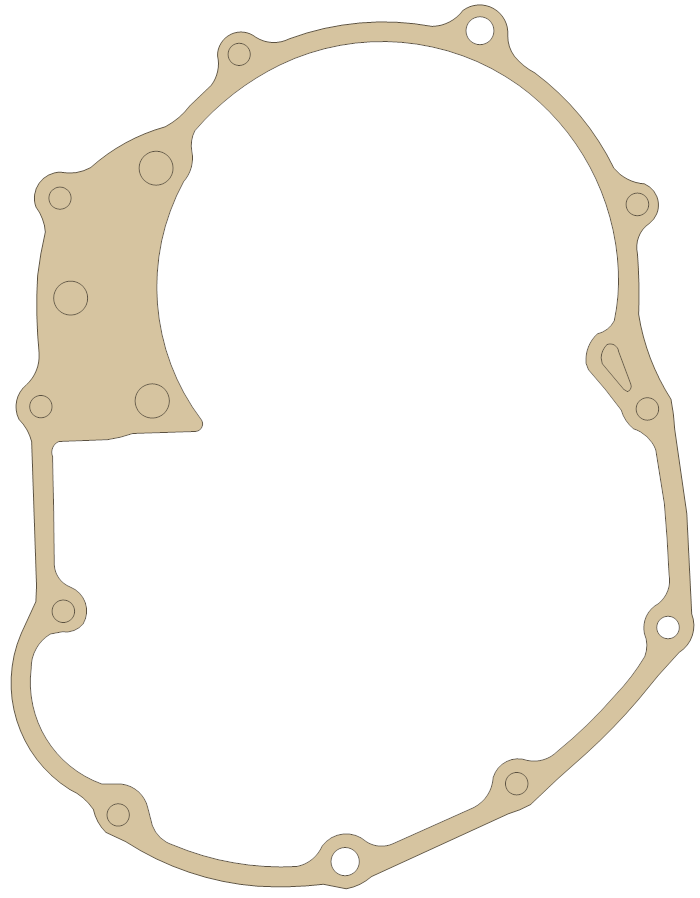

R. Cover Spacer | 11394-958-000 | A | 20 mm | 1984 - 1985 |
|
|

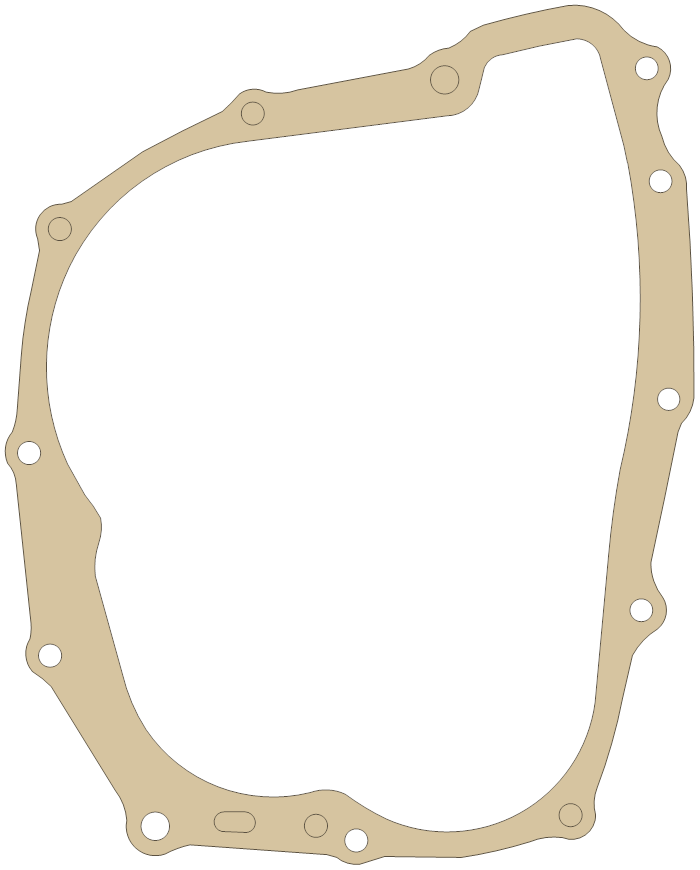

R. Crankcase Cover | 11393-437-010 | A | 20 mm | 1984 - 1985 |
Ready-to-cut files for every gasket listed here are available to subscribers. Specifications are free to view.
