4 gasket sets and 16 individual gaskets for the Honda ATC250R. Material, thickness and OEM cross-reference for each.
| Set | Gaskets in Set | Material | Years |
|---|---|---|---|
| SET A | 5 | A | 1981 - 1984 |
| SET A | 6 | A | 1985 - 1986 |
| SET B | 1 | A | 1981 - 1984 |
| SET B | 1 | B | 1985 - 1986 |
| Gasket | OEM Number | Material | Thickness | Years | |
|---|---|---|---|---|---|
|
|

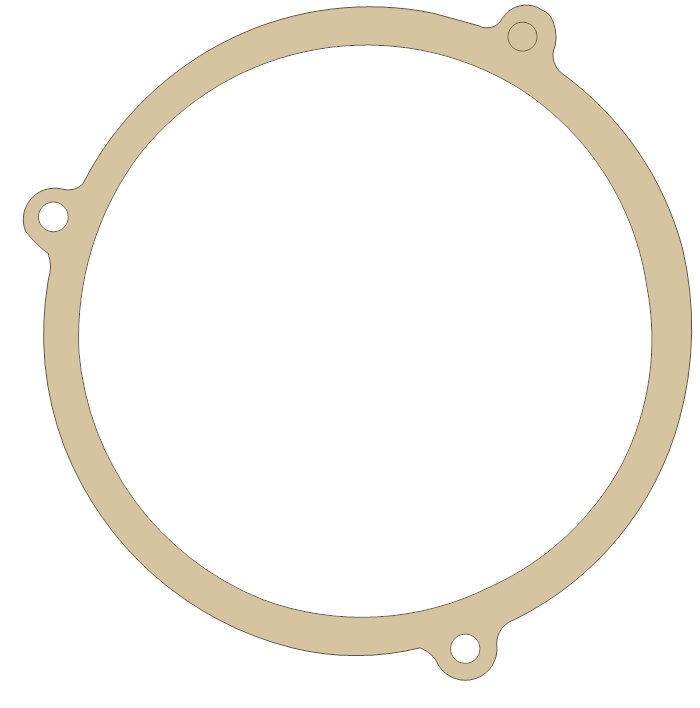

Alternator Cover | 31123-961-000 | A | 20 mm | 1981 - 1984 |
|
|

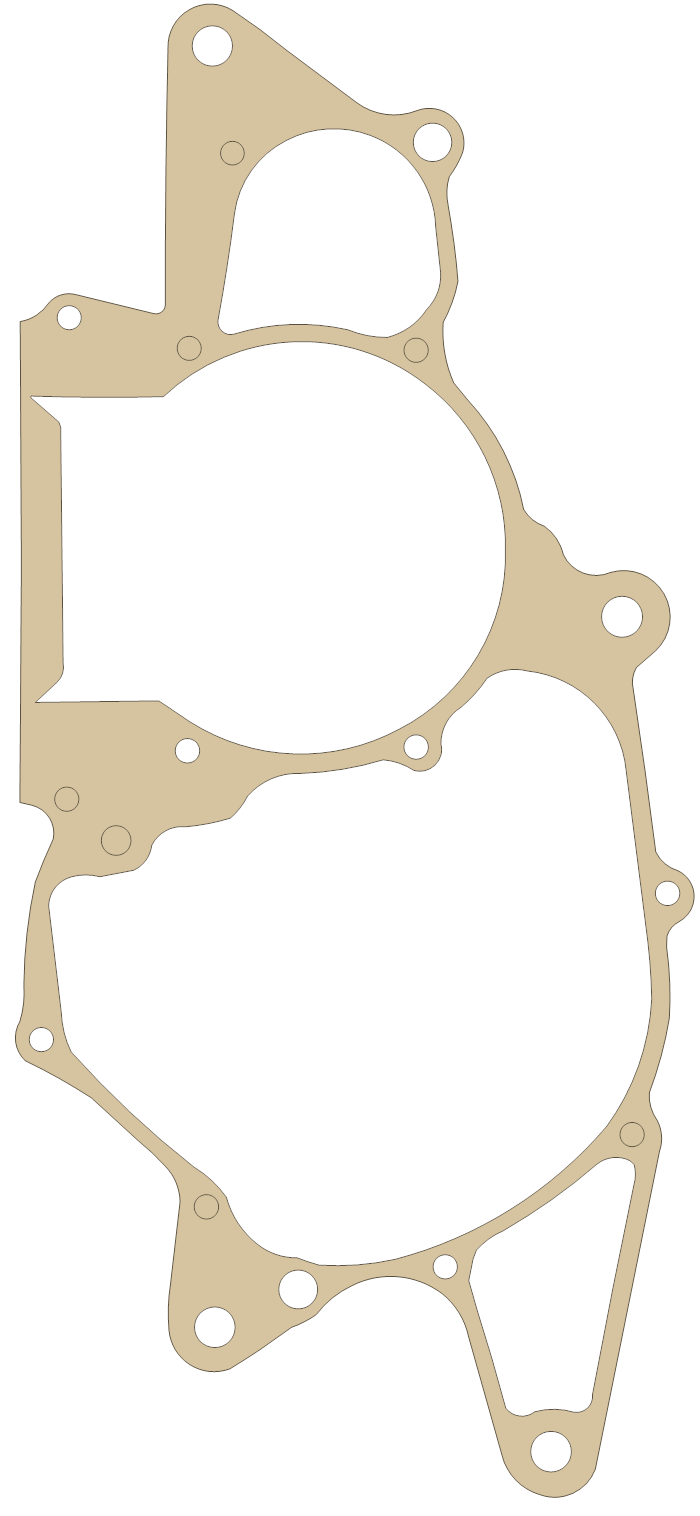

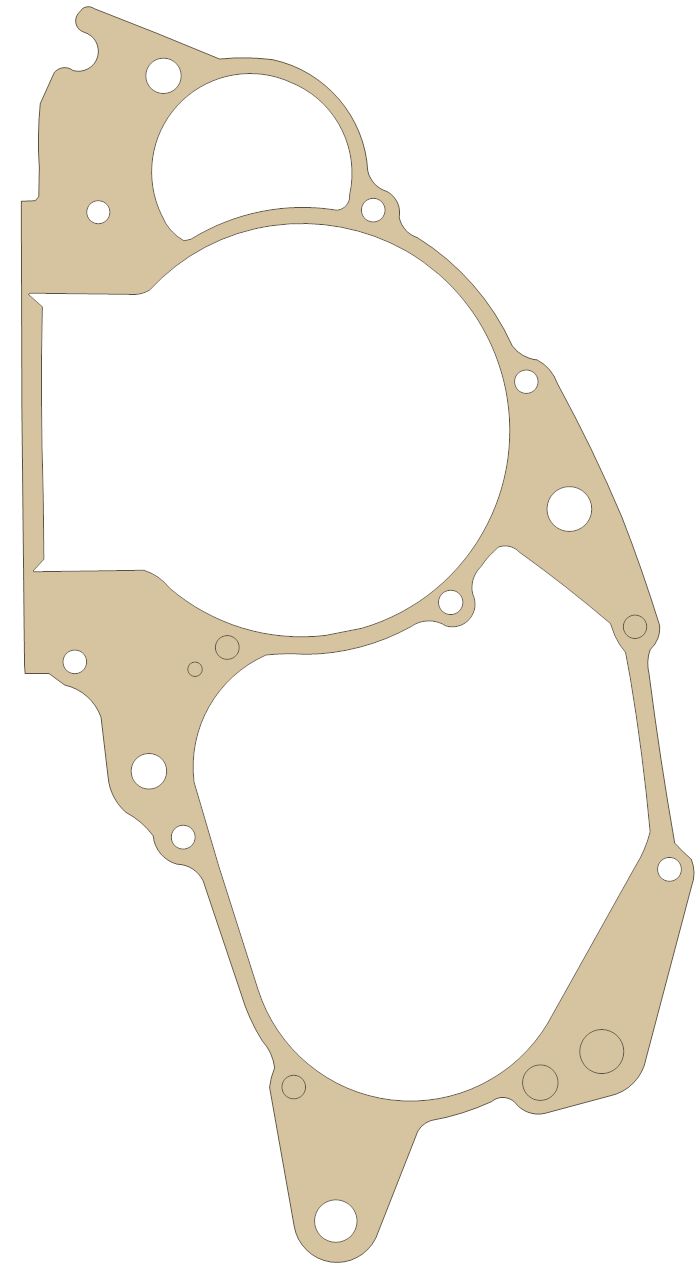

Crankcase | 11191-HA2-000 | A | 20 mm | 1985 - 1986 |
|
|
Crankcase | 11191-961-000 | A | 20 mm | 1981 - 1984 |
|
|

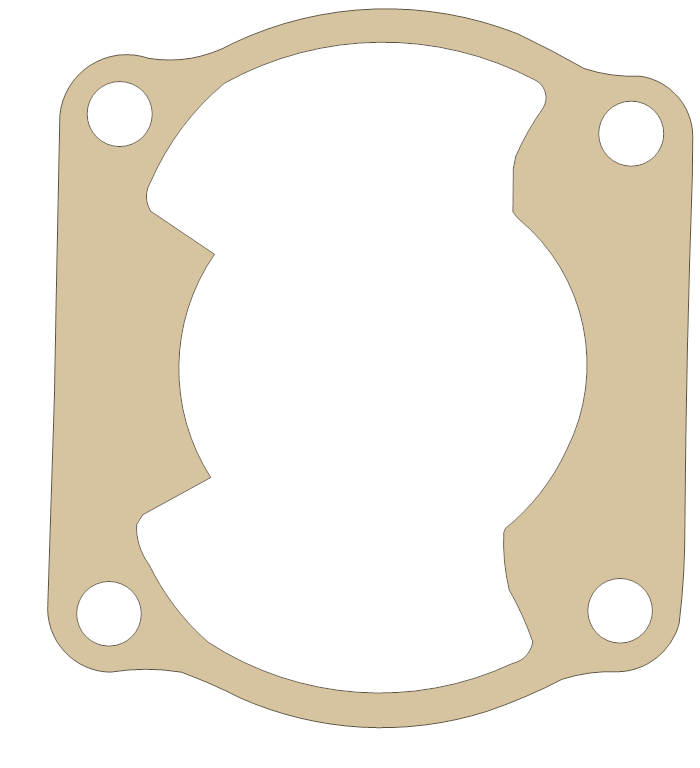

Cylinder | 12191-961-000 | A | 20 mm | 1981 - 1984 |
|
|

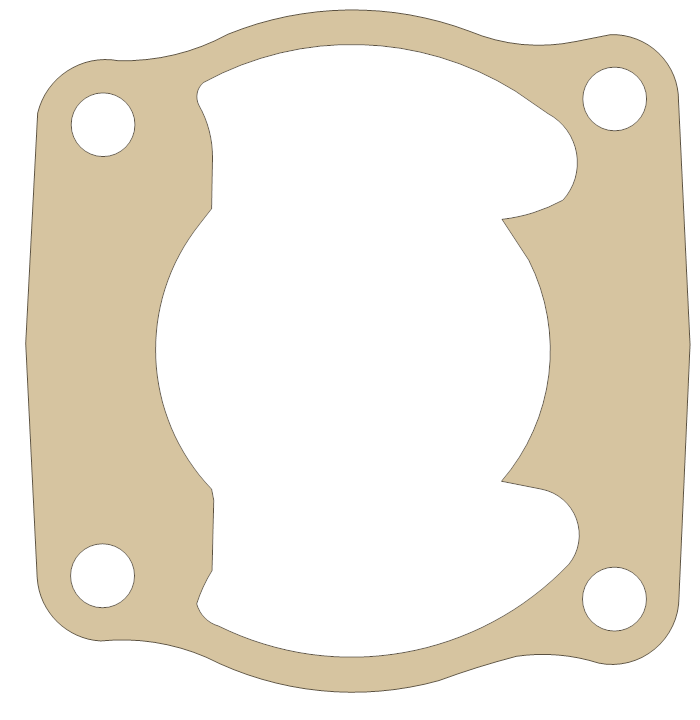

Cylinder Base | 12191-HA2-003 | A | 20 mm | 1985 - 1986 |
|
|
Cylinder Base | 12191-HA2-306 | A | 20 mm | 1985 - 1986 |
|
|

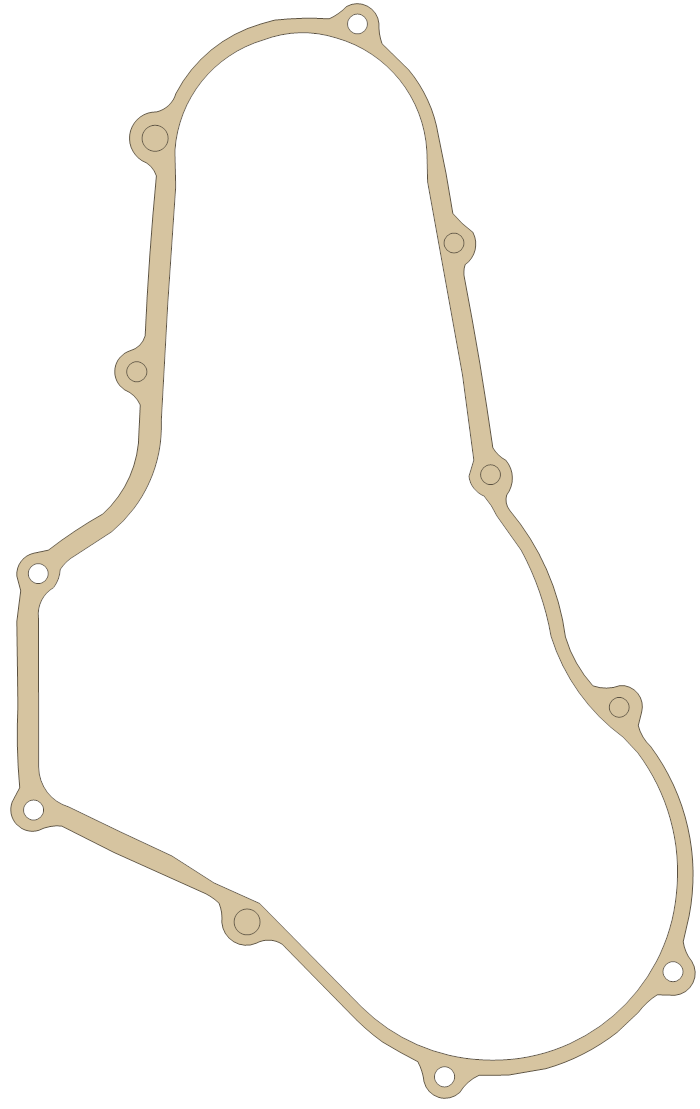

Left Cover | 11395-HA2-003 | A | 20 mm | 1985 - 1986 |
|
|
Left Cover | 11395-HA2-P00 | A | 20 mm | 1985 - 1986 |
|
|

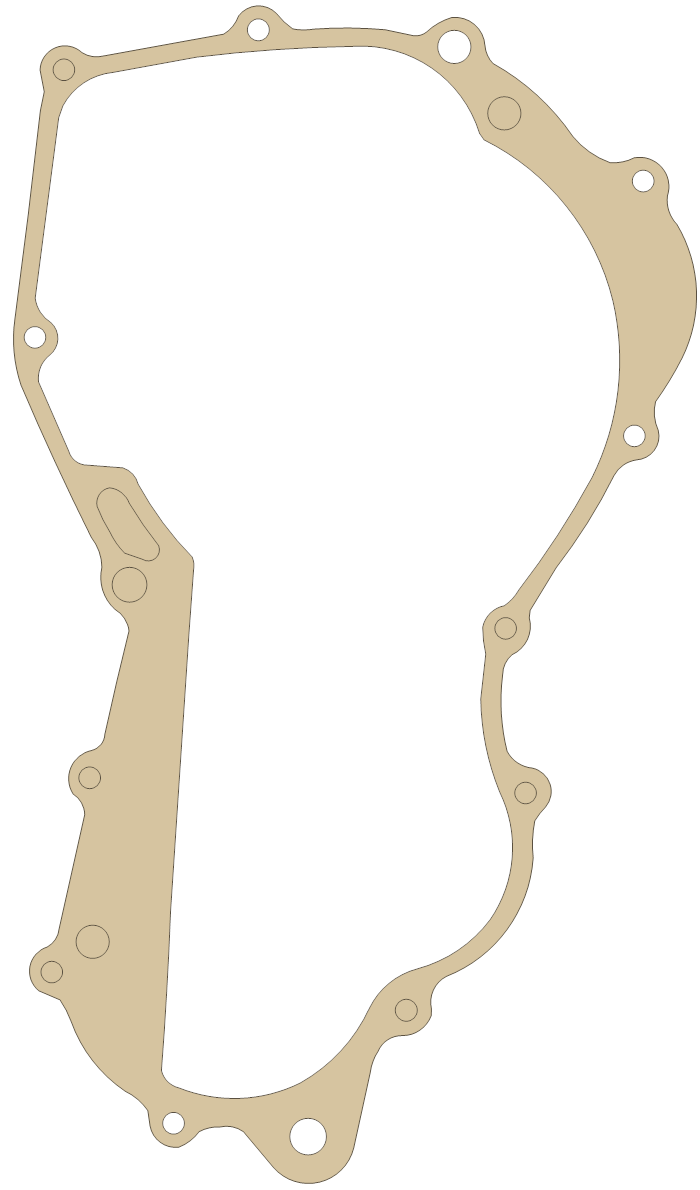

Left Crankcase Cover | 11395-961-000 | A | 20 mm | 1981 - 1984 |
|
|

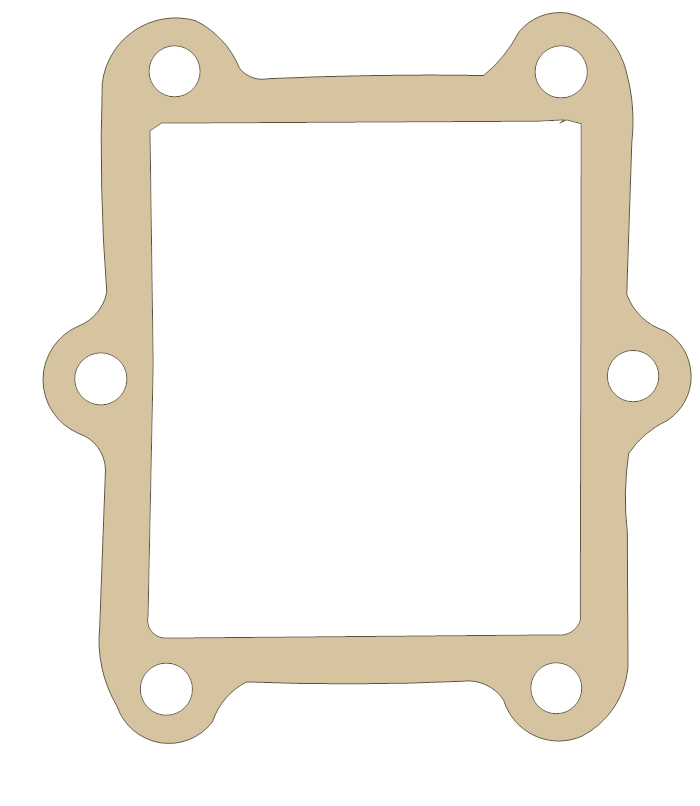

Reed Valve A | 14132-430-000 | A | 20 mm | 1981 - 1984 |
|
|
Reed Valve A | 14132-430-000 | A | 20 mm | 1985 - 1986 |
|
|

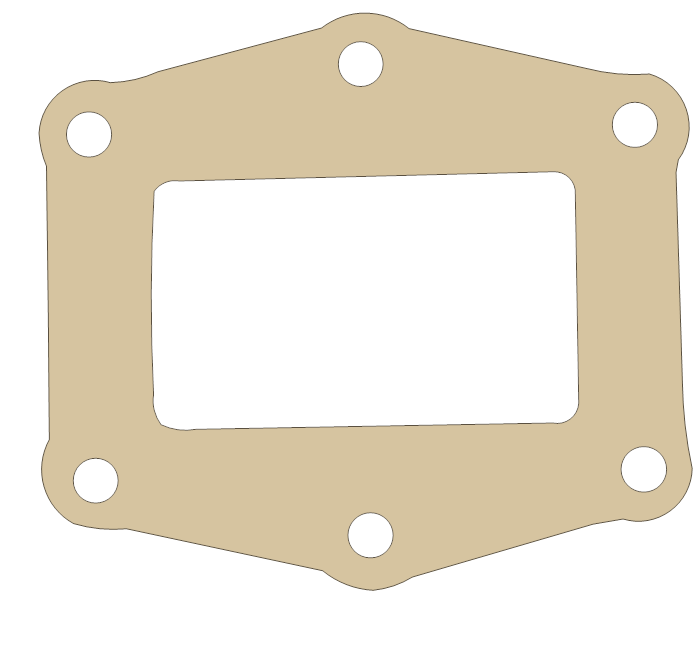

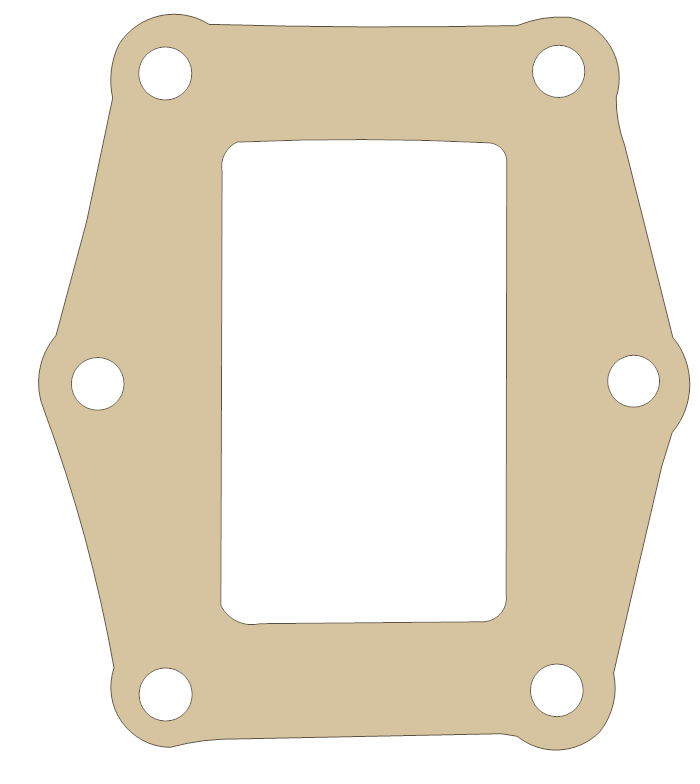

Reed Valve B | 14133-430-000 | A | 20 mm | 1985 - 1986 |
|
|
Reed Valve B | 14133-430-000 | A | 20 mm | 1981 - 1984 |
|
|

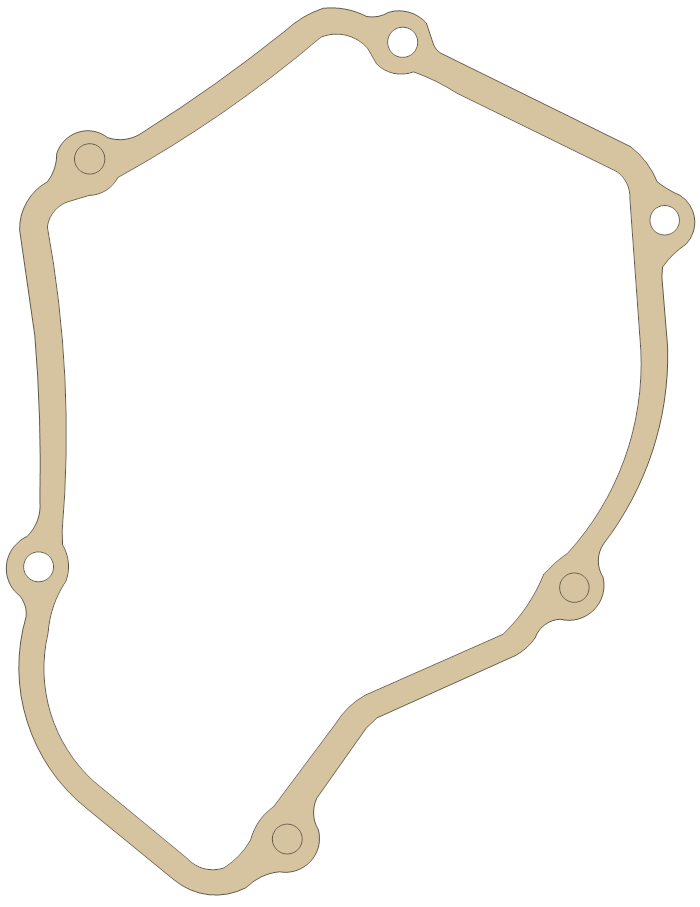

Right Cover | 11352-HA2-000 | B | 40 mm | 1985 - 1986 |
|
|
Right Cover | 11395-HA2-P00 | B | 40 mm | 1985 - 1986 |
|
|

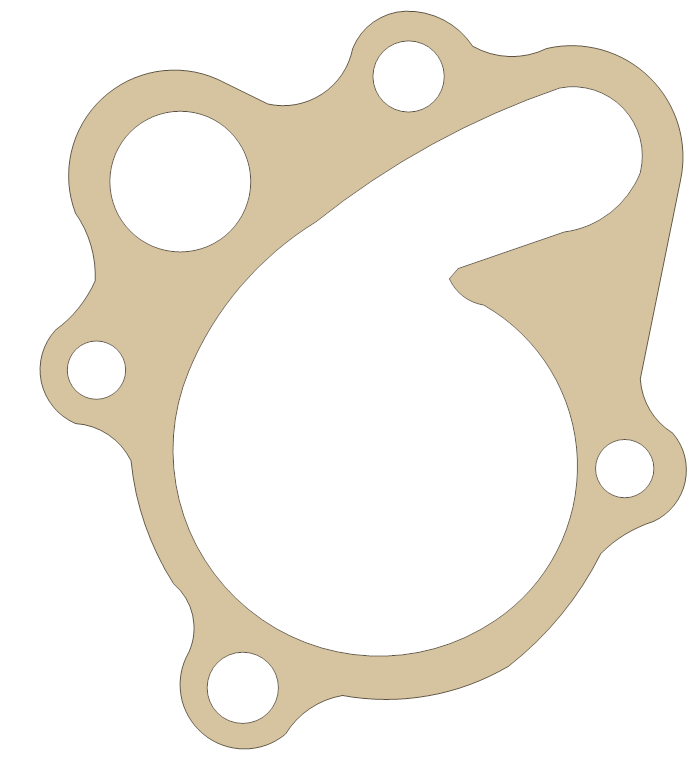

Water Pump Cover | 19229-HA2-000 | A | 20 mm | 1985 - 1986 |
Ready-to-cut files for every gasket listed here are available to subscribers. Specifications are free to view.
