2 gasket sets and 12 individual gaskets for the Honda CMX250C. Material, thickness and OEM cross-reference for each.
| Set | Gaskets in Set | Material | Years |
|---|---|---|---|
| SET A | 6 | A | 1996 - 1997 |
| SET A | 6 | A | 1999 - 2000 |
| Gasket | OEM Number | Material | Thickness | Years | |
|---|---|---|---|---|---|
|
|

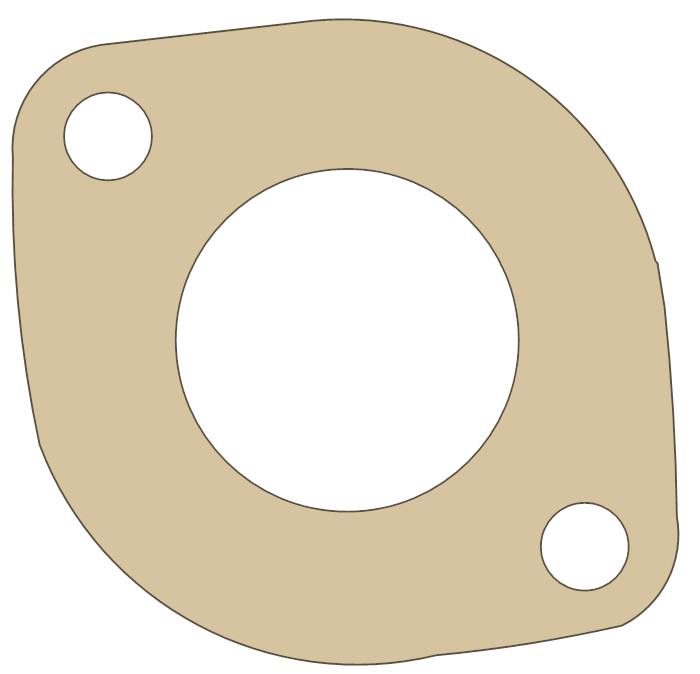

Carburetor Insulator | 16229-KBG-770 | A | 20 mm | 1996 - 1997 |
|
|
Carburetor Insulator | 16229-KBG-770 | A | 20 mm | 1999 - 2000 |
|
|

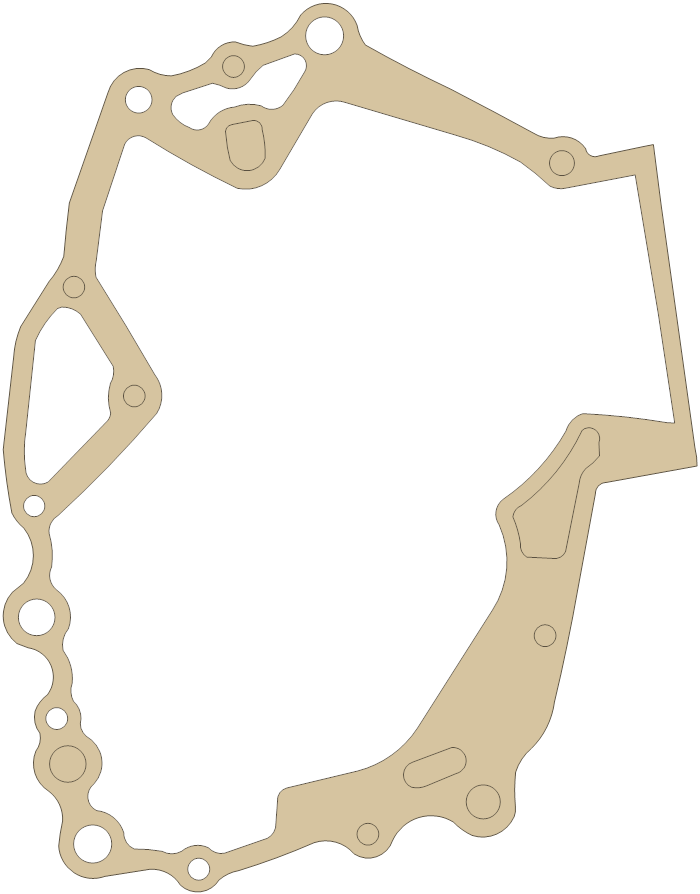

Crankcase | 11191-KBG-771 | A | 20 mm | 1999 - 2000 |
|
|
Crankcase | 11191-KBG-771 | A | 20 mm | 1996 - 1997 |
|
|

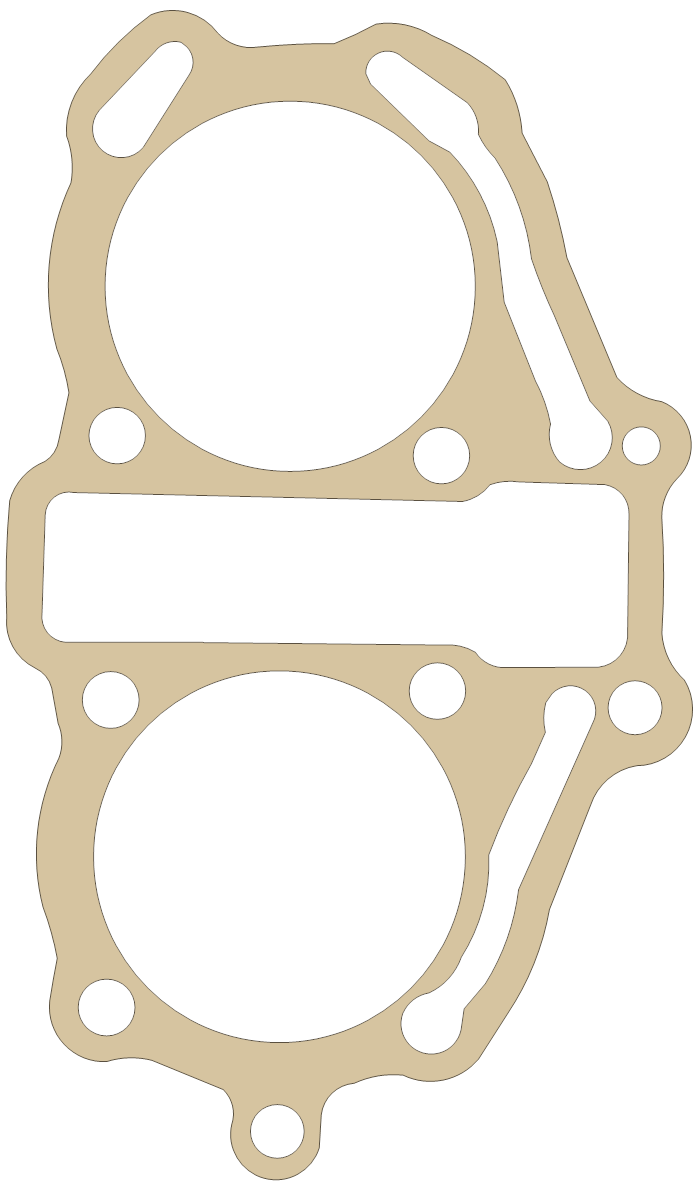

Cylinder Base | 12191-KBG-770 | A | 20 mm | 1996 - 1997 |
|
|
Cylinder Base | 12191-KBG-770 | A | 20 mm | 1999 - 2000 |
|
|

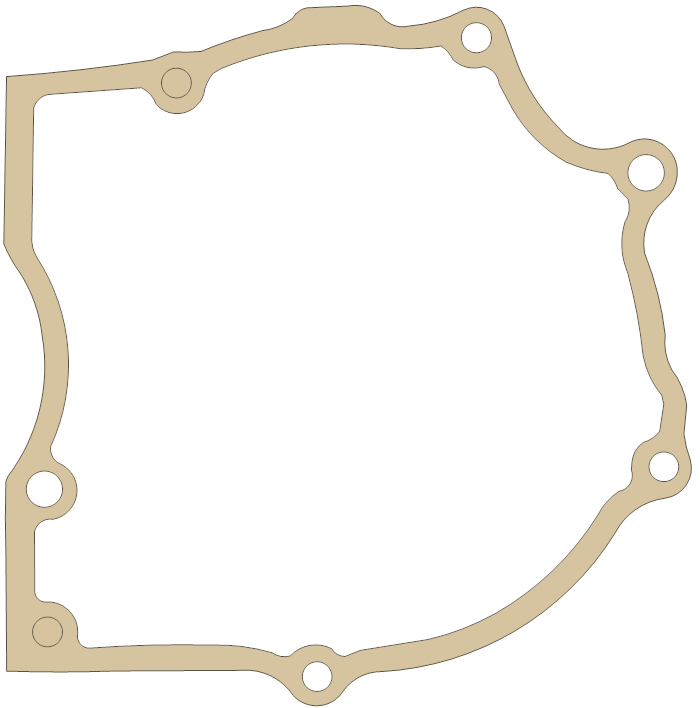

L. Crankcase Cover | 11394-KBG-771 | A | 20 mm | 1999 - 2000 |
|
|
L. Crankcase Cover | 11394-KBG-771 | A | 20 mm | 1996 - 1997 |
|
|

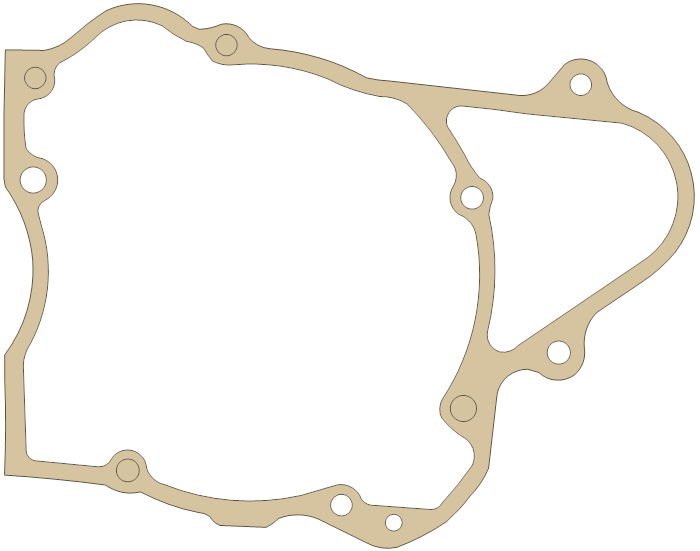

L. Side Spacer | 11395-KBG-771 | A | 20 mm | 1996 - 1997 |
|
|
L. Side Spacer | 11395-KBG-771 | A | 20 mm | 1999 - 2000 |
|
|

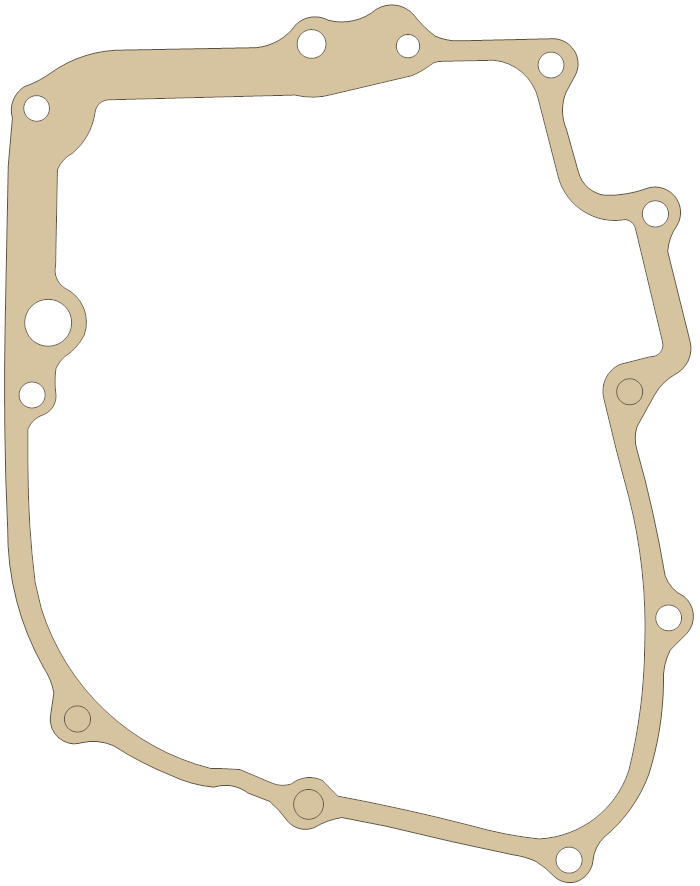

R. Crankcase Cover | 11393-KBG-771 | A | 20 mm | 1996 - 1997 |
|
|
R. Crankcase Cover | 11393-KBG-771 | A | 20 mm | 1999 - 2000 |
Ready-to-cut files for every gasket listed here are available to subscribers. Specifications are free to view.
