2 gasket sets and 11 individual gaskets for the Honda CR500R. Material, thickness and OEM cross-reference for each.
| Set | Gaskets in Set | Material | Years |
|---|---|---|---|
| SET A | 7 | A | 1987 - 1988 |
| SET A | 6 | A | 1989 - 2001 |
| Gasket | OEM Number | Material | Thickness | Years | |
|---|---|---|---|---|---|
|
|

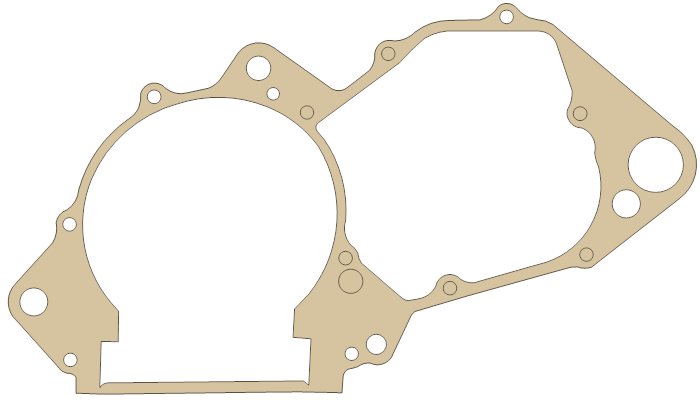

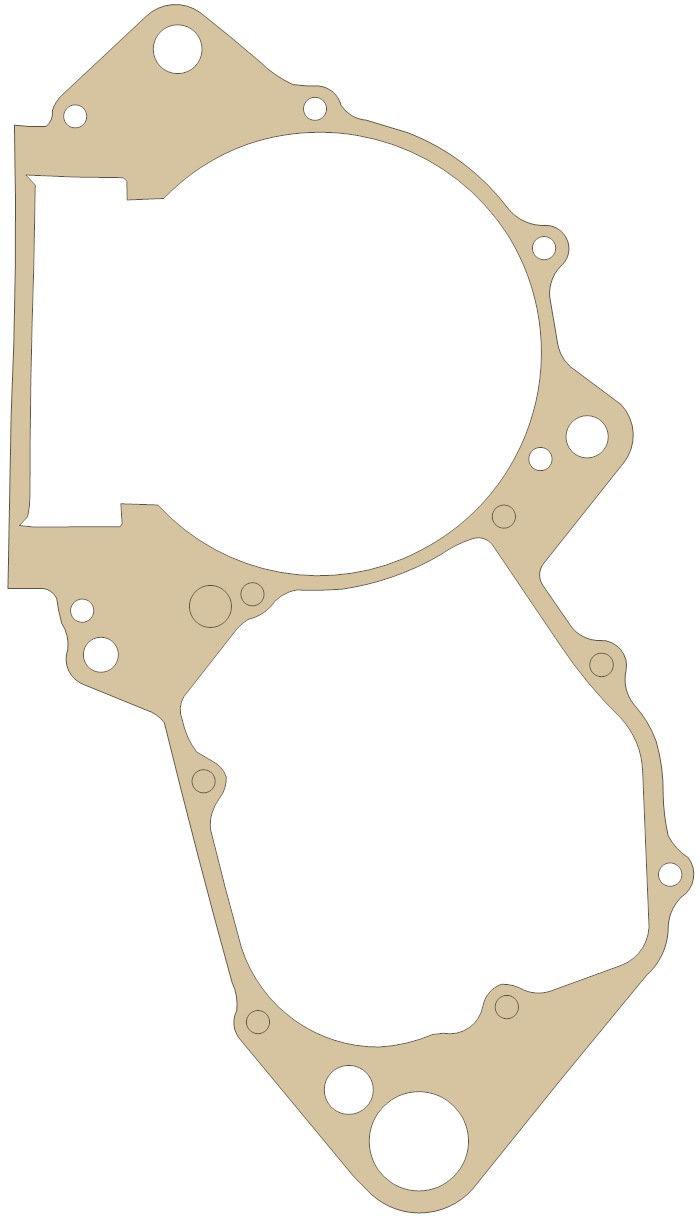

Crankcase | 11191-ML3-680 | A | 20 mm | 1989 - 2001 |
|
|
Crankcase | 11191-ML3-780 | A | 20 mm | 1987 - 1988 |
|
|

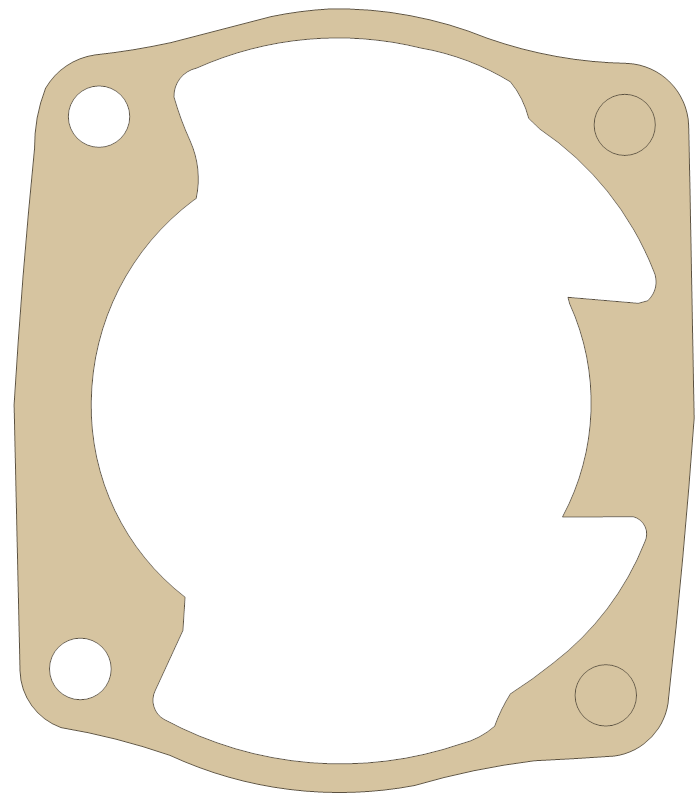

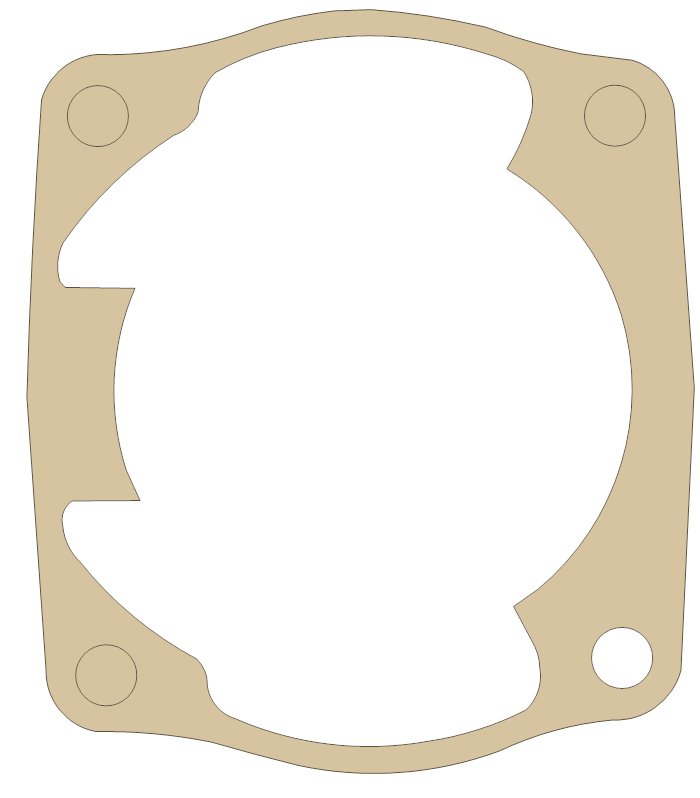

Cylinder Base | 12191-KA5-690 | A | 20 mm | 1987 - 1988 |
|
|
Cylinder Base | 12291-ML3-680 | A | 20 mm | 1989 - 2001 |
|
|

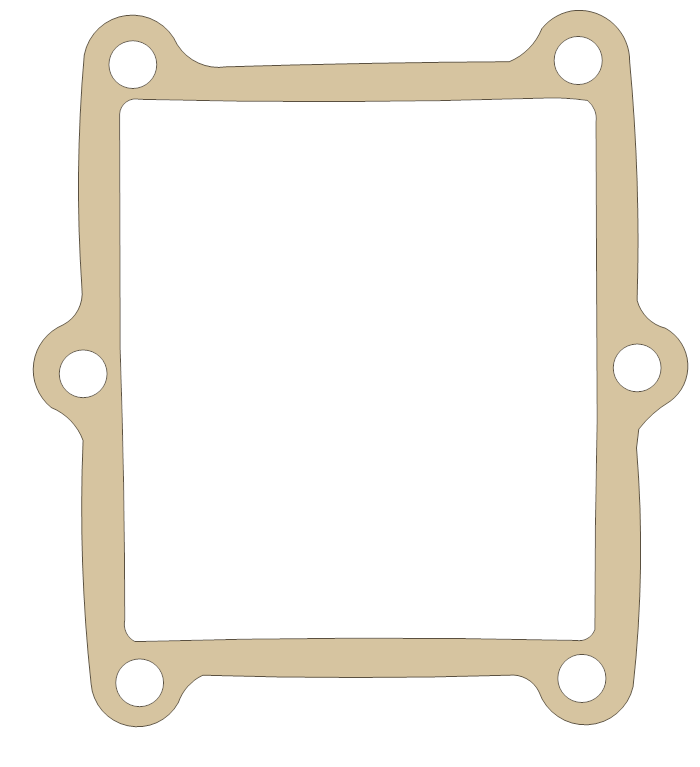

Reed Valve | 14132-ML3-880 | A | 20 mm | 1989 - 2001 |
|
|

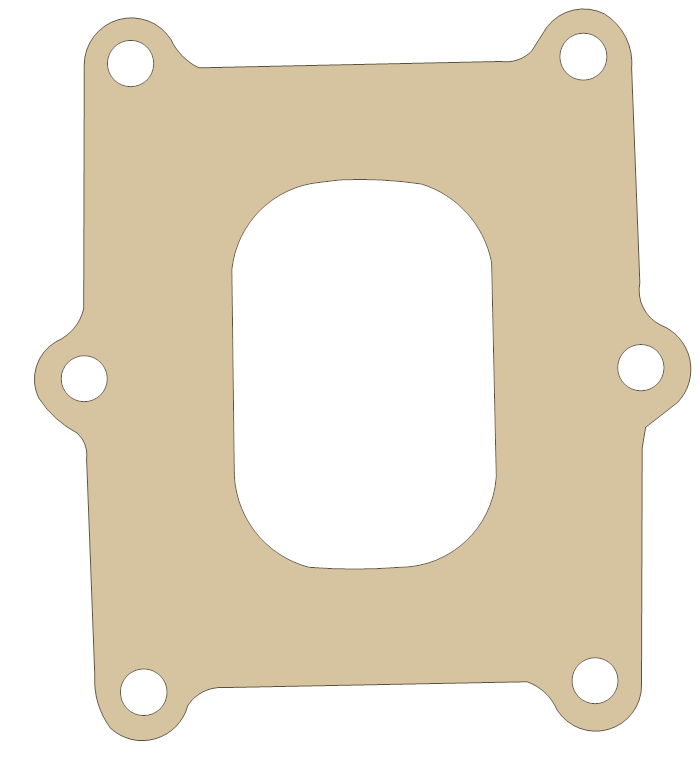

Reed Valve A | 14133-KA5-740 | A | 20 mm | 1987 - 1988 |
|
|

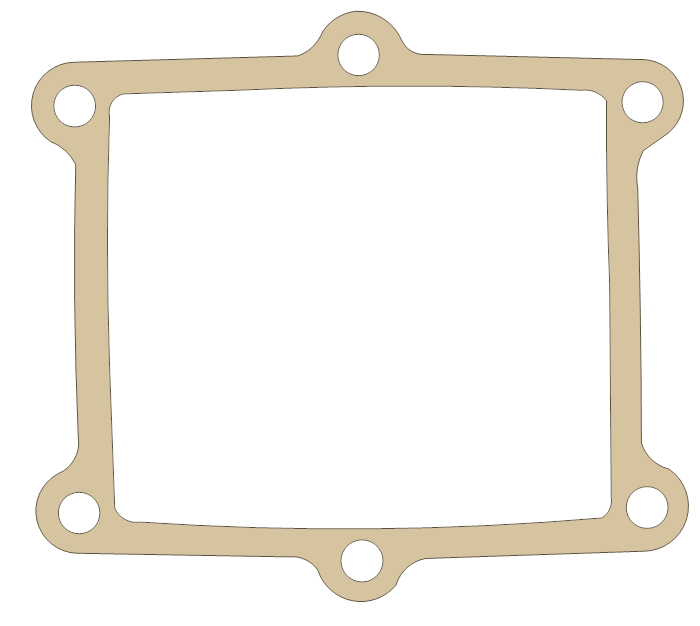

Reed Valve B | 14132-KA5-740 | A | 20 mm | 1987 - 1988 |
|
|

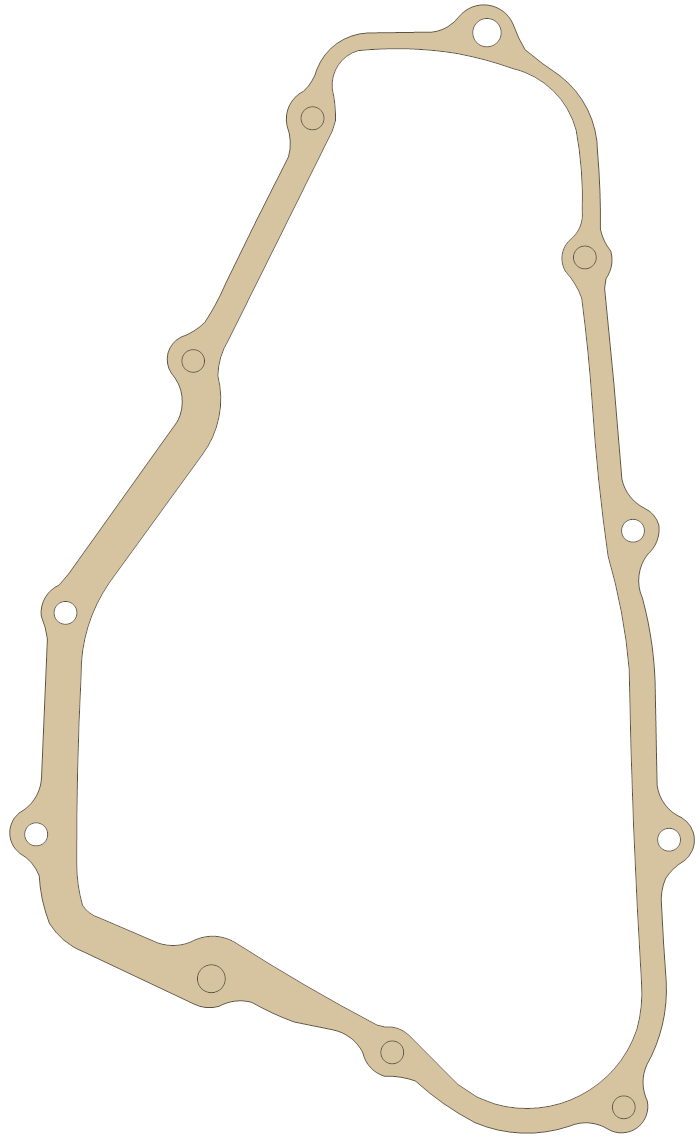

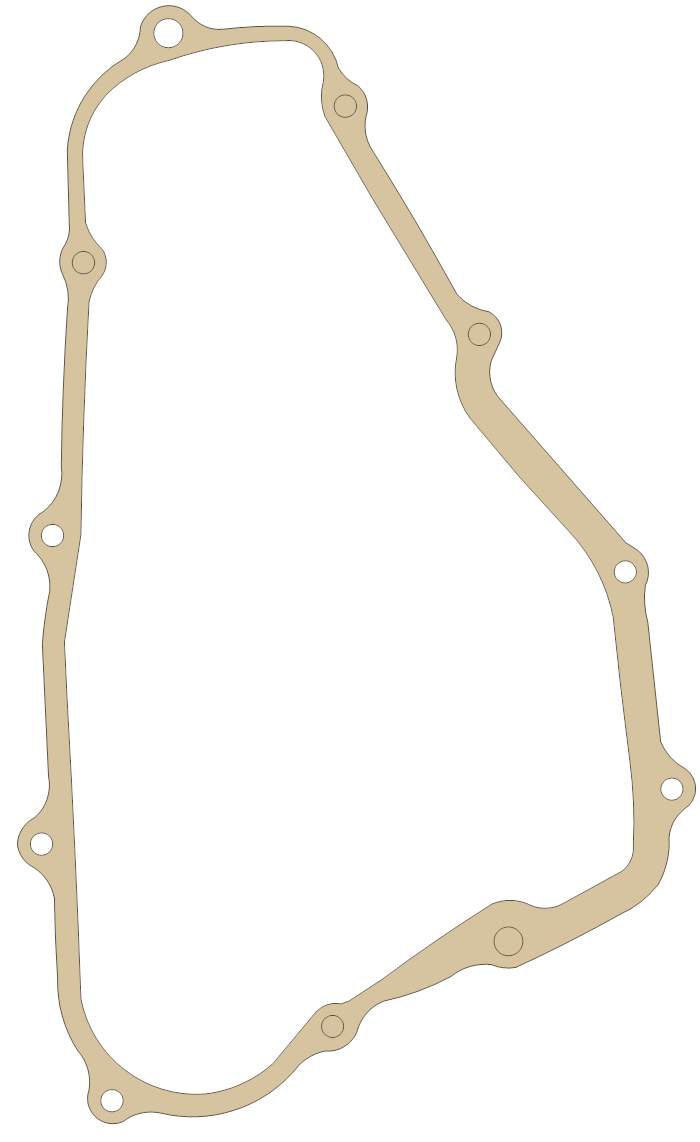

Right Crankcase Cover | 11395-ML3-000 | A | 20 mm | 1989 - 2001 |
|
|
Right Crankcase Cover | 11395-ML3-000 | A | 20 mm | 1987 - 1988 |
|
|

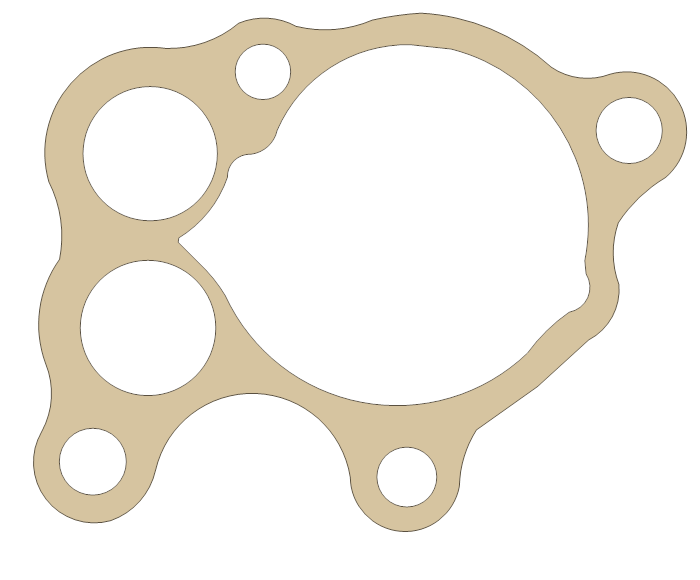

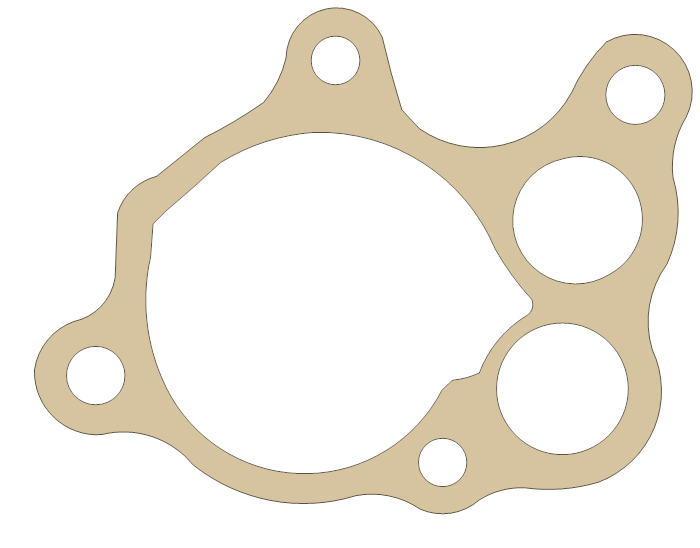

Water Pump | 19229-KA5-690 | A | 20 mm | 1987 - 1988 |
|
|
Water Pump | 19229-MAC-680 | A | 20 mm | 1989 - 2001 |
Ready-to-cut files for every gasket listed here are available to subscribers. Specifications are free to view.
