3 gasket sets and 13 individual gaskets for the Honda XR100R. Material, thickness and OEM cross-reference for each.
| Set | Gaskets in Set | Material | Years |
|---|---|---|---|
| SET A | 3 | A | 1985 - 1991 |
| SET A | 5 | A | 1992 - 1999 |
| SET B | 1 | B | 1985 - 1991 |
| Gasket | OEM Number | Material | Thickness | Years | |
|---|---|---|---|---|---|
|
|

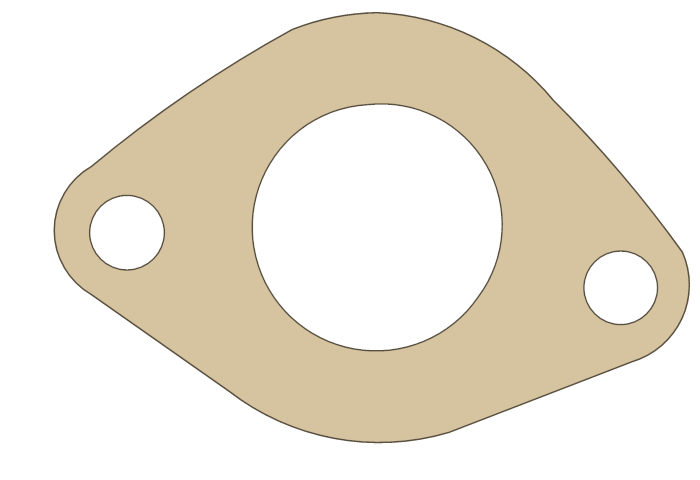

Carburetor Insulator | 16229-KN4-750 | A | 20 mm | 1992 - 2003 |
|
|

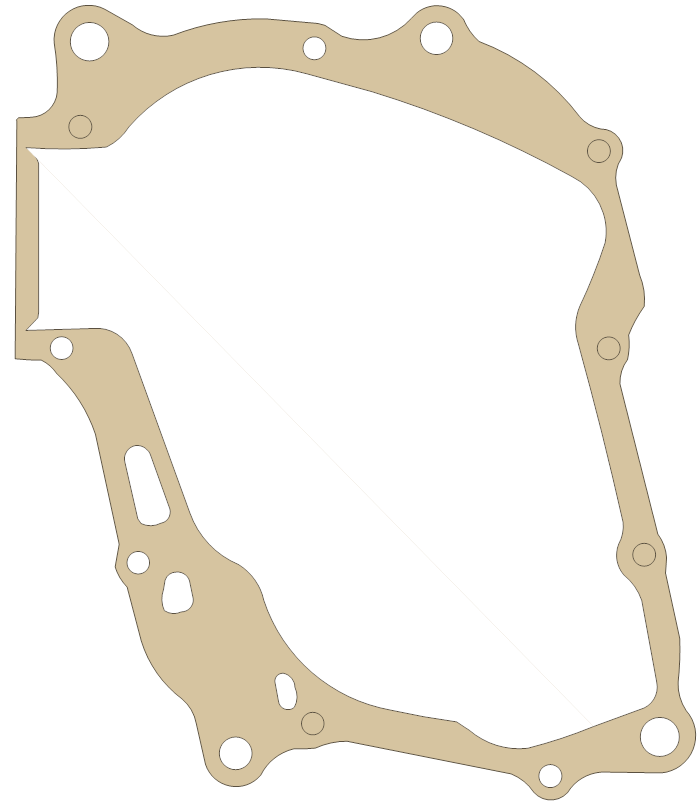

Crankcase | 11191-436-000 | A | 20 mm | 1992 - 1999 |
|
|
Crankcase | 11191-436-000 | A | 20 mm | 1985 - 1991 |
|
|
Crankcase | 11191-KN4-750 | A | 20 mm | 2001 - 2003 |
|
|

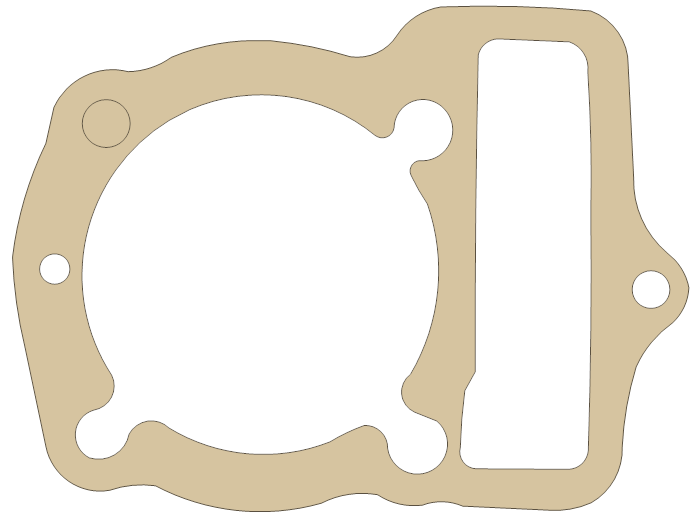

Cylinder | 12191-KN4-750 | A | 20 mm | 2001 - 2003 |
|
|
Cylinder | 12191-KA8-000 | A | 20 mm | 1985 - 1991 |
|
|
Cylinder | 12191-KA8-000 | A | 20 mm | 1992 - 1999 |
|
|

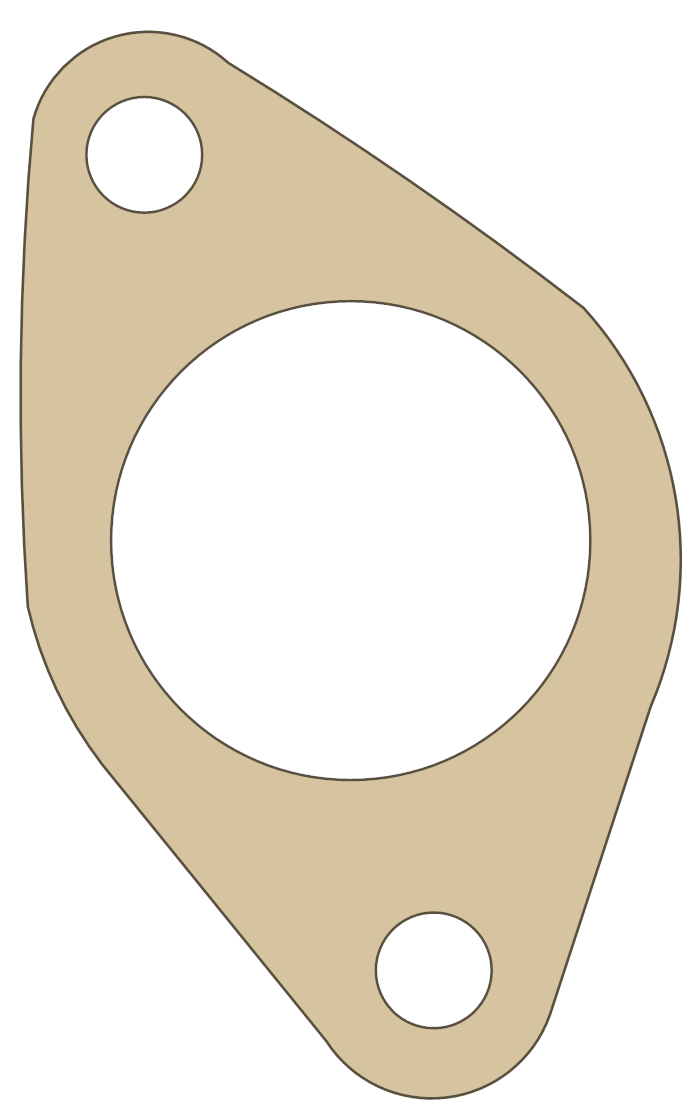

Gasket | 12391-149-003 | A | 20 mm | 1992 - 2003 |
|
|

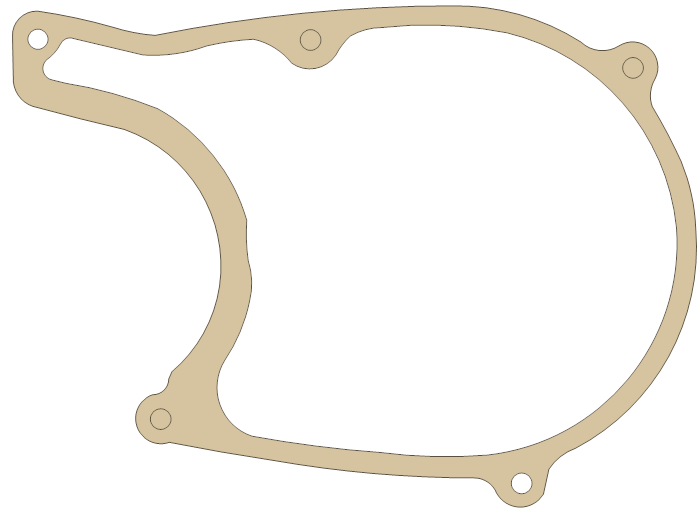

L. Crankcase Cover | 11394-KN4-750 | B | 40 mm | 1985 - 1991 |
|
|

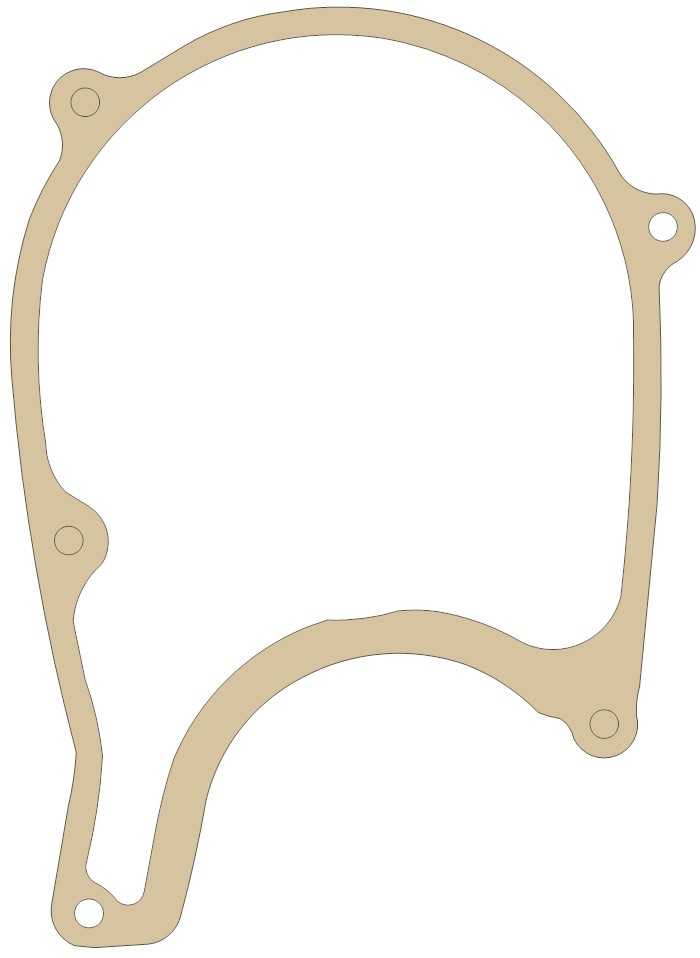

L. Crankcase Cover | 11394-KN4-750 | A | 20 mm | 1992 - 2003 |
|
|

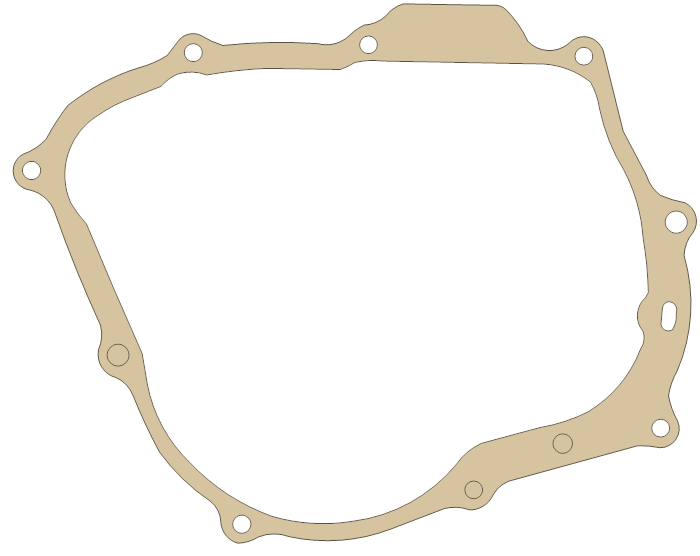

R. Crankcase Cover | 11393-436-000 | A | 20 mm | 1992 - 1999 |
|
|
R. Crankcase Cover | 11393-436-000 | A | 20 mm | 1985 - 1991 |
|
|

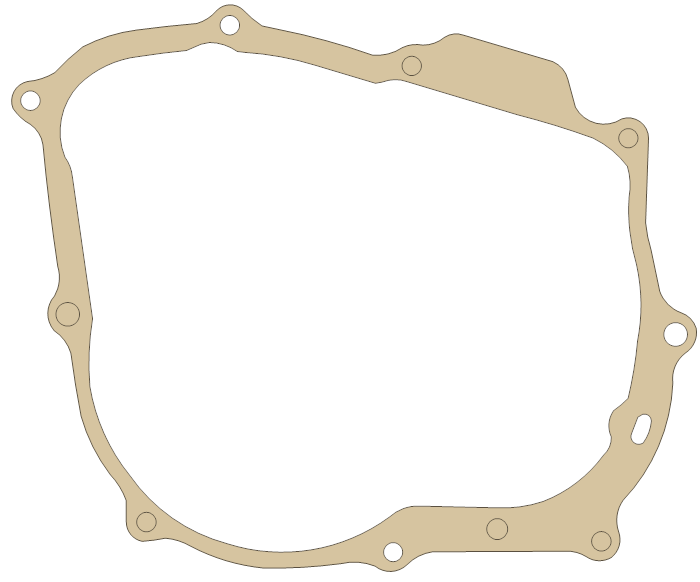

Right Crankcase Cover | 11393-KN4-750 | A | 20 mm | 2001 - 2003 |
Ready-to-cut files for every gasket listed here are available to subscribers. Specifications are free to view.
