8 gasket sets and 30 individual gaskets for the Honda XR200R. Material, thickness and OEM cross-reference for each.
| Set | Gaskets in Set | Material | Years |
|---|---|---|---|
| SET A | 6 | A | 1994 - 1999 |
| SET A | 5 | A | 1990 - 1991 |
| SET A | 6 | A | 1981 - 1983 |
| SET A | 6 | A | 1986 - 1988 |
| SET A | 3 | A | 1993 |
| SET B | 1 | A | 1994 - 1999 |
| SET B | 1 | B | 1981 - 1983 |
| SET B | 1 | B | 1990 - 1991 |
| Gasket | OEM Number | Material | Thickness | Years | |
|---|---|---|---|---|---|
|
|

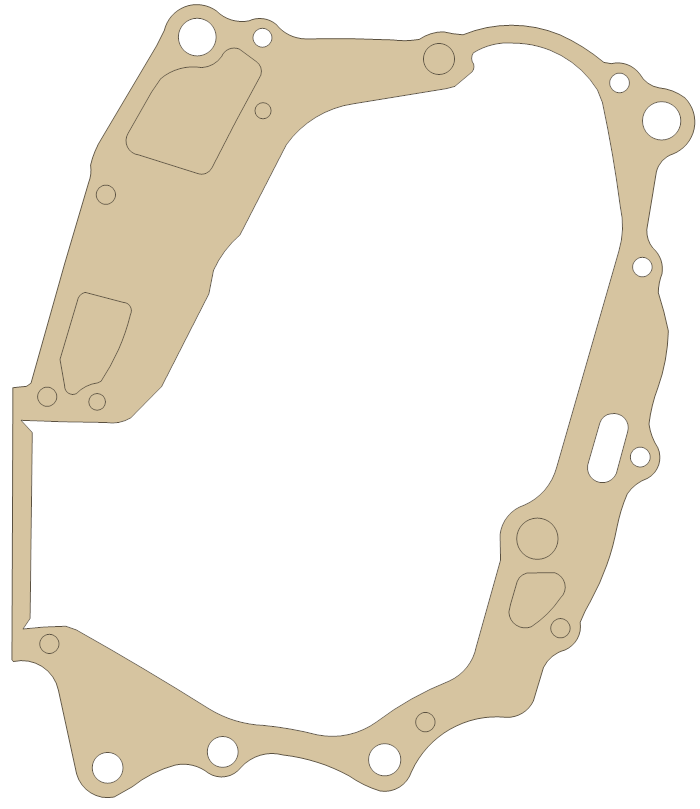

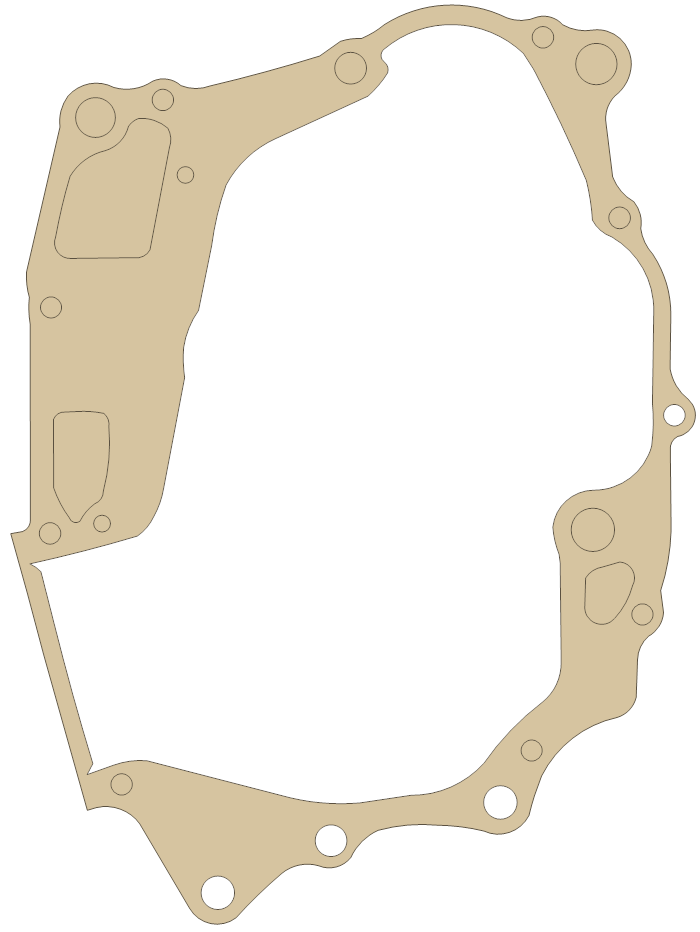

Crankcase | 11191-437-010 | A | 20 mm | 1981 - 1983 |
|
|
Crankcase | 11191-KT0-710 | A | 20 mm | 1994 - 2004 |
|
|
Crankcase | 11191-439-970 | A | 20 mm | 1990 - 1991 |
|
|
Crankcase | 11191-437-010 | A | 20 mm | 1986 - 1988 |
|
|
Cylinder | 12191-KT0-710 | A | 20 mm | 1981 - 1988 |
|
|
Cylinder | 12191-KT0-710 | A | 20 mm | 1993 |
|
|

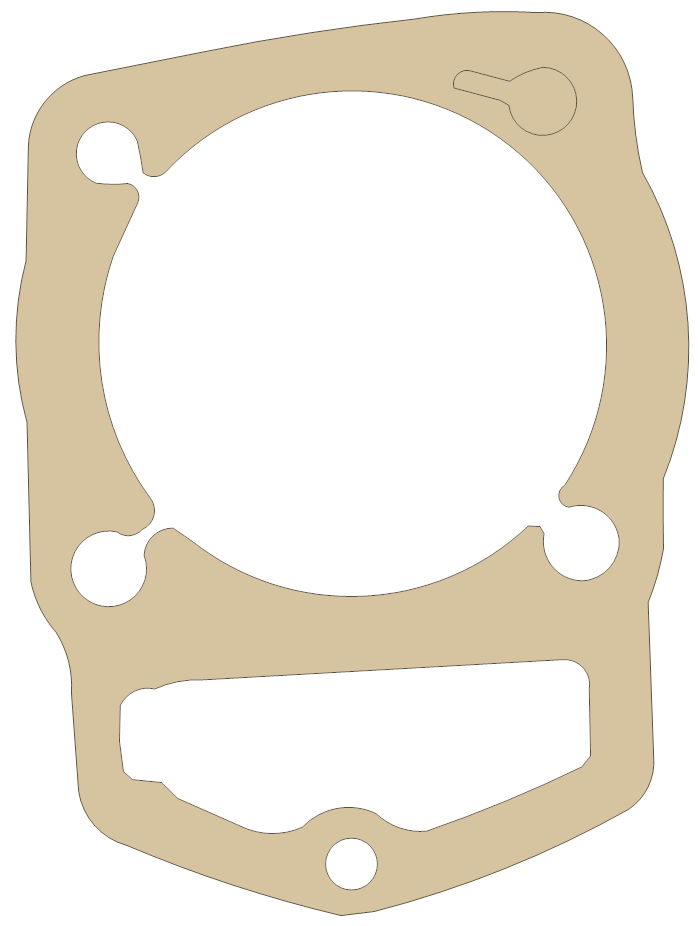

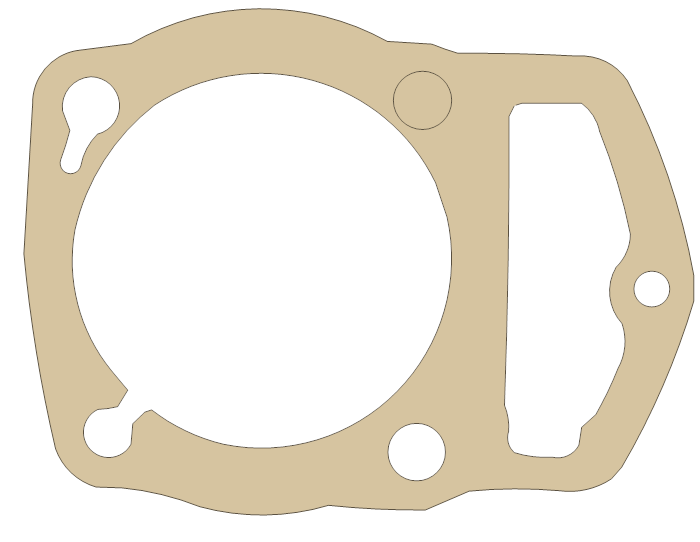

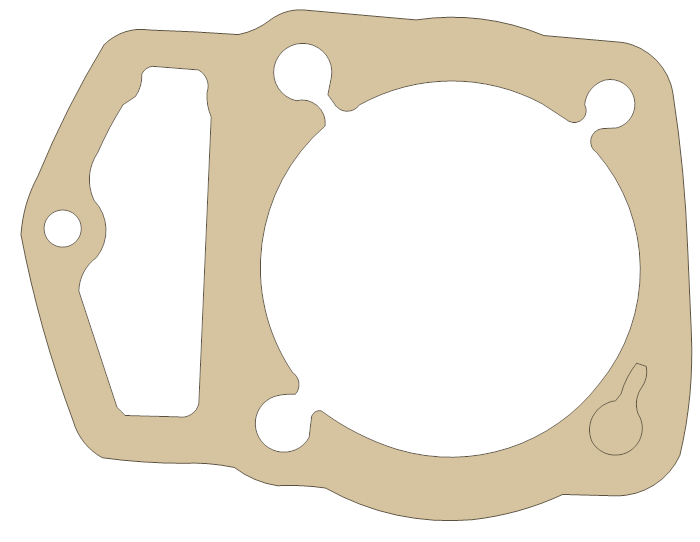

Cylinder Base | 12191-437-010 | A | 20 mm | 1986 - 1988 |
|
|
Cylinder Base | 12191-437-010 | A | 20 mm | 1981 - 1983 |
|
|
Cylinder Base | 12191-KT0-710 | A | 20 mm | 1994 - 2004 |
|
|
Cylinder Base | 12191-437-020 | A | 20 mm | 1990 - 1991 |
|
|

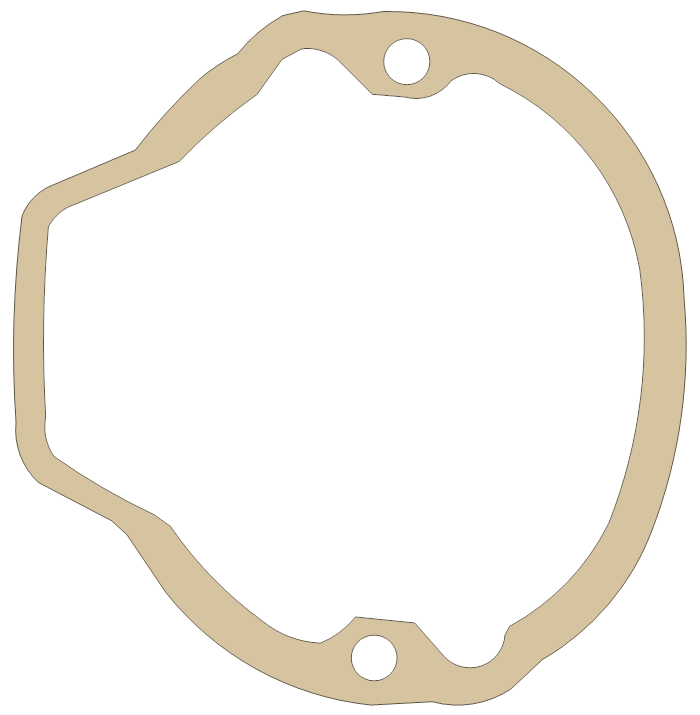

Generator Cover | 30372-437-000 | A | 20 mm | 1981 - 1983 |
|
|
Generator Cover | 30372-437-000 | A | 20 mm | 1986 - 1988 |
|
|

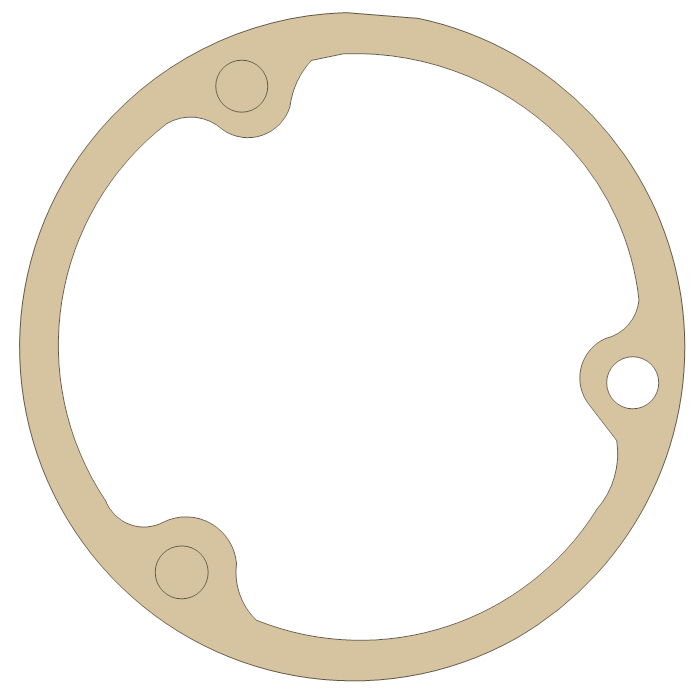

Oil Filter Cap | 15459-KT0-710 | A | 20 mm | 1981 - 1983 |
|
|
Oil Filter Cap | 15459-KT0-710 | A | 20 mm | 1986 - 1988 |
|
|
Oil Filter Cap | 15459-KT0-710 | A | 20 mm | 1994 - 2004 |
|
|

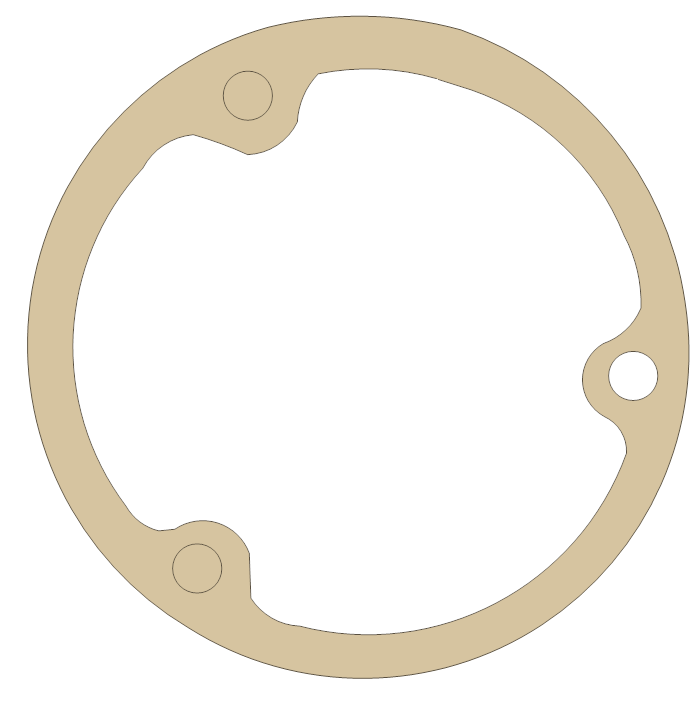

Oil Filter Rotor Cap | 15459-107-000 | A | 20 mm | 1990 - 1991 |
|
|

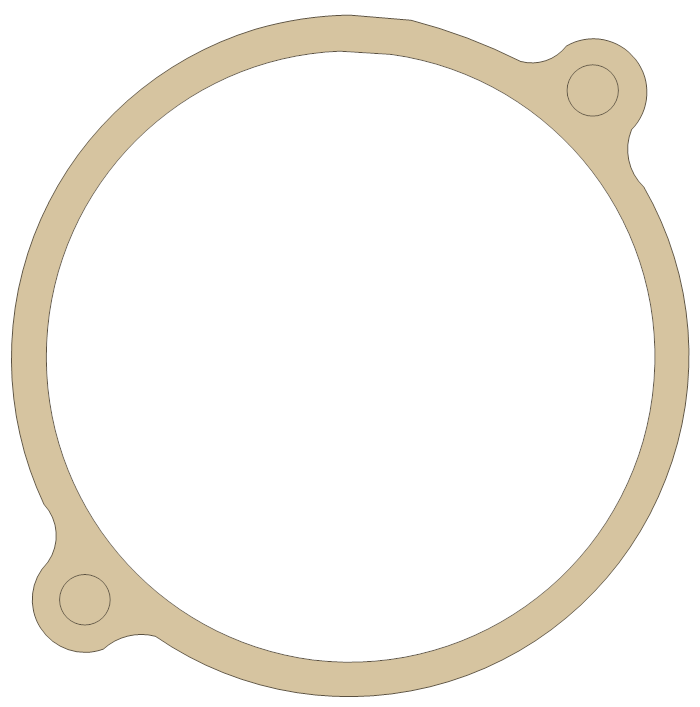

Pulse Alternator Cover | 12339-437-306 | A | 20 mm | 1993 |
|
|
Pulse Alternator Cover | 12339-437-306 | A | 20 mm | 1981 - 1988 |
|
|
Pulse Alternator Cover | 12339-439-970 | A | 20 mm | 1990 - 1991 |
|
|

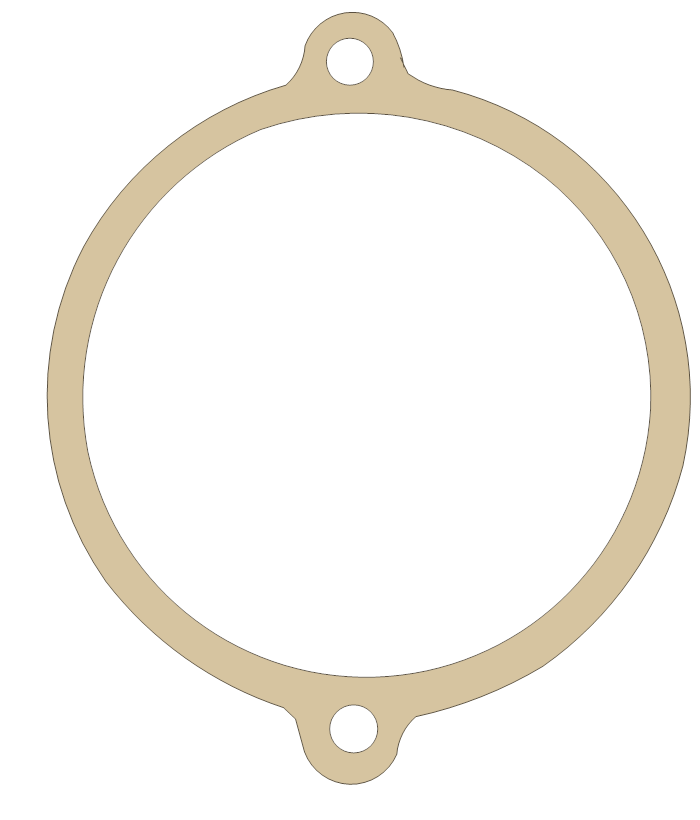

Pulse Generator Base | 12339-KT0-710 | A | 20 mm | 1981 - 1983 |
|
|
Pulse Generator Base | 12339-KT0-710 | A | 20 mm | 1986 - 1988 |
|
|
Pulse Generator Base | 12339-KT0-710 | A | 20 mm | 1994 - 1999 |
|
|

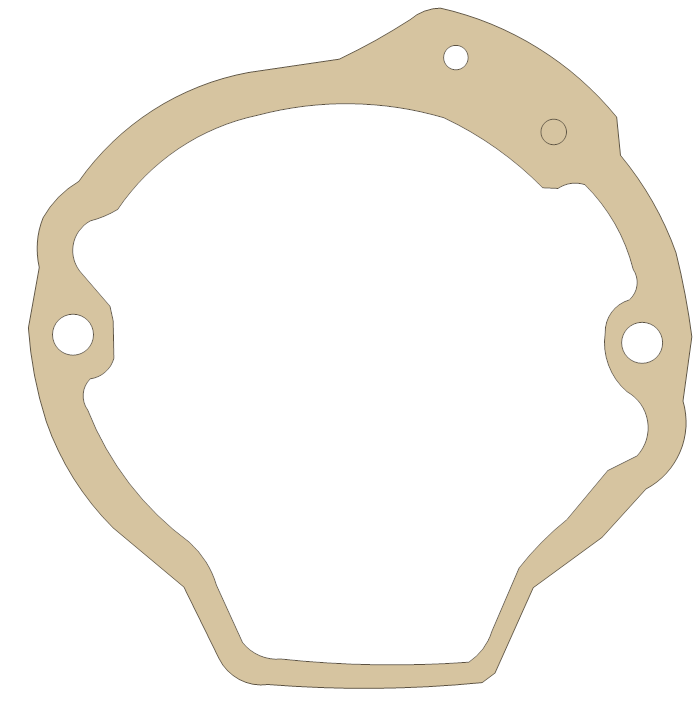

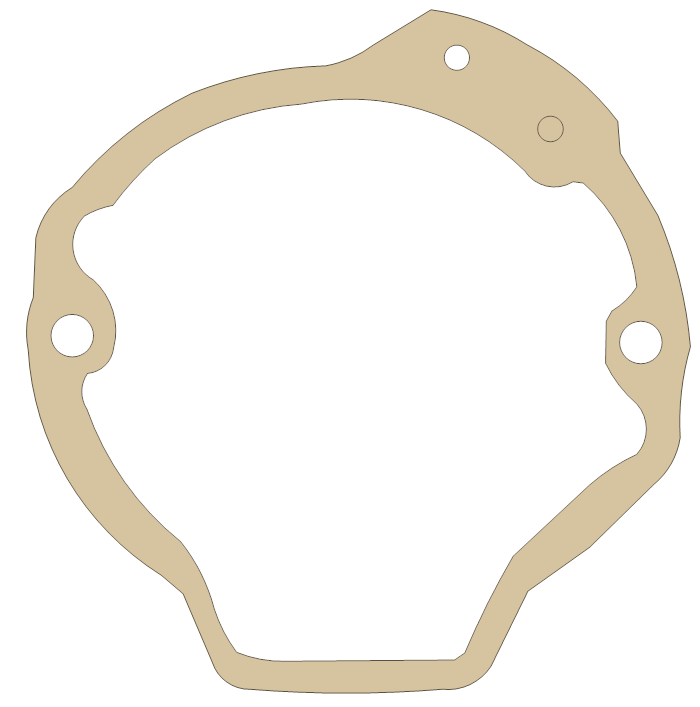

Pulse Generator Cover | 30372-KT0-710 | A | 20 mm | 1994 - 2004 |
|
|
Pulse Generator Cover | 30372-KA2-000 | B | 40 mm | 1990 - 1991 |
|
|
Pulse Generator Cover | 30372-KT0-710 | B | 40 mm | 1981 - 1983 |
|
|
Pulse Generator Cover | 30372-KT0-710 | B | 40 mm | 1986 - 1988 |
|
|
R. Crankcase Cover | 11393-439-970 | A | 20 mm | 1990 - 1991 |
|
|

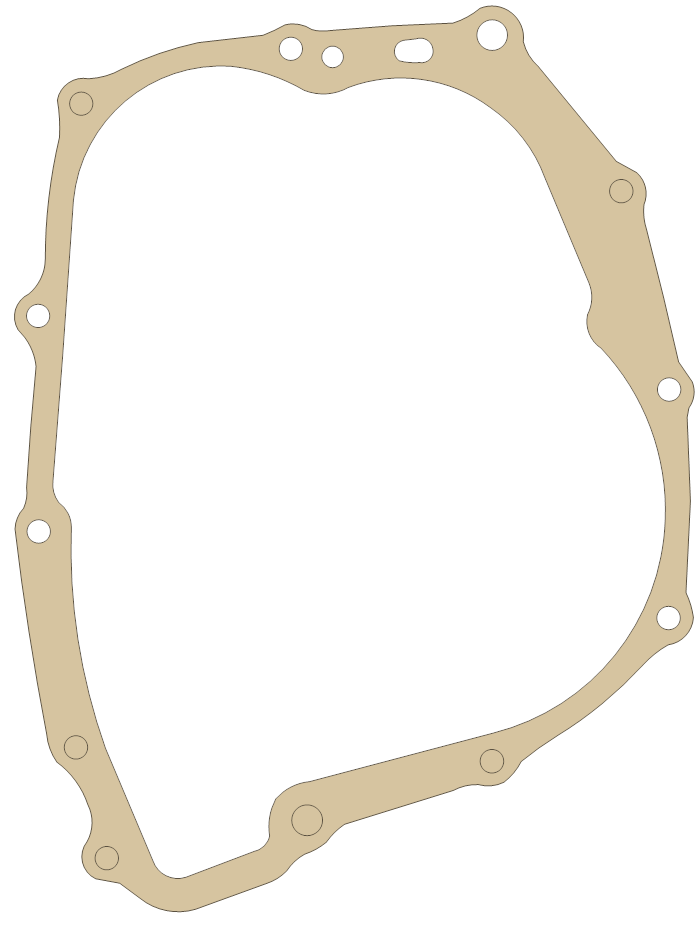

Right Cover | 11393-KT0-710 | A | 20 mm | 1994 - 2004 |
|
|

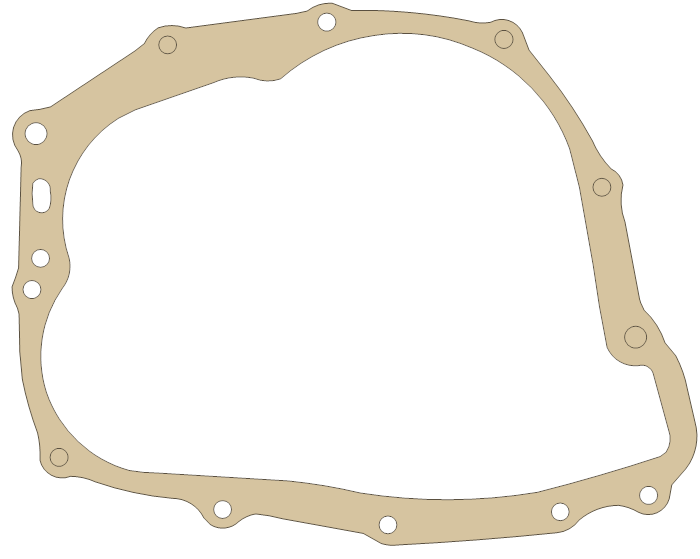

Right Crankcase Cover | 11393-437-000 | A | 20 mm | 1981 - 1983 |
|
|
Right Crankcase Cover | 11393-437-000 | A | 20 mm | 1986 - 1988 |
Ready-to-cut files for every gasket listed here are available to subscribers. Specifications are free to view.
