14 gasket listings for the Norton Commando. Material, thickness, number in set and OEM cross-reference for each.
| Gasket | OEM Number | Material | Thickness | Years | |
|---|---|---|---|---|---|
|
|
Blanking Plate | 06-1532 | D | 15 mm | 1967 - 1976 |
|
|
Cylinder Base | 06-3812 | A | 15 mm | 1967 - 1976 |
|
|
EX Rocker Inspection | 06-7554 | B | 30 mm | 1967 - 1976 |
|
|
Inlet Rocker Inspection | 06-7551 | B | 40 mm | 1967 - 1976 |
|
|

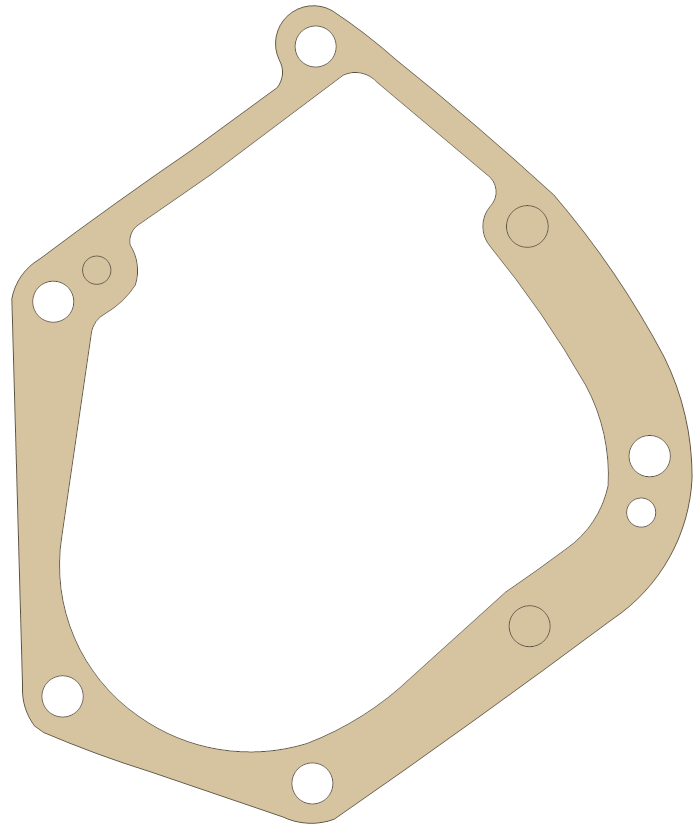

Inner Gear Box | 04-0030 | A | 15 mm | 1967 - 1976 |
|
|

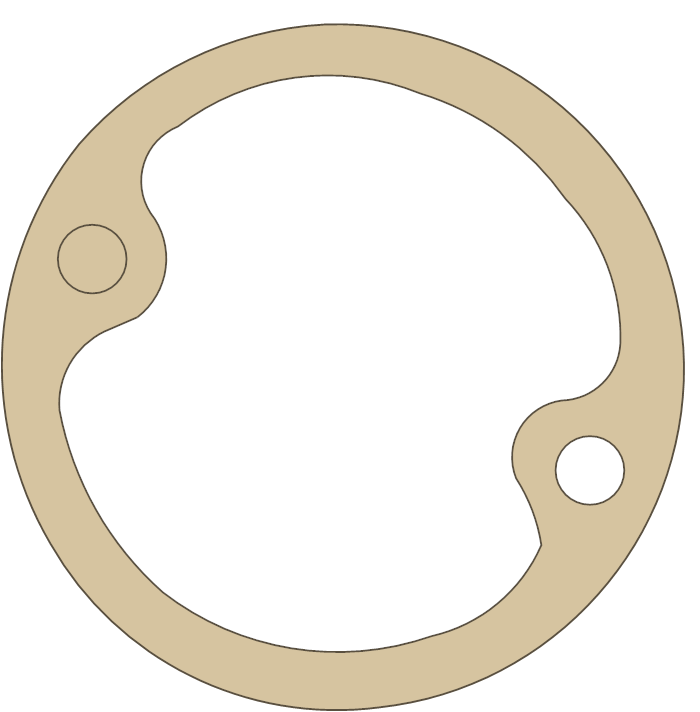

Inspection Cad | 04-0057 | B | 30 mm | 1967 - 1976 |
|
|
Junction Block | 03-2044 | D | 15 mm | 1967 - 1976 |
|
|
Oil Pump to Crank | 06-2447 | A | 20 mm | 1967 - 1976 |
|
|
Outer Gear Box | 04-0055 | A | 20 mm | 1967 - 1976 |
|
|
Primary to Crankcase | 06-0711 | A | 20 mm | 1967 - 1976 |
|
|
Rocker Plate | 06-7580 | D | 15 mm | 1967 - 1976 |
|
|
Rocker Spindle | 06-7550 | B | 40 mm | 1967 - 1976 |
|
|
Tacho | 06-3056 | A | 20 mm | 1967 - 1976 |
|
|
Timing Cover | 06-1092 | B | 40 mm | 1967 - 1976 |
Ready-to-cut files for every gasket listed here are available to subscribers. Specifications are free to view.
