2 gasket sets and 11 individual gaskets for the Suzuki DR650S. Material, thickness and OEM cross-reference for each.
| Set | Gaskets in Set | Material | Years |
|---|---|---|---|
| SET A | 6 | A | 1990 - 1995 |
| SET B | 1 | A | 1990 - 1995 |
| Gasket | OEM Number | Material | Thickness | Years | |
|---|---|---|---|---|---|
|
|

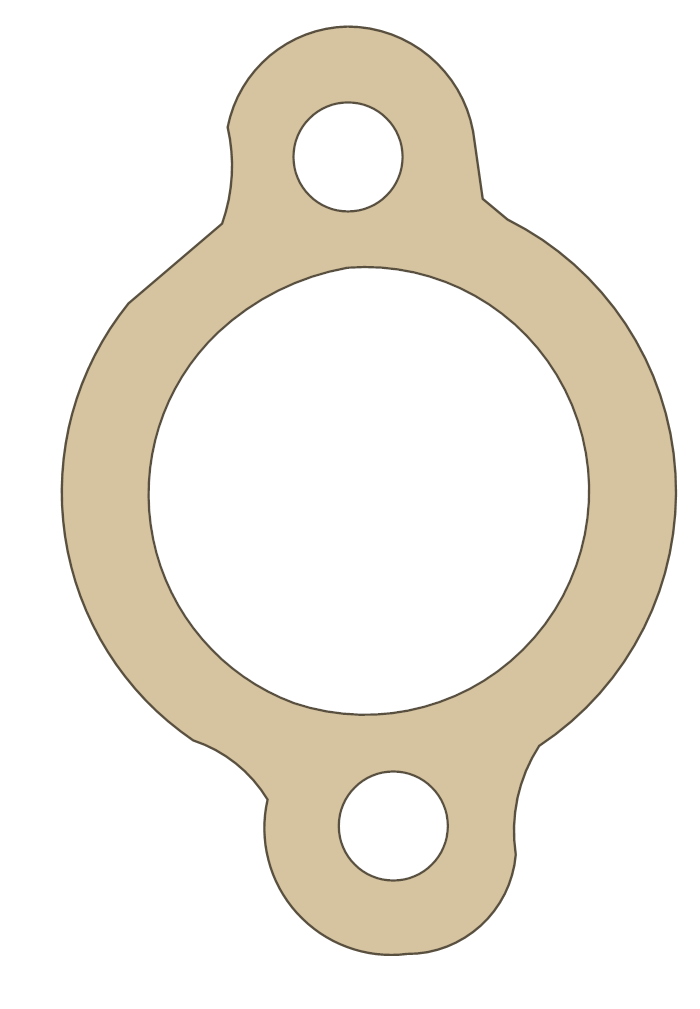

Adjuster | 12837-24A00-H17 | A | 20 mm | 1990 - 1995 |
|
|

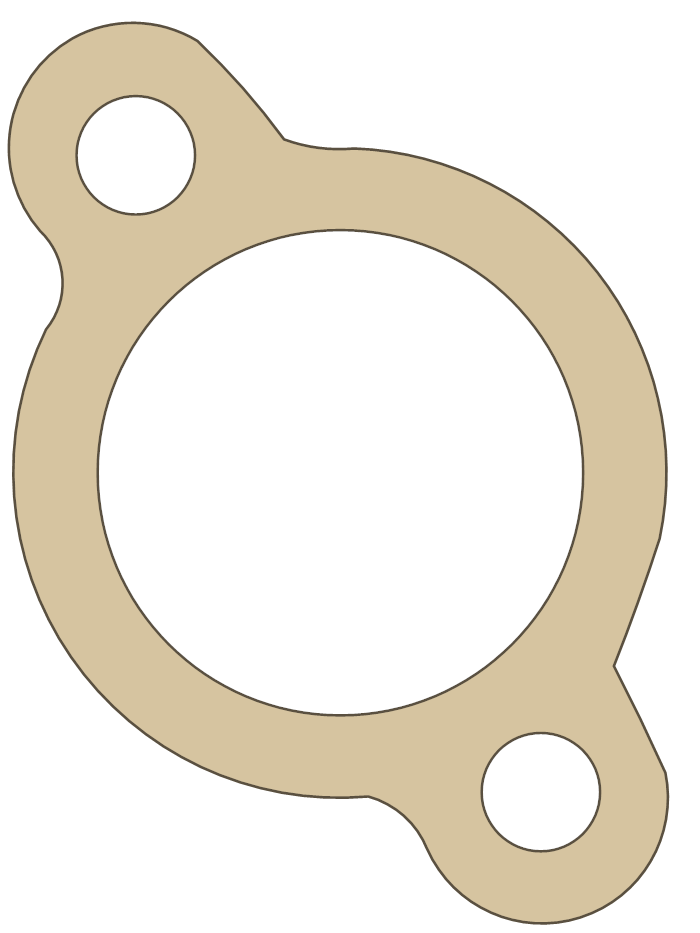

Adjuster | 12837-24A10 | A | 20 mm | 1992 - 1993 |
|
|

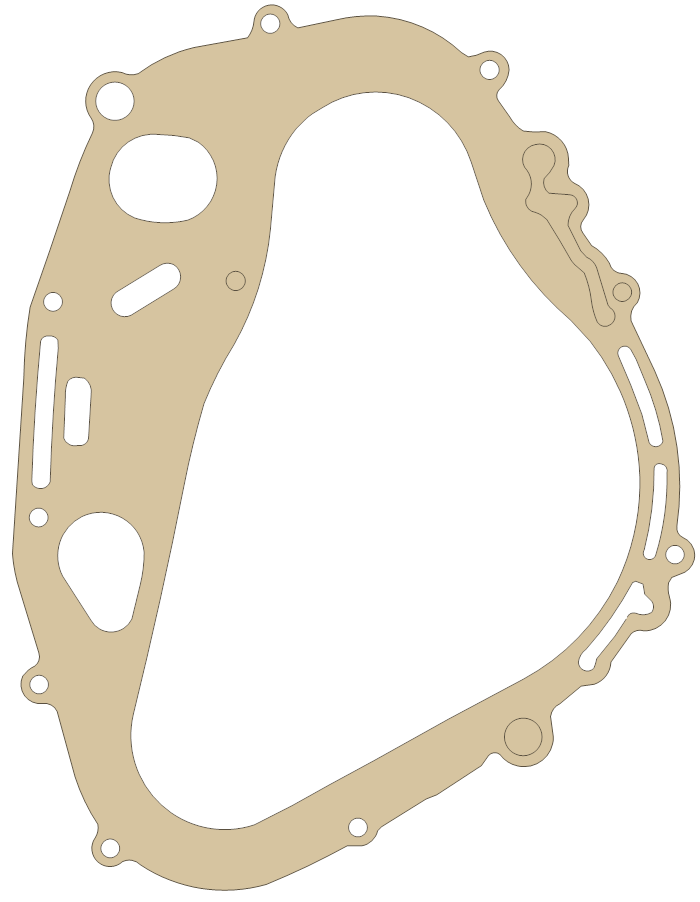

Clutch Cover | 11482-12D01 | A | 20 mm | 1990 - 1993 |
|
|

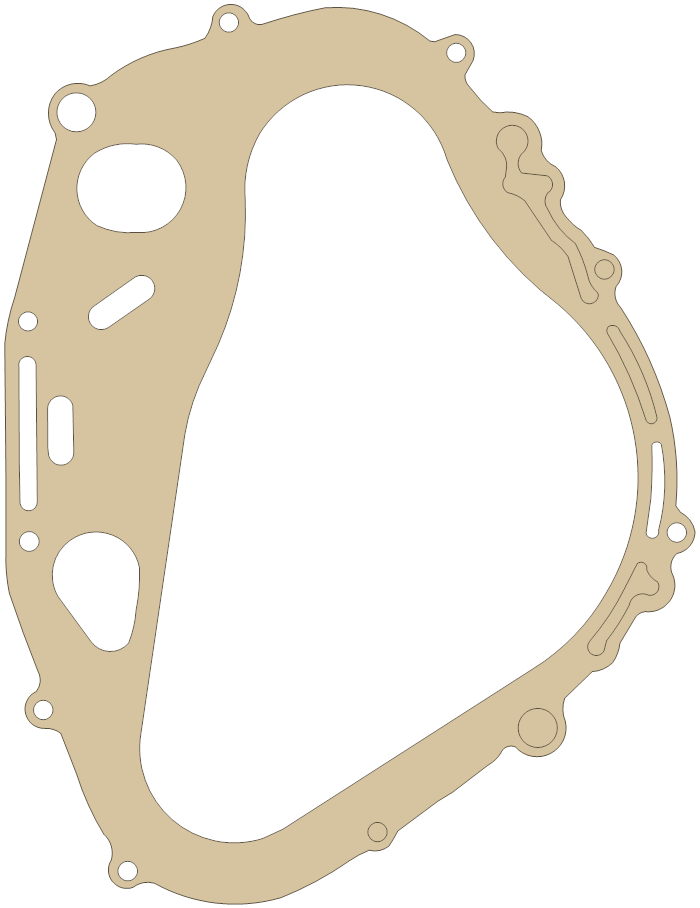

Clutch Cover | 11482-12D00 | A | 20 mm | 1990 - 1995 |
|
|

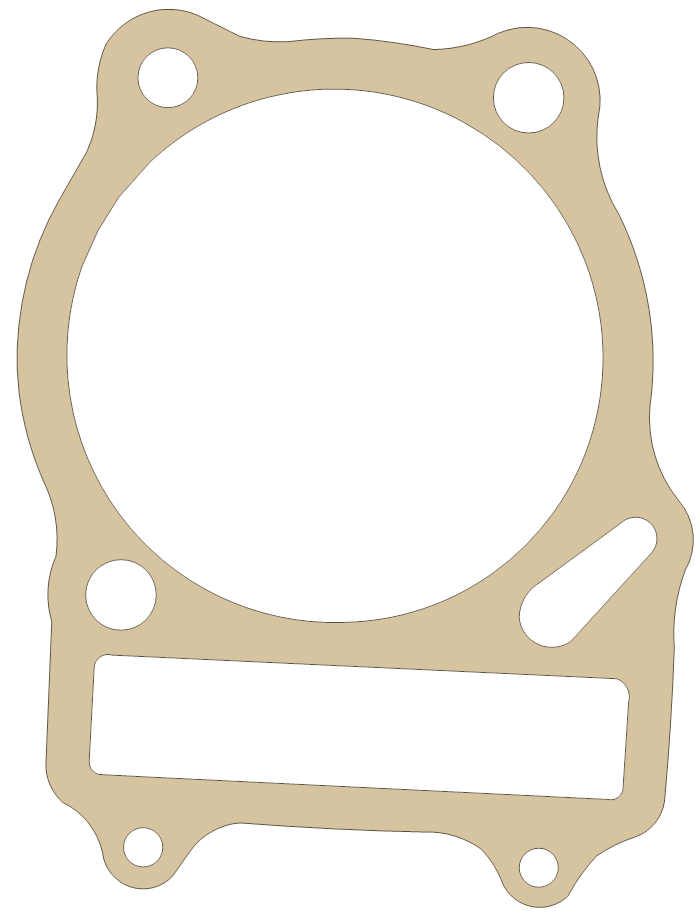

Cylinder | 11241-14A03-H17 | A | 20 mm | 1990 - 1995 |
|
|

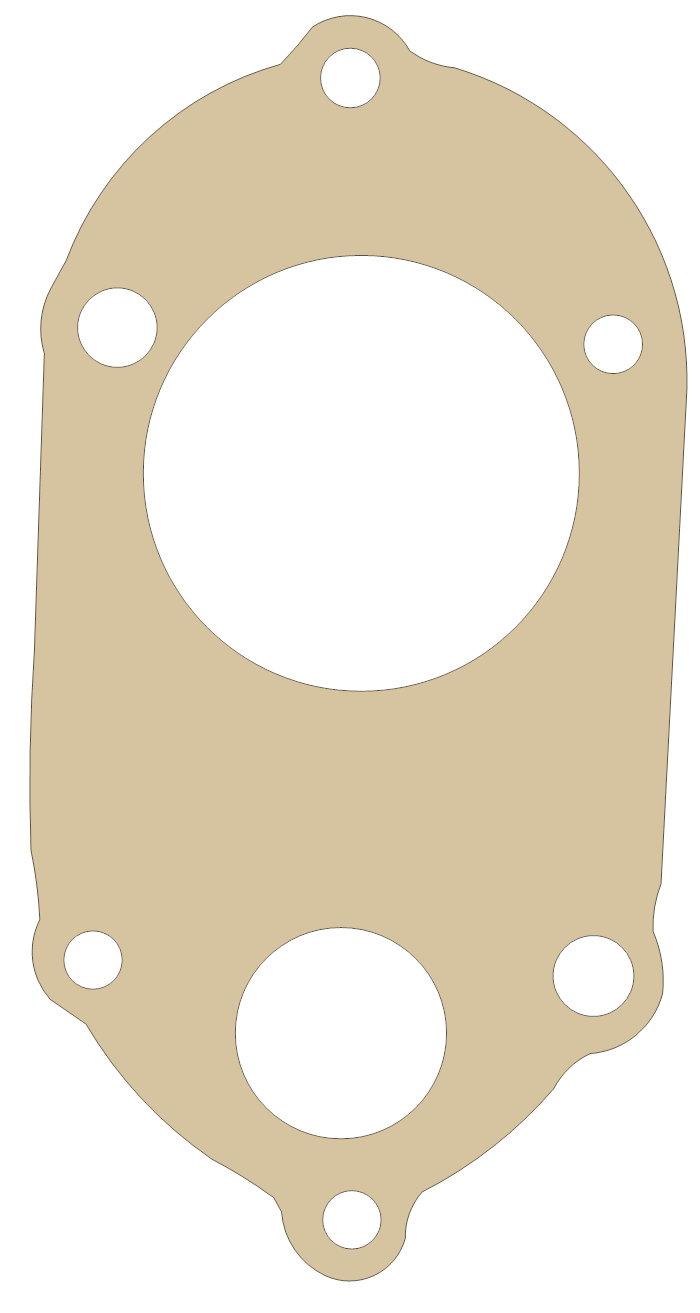

Gear Shift Cover | 11485-12D00 | A | 20 mm | 1990 - 1995 |
|
|
Gear Shift Cover | 11485-12D01 | B | 40 mm | 1990 - 1993 |
|
|

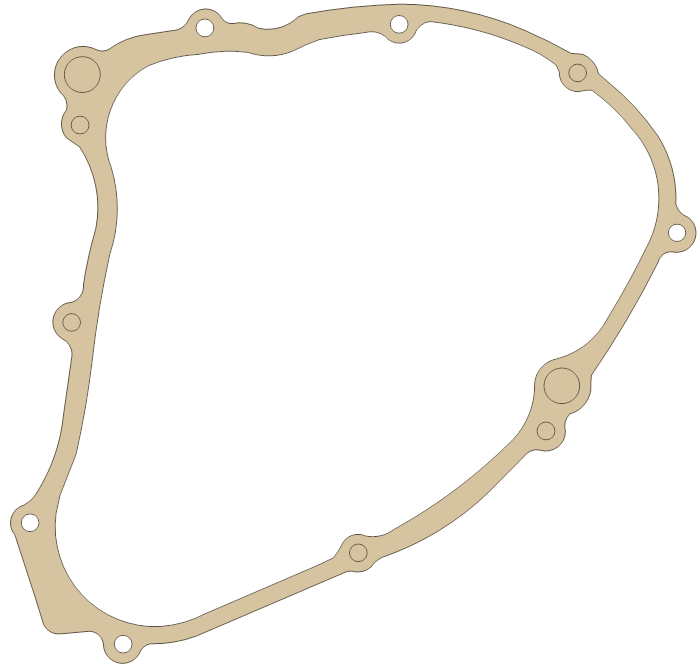

Magneto Cover | 11483-12D10 | A | 20 mm | 1990 - 1993 |
|
|

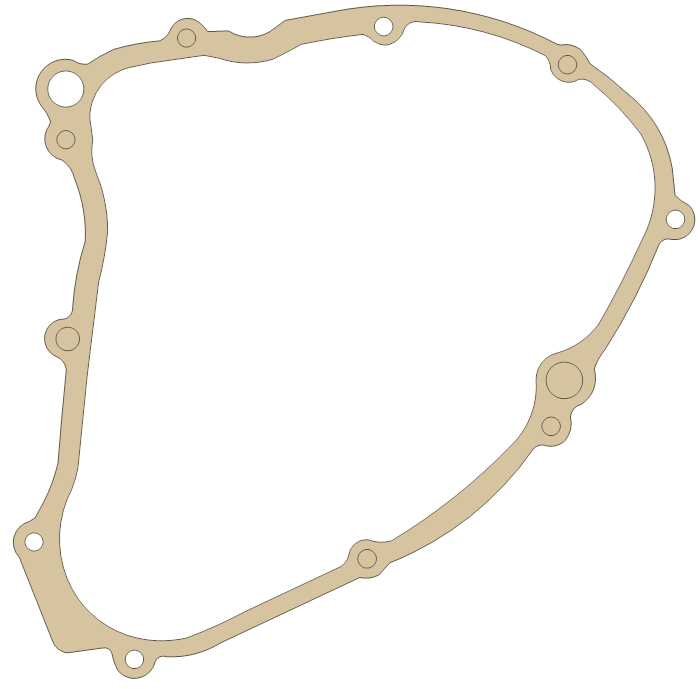

Magneto Inner Cover | 11483-12D00 | A | 20 mm | 1990 - 1995 |
|
|

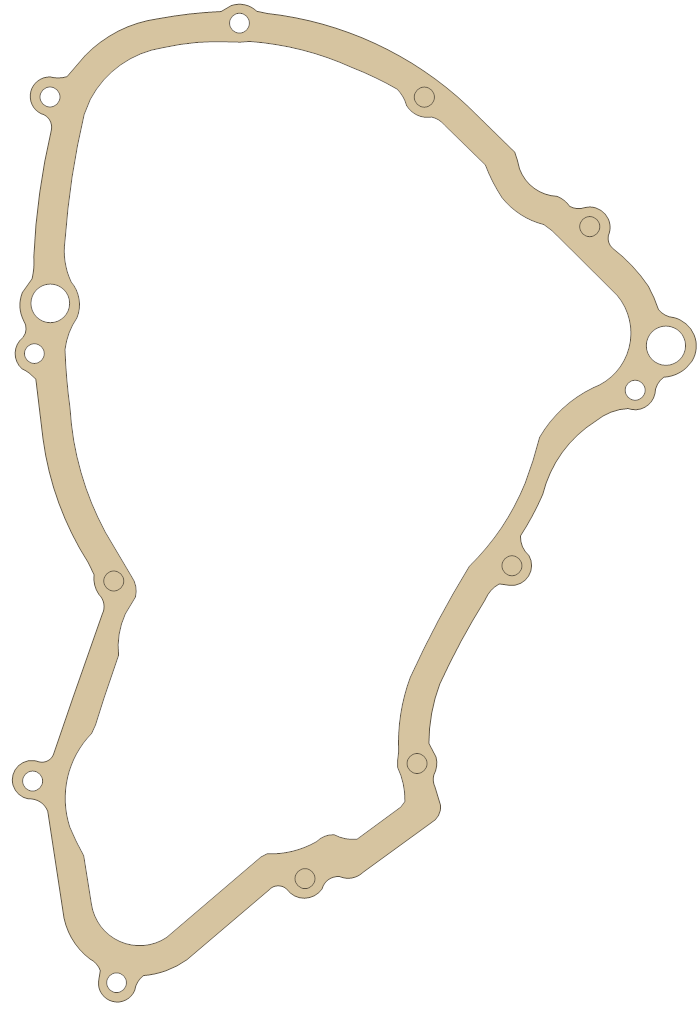

Magneto Outer Cover | 11483-12D20 | A | 20 mm | 1990 - 1995 |
|
|

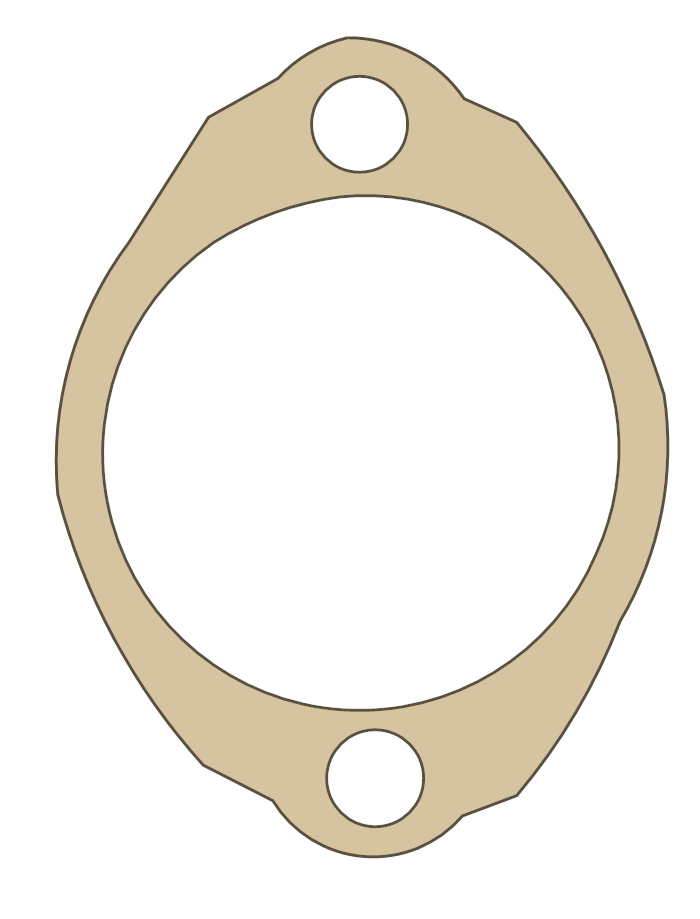

Tensioner Adjuster Cap | 12838-38200 | A | 20 mm | 1990 - 1995 |
Ready-to-cut files for every gasket listed here are available to subscribers. Specifications are free to view.
