3 gasket sets and 7 individual gaskets for the Suzuki GS1150ES. Material, thickness and OEM cross-reference for each.
| Set | Gaskets in Set | Material | Years |
|---|---|---|---|
| SET A | 4 | A | 1984 - 1985 |
| SET B | 1 | A | 1984 - 1985 |
| SET C | 2 | B | 1984 - 1985 |
| Gasket | OEM Number | Material | Thickness | Years | |
|---|---|---|---|---|---|
|
|
Breather Cover | 11177-31300 | B | 40 mm | 1984 - 1985 |
|
|

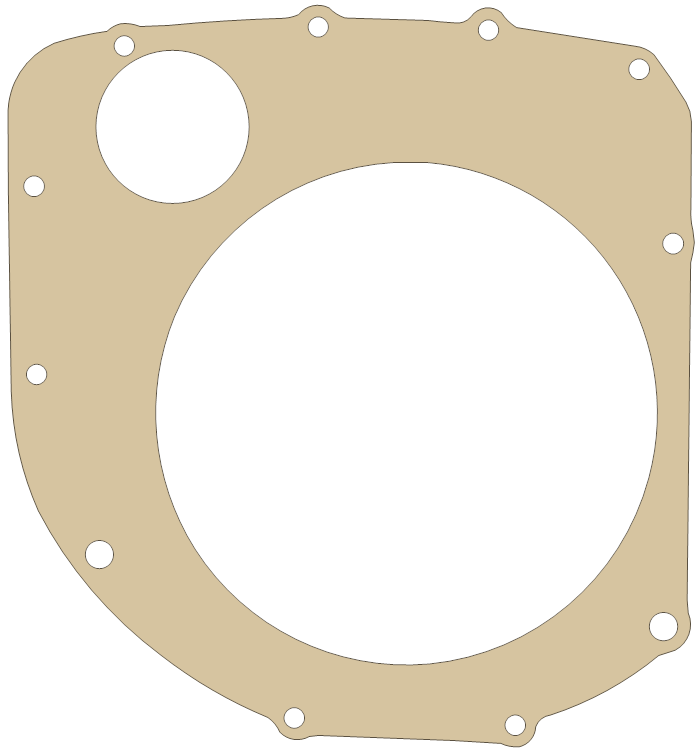

Clutch Cover | 11482-49201 | A | 20 mm | 1985 |
|
|

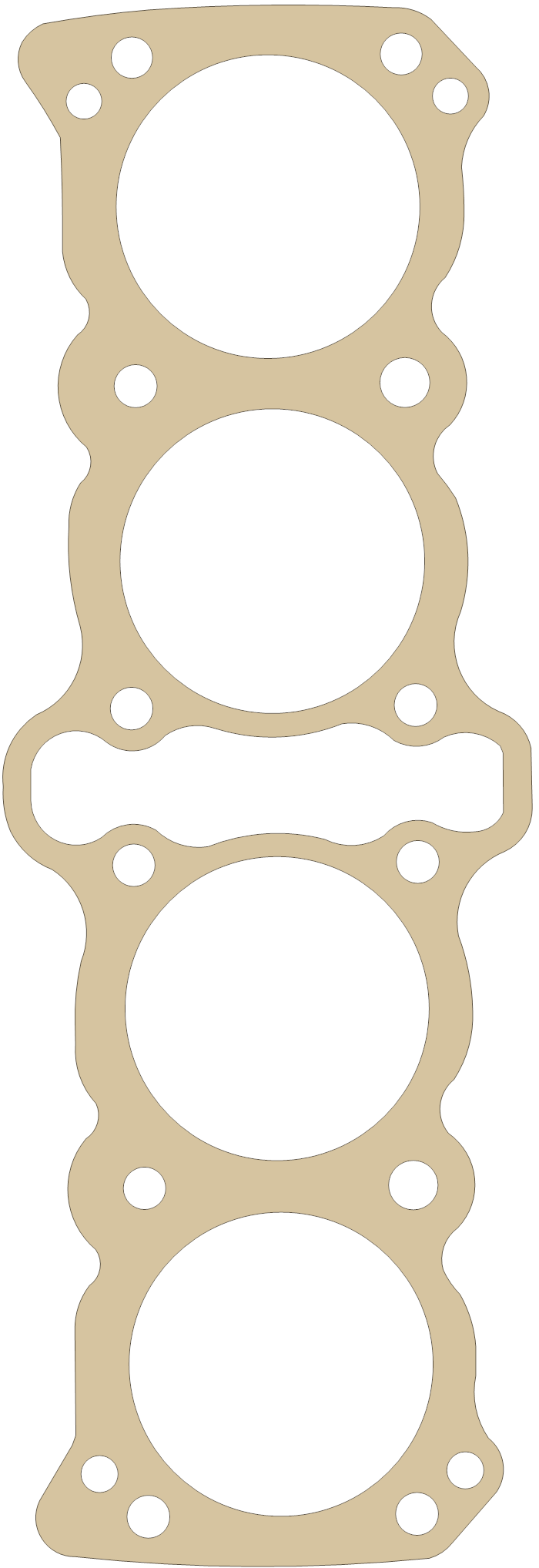

Cylinder Head | 11241-00A10 | A | 20 mm | 1984 - 1985 |
|
|
Magneto Cover | 11483-49200 | A | 20 mm | 1984 - 1985 |
|
|

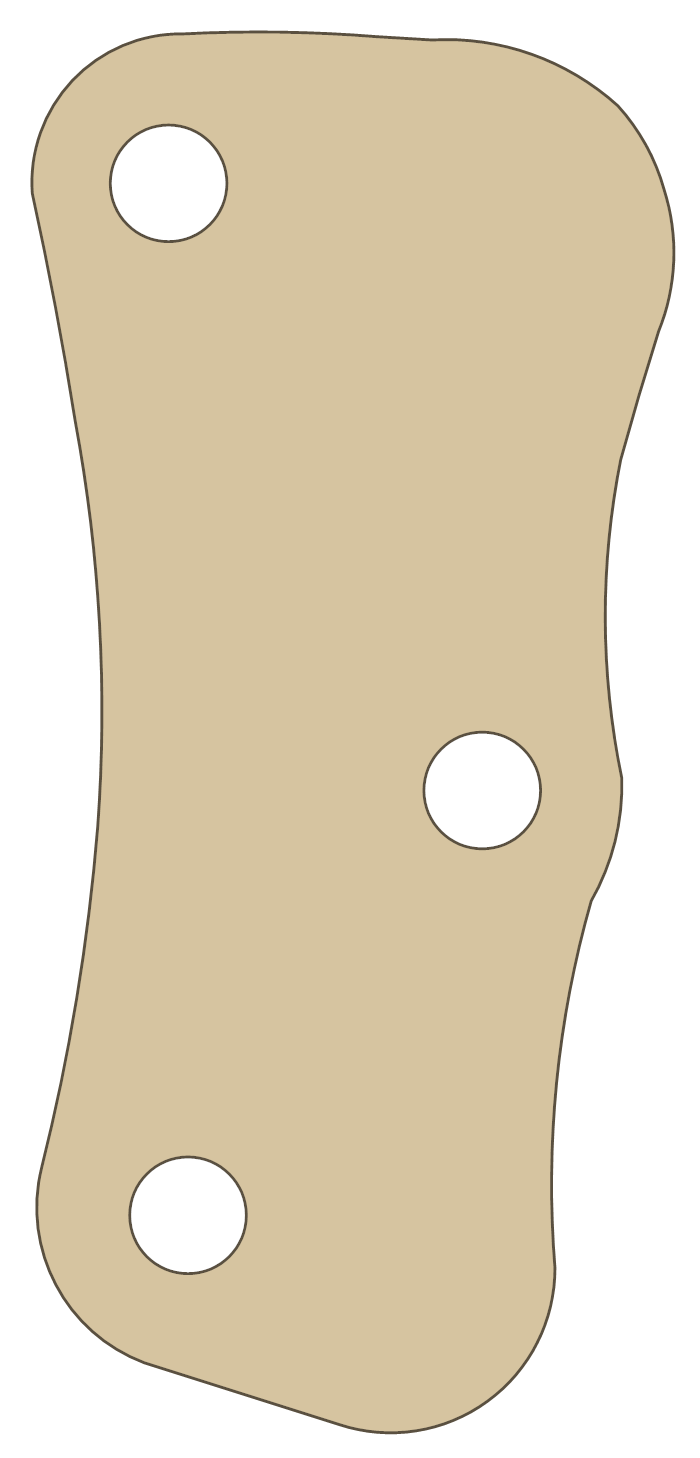

Oil Gallery Cap | 11497-45000 | B | 40 mm | 1984 - 1985 |
|
|
Oil Pan | 11489-49201 | A | 20 mm | 1984 - 1985 |
|
|
Tensioner Adjuster | 12837-31300 | A | 20 mm | 1984 - 1985 |
Ready-to-cut files for every gasket listed here are available to subscribers. Specifications are free to view.
