3 gasket sets and 20 individual gaskets for the Suzuki GS550L. Material, thickness and OEM cross-reference for each.
| Set | Gaskets in Set | Material | Years |
|---|---|---|---|
| SET A | 4 | A | 1983 |
| SET B | 1 | A | 1983 |
| SET C | 1 | B | 1983 |
| Gasket | OEM Number | Material | Thickness | Years | |
|---|---|---|---|---|---|
|
|

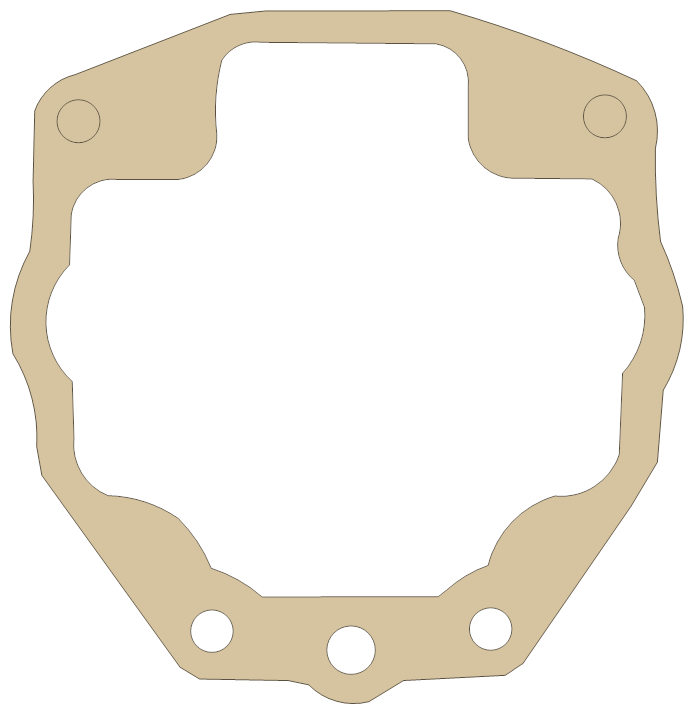

13251-43410 | 13251-43410 | A | 20 mm | 1985 - 1986 |
|
|

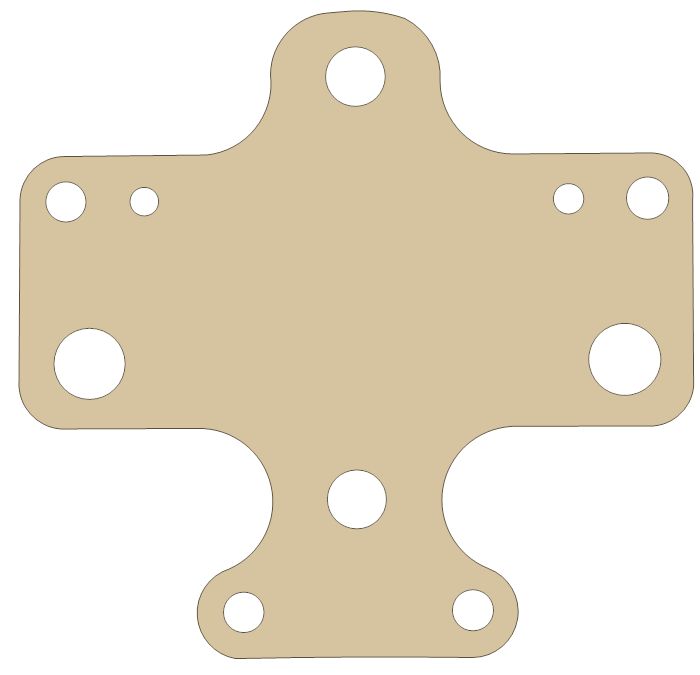

Breather | 11177-47001 | A | 20 mm | 1979 - 1982 |
|
|

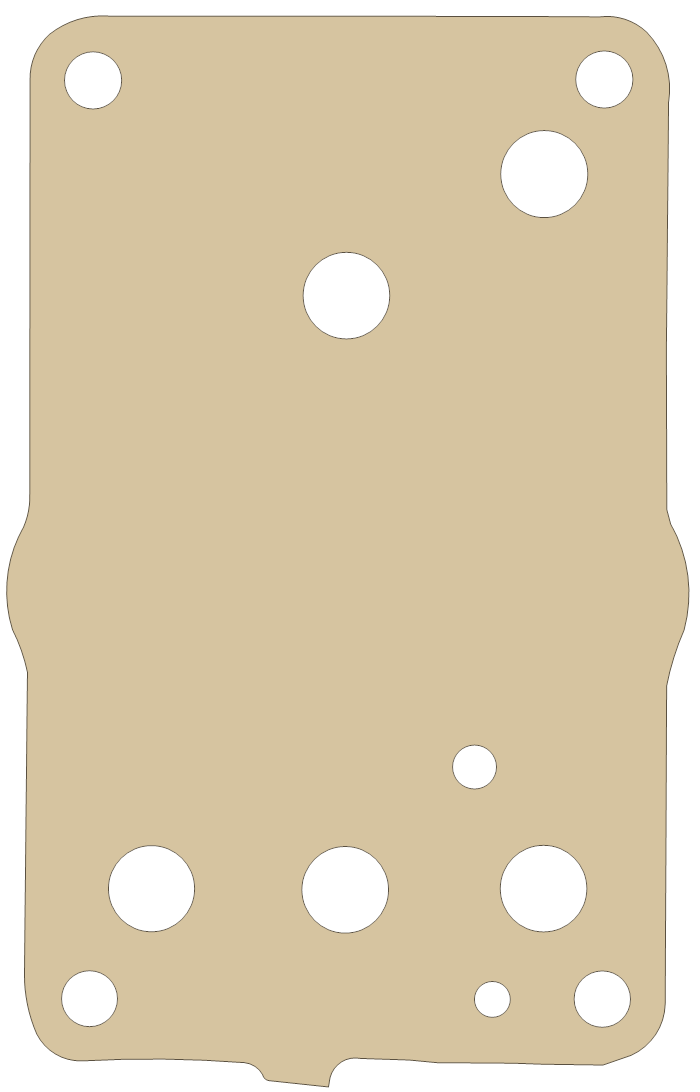

Breather Cover | 11177-43403 | B | 40 mm | 1983 |
|
|

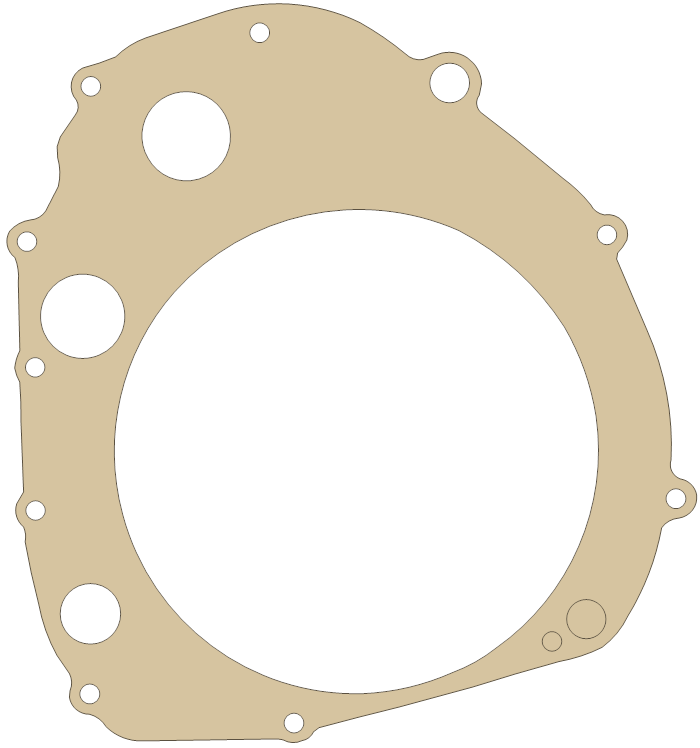

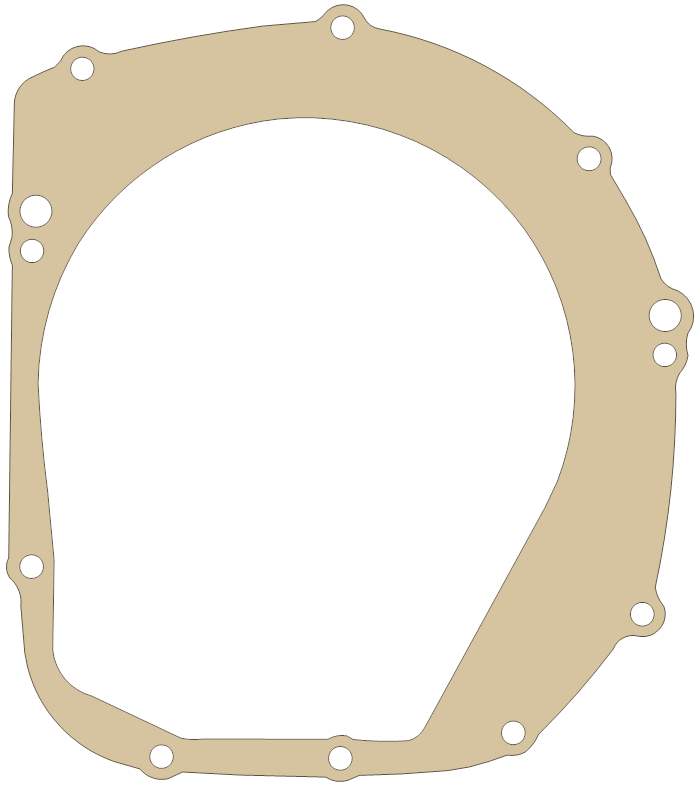

Clutch Cover | 11482-43401-H17 | A | 20 mm | 1983 - 1986 |
|
|
Clutch Cover | 11482-47000 | A | 20 mm | 1979 - 1982 |
|
|
Contact Breaker Cover | 11491-47000 | A | 20 mm | 1979 - 1982 |
|
|

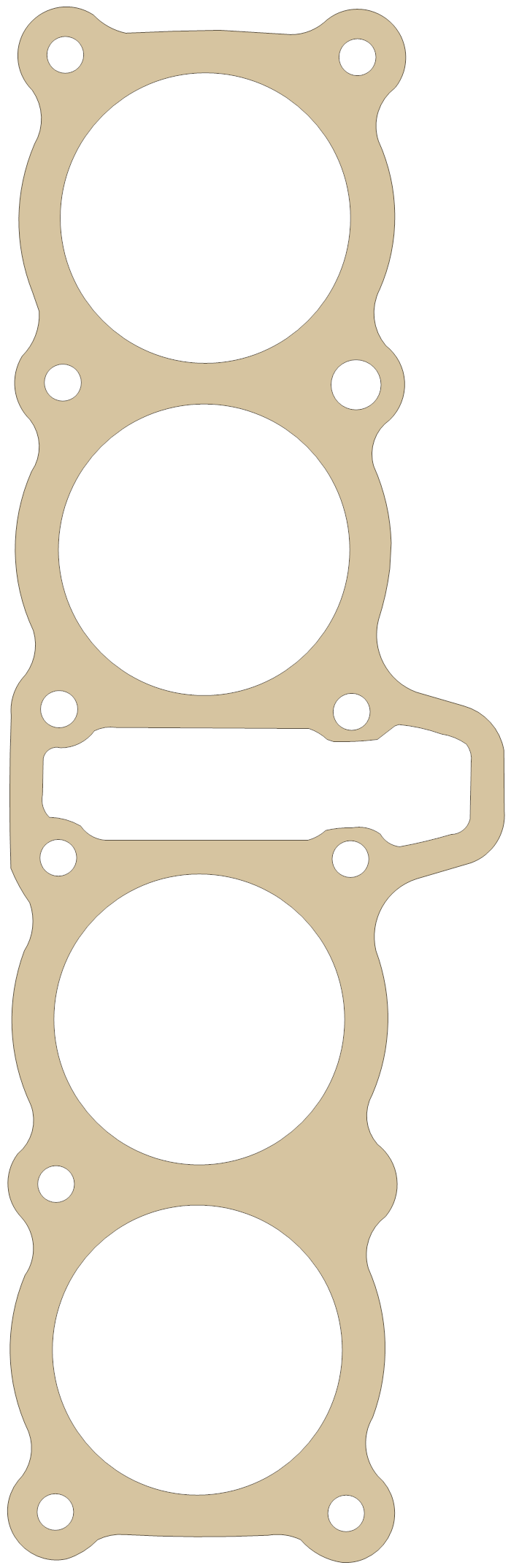

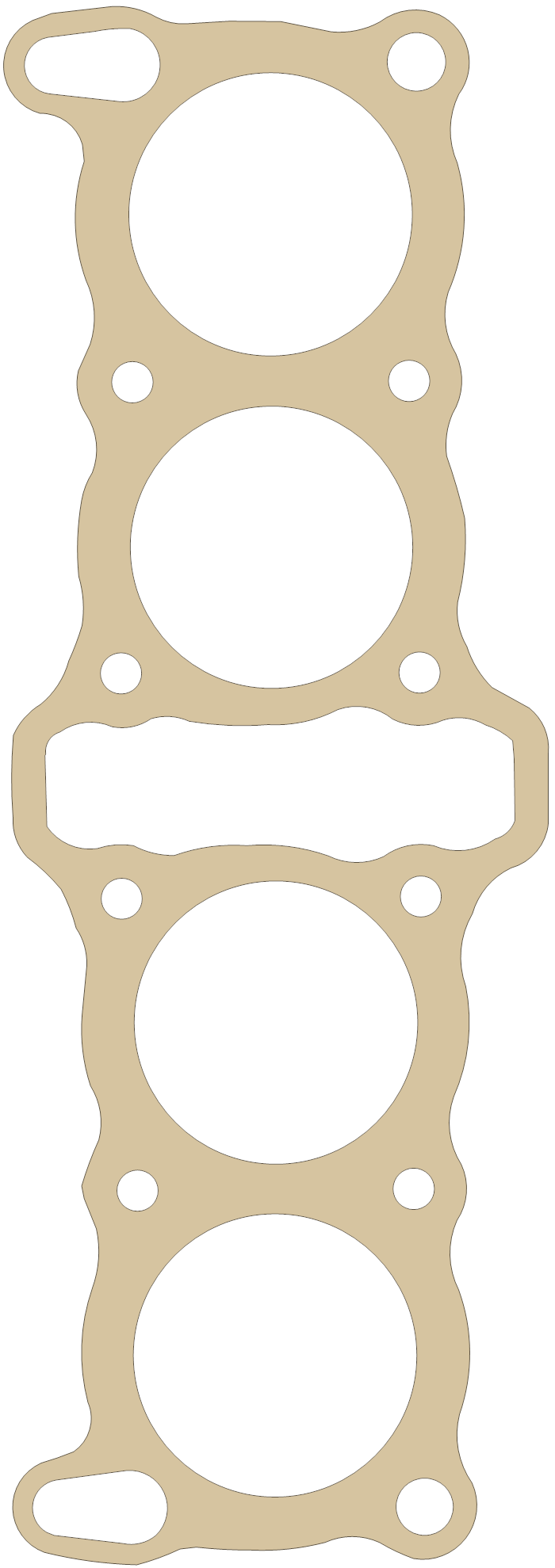

Cylinder | 11241-47081 | A | 20 mm | 1979 - 1982 |
|
|
Cylinder | 11241-43403 | A | 20 mm | 1983 |
|
|
Cylinder | 11241-43403 | A | 20 mm | 1985 - 1986 |
|
|

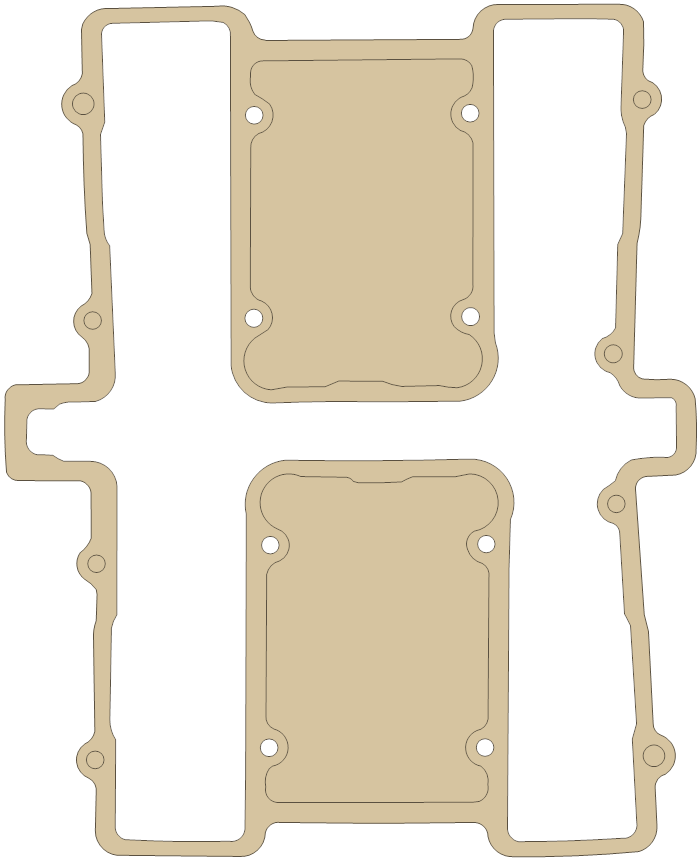

Cylinder Head Cover | 11173-47004-H17 | B | 30 mm | 1979 - 1982 |
|
|

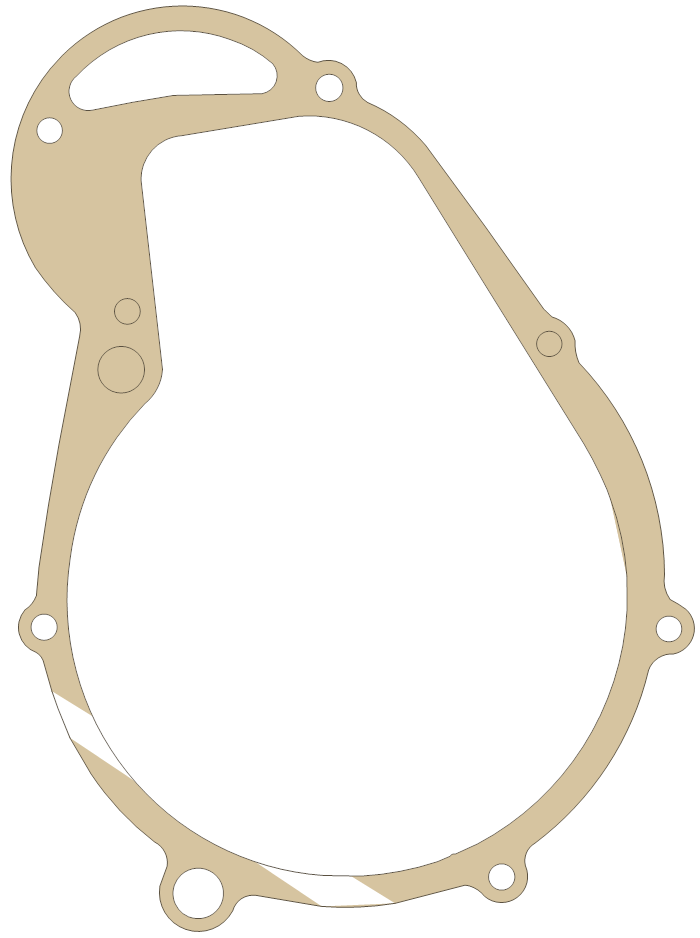

Dyno Cover | 11483-47000 | A | 20 mm | 1979 - 1982 |
|
|

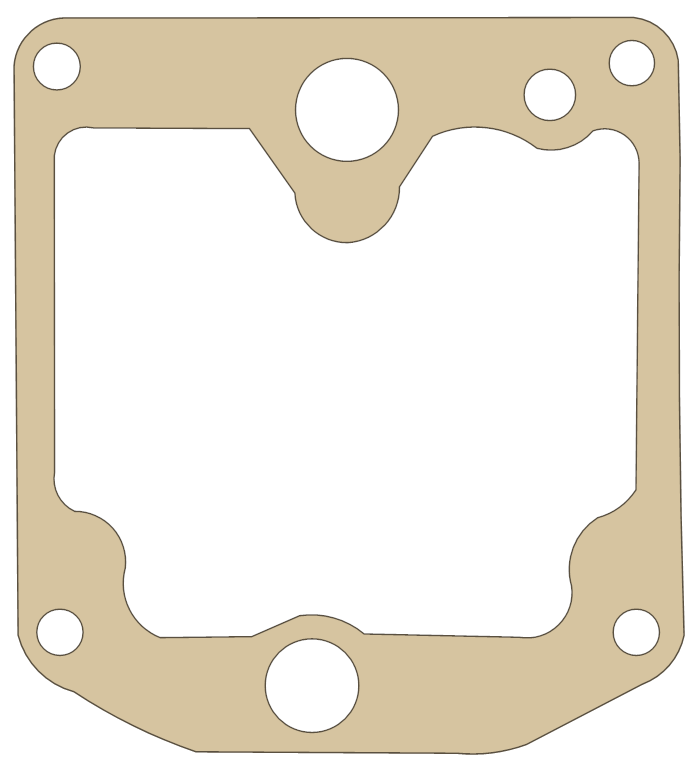

Float Chamber | 13251-47010 | B | 40 mm | 1979 |
|
|

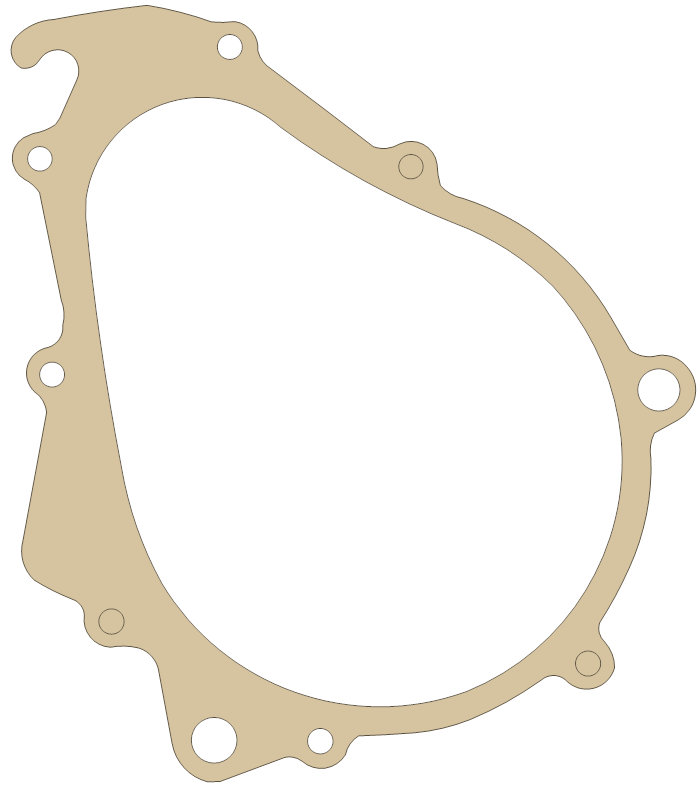

Generator Cover | 11483-43400 | A | 20 mm | 1983 |
|
|
Generator Cover | 11483-43400 | A | 20 mm | 1985 - 1986 |
|
|

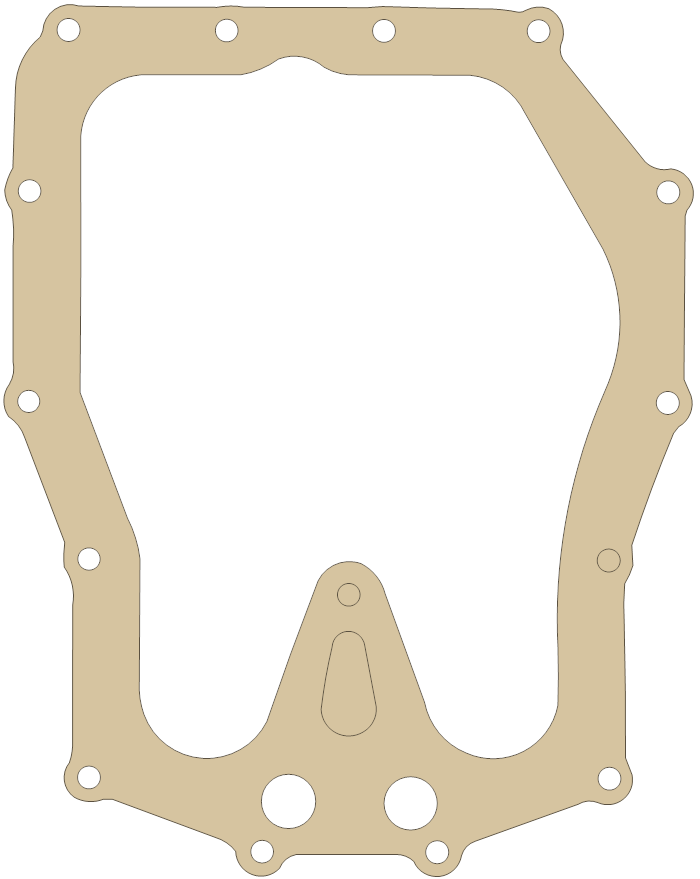

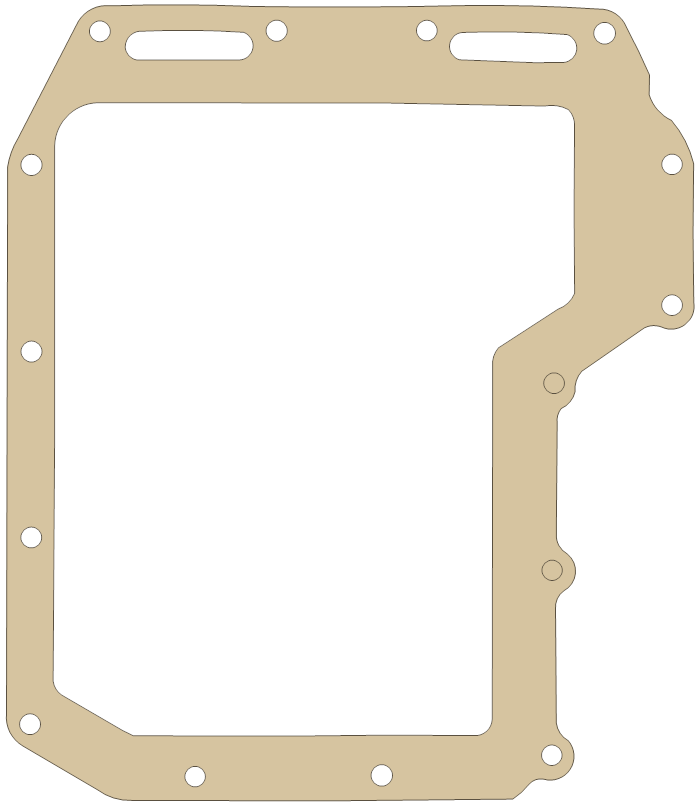

Oil Pan | 11489-47000 | A | 20 mm | 1979 - 1982 |
|
|
Oil Pan | 11489-49200 | A | 20 mm | 1982 |
|
|
Oil Pan | 11489-43401-H17 | A | 20 mm | 1983 |
|
|
Oil Pan | 11489-43401-H17 | A | 20 mm | 1985 - 1986 |
|
|

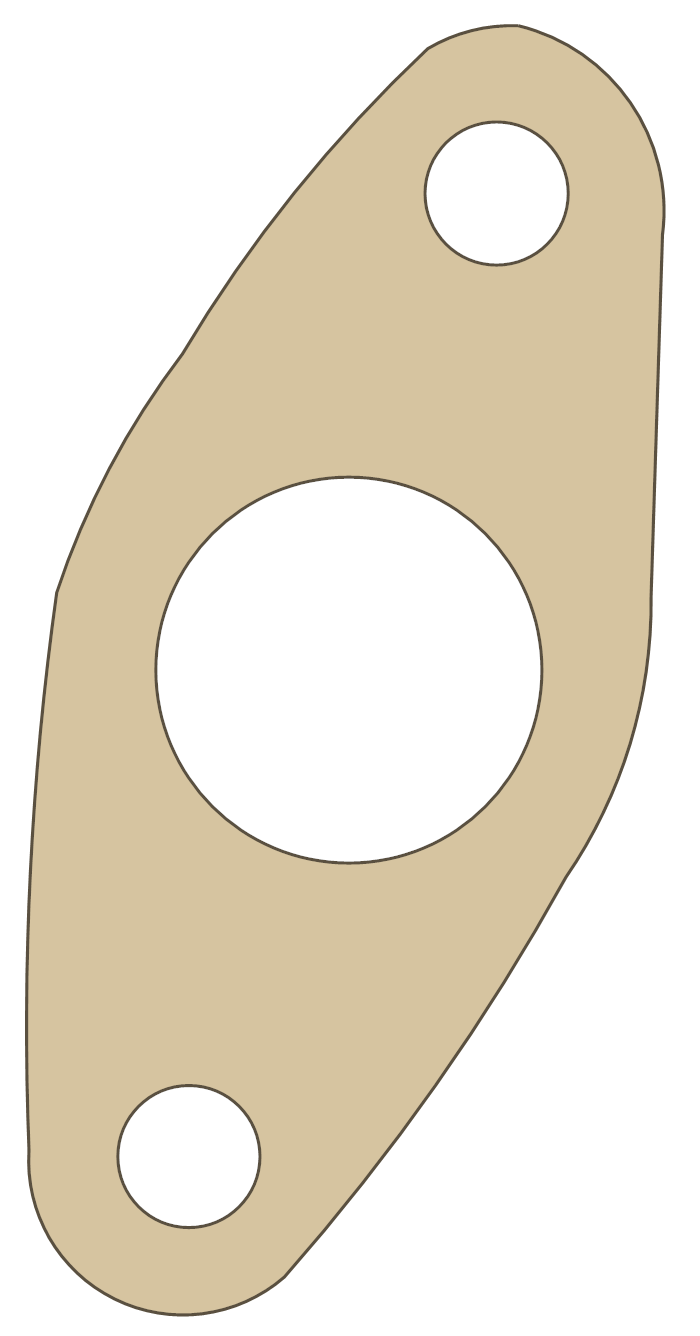

Tensioner Adjuster | 12837-47000 | A | 20 mm | 1983 |
|
|

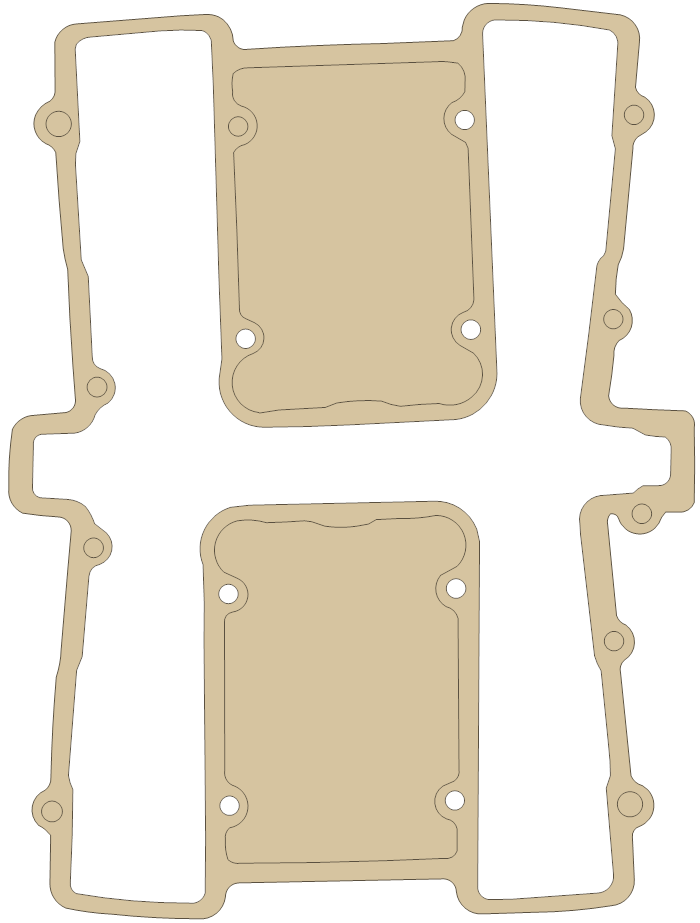

Valve Cover | 11173-47030/1 | B | 30 mm | 1979 - 1982 |
