3 gasket sets and 16 individual gaskets for the Suzuki GS750E. Material, thickness and OEM cross-reference for each.
| Set | Gaskets in Set | Material | Years |
|---|---|---|---|
| SET A | 5 | A | 1980 - 1981 |
| SET B | 1 | A | 1980 - 1981 |
| SET D | 1 | B | 1980 - 1981 |
| Gasket | OEM Number | Material | Thickness | Years | |
|---|---|---|---|---|---|
|
|

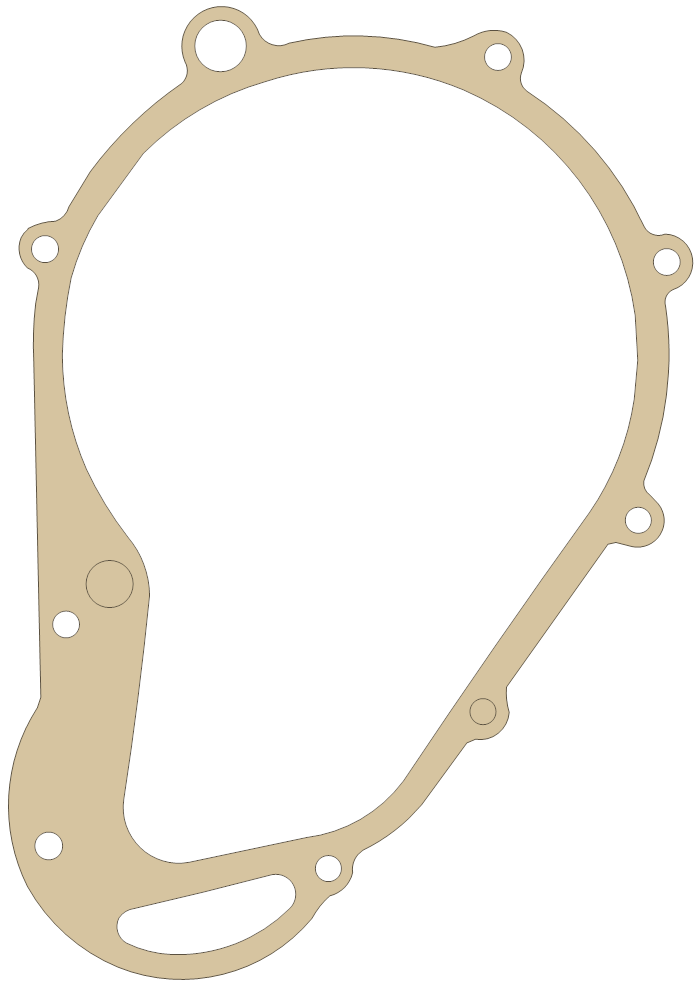

Alternator Cover | 11483-45000 | A | 20 mm | 1978 |
|
|

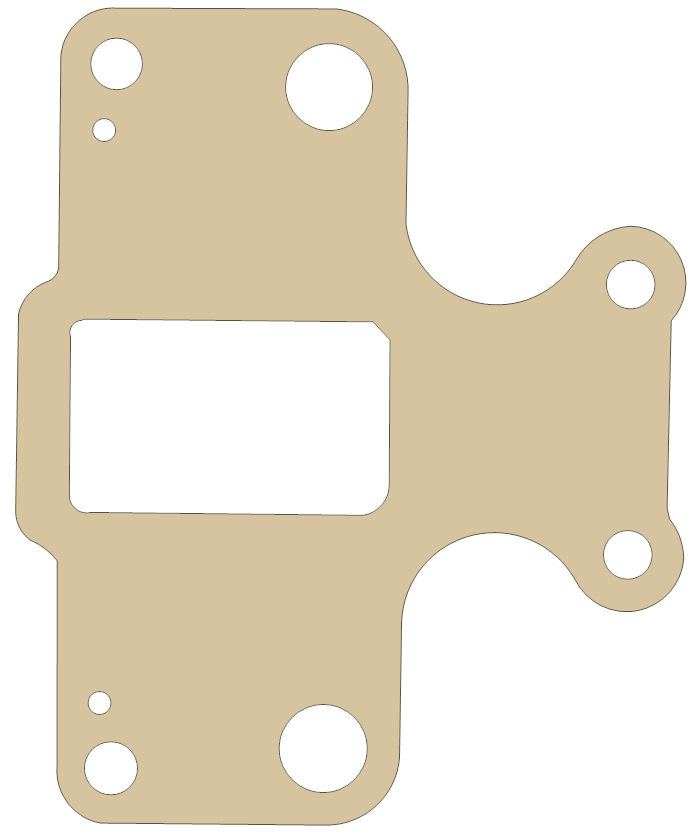

Cam Breather Cover | 11177-45000 | B | 40 mm | 1978 |
|
|

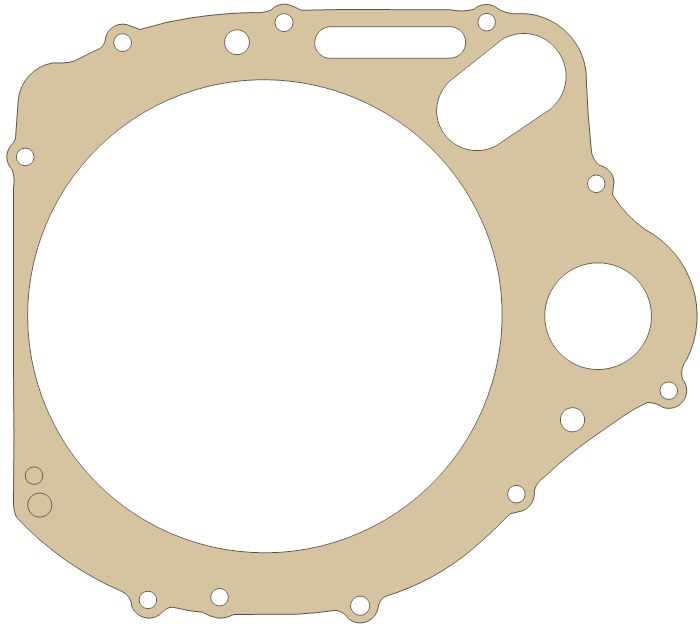

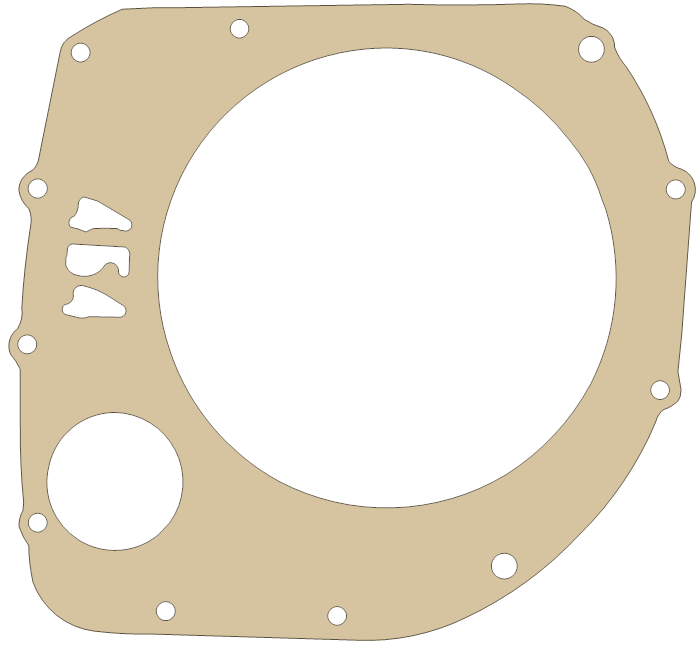

Clutch Cover | 11482-45100 | A | 20 mm | 1978 |
|
|
Clutch Cover | 11482-45400 | A | 20 mm | 1980 - 1981 |
|
|

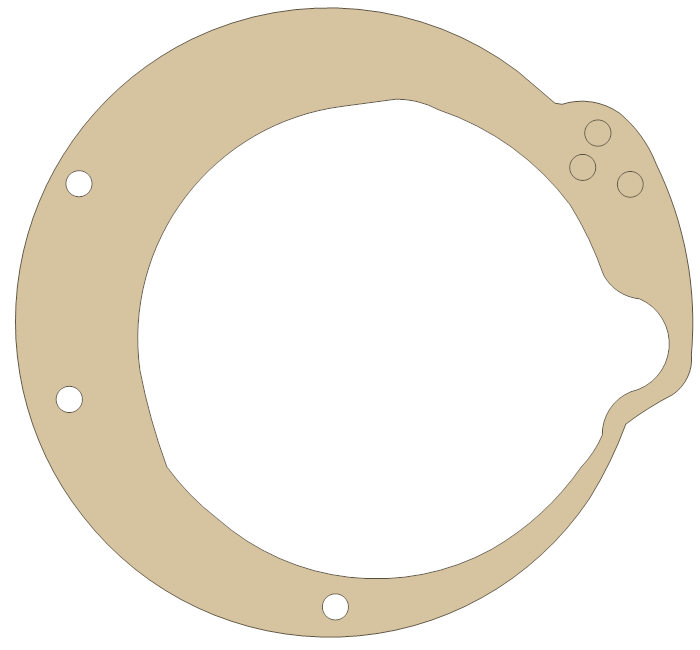

Contact Breaker Cover | 11491-45000 | A | 20 mm | 1978 |
|
|

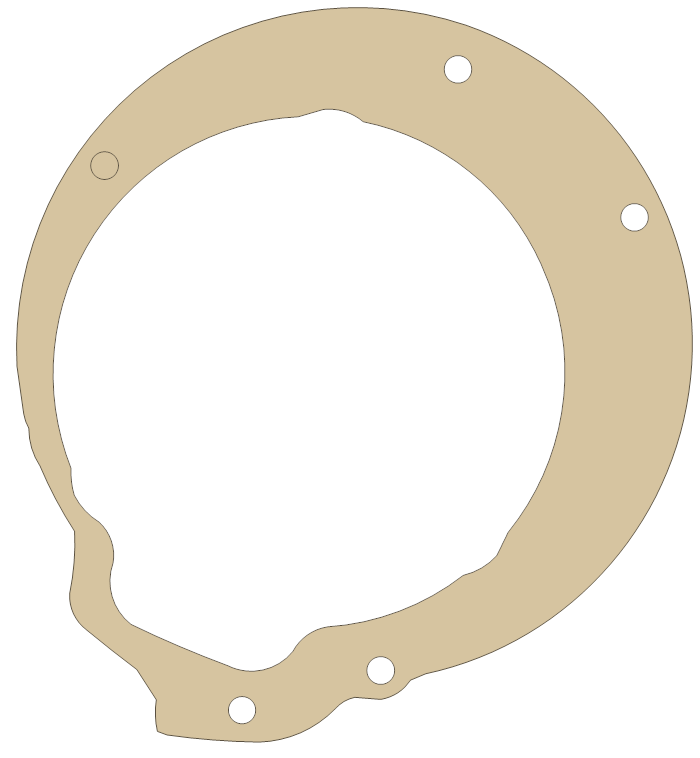

Contact Breaker Cover | 11491-49200 | A | 20 mm | 1980 - 1981 |
|
|

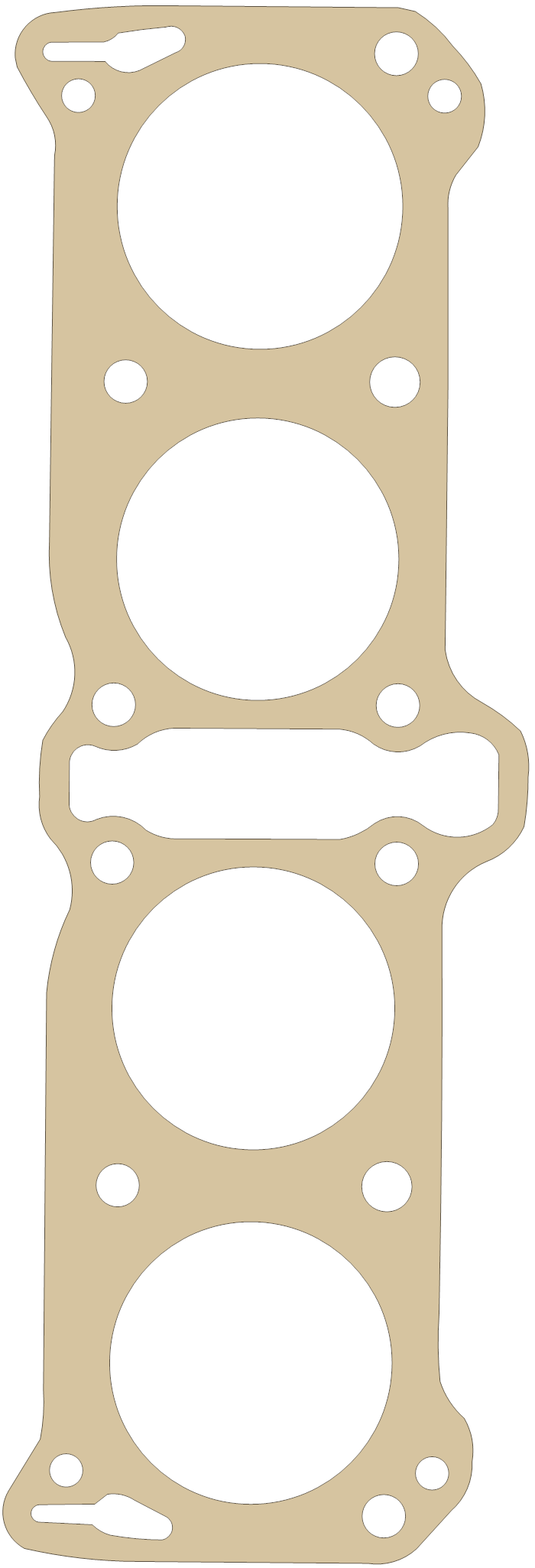

Cylinder | 11241-45401-H17 | A | 20 mm | 1980 - 1981 |
|
|

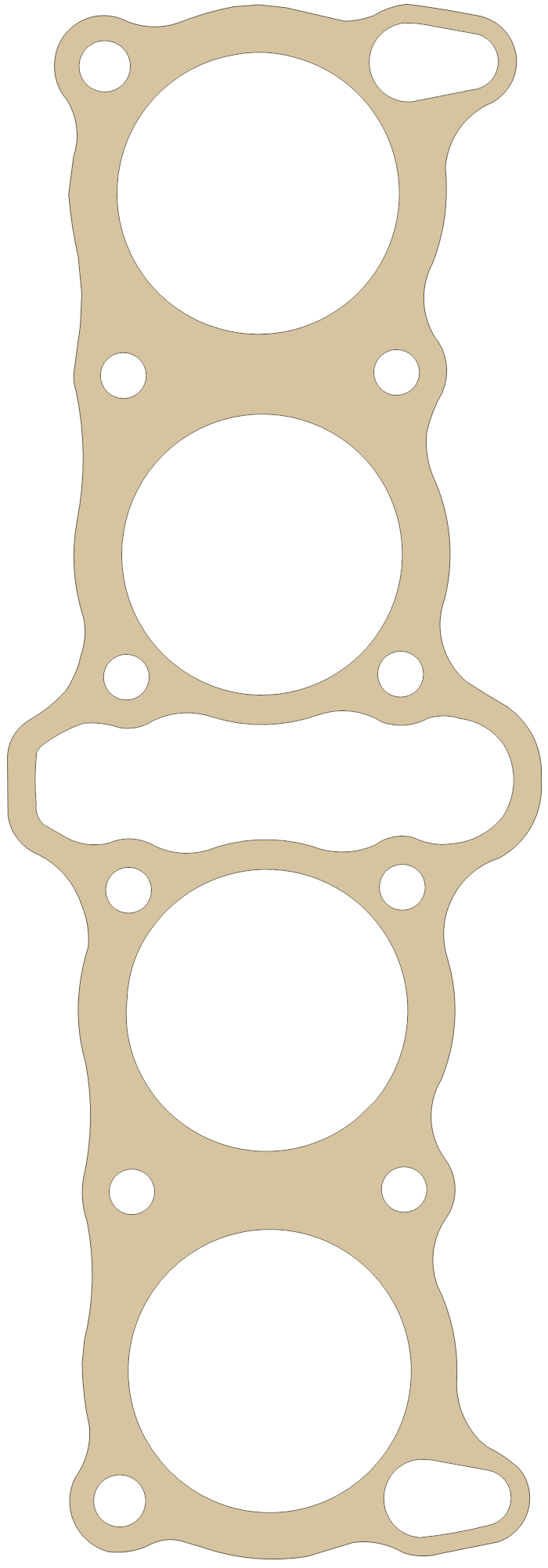

Cylinder Base | 11241-45110 | A | 20 mm | 1978 |
|
|

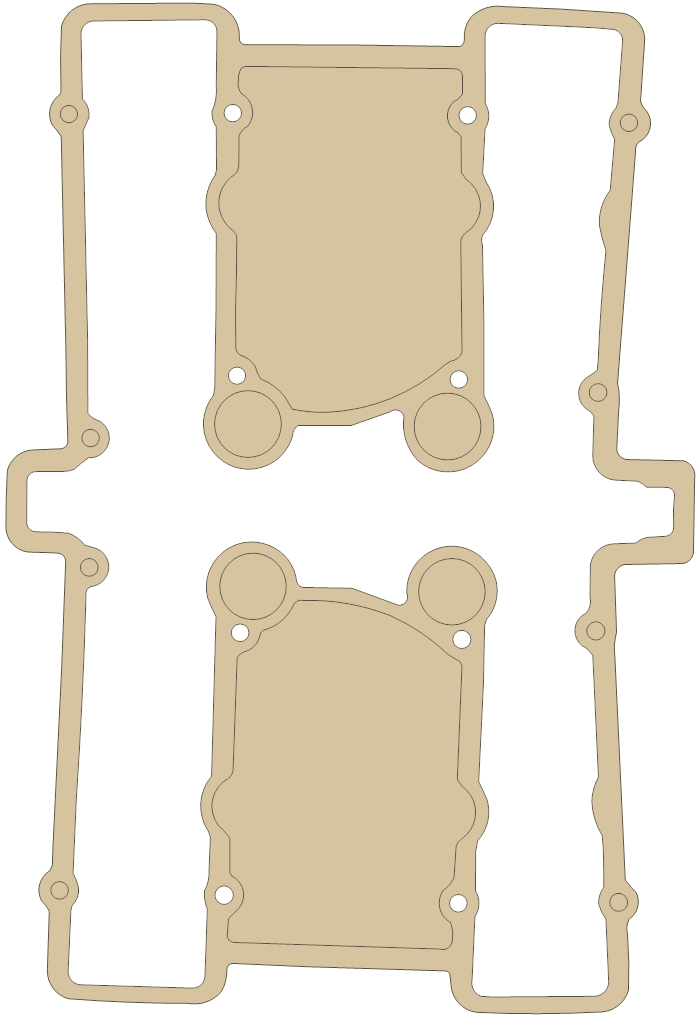

Cylinder Head Cover | 11173-45004-H17 | B | 40 mm | 1978 |
|
|

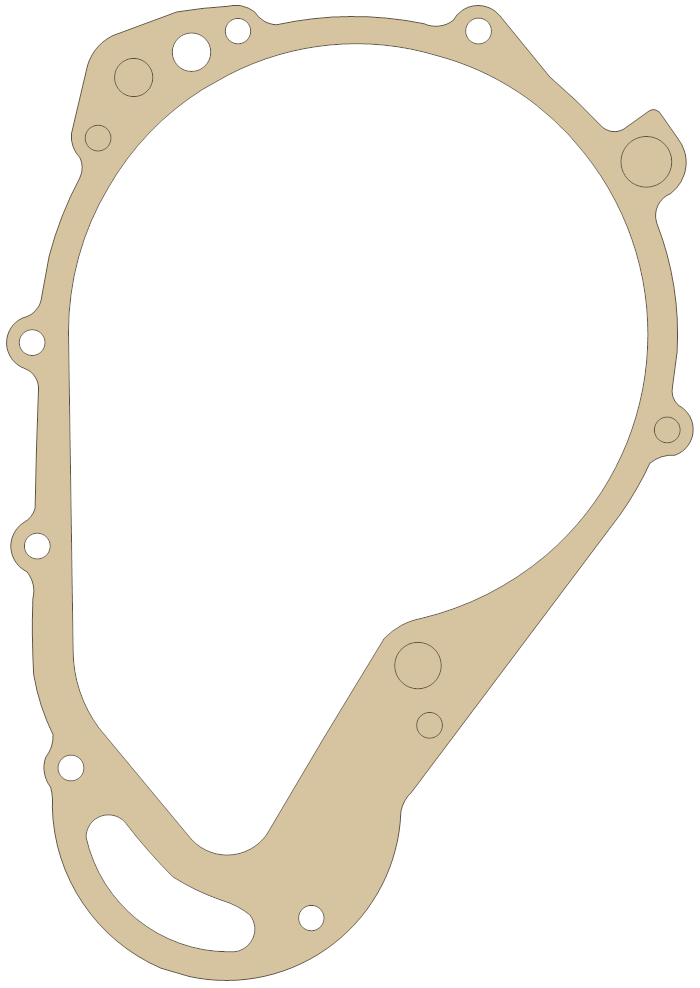

Magneto Cover | 11483-49210 | A | 20 mm | 1980 - 1981 |
|
|

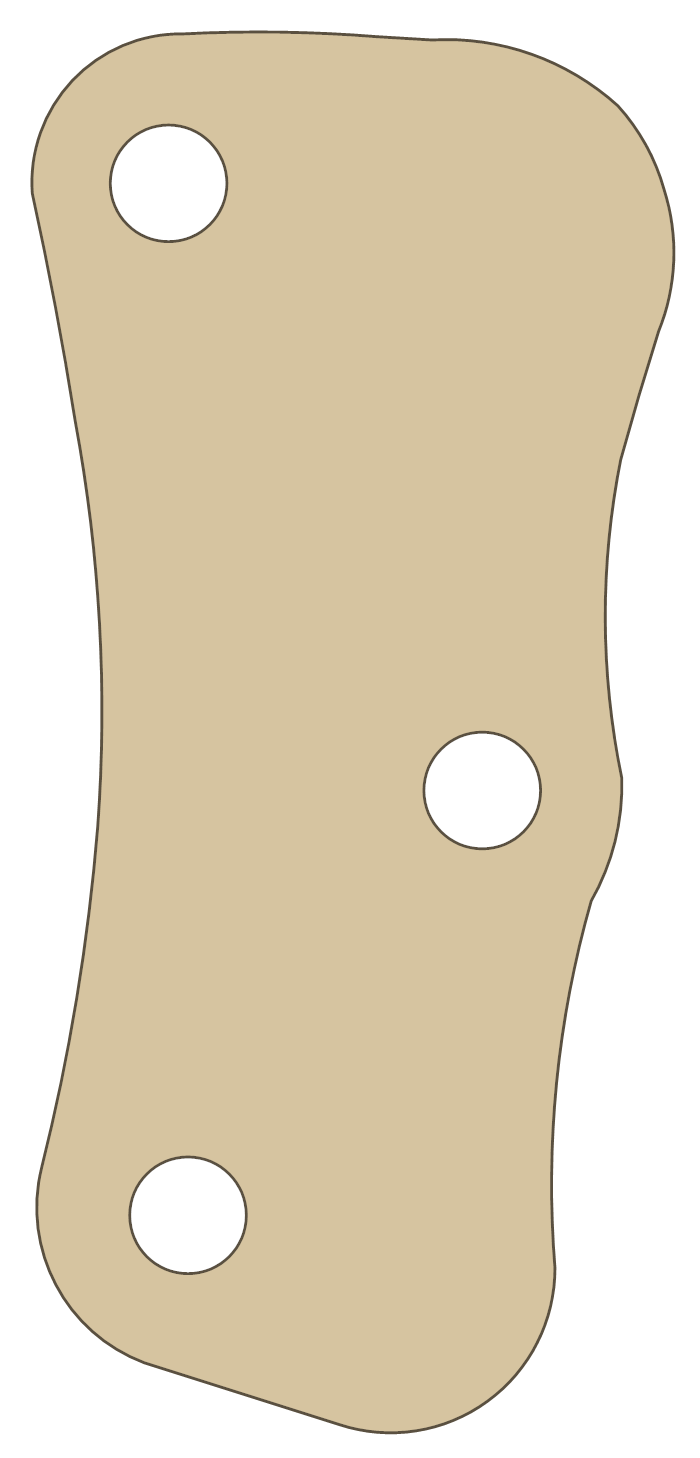

Oil Gallery Cap | 11497-45000 | B | 40 mm | 1980 - 1981 |
|
|

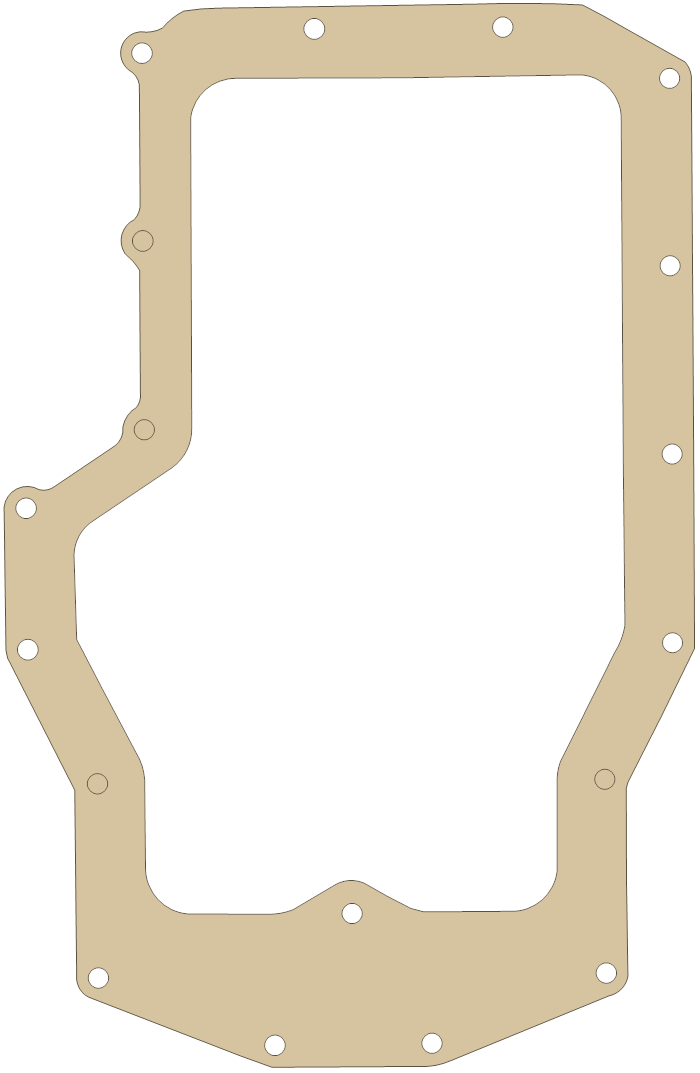

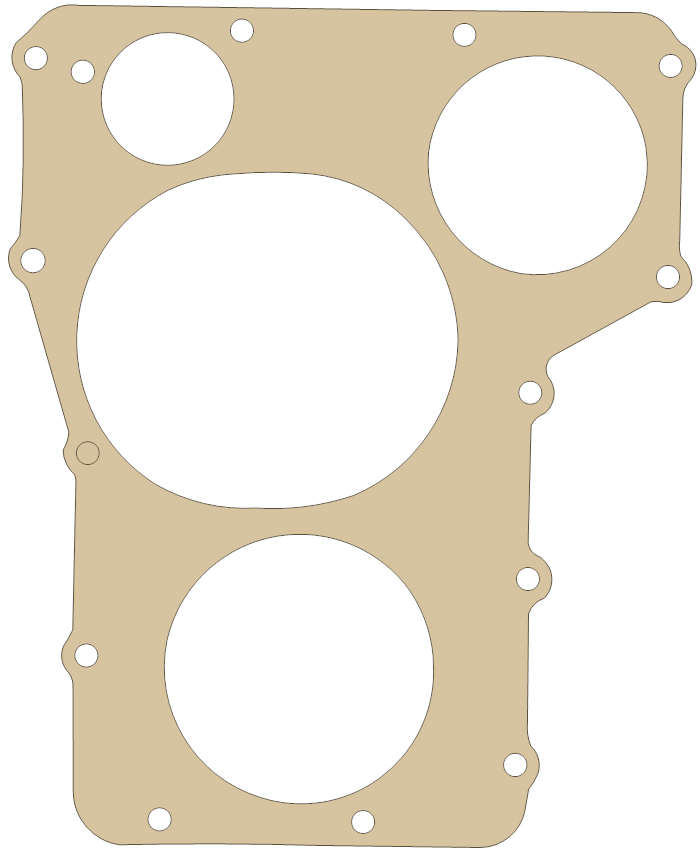

Oil Pan | 11489-45001 | A | 20 mm | 1978 |
|
|
Oil Pan | 11489-45400 | A | 20 mm | 1980 - 1981 |
|
|

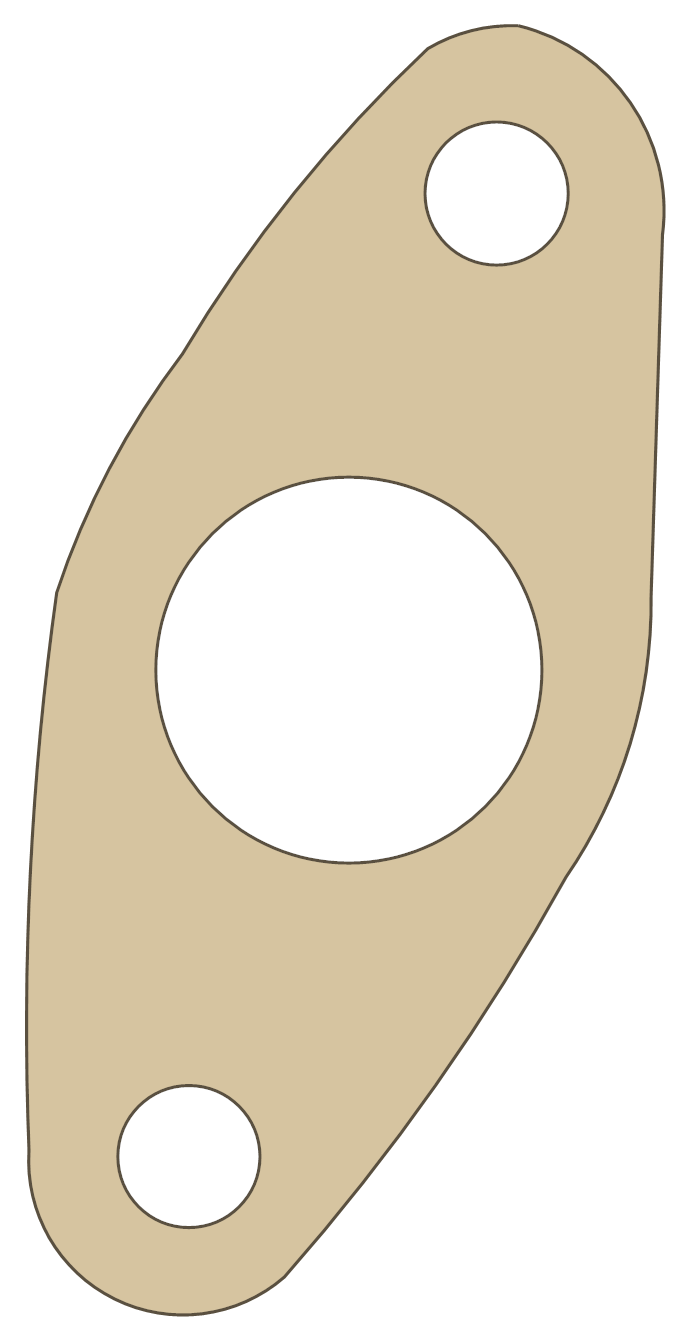

Tensioner Adjuster | 12837-47000 | A | 20 mm | 1980 - 1981 |
|
|

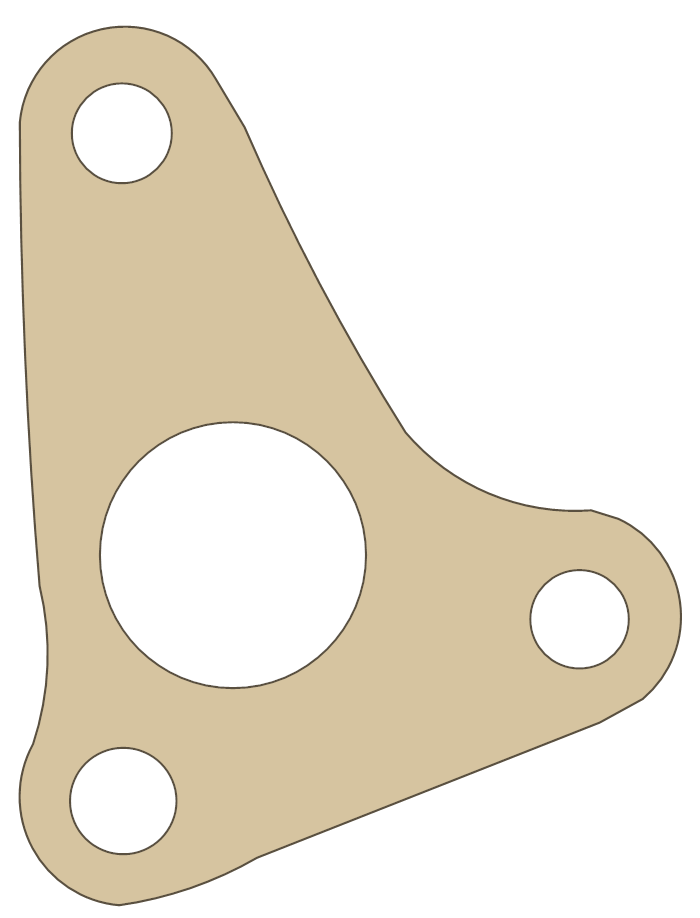

Tensioner Cam Case | 12837-45000 | A | 20 mm | 1978 |
|
|

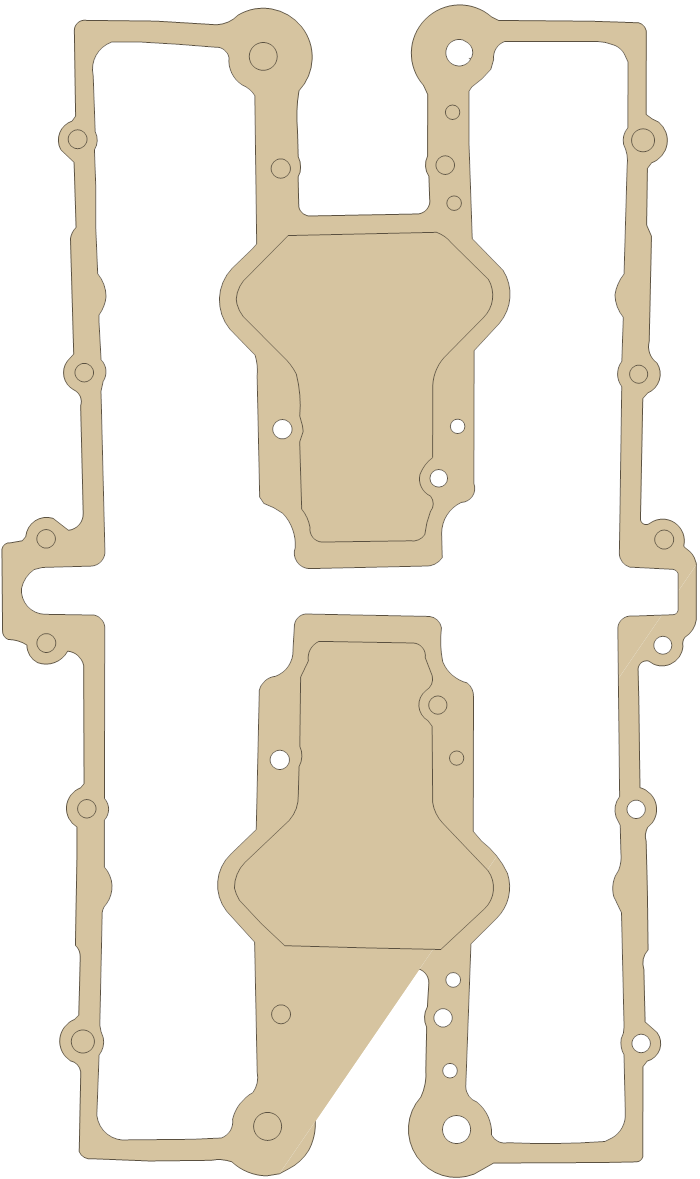

Valve Cover | 11173-49210 | B | 30 mm | 1981 |
Ready-to-cut files for every gasket listed here are available to subscribers. Specifications are free to view.
