6 gasket sets and 17 individual gaskets for the Suzuki GSX-R1100. Material, thickness and OEM cross-reference for each.
| Set | Gaskets in Set | Material | Years |
|---|---|---|---|
| SET A | 6 | A | 1989 - 1992 |
| SET A | 6 | A | 1986 - 1992 |
| SET A | 6 | A | 1993 - 1998 |
| SET B | 1 | A | 1988 |
| SET B | 1 | A | 1989 - 1992 |
| SET C | 1 | B | 1989 - 1995 |
| Gasket | OEM Number | Material | Thickness | Years | |
|---|---|---|---|---|---|
|
|

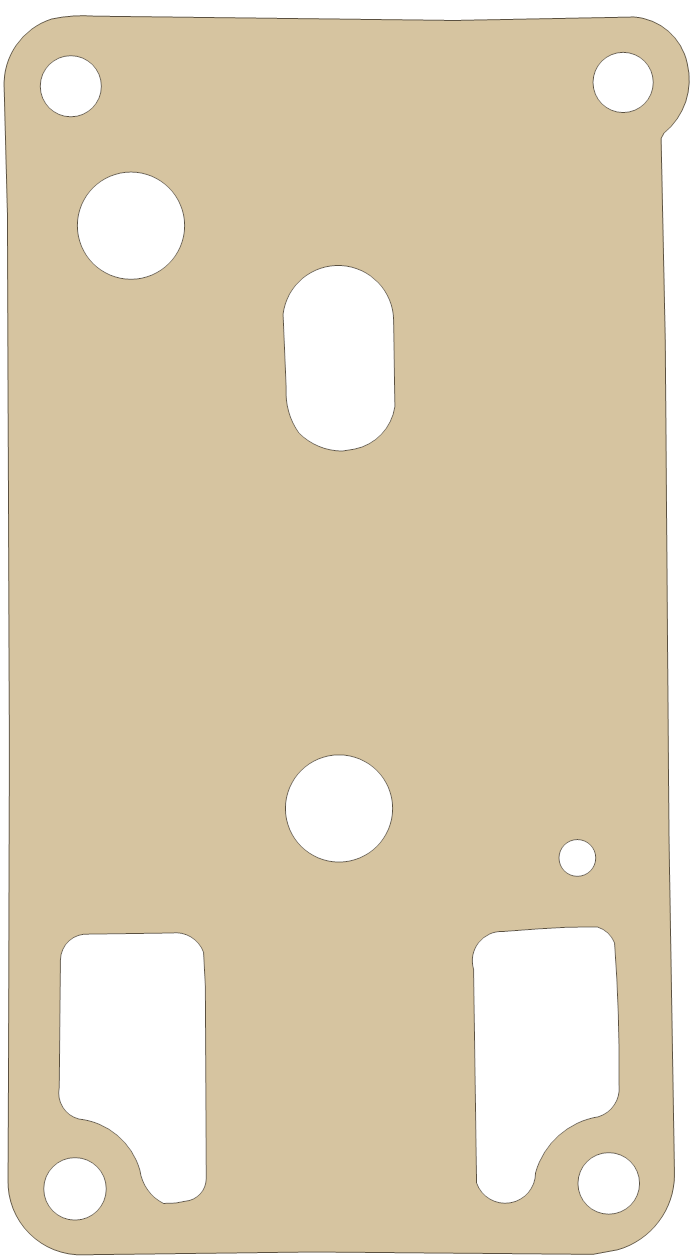

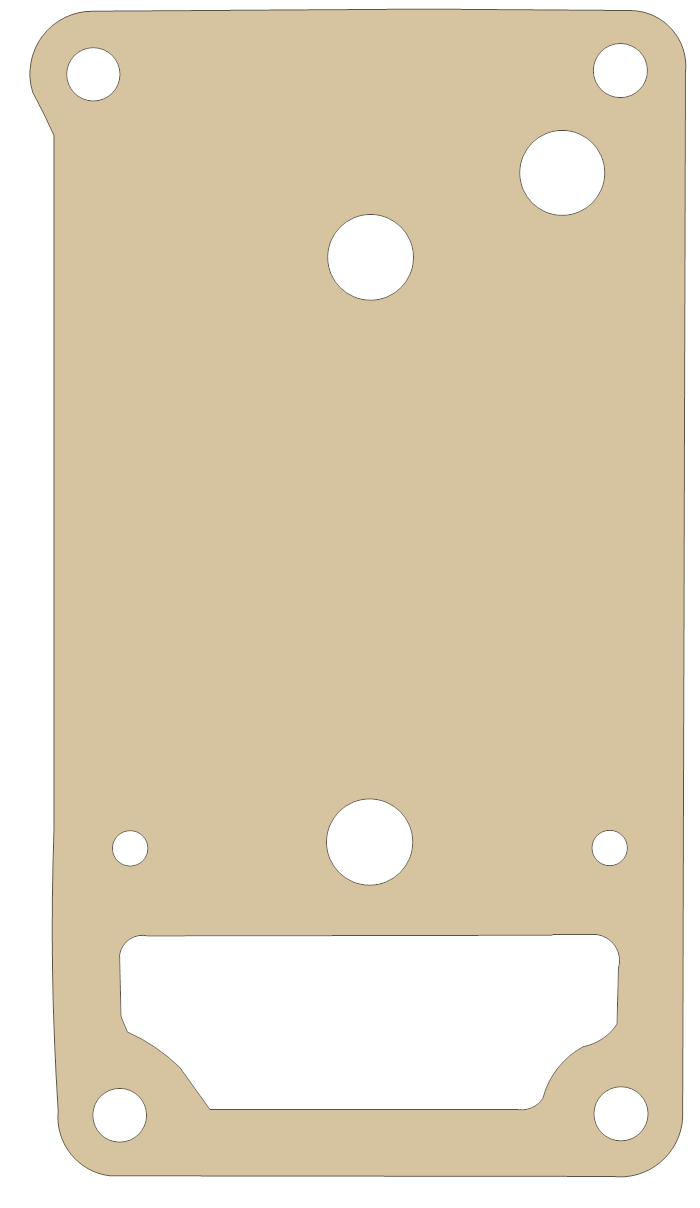

Breather Cover | 11177-17E00 | A | 20 mm | 1993 - 1998 |
|
|
Breather Cover | 11177-48S00 | B | 40 mm | 1986 - 1995 |
|
|

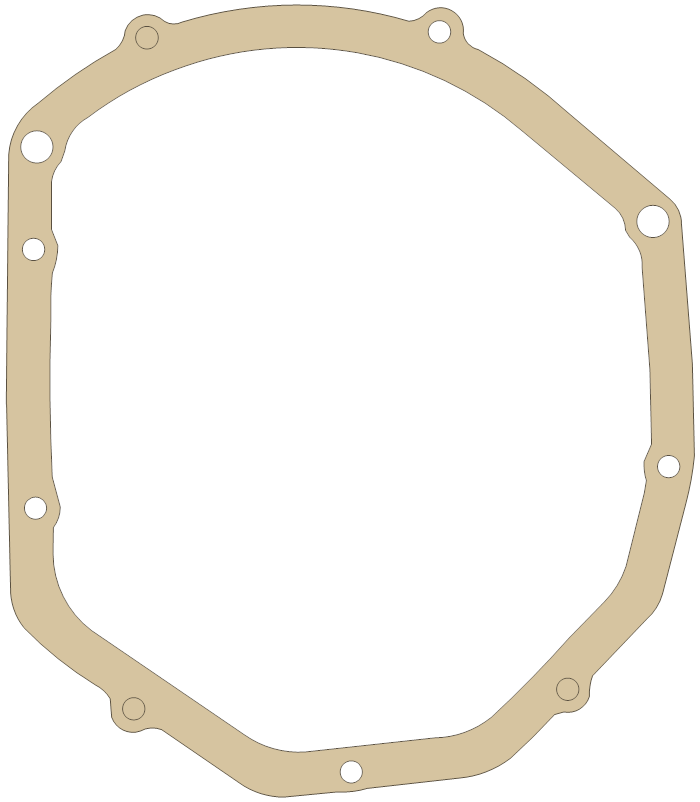

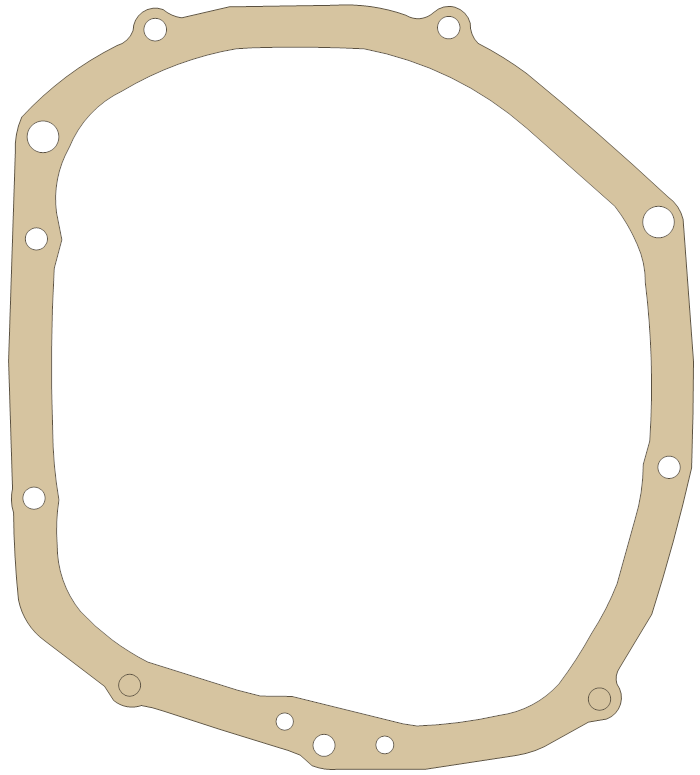

Clutch Cover | 11482-27A20 | A | 20 mm | 1986 - 1992 |
|
|
Clutch Cover | 11482-17E00 | A | 20 mm | 1993 - 1998 |
|
|

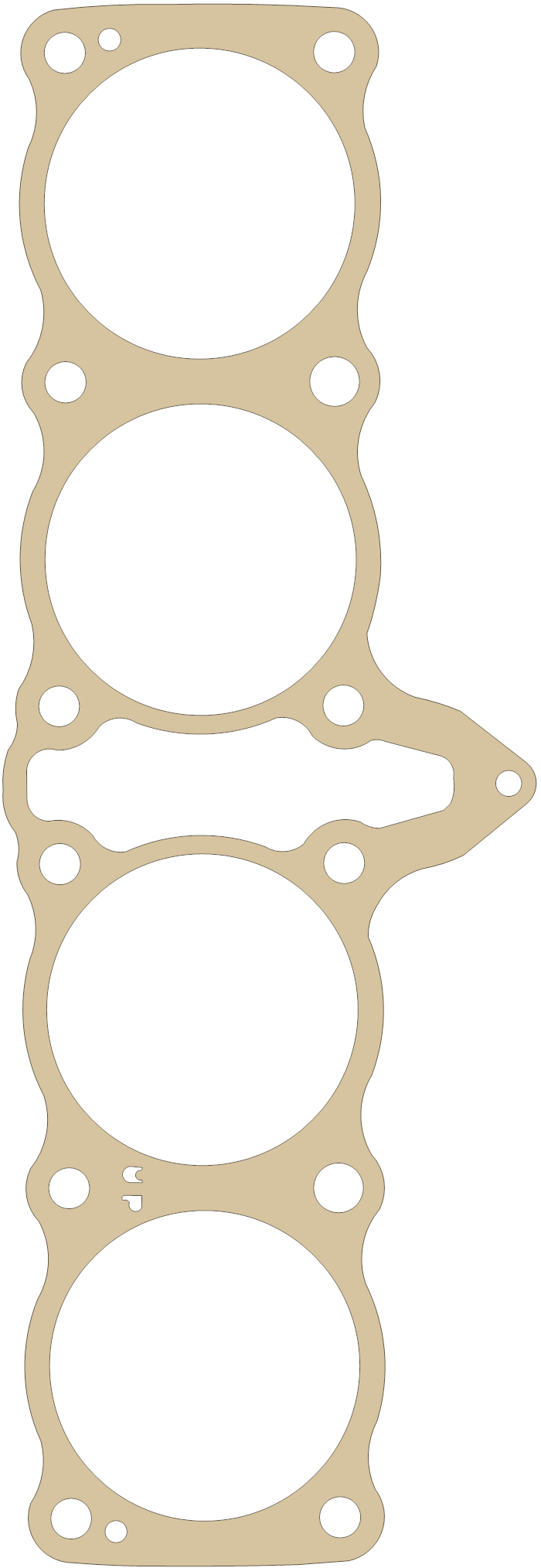

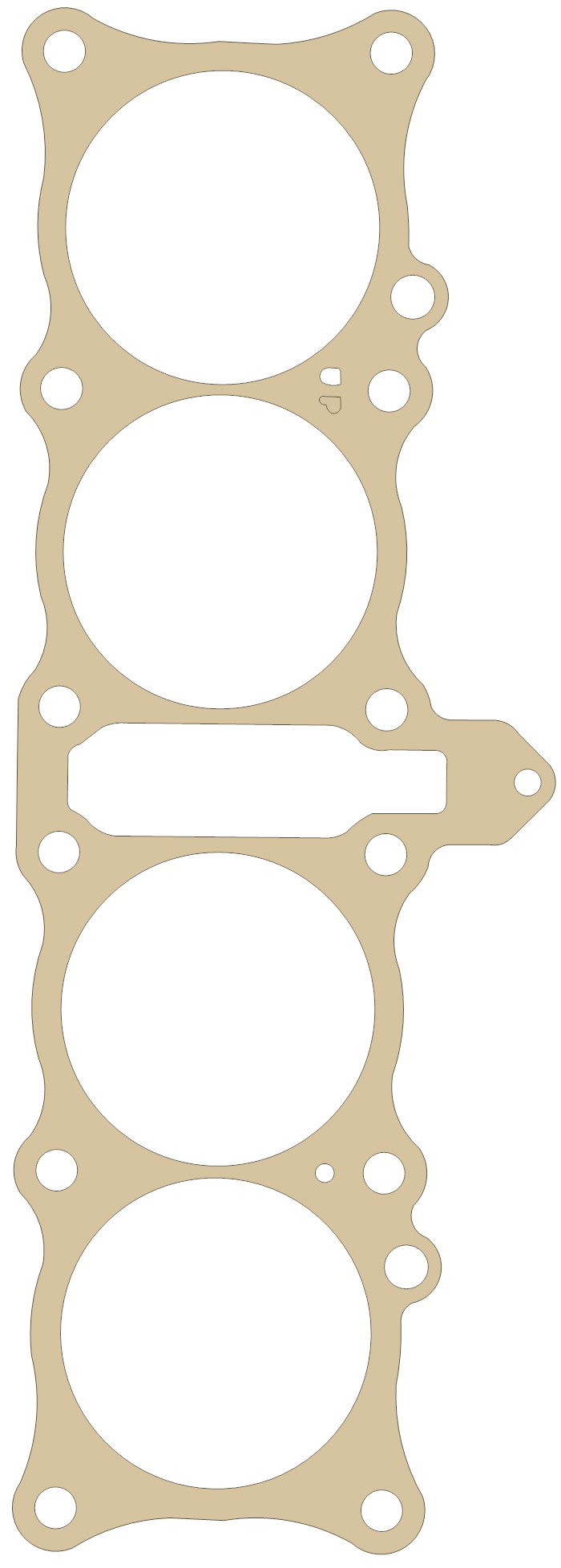

Cylinder | 11241-46E01 | A | 20 mm | 1993 - 1998 |
|
|
Cylinder | 11241-27A02 | A | 20 mm | 1988 |
|
|

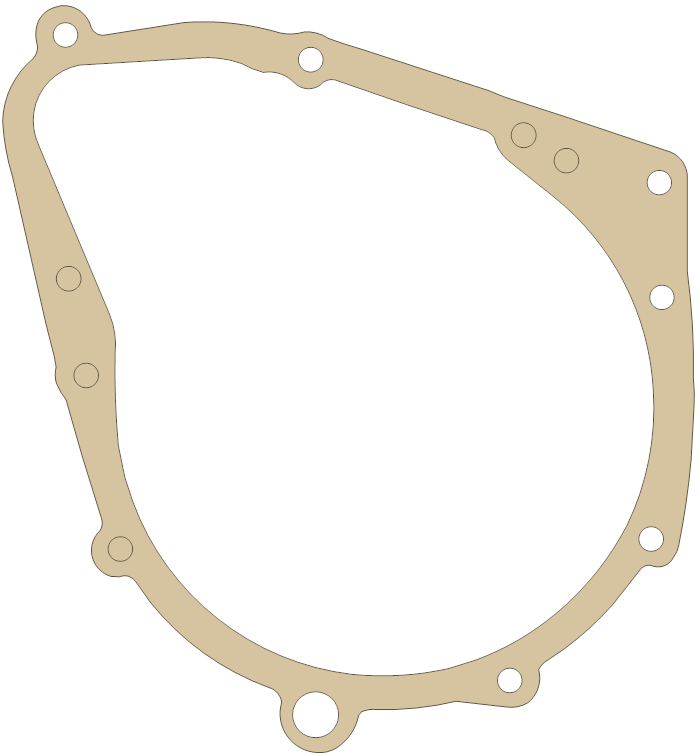

Gasket 1 | — | A | 20 mm | 1986 - 1992 |
|
|

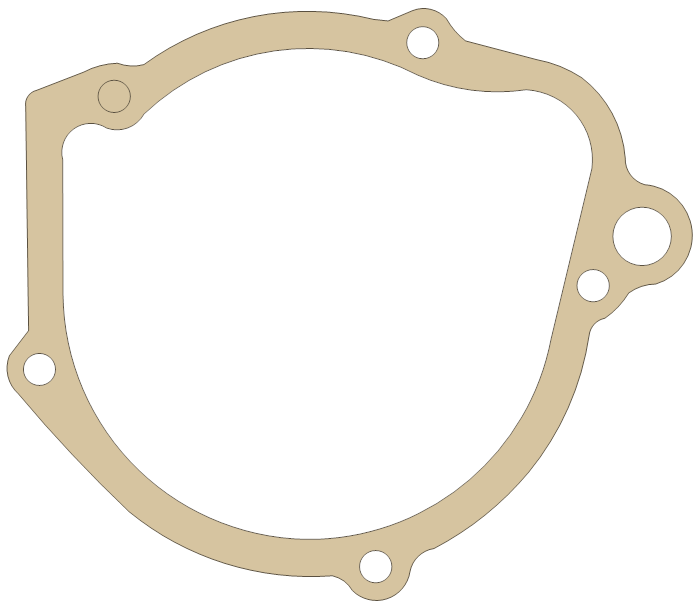

Generator Cover | 11491-27A30 | A | 20 mm | 1986 - 1992 |
|
|

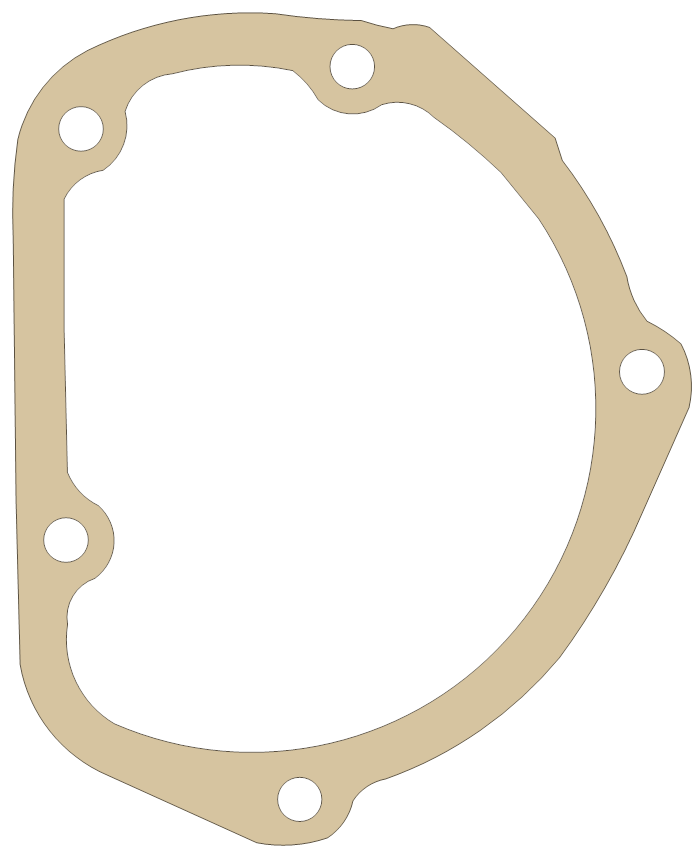

Magneto Cover | 11491-17E01 | A | 20 mm | 1993 - 1998 |
|
|

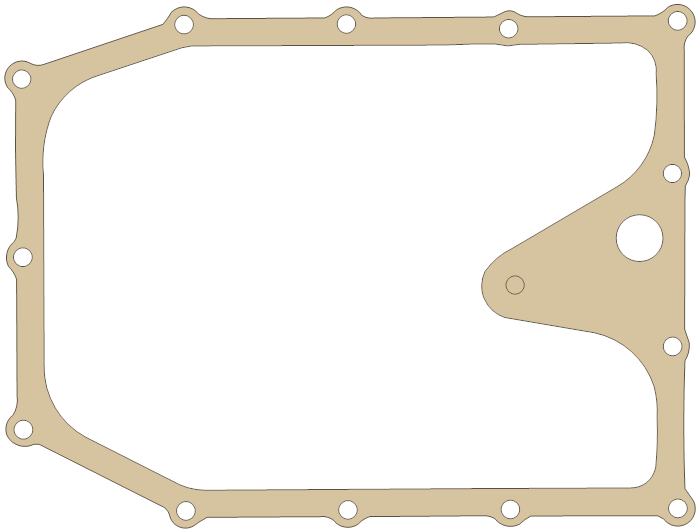

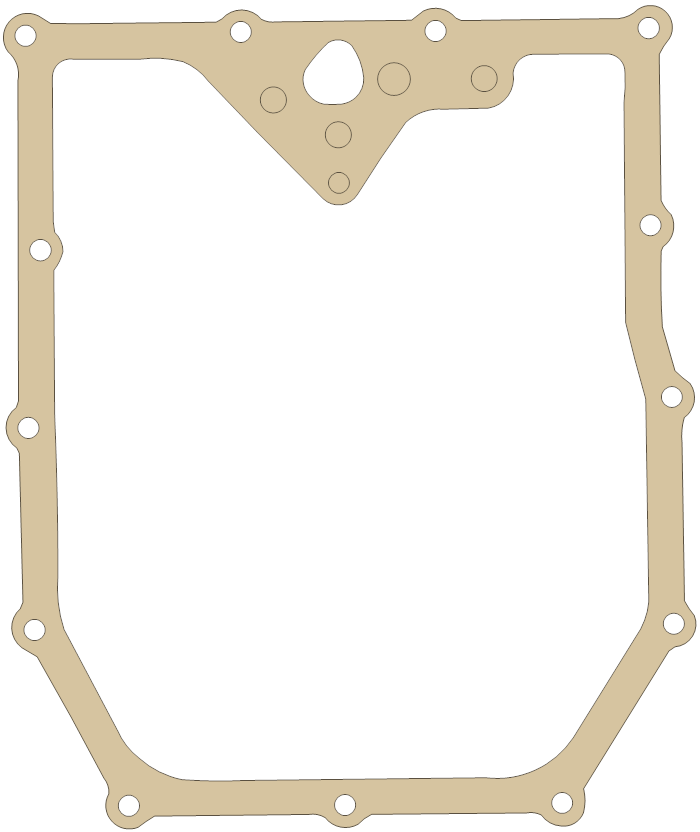

Oil Pan | 11489-27A20 | A | 20 mm | 1986 - 1992 |
|
|
Oil Pan | 11489-17E01 | A | 20 mm | 1993 - 1998 |
|
|

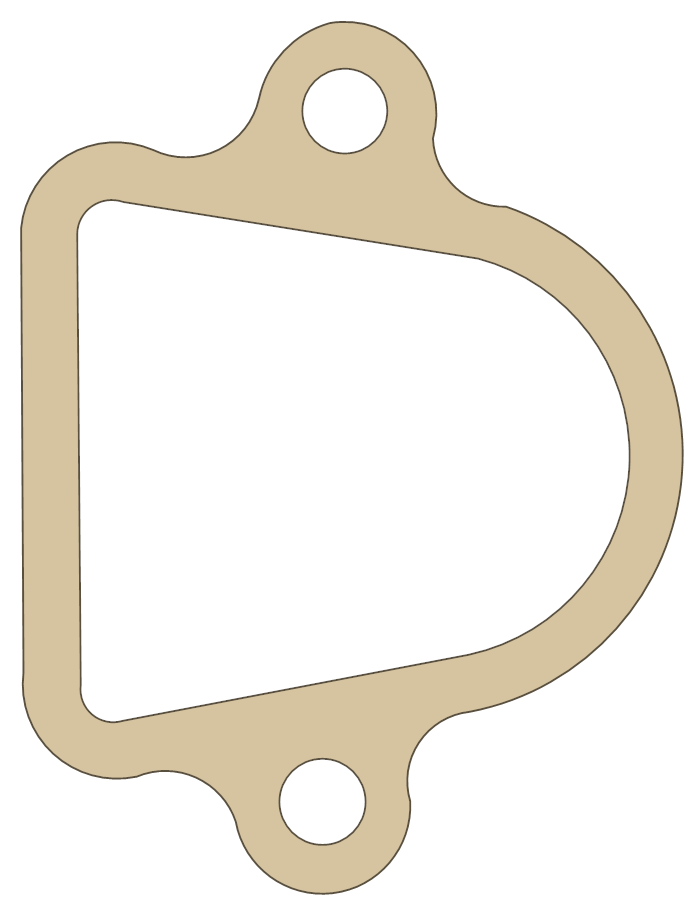

Protector | 16528-27A02 | A | 20 mm | 1986 - 1988 |
|
|
Protector | 16528-27A20 | A | 20 mm | 1986 - 1992 |
|
|

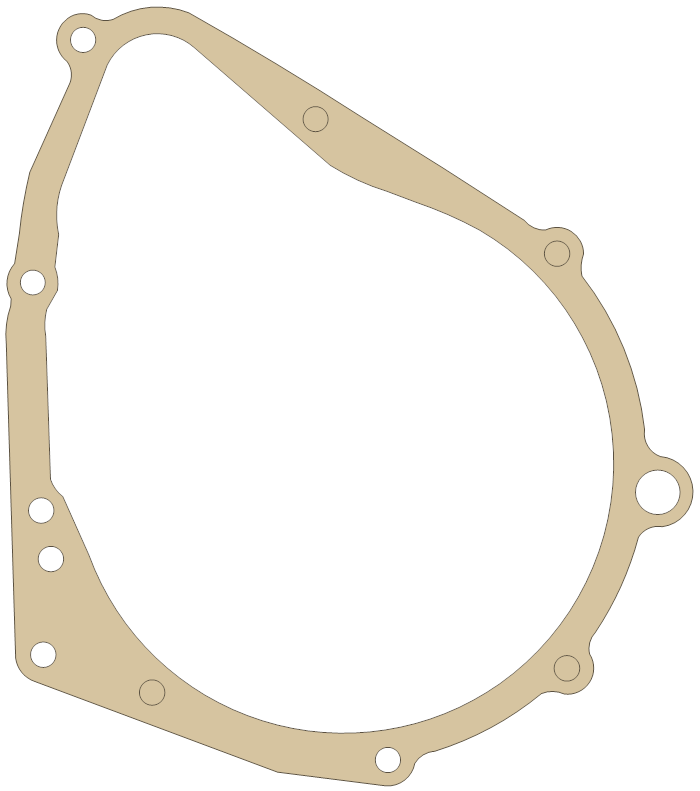

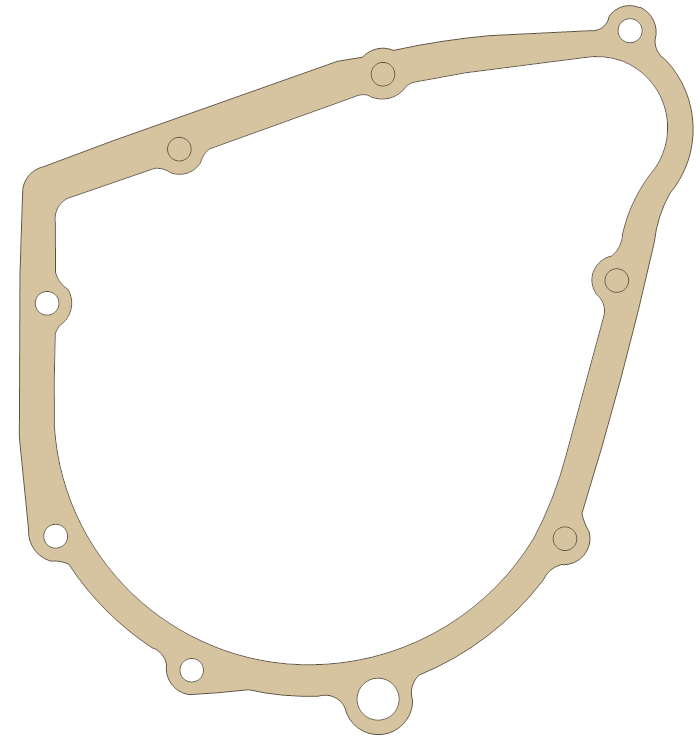

Starter Gear Cover | 11483-48B20 | A | 20 mm | 1986 - 1992 |
|
|
Starter Gear Cover | 11483-27A00 | A | 20 mm | 1986 - 1988 |
|
|
Tensioner | 12837-27A10 | A | 20 mm | 1986 - 1998 |
|
|

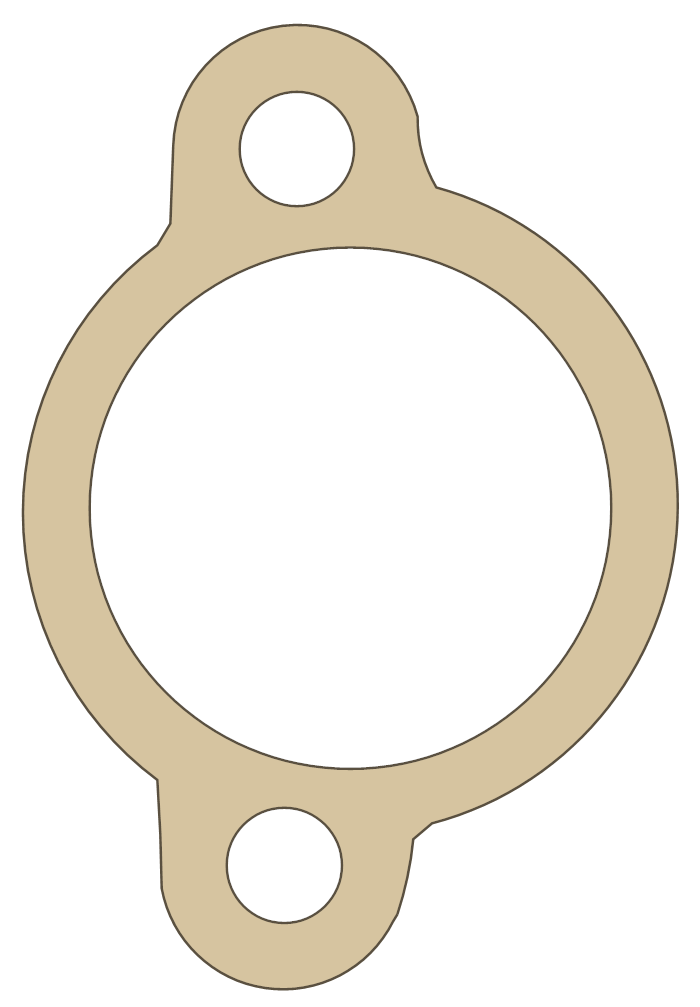

Tensioner Adjuster | 12837-27A10 | A | 20 mm | 1986 - 1992 |
Ready-to-cut files for every gasket listed here are available to subscribers. Specifications are free to view.
