3 gasket sets and 7 individual gaskets for the Suzuki GSX750L. Material, thickness and OEM cross-reference for each.
| Set | Gaskets in Set | Material | Years |
|---|---|---|---|
| SET A | 5 | A | 1980 - 1981 |
| SET B | 1 | A | 1980 - 1981 |
| SET D | 1 | B | 1980 - 1981 |
| Gasket | OEM Number | Material | Thickness | Years | |
|---|---|---|---|---|---|
|
|

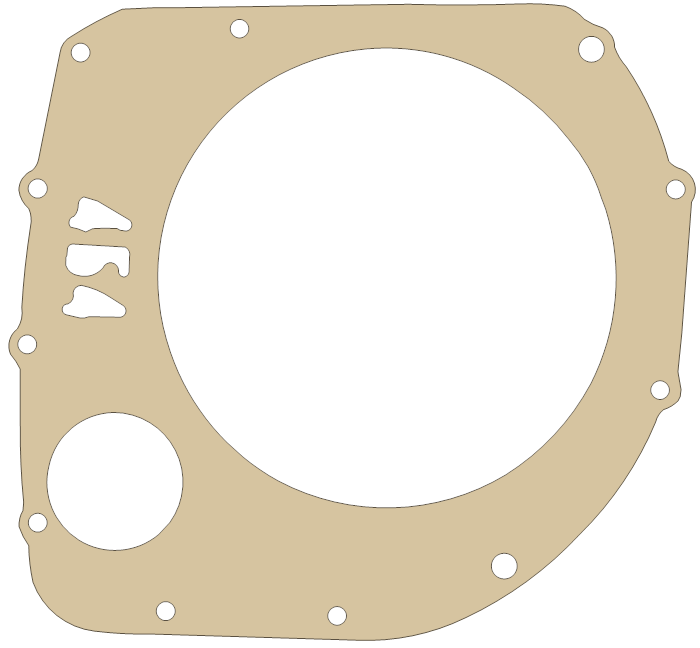

Clutch Cover | 11482-45400 | A | 20 mm | 1980 - 1981 |
|
|

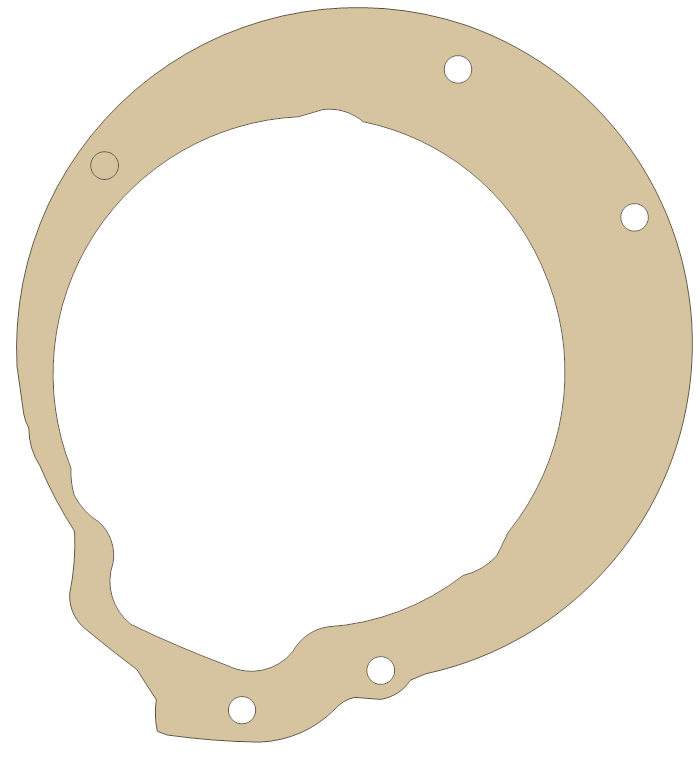

Contact Breaker Cover | 11491-49200 | A | 20 mm | 1980 - 1981 |
|
|

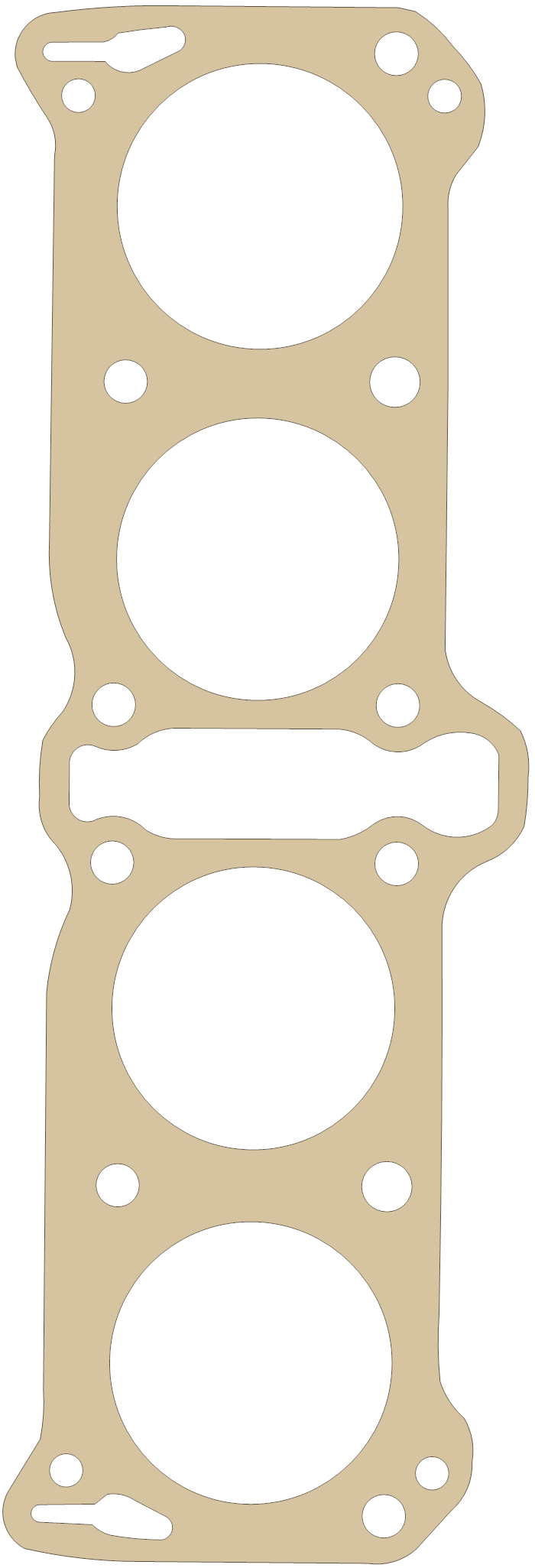

Cylinder | 11241-45401 | A | 20 mm | 1980 - 1981 |
|
|

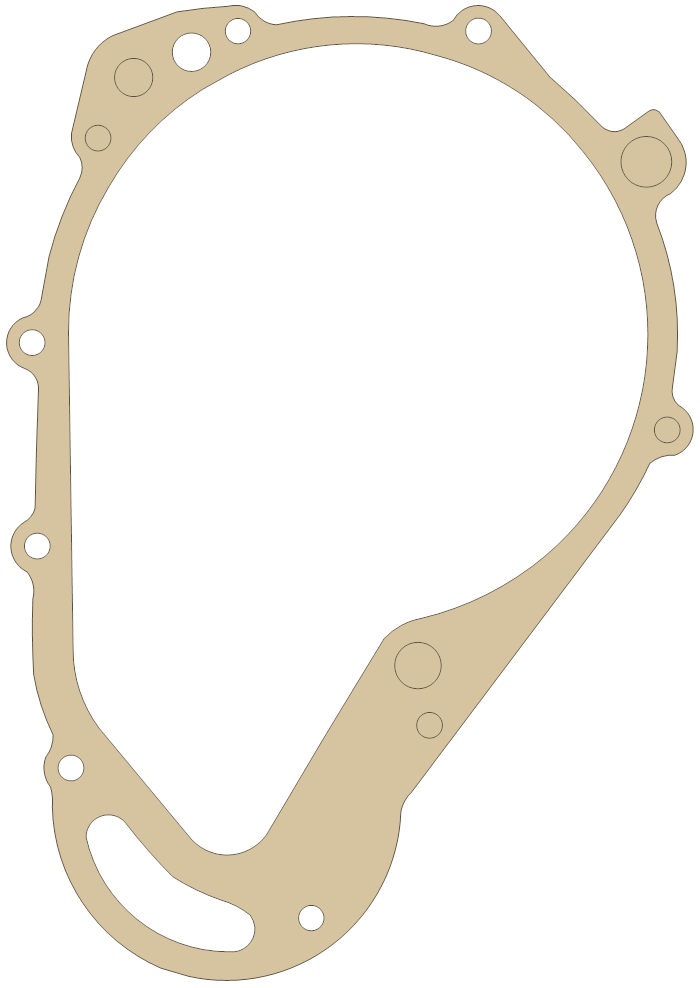

Magneto Cover | 11483-49210 | A | 20 mm | 1980 - 1981 |
|
|

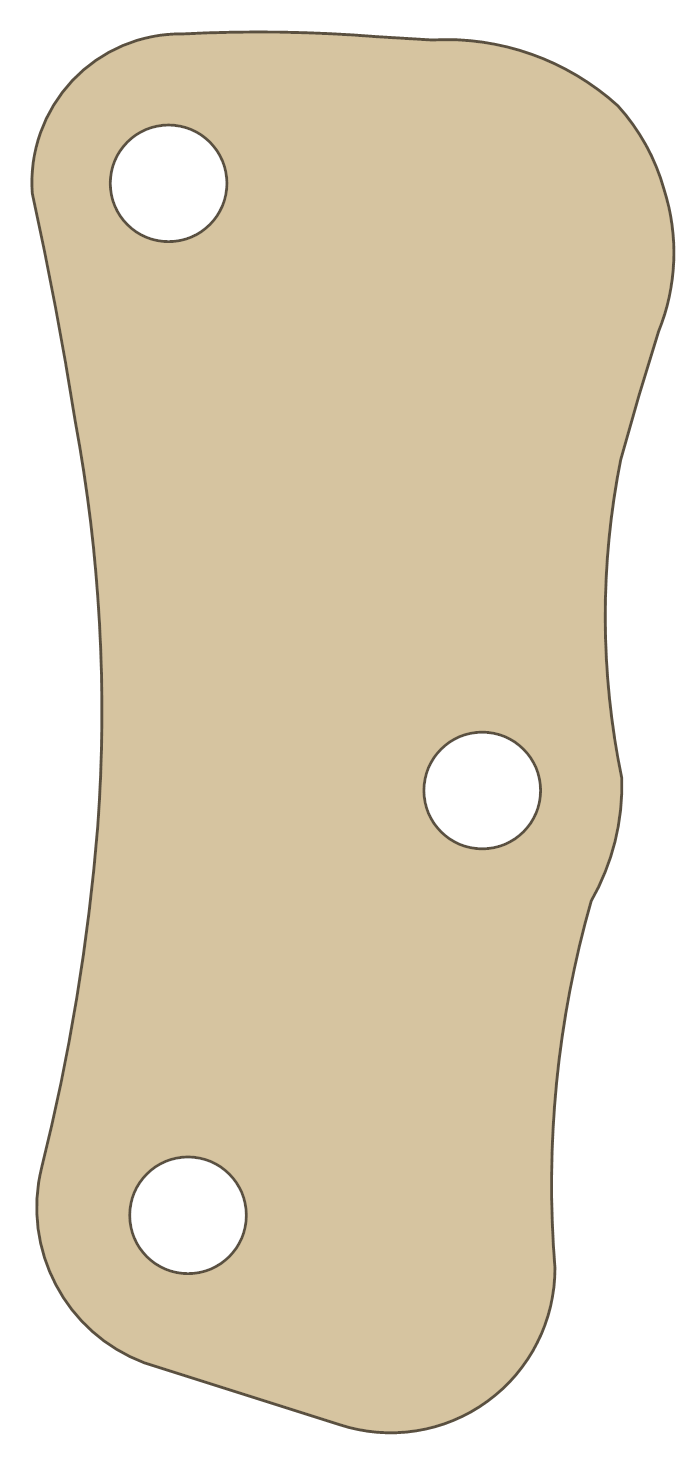

Oil Gallery Cap | 11497-45000 | B | 40 mm | 1980 - 1981 |
|
|

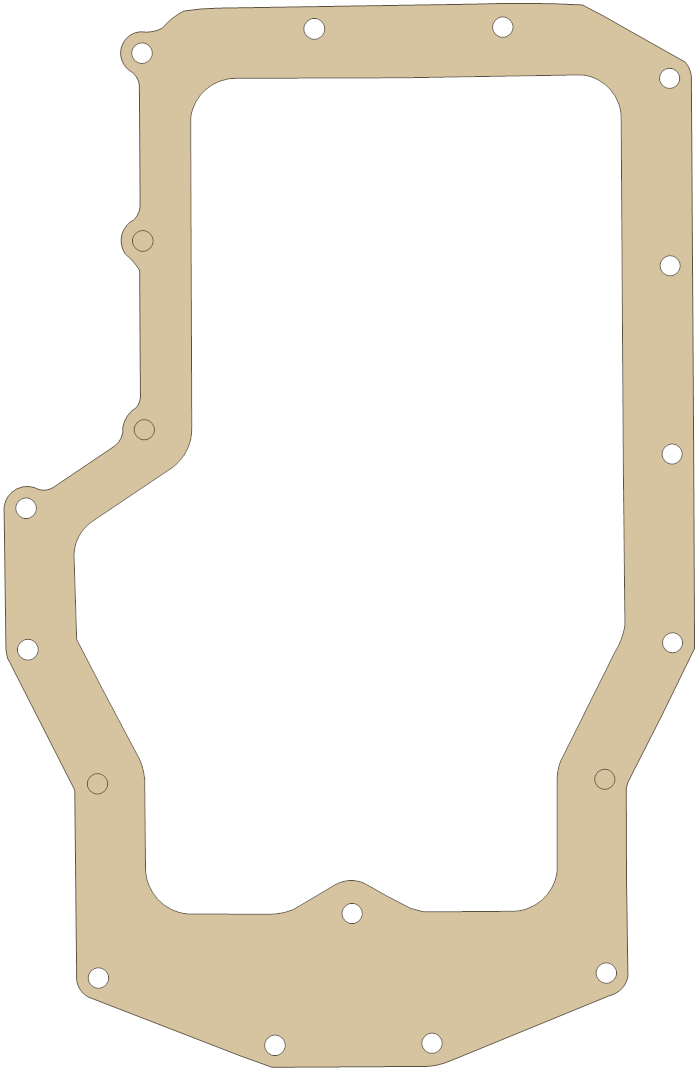

Oil Pan | 11489-45400 | A | 20 mm | 1980 - 1981 |
|
|

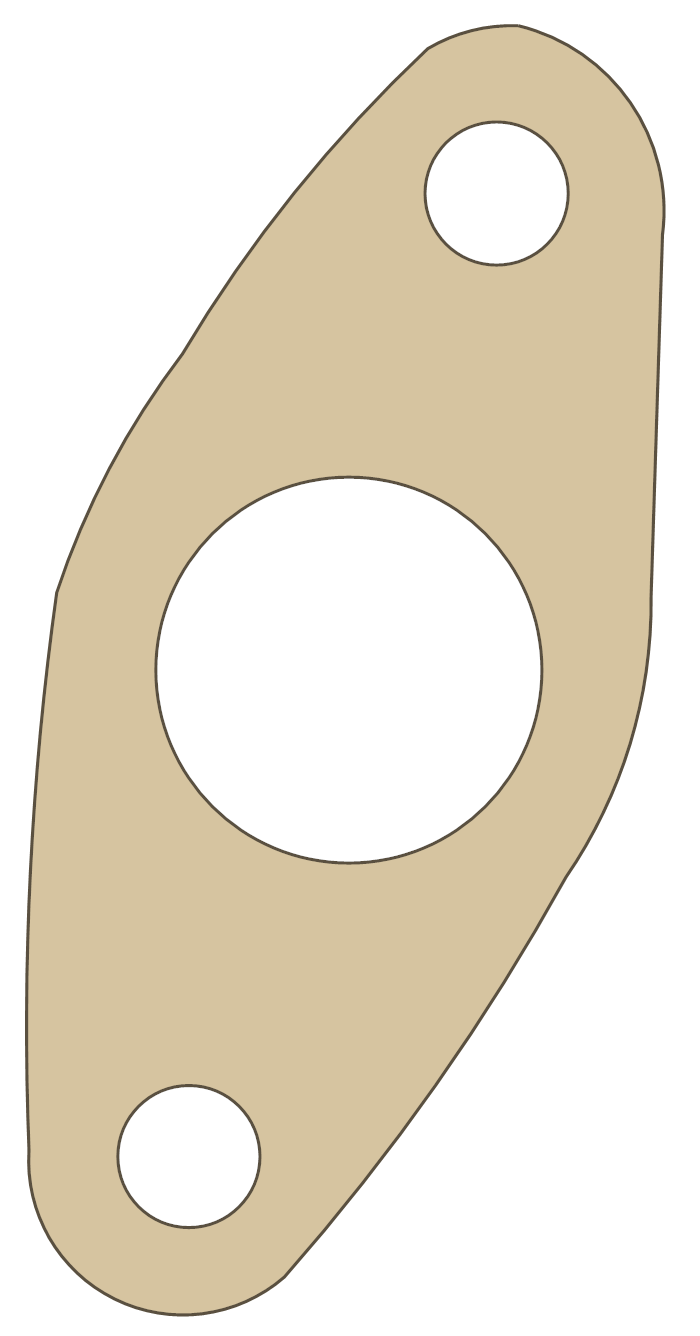

Tensioner Adjuster | 12837-47000 | A | 20 mm | 1980 - 1981 |
Ready-to-cut files for every gasket listed here are available to subscribers. Specifications are free to view.
Subscribe
