2 gasket sets and 10 individual gaskets for the Suzuki LT250R. Material, thickness and OEM cross-reference for each.
| Set | Gaskets in Set | Material | Years |
|---|---|---|---|
| SET A | 5 | A | 1987 - 1992 |
| SET A | 5 | A | 1985 - 1986 |
| Gasket | OEM Number | Material | Thickness | Years | |
|---|---|---|---|---|---|
|
|

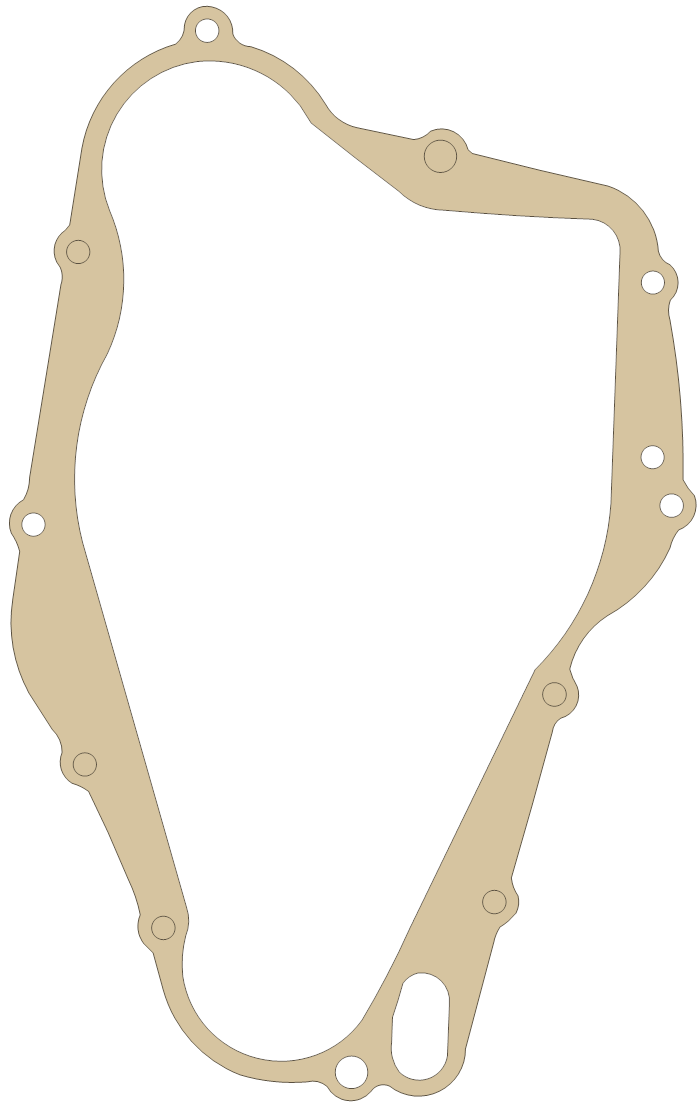

Clutch Cover | 11482-13A00 | A | 20 mm | 1985 - 1986 |
|
|
Clutch Cover | 11482-01C10 | A | 20 mm | 1987 - 1992 |
|
|
Cylinder | 11241-19A10 | A | 20 mm | 1985 - 1986 |
|
|

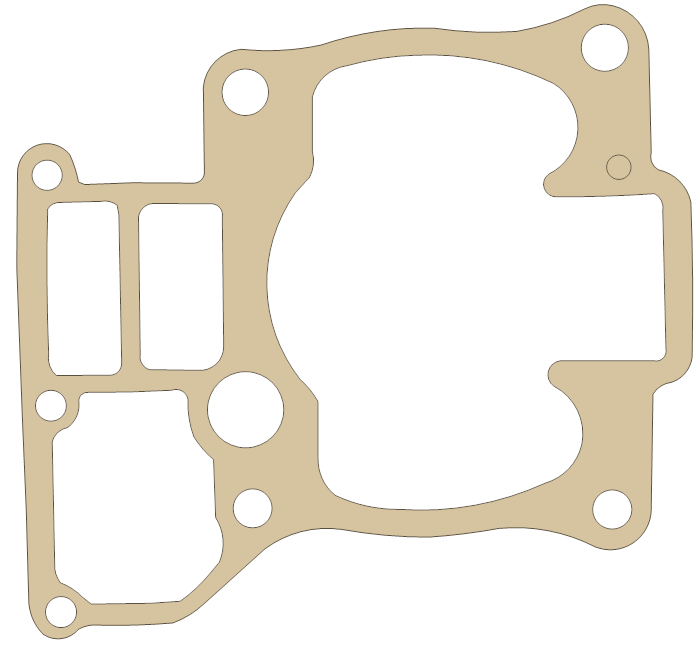

Cylinder Base | 11241-01C10 | A | 20 mm | 1987 - 1992 |
|
|
Cylinder Cover | 11233-00B00 | A | 20 mm | 1987 - 1992 |
|
|
Magneto Cover | 11483-13A00 | A | 20 mm | 1985 - 1986 |
|
|
Magneto Cover | 11483-01C10 | A | 20 mm | 1987 - 1992 |
|
|
Reed Valve | 13156-13A00 | A | 20 mm | 1985 - 1986 |
|
|
Reed Valve | 13156-01C10 | A | 20 mm | 1987 - 1992 |
|
|

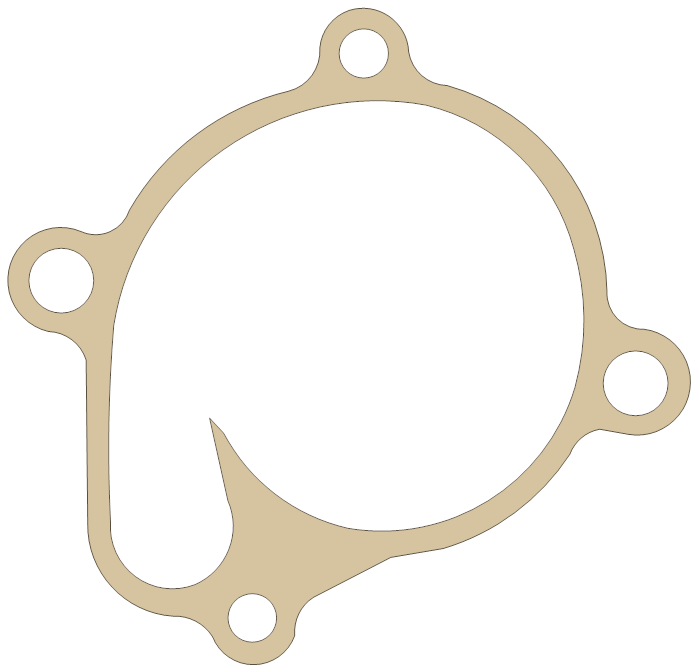

Water Pump | 17431-14303 | A | 20 mm | 1985 - 1986 |
Ready-to-cut files for every gasket listed here are available to subscribers. Specifications are free to view.
