2 gasket sets and 7 individual gaskets for the Suzuki LT500R. Material, thickness and OEM cross-reference for each.
| Set | Gaskets in Set | Material | Years |
|---|---|---|---|
| SET A | 6 | A | 1988 - 1990 |
| SET B | 1 | B | 1988 - 1990 |
| Gasket | OEM Number | Material | Thickness | Years | |
|---|---|---|---|---|---|
|
|

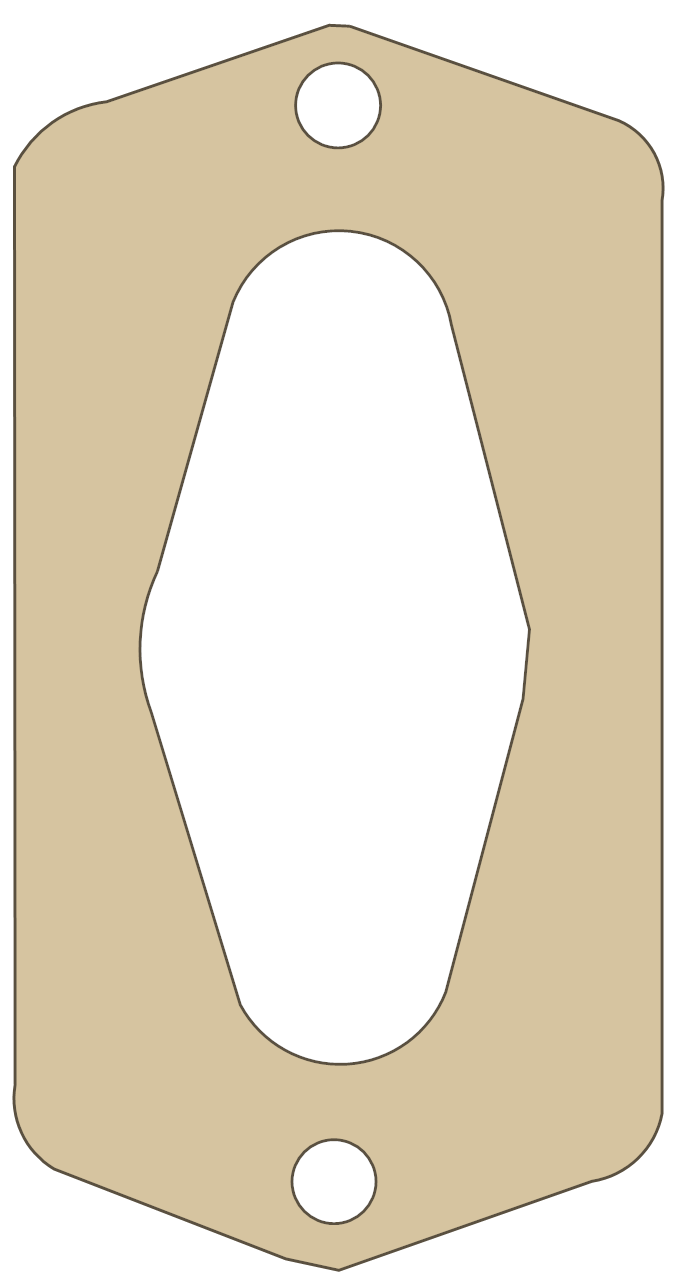

Carb Top | 13266-14300 | A | 20 mm | 1987 - 1990 |
|
|
Clutch Cover | 11482-43B00 | A | 20 mm | 1987 - 1990 |
|
|
Cylinder Base | 11241-43B10 | A | 20 mm | 1987 - 1990 |
|
|

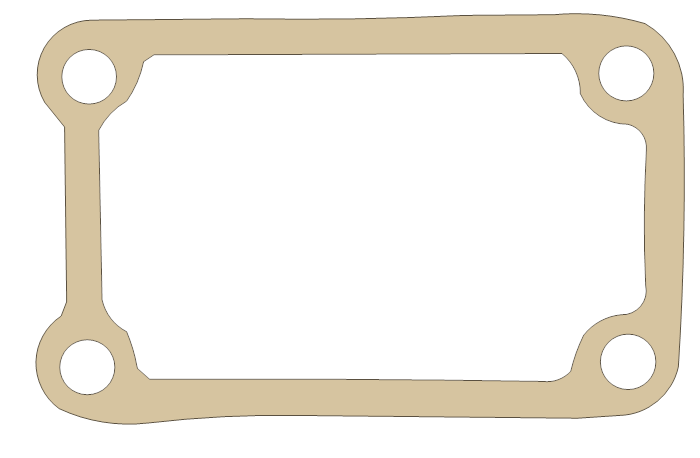

Cylinder Cover | 11233-00B00 | A | 20 mm | 1988 - 1990 |
|
|
Float Chamber | 13251-01B21 | B | 40 mm | 1988 - 1990 |
|
|

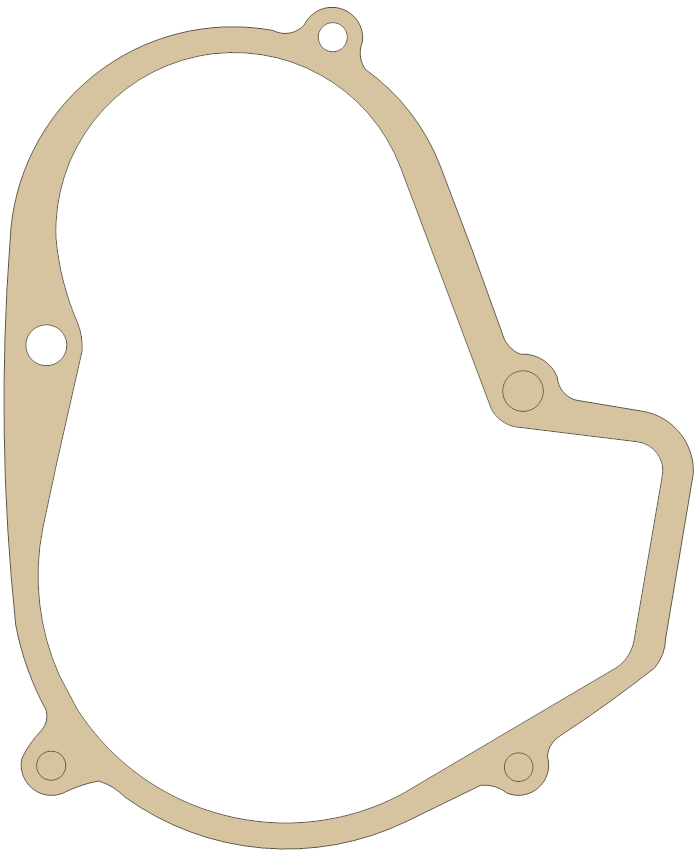

Magneto Cover | 11483-43B00 | A | 20 mm | 1987 - 1990 |
|
|

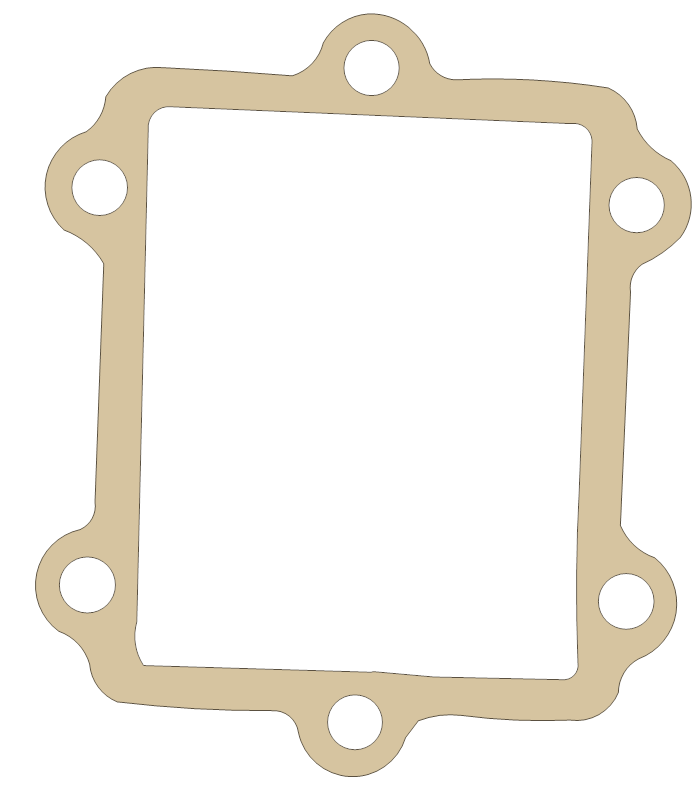

Reed Valve | 13156-01C10 | A | 20 mm | 1988 - 1990 |
Ready-to-cut files for every gasket listed here are available to subscribers. Specifications are free to view.
