1 gasket sets and 5 individual gaskets for the Suzuki LTF230G. Material, thickness and OEM cross-reference for each.
| Set | Gaskets in Set | Material | Years |
|---|---|---|---|
| SET A | 5 | A | 1986 |
| Gasket | OEM Number | Material | Thickness | Years | |
|---|---|---|---|---|---|
|
|

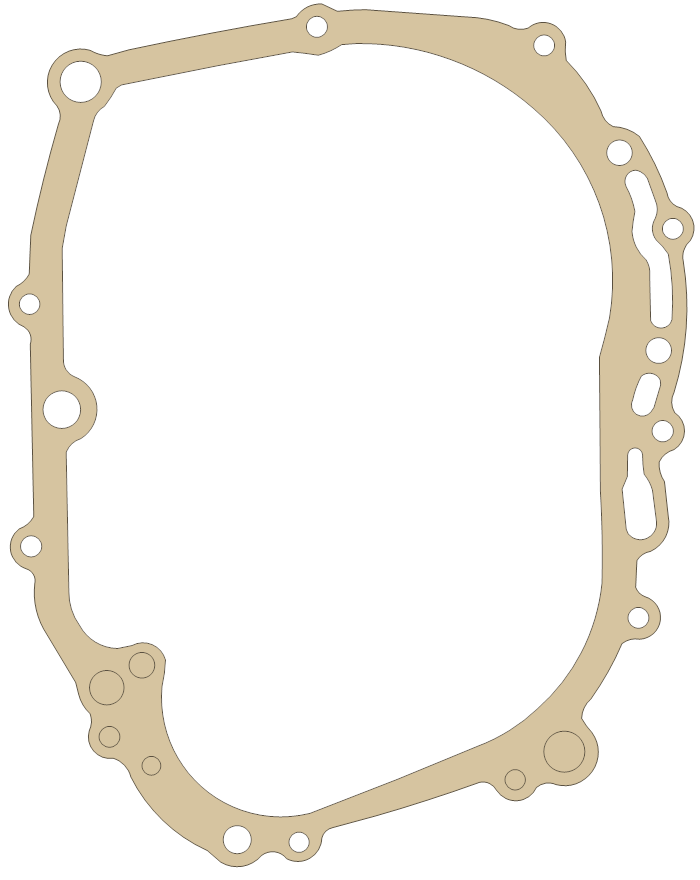

Clutch Cover | 11482-18A01 | A | 20 mm | 1986 |
|
|

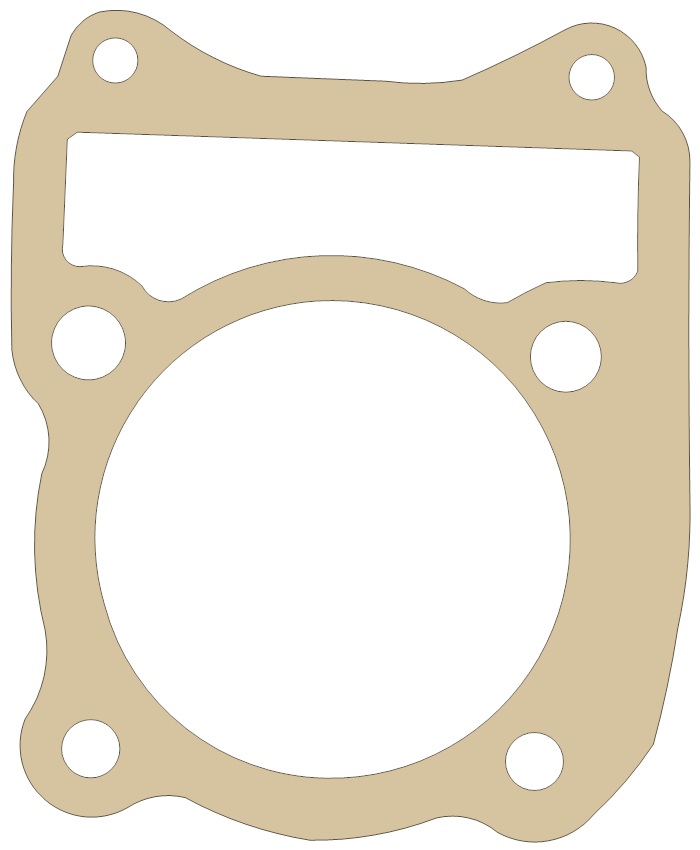

Cylinder | 11241-18A00 | A | 20 mm | 1986 |
|
|

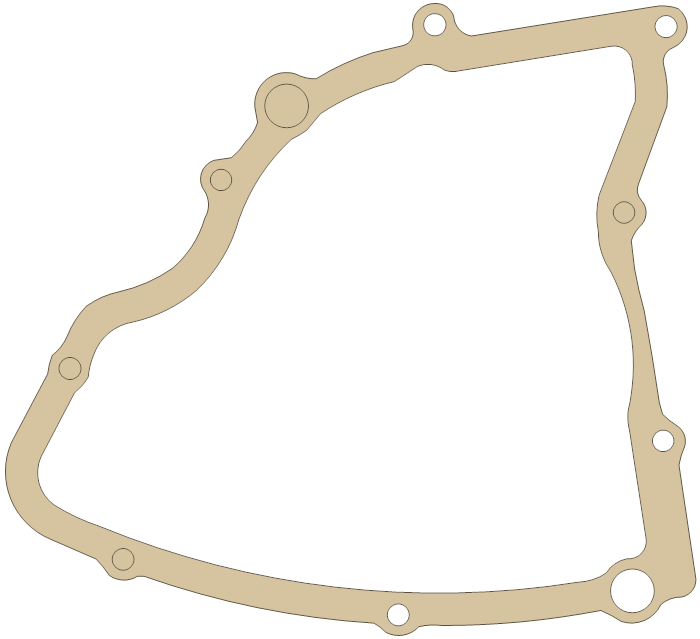

Magneto Cover | 11483-18A00 | A | 20 mm | 1986 |
|
|

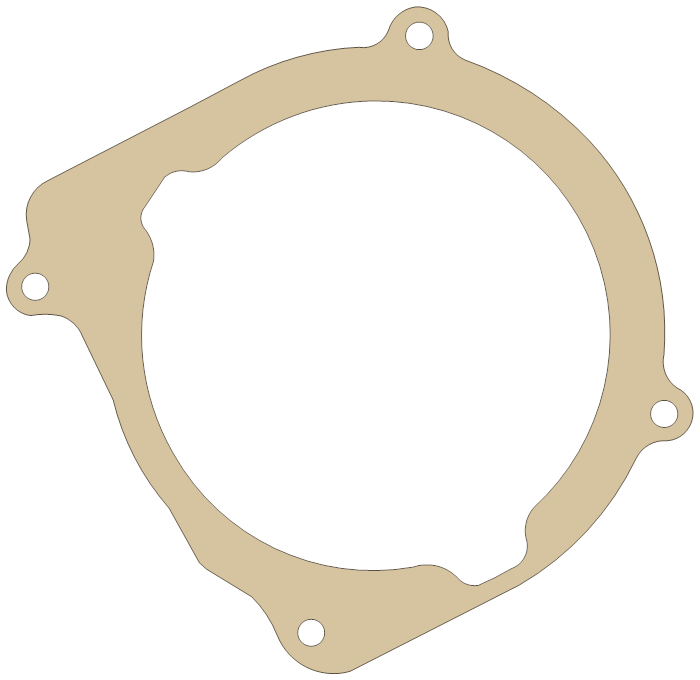

Recoil Starter | 18299-18A00 | A | 20 mm | 1986 |
|
|

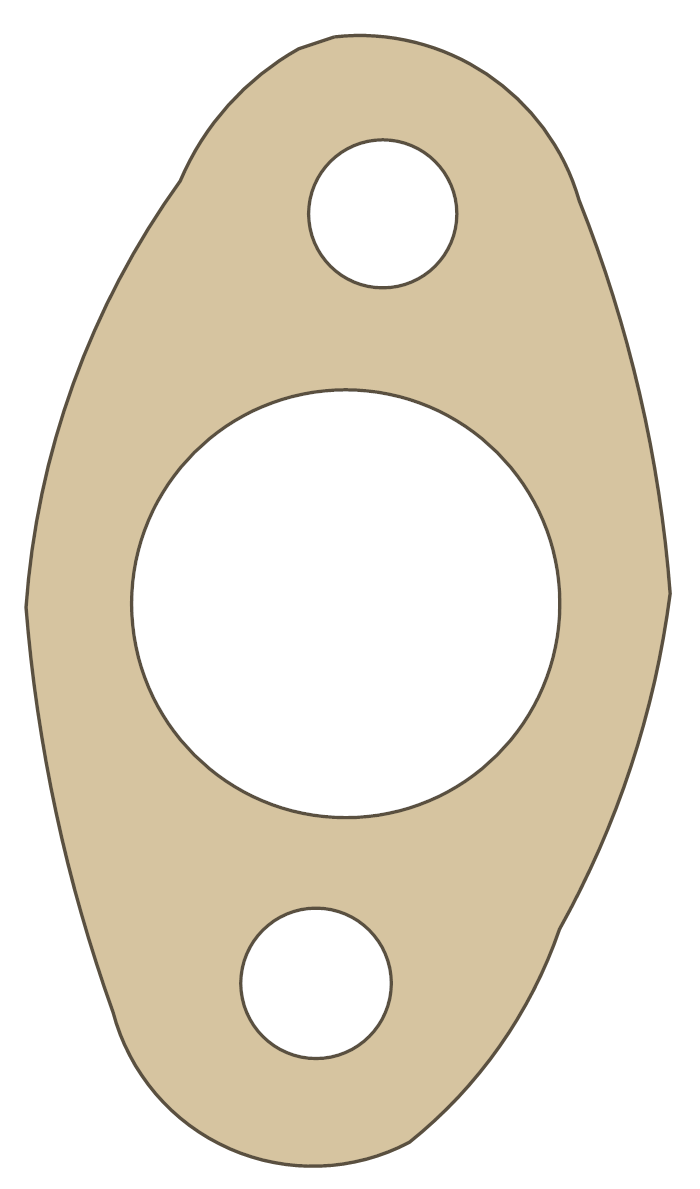

Tensioner | 12837-32400 | A | 20 mm | 1986 |
Ready-to-cut files for every gasket listed here are available to subscribers. Specifications are free to view.
