8 gasket listings for the Suzuki LTF250F. Material, thickness, number in set and OEM cross-reference for each.
| Gasket | OEM Number | Material | Thickness | Years | |
|---|---|---|---|---|---|
|
|

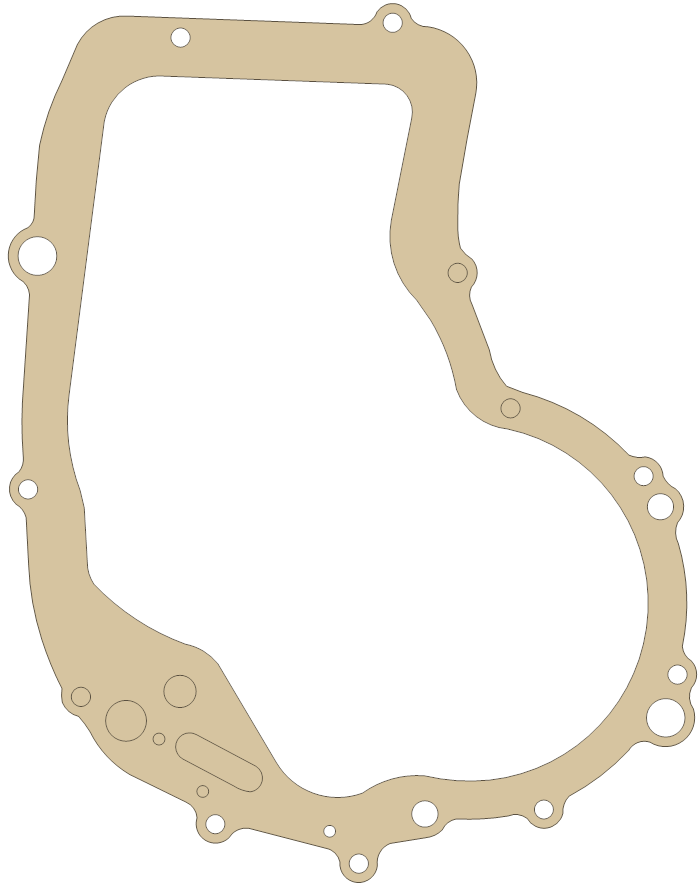

Clutch Cover | 11482-19B12 | A | 20 mm | 1999 - 2004 |
|
|

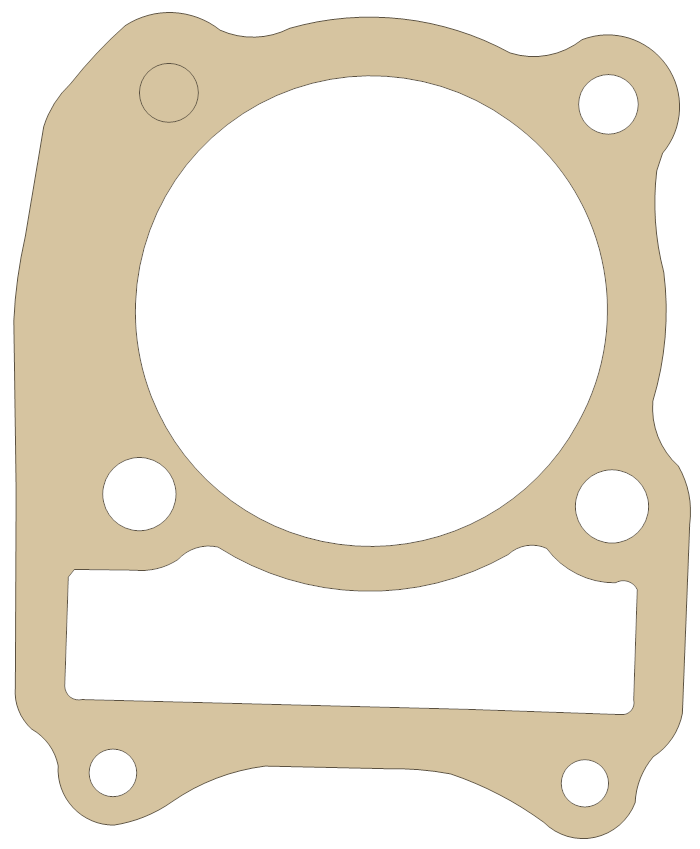

Cylinder Base | 11241-18A20 | A | 20 mm | 1999 - 2004 |
|
|

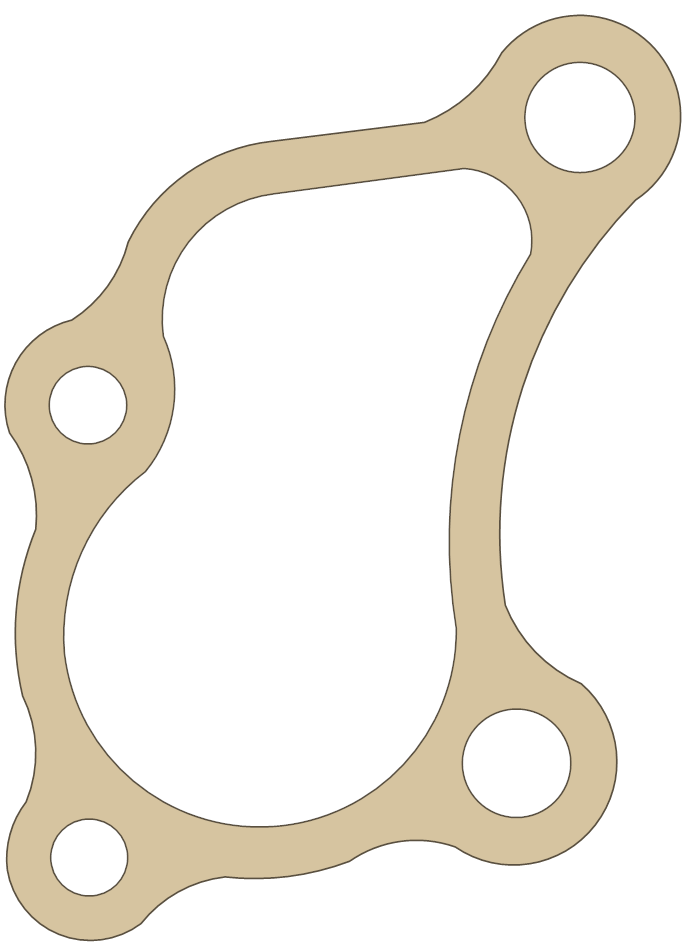

Front Gear Case Cover | 27473-19B11 | A | 20 mm | 1999 - 2000 |
|
|

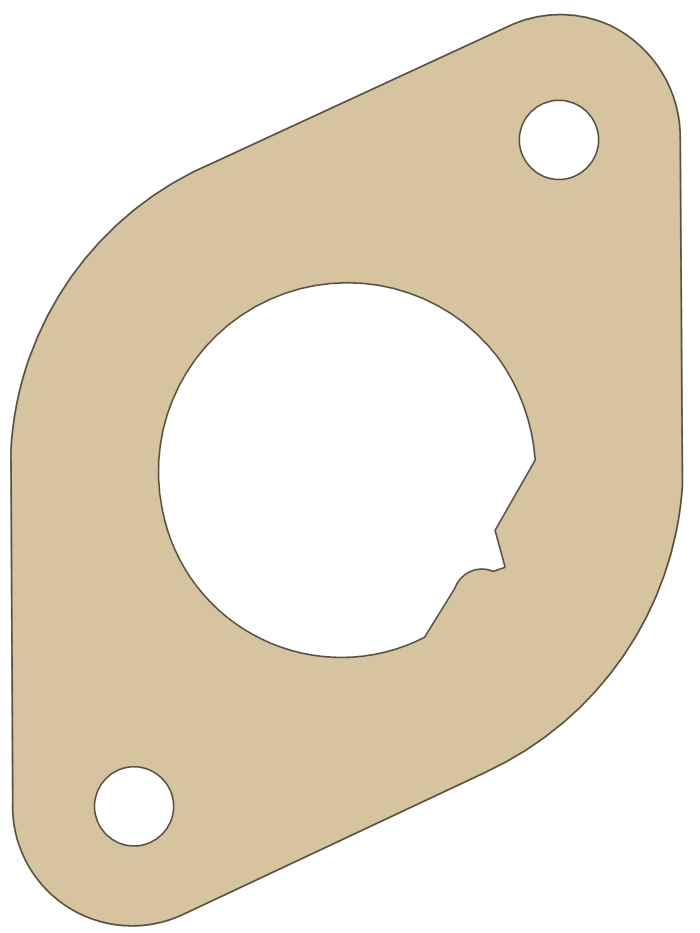

Intake | 13120-19B01 | B | 40 mm | 1999 - 2004 |
|
|
Odometer Gear | 26451-19B12 | A | 20 mm | 1999 - 2004 |
|
|

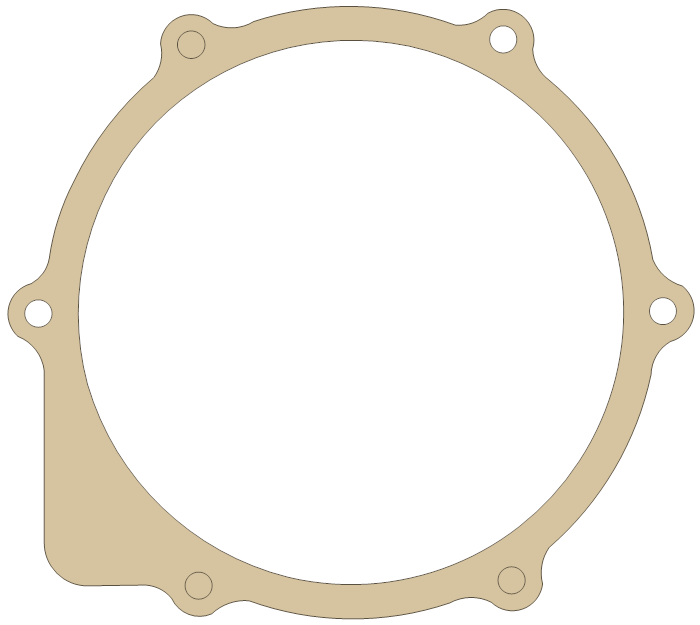

Recoil Starter | 18299-19B10 | A | 20 mm | 1999 - 2004 |
|
|

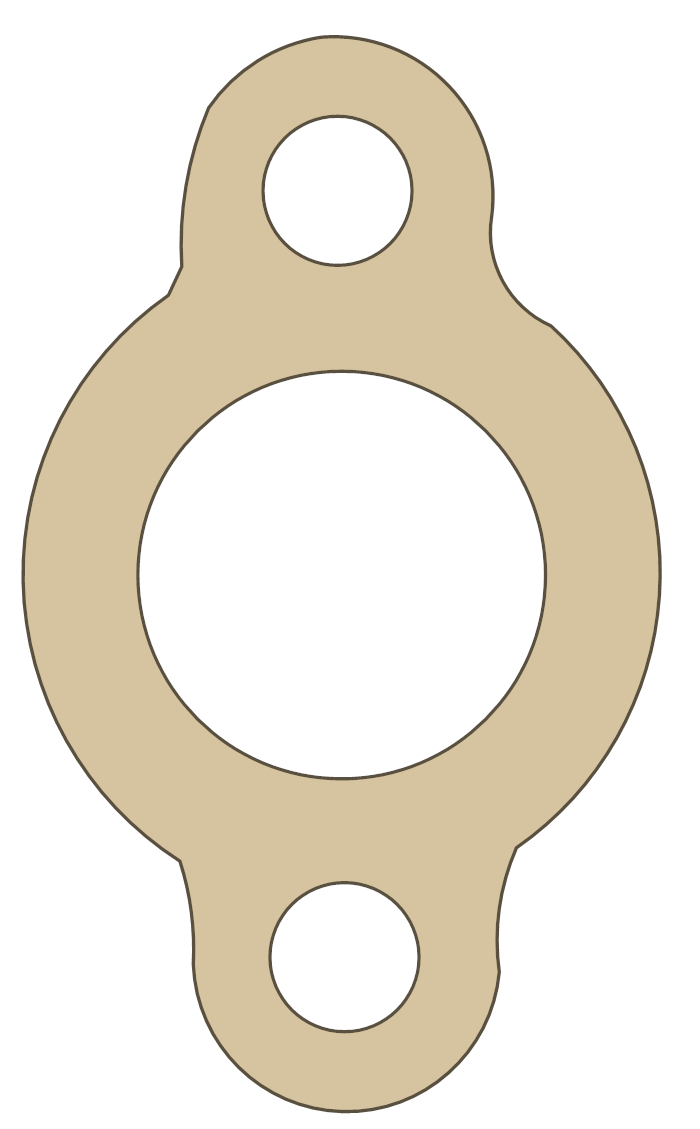

Tensioner Adjuster | 12837-19B10 | A | 20 mm | 1999 - 2004 |
|
|

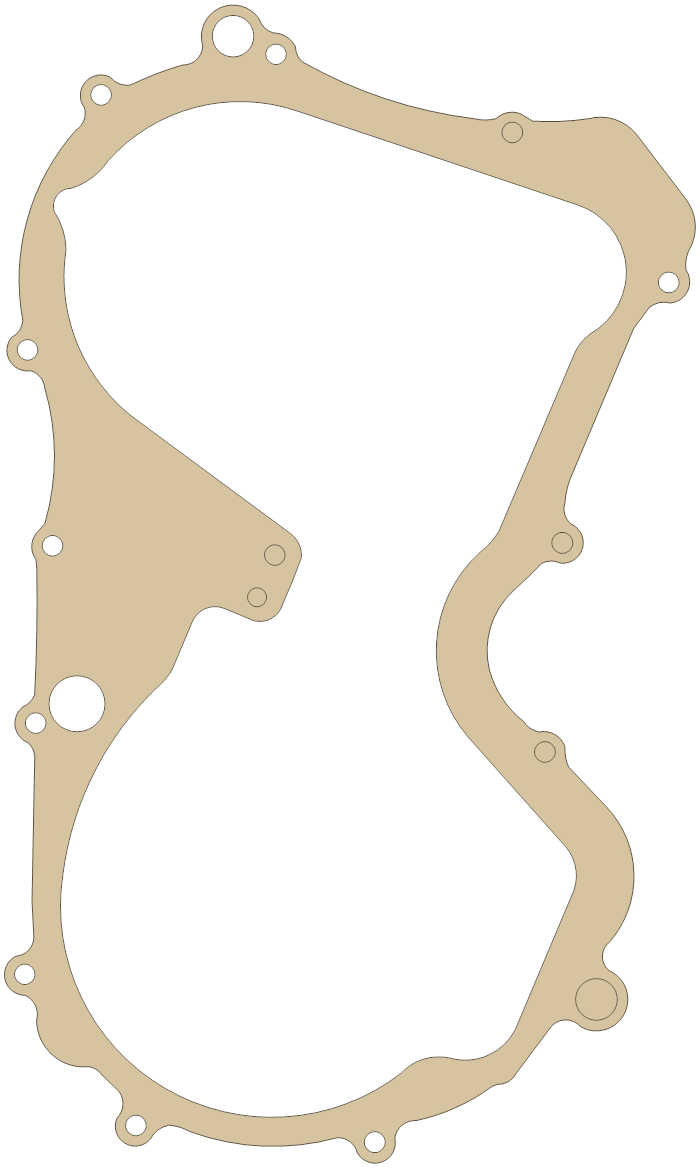

Transfer Cover | 11483-19B13 | A | 20 mm | 1999 - 2004 |
Ready-to-cut files for every gasket listed here are available to subscribers. Specifications are free to view.
