Suzuki RE5 Gaskets

2 gasket sets and 5 individual gaskets for the Suzuki RE5. Material, thickness and OEM cross-reference for each.

Gasket Sets 2 available

Set Gaskets in Set Material Years
SET A 4 A 1975 - 1976
SET B 1 A 1975 - 1976

Individual Gaskets

Gasket OEM Number Material Thickness Years
Suzuki RE5 Air Inlet gasket outline Air Inlet 13879-37000 A 20 mm 1975 - 1976
Suzuki RE5 Clutch Cover gasket outline Clutch Cover 11482-37001 A 20 mm 1975 - 1976

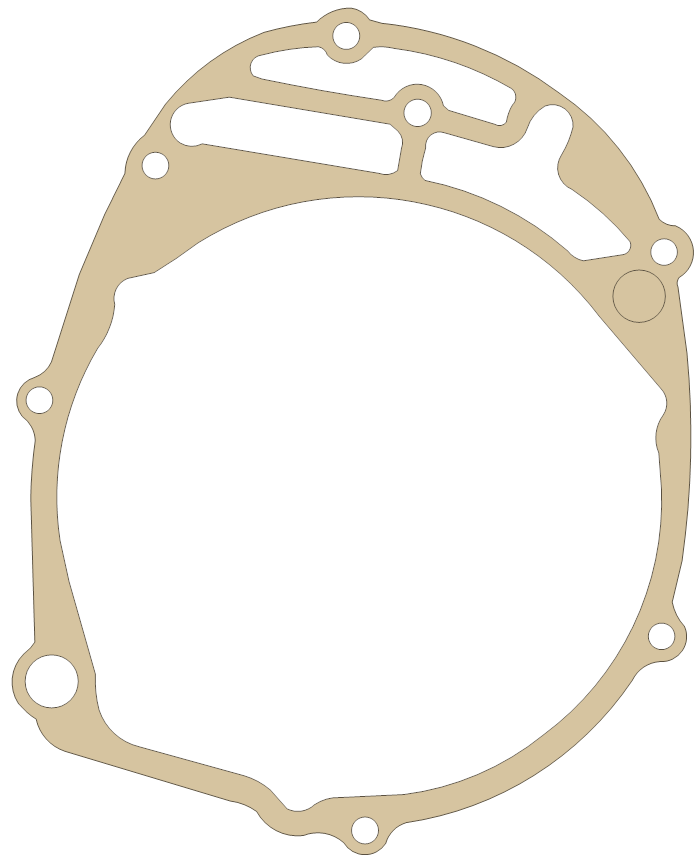

Suzuki RE5 Gasket gasket outline Gasket 11483-37000 A 20 mm 1975 - 1976
Suzuki RE5 Gasket gasket outline Gasket 11481-37001 A 20 mm 1975 - 1976

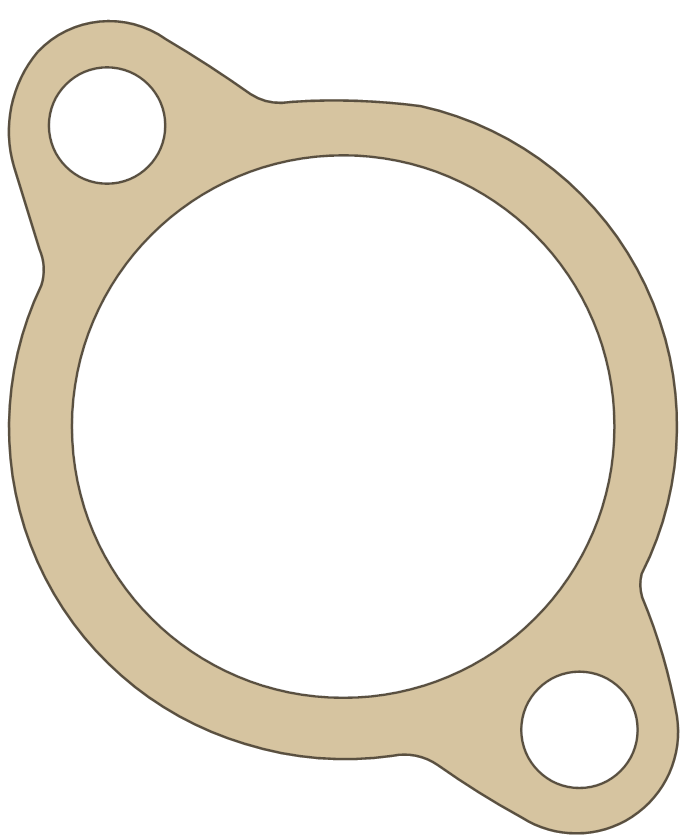

Suzuki RE5 Housing gasket outline Housing 26444-27000 A 20 mm 1975 - 1976

Cut Files

Ready-to-cut files for every gasket listed here are available to subscribers. Specifications are free to view.
