15 gasket listings for the Suzuki TS100. Material, thickness, number in set and OEM cross-reference for each.
| Gasket | OEM Number | Material | Thickness | Years | |
|---|---|---|---|---|---|
|
|

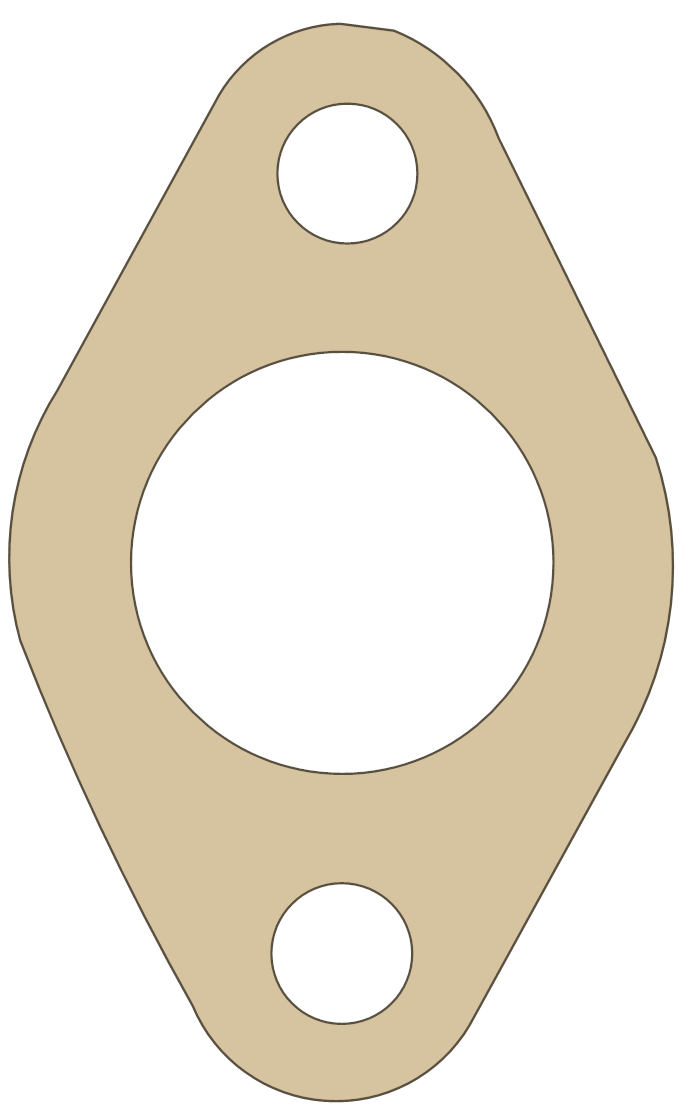

13125-11000 | 13125-11000 | A | 20 mm | 1978 - 1981 |
|
|

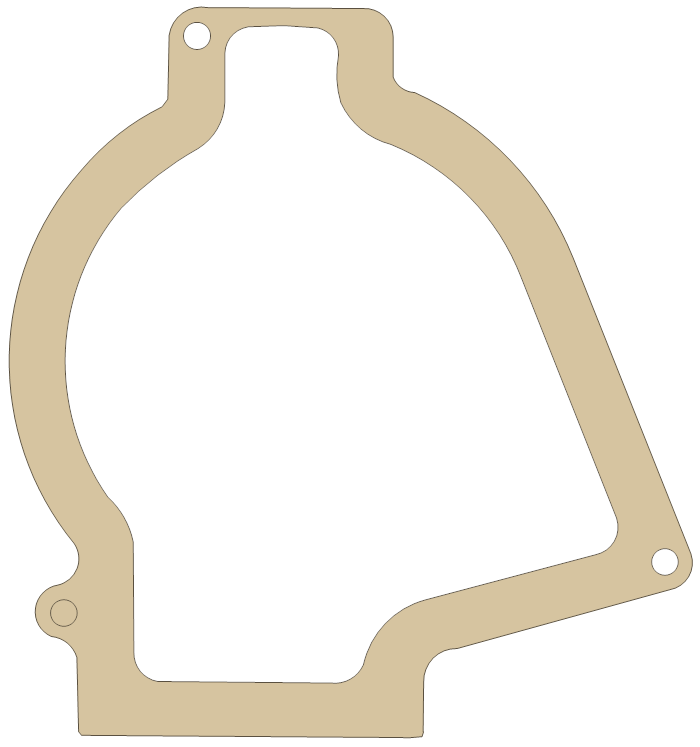

Carburetor Inspection | 11492-25000 | A | 20 mm | 1973 - 1977 |
|
|

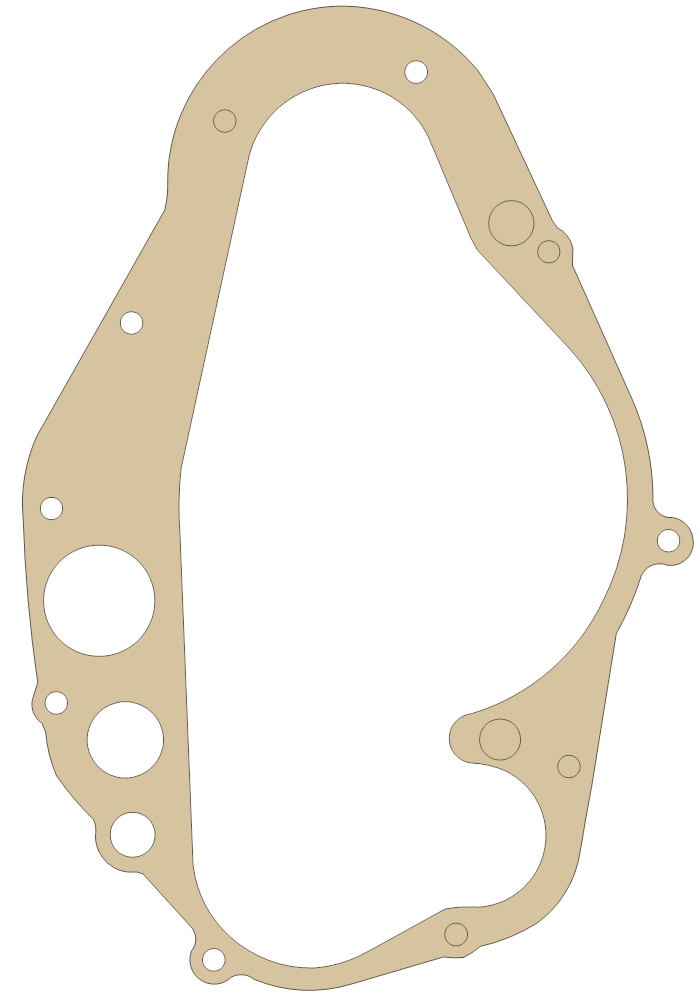

Clutch Cover | 11482-48000 | A | 20 mm | 1978 - 1981 |
|
|

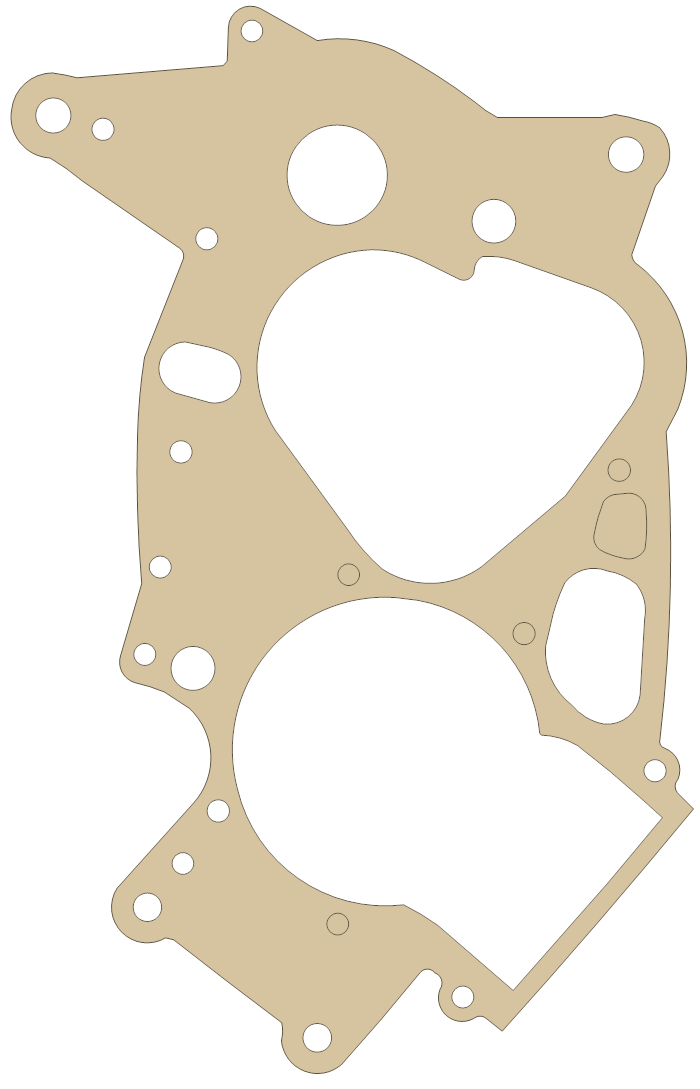

Crankcase | 11481-25301 | A | 20 mm | 1977 |
|
|
Crankcase | 11481-25301 | A | 20 mm | 1973 - 1975 |
|
|

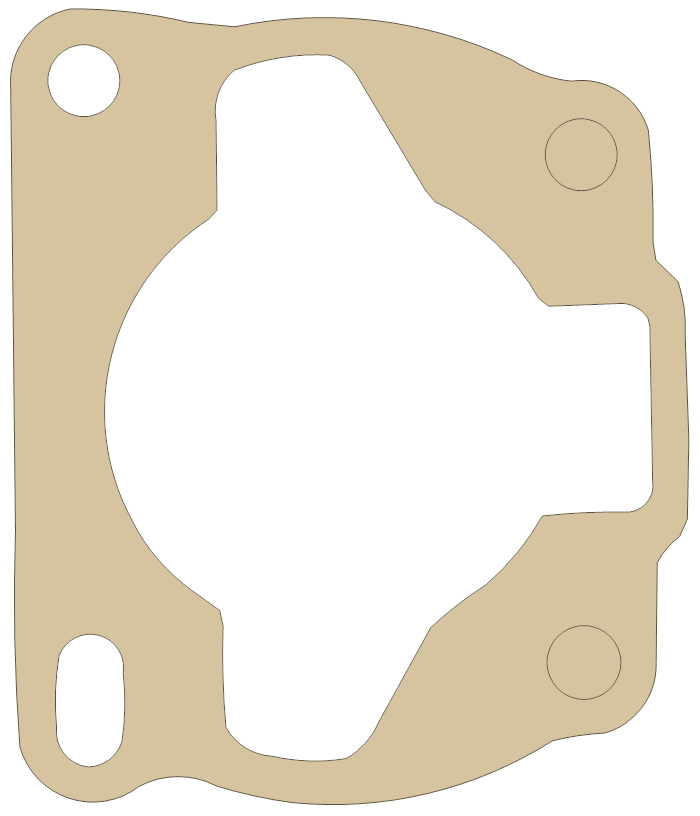

Cylinder | 11241-25601 | A | 20 mm | 1977 |
|
|
Cylinder | 11241-25601 | A | 20 mm | 1973 - 1975 |
|
|

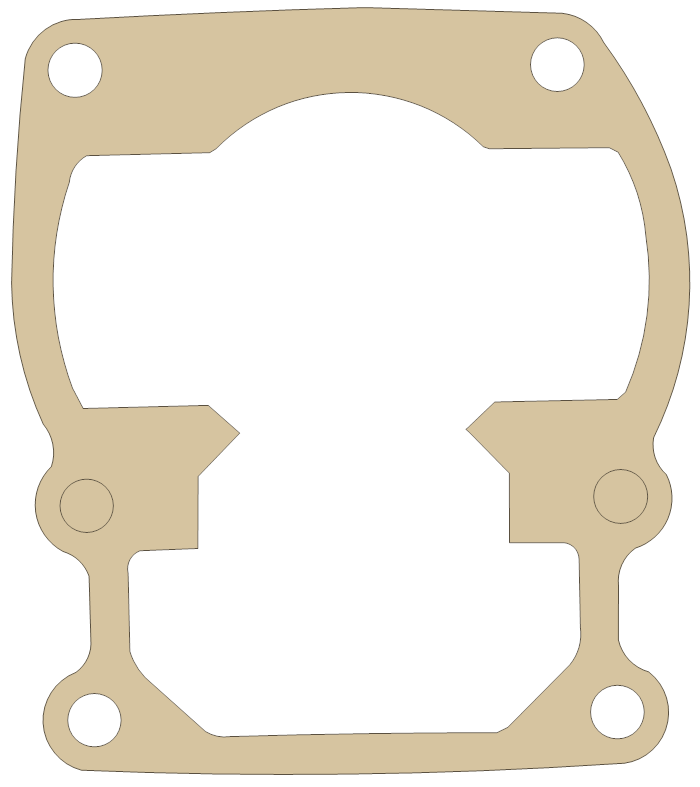

Cylinder Base | 11241-41300 | A | 20 mm | 1978 - 1981 |
|
|

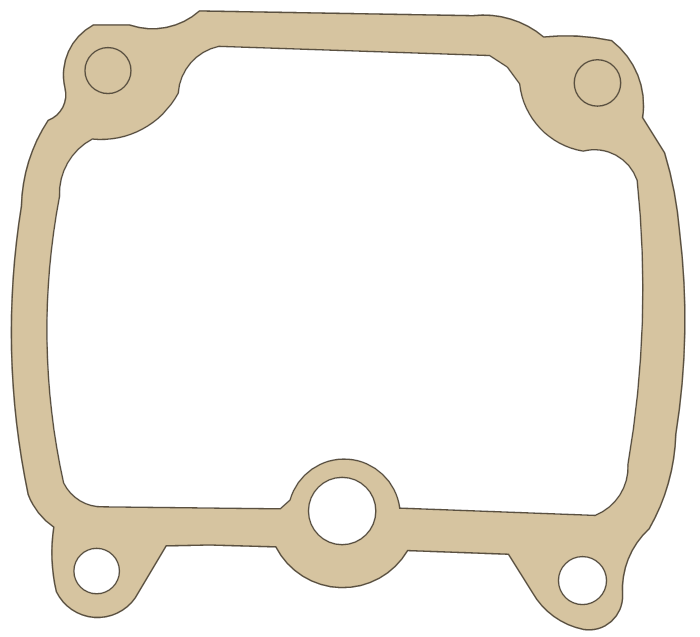

Float Chamber | 13251-09211 | B | 30 mm | 1973 - 1977 |
|
|

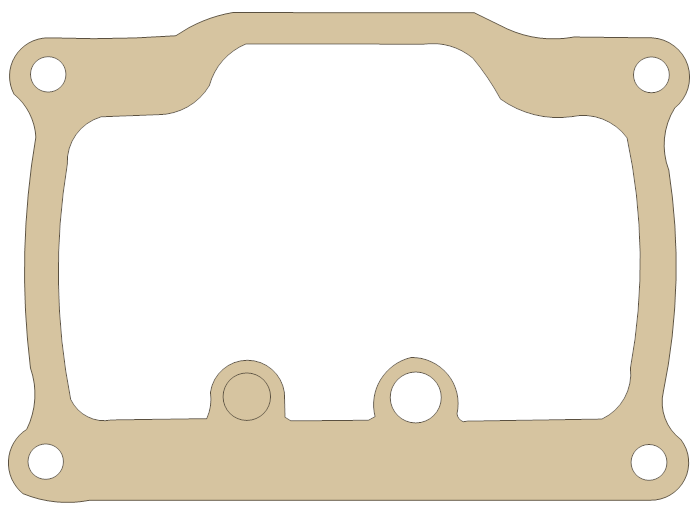

Float Chamber | 13251-11010 | B | 30 mm | 1978 - 1980 |
|
|

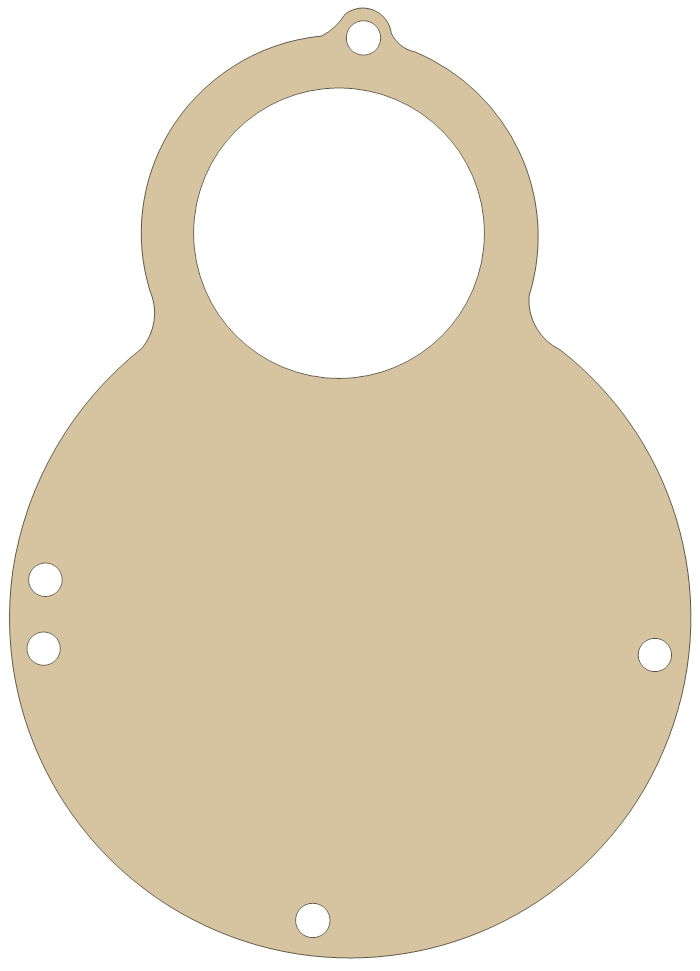

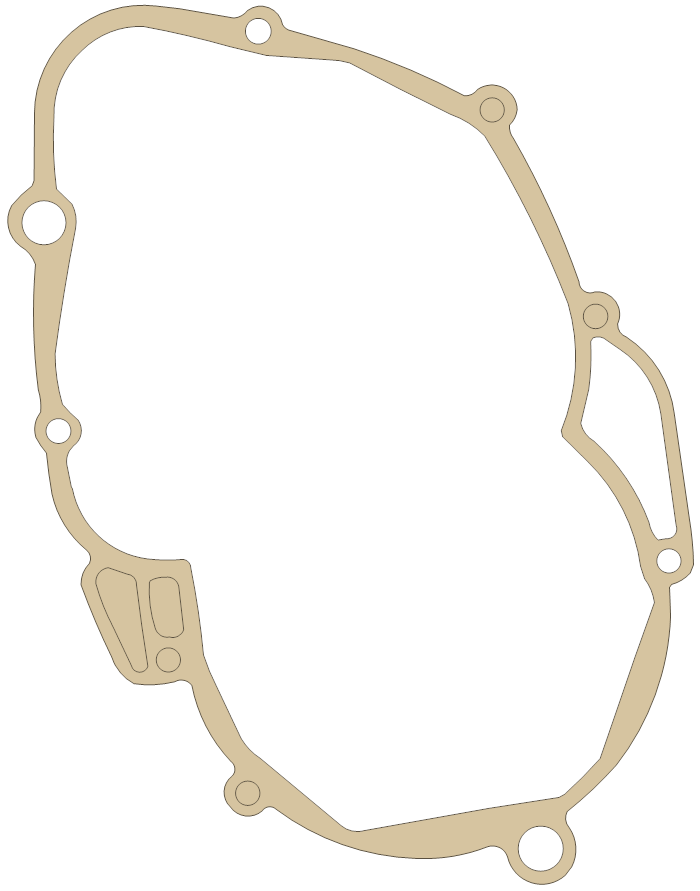

Gasket | 11482-25000 | A | 20 mm | 1972 - 1977 |
|
|
Gasket | 11491-25300 | A | 20 mm | 1973 - 1977 |
|
|

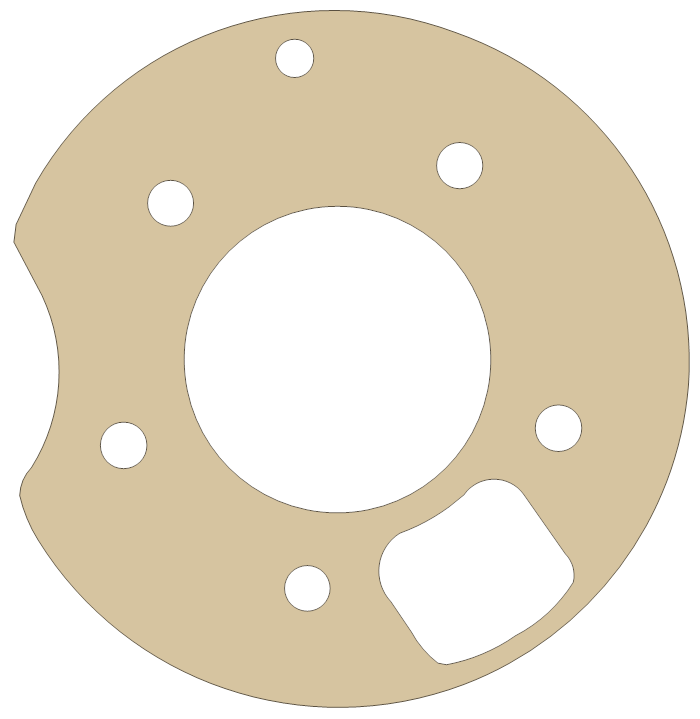

Inner Disk Valve | 12471-25001 | A | 20 mm | 1973 - 1977 |
|
|

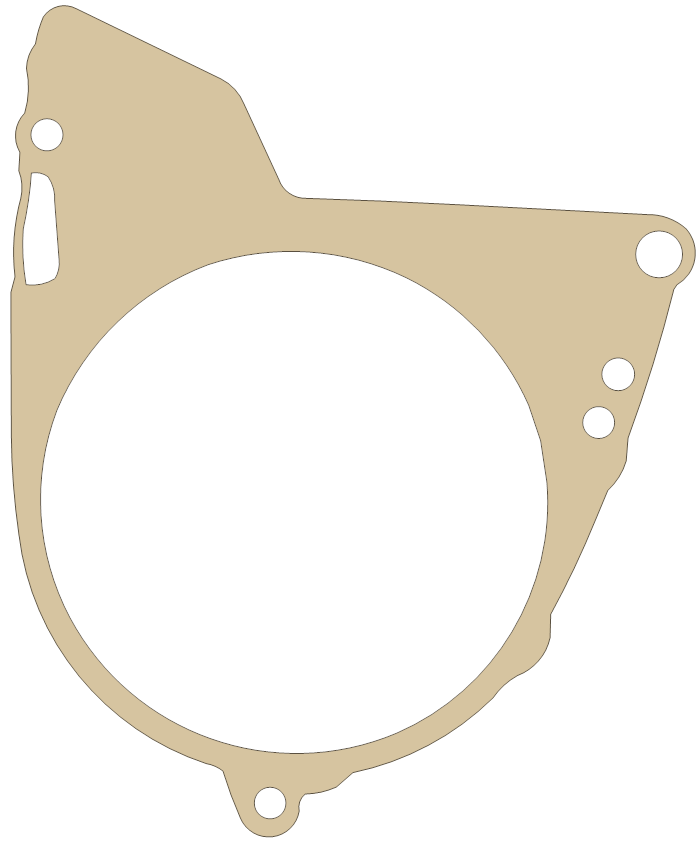

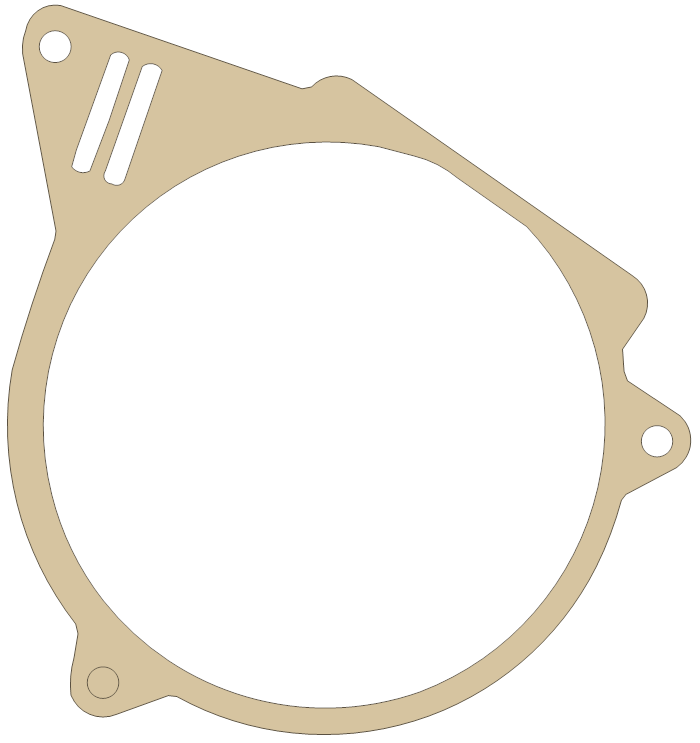

Magneto Cover | 11483-25010 | A | 20 mm | 1973 - 1977 |
|
|
Magneto Cover | 11483-48000 | A | 20 mm | 1978 - 1979 |
Ready-to-cut files for every gasket listed here are available to subscribers. Specifications are free to view.
