16 gasket listings for the Triumph TR7. Material, thickness, number in set and OEM cross-reference for each.
| Gasket | OEM Number | Material | Thickness | Years | |
|---|---|---|---|---|---|
|
|

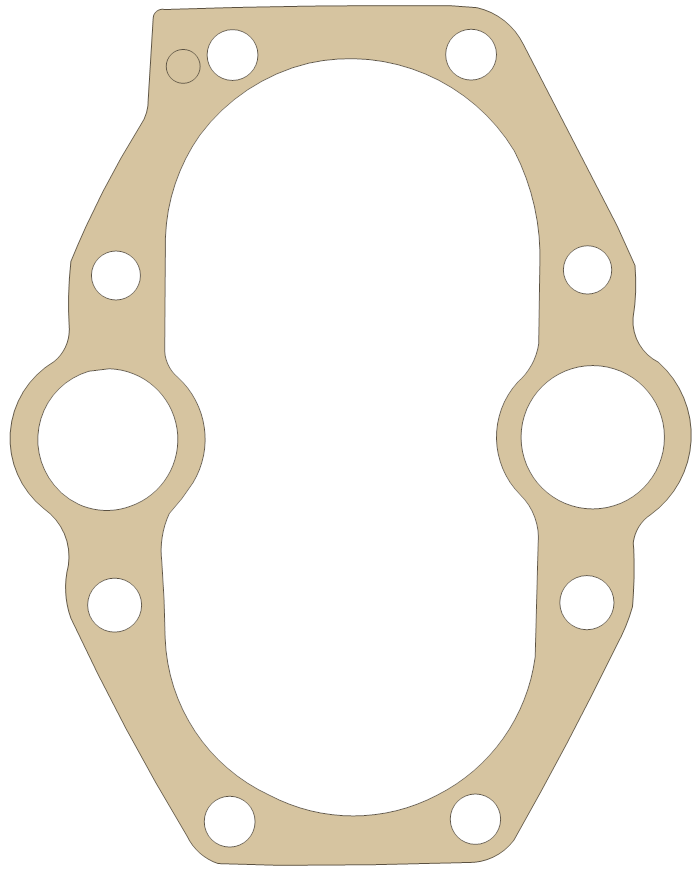

Base Gasket | 70-6309 | A | 20 mm | 1963 - 1983 |
|
|

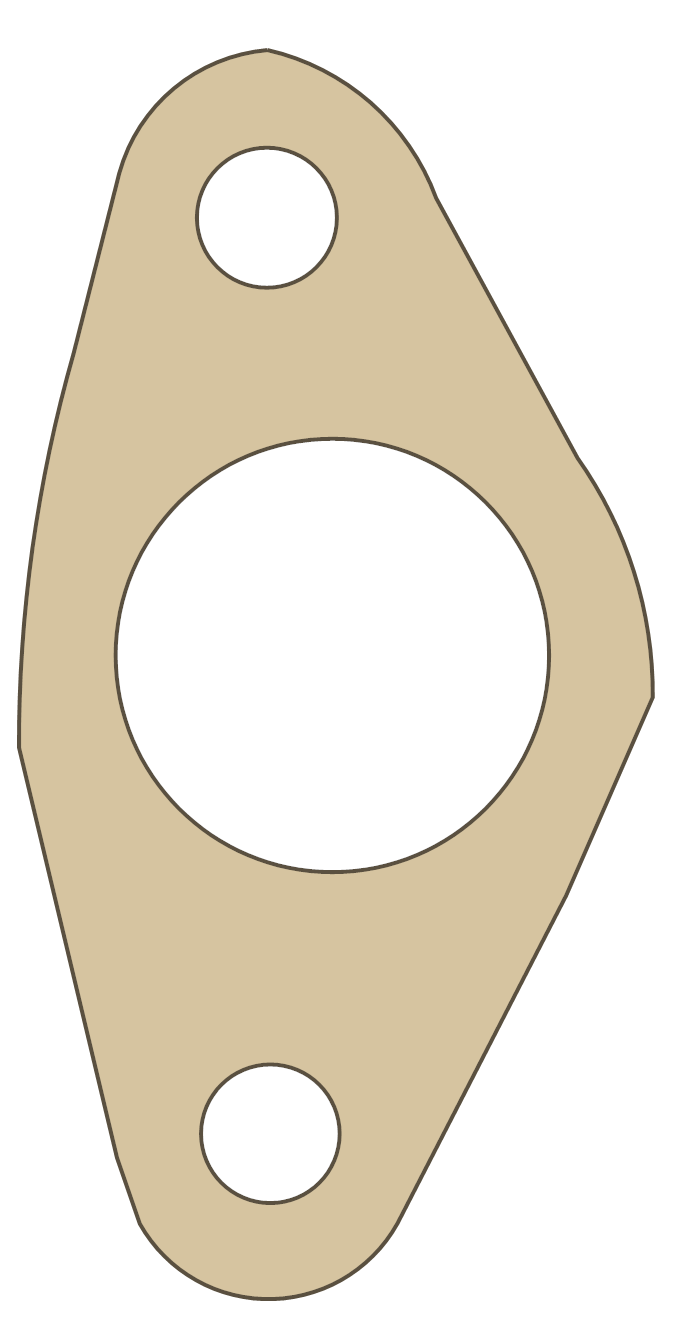

Breather | 71-1460 | A | 20 mm | 1970 - 1983 |
|
|

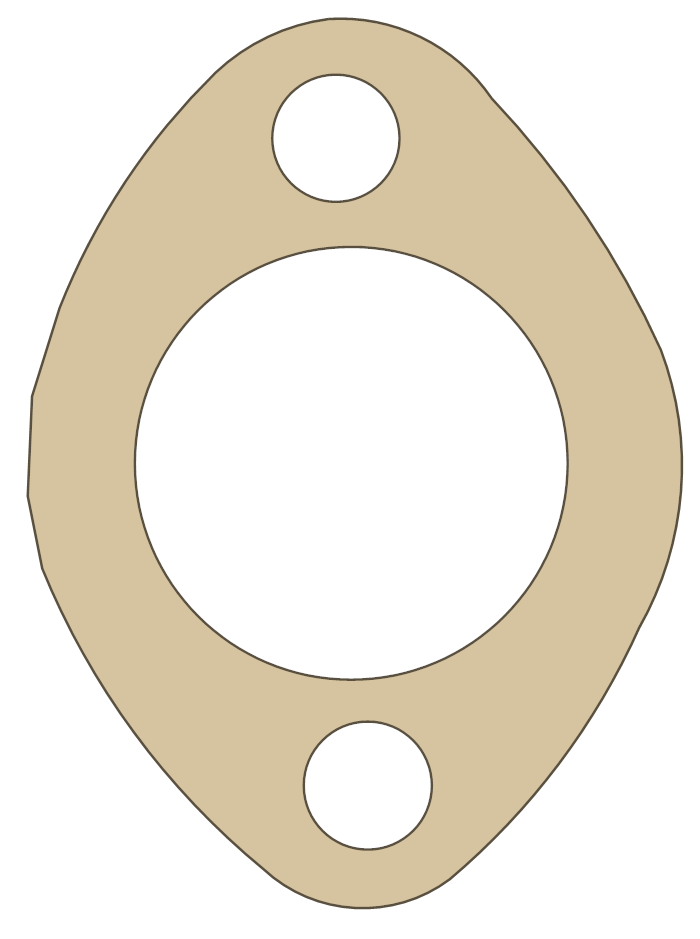

Carb | 70-5660 | A | 20 mm | 1963 - 1983 |
|
|

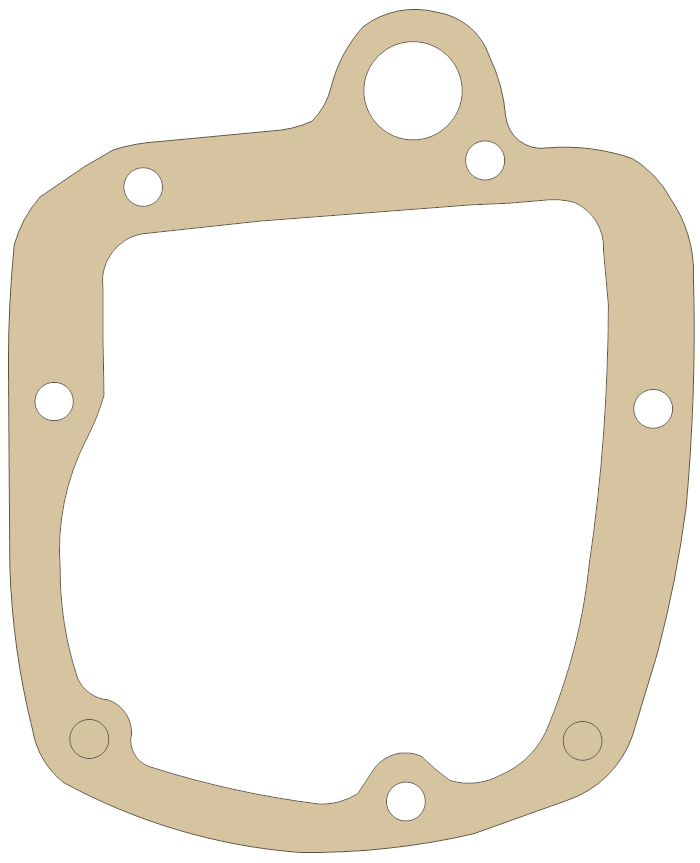

Inner Gear Box | 57-7012 | A | 20 mm | 1963 - 1983 |
|
|

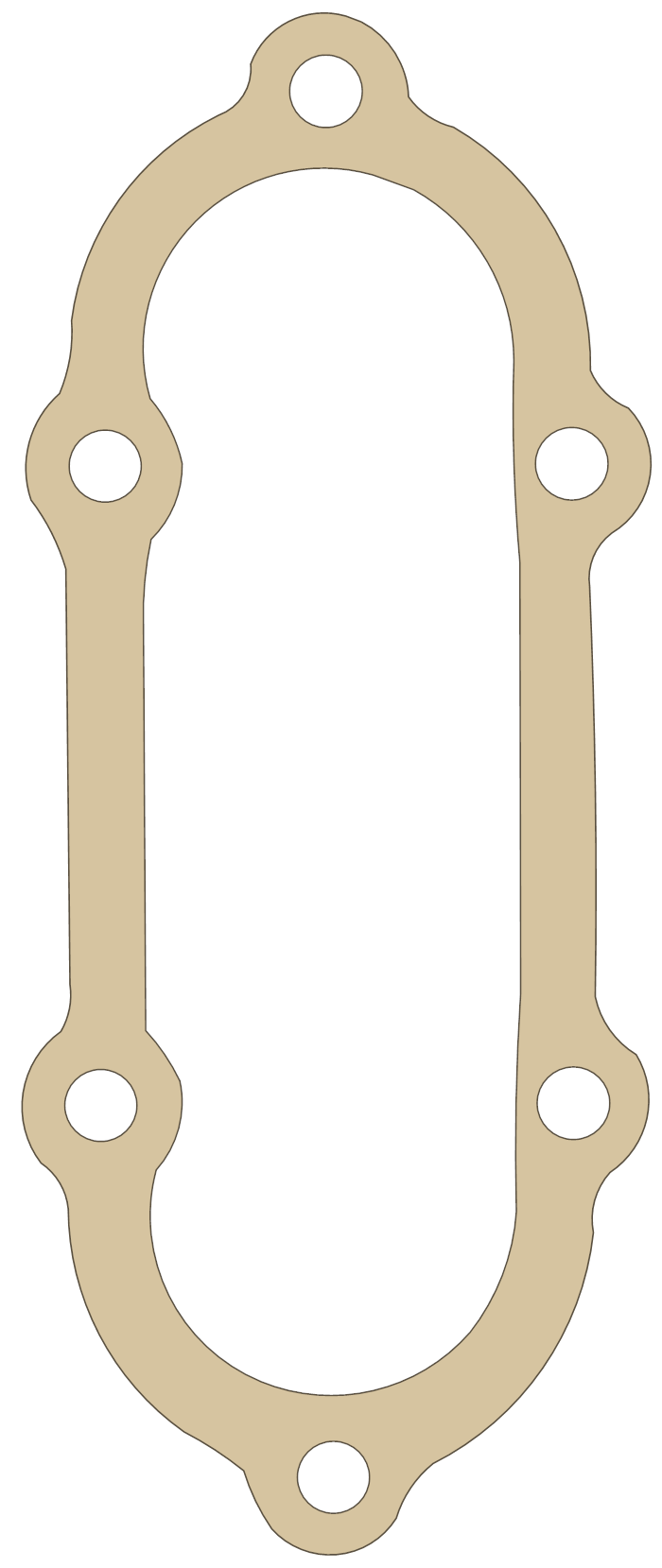

Inspection Cover | 71-3673 | A | 20 mm | 1973 - 1983 |
|
|

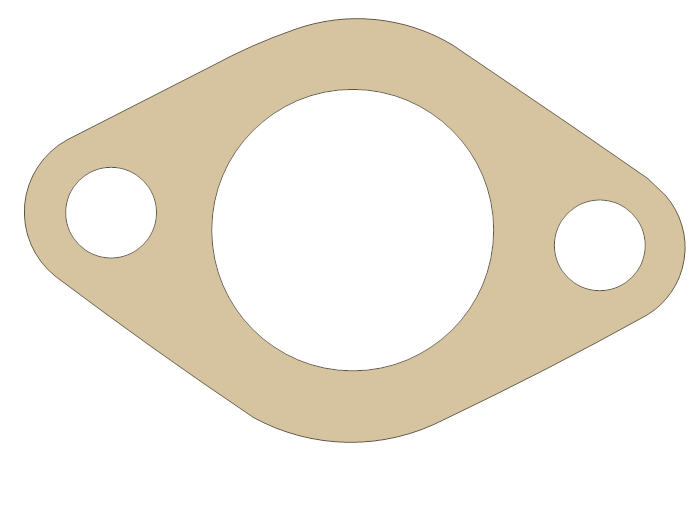

Intake | 71-3573 | A | 20 mm | 1963 - 1983 |
|
|

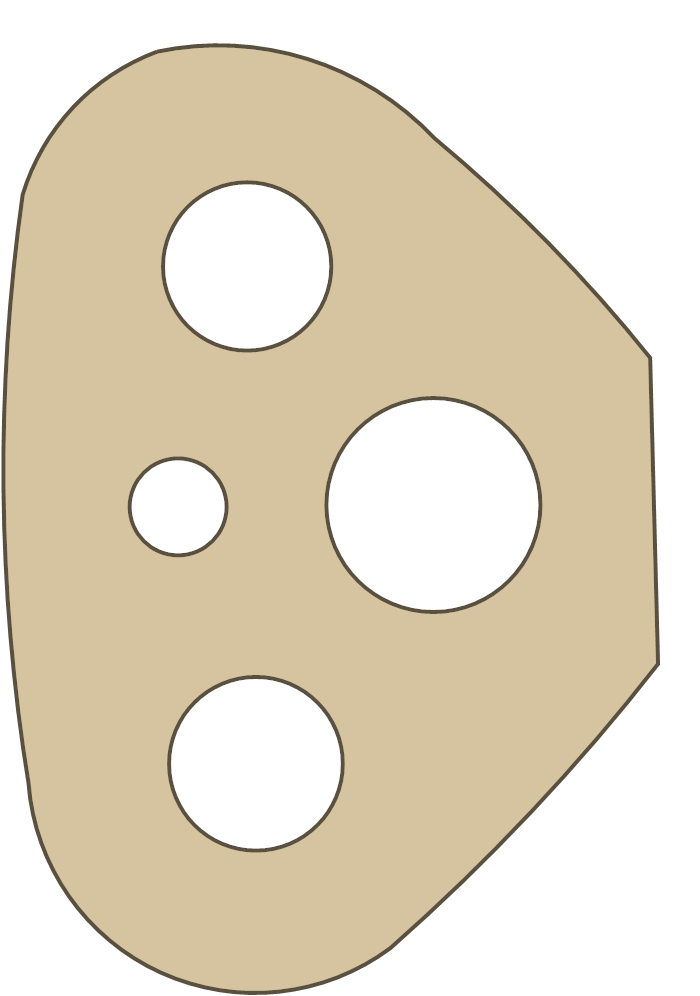

Oil Junction | 71-3754 | A | 20 mm | 1963 - 1983 |
|
|

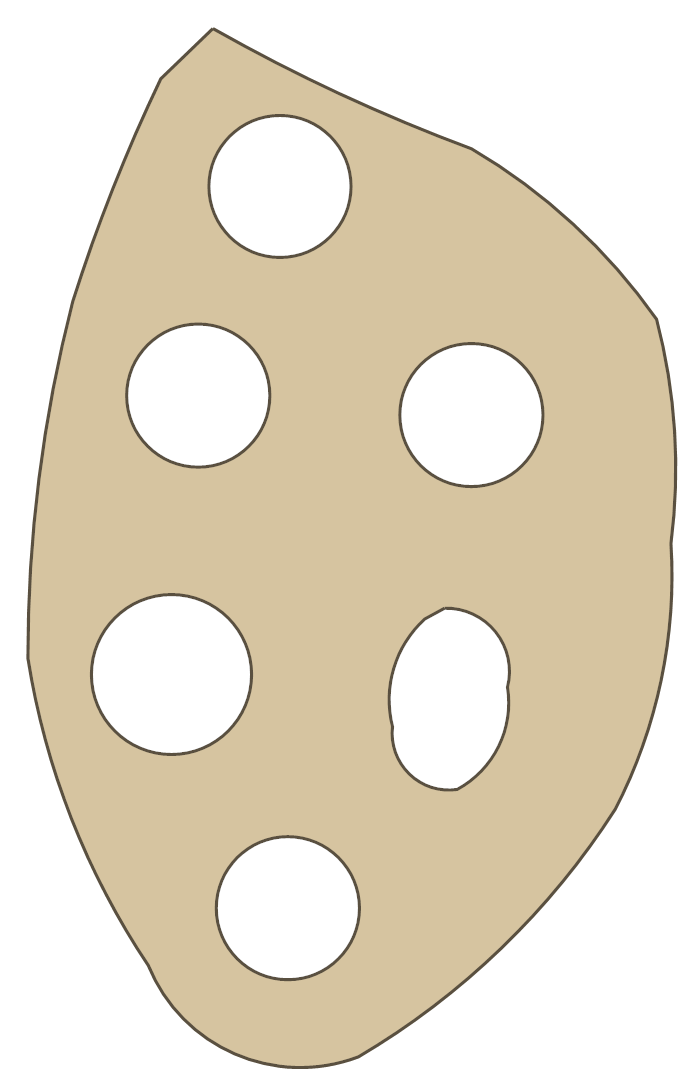

Oil Pump | 71-3910 | A | 20 mm | 1963 - 1983 |
|
|

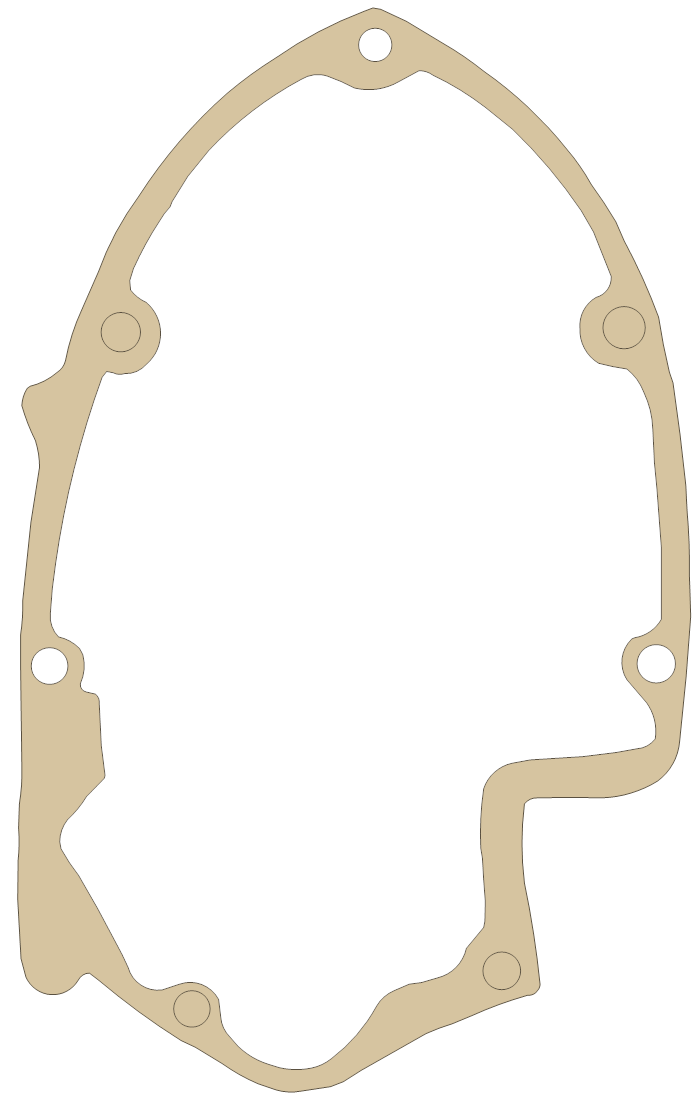

Outer Gear Box | 71-1448 | A | 20 mm | 1963 - 1983 |
|
|

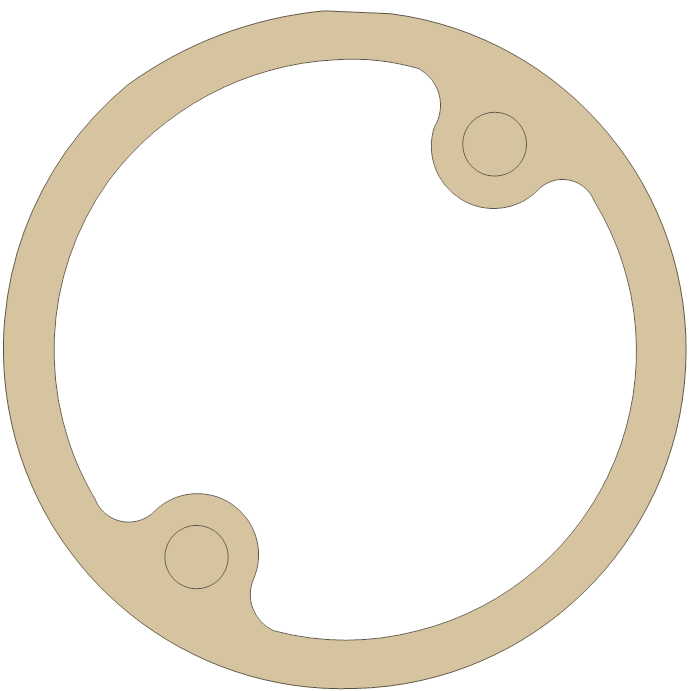

Points Cover | 71-1462 | A | 20 mm | 1963 - 1983 |
|
|

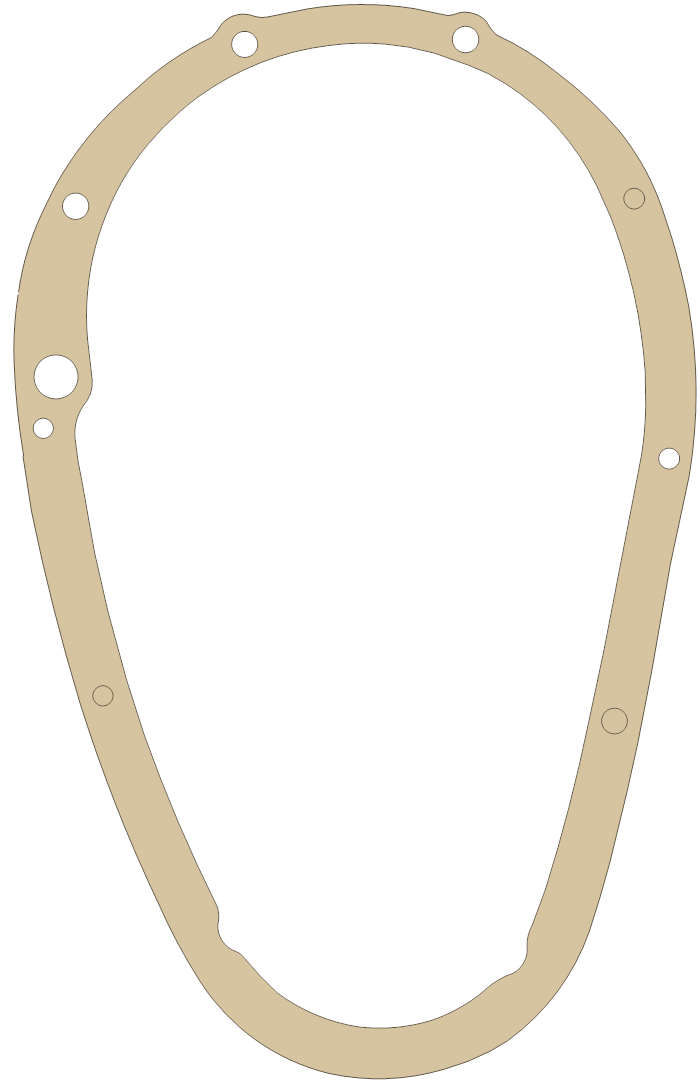

Primary | 71-7009 | A | 20 mm | 1963 - 1983 |
|
|

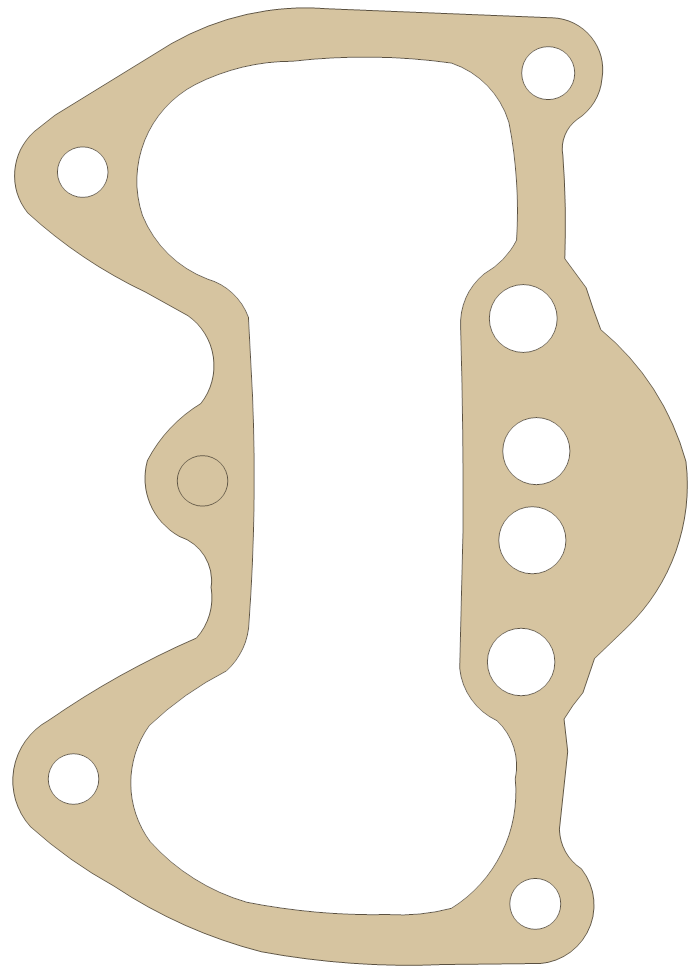

Rocker Box base | 70-9348 | A | 20 mm | 1963 - 1983 |
|
|

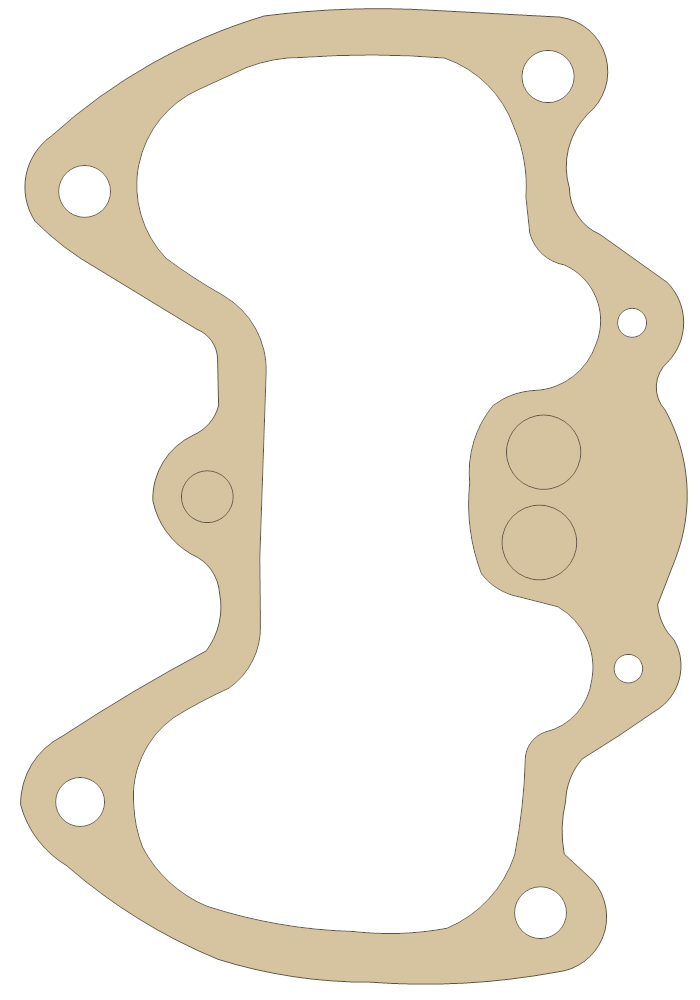

Rocker Box Cover | 71-2599 | A | 20 mm | 1971 - 1983 |
|
|

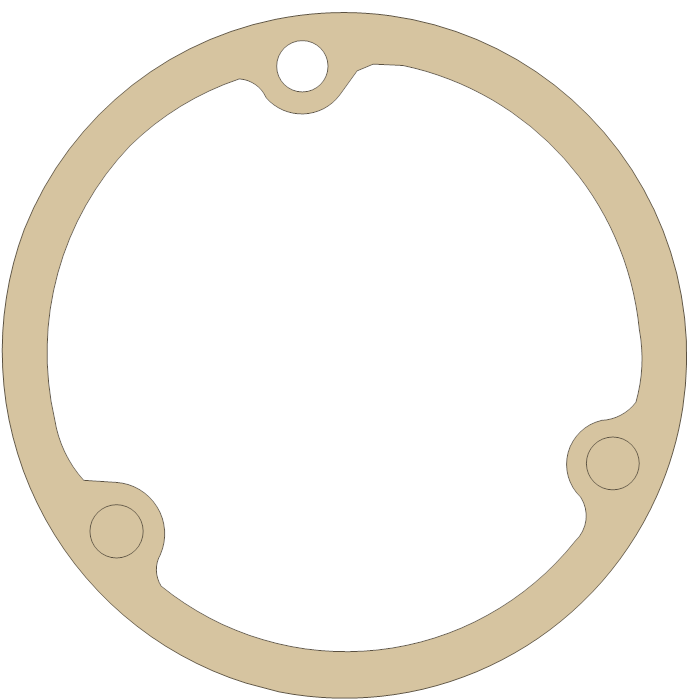

Rotor Cover | 71-1457 | A | 20 mm | 1968 - 1975 |
|
|

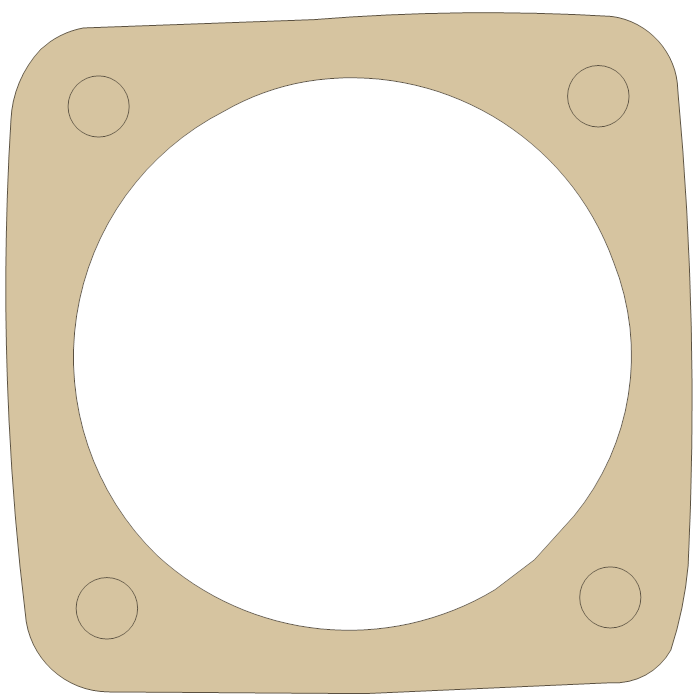

Sump Gaskets | 83-2829 | A | 20 mm | 1971 - 1983 |
|
|

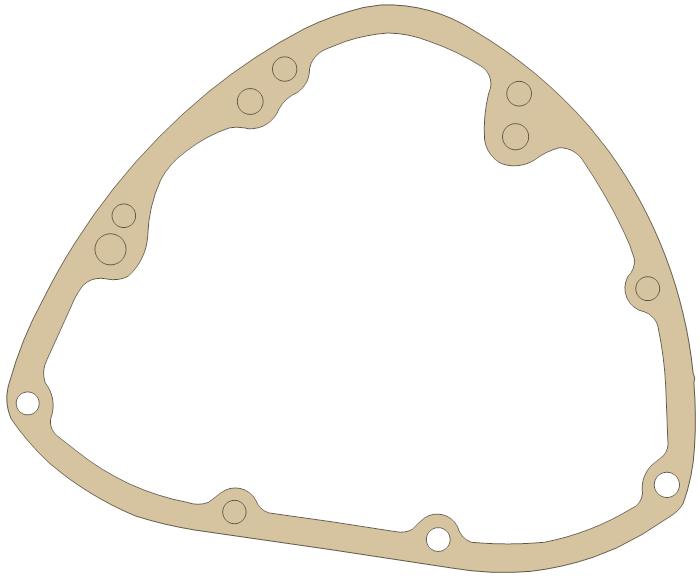

Timing Cover | 71-7263 | A | 20 mm | 1963 - 1983 |
Ready-to-cut files for every gasket listed here are available to subscribers. Specifications are free to view.
