1 gasket sets and 6 individual gaskets for the Yamaha XS650. Material, thickness and OEM cross-reference for each.
| Set | Gaskets in Set | Material | Years |
|---|---|---|---|
| SET A | 5 | A | 1975 - 1981 |
| Gasket | OEM Number | Material | Thickness | Years | |
|---|---|---|---|---|---|
|
|

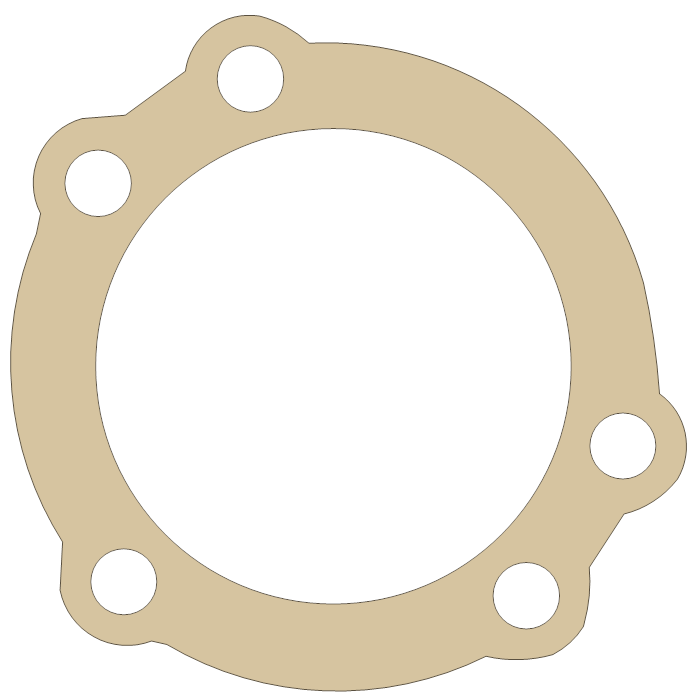

Breaker Cover | 256-11146-10 | A | 20 mm | 1975 - 1981 |
|
|

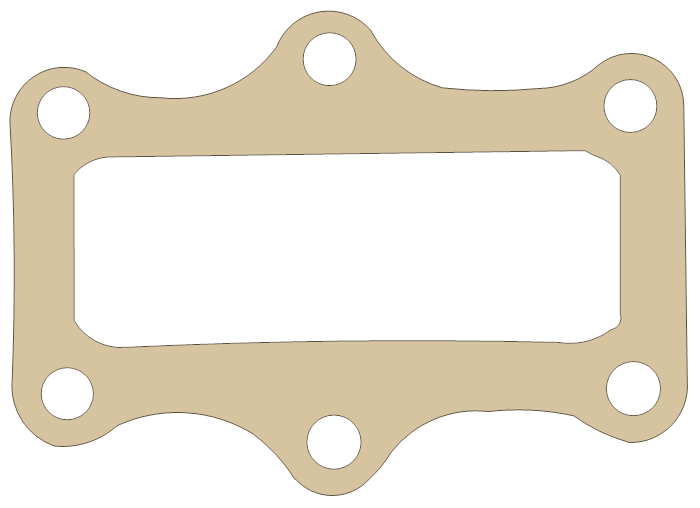

Cam Chain Tensioner | 306-12213-12 | A | 20 mm | 1975 - 1981 |
|
|

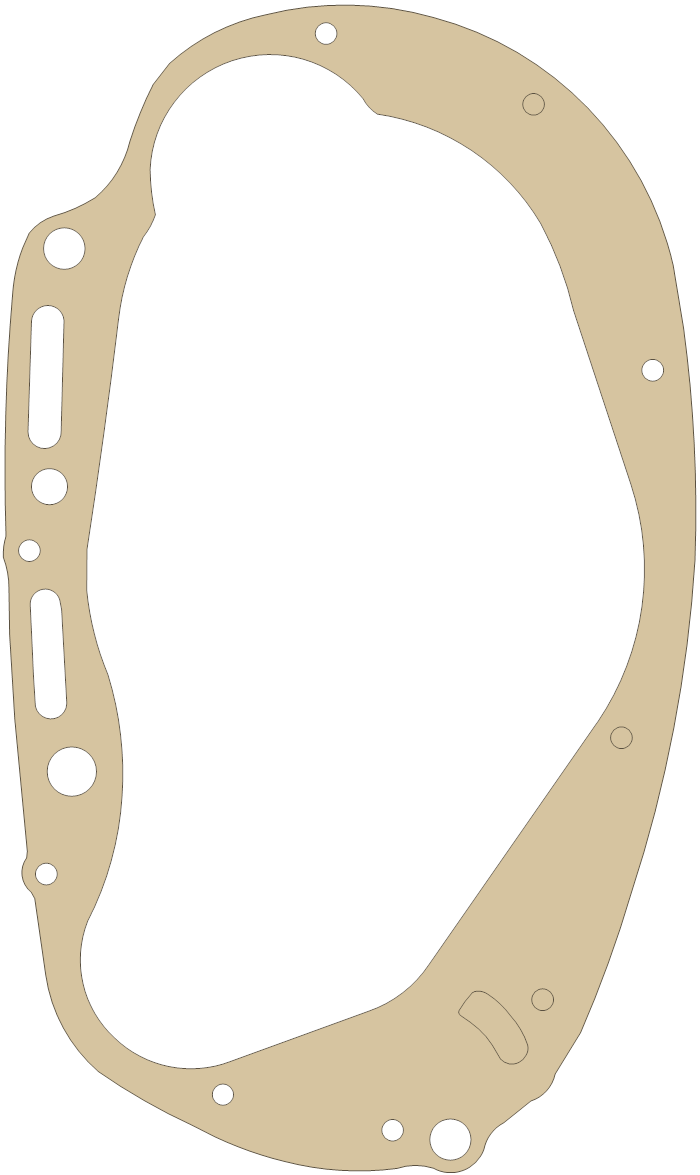

Crankcase Cover | 256-15451-10 | A | 20 mm | 1975 - 1981 |
|
|

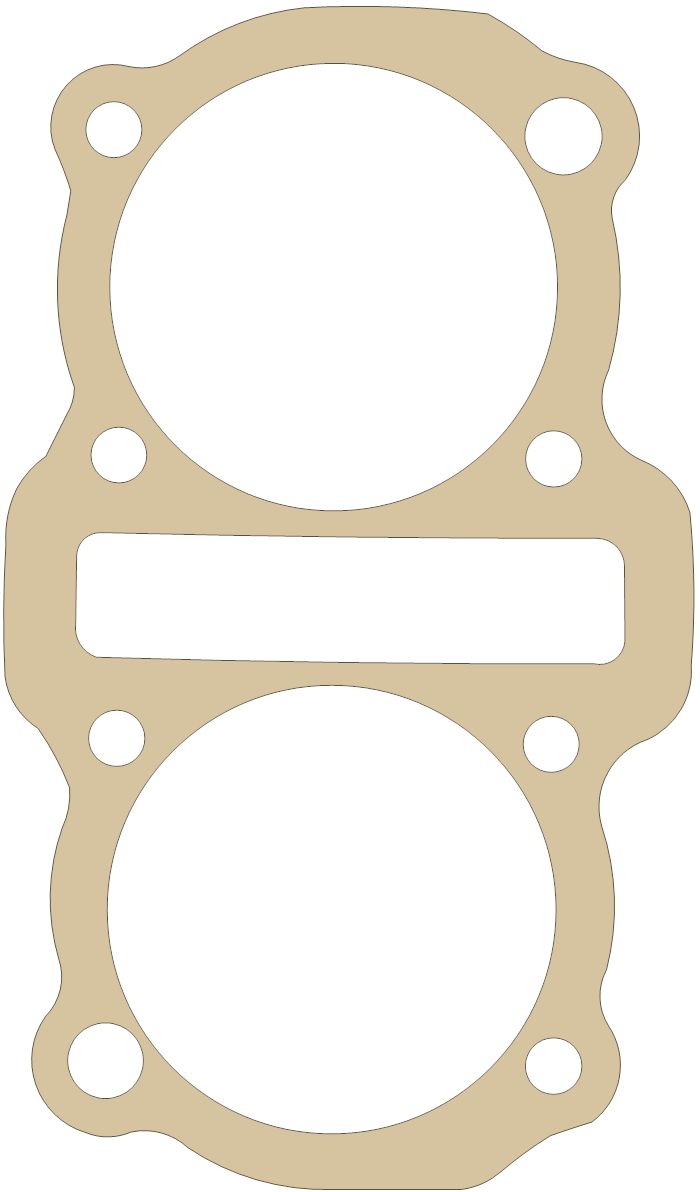

Cylinder Base | 256-11351-01 | A | 20 mm | 1975 - 1981 |
|
|

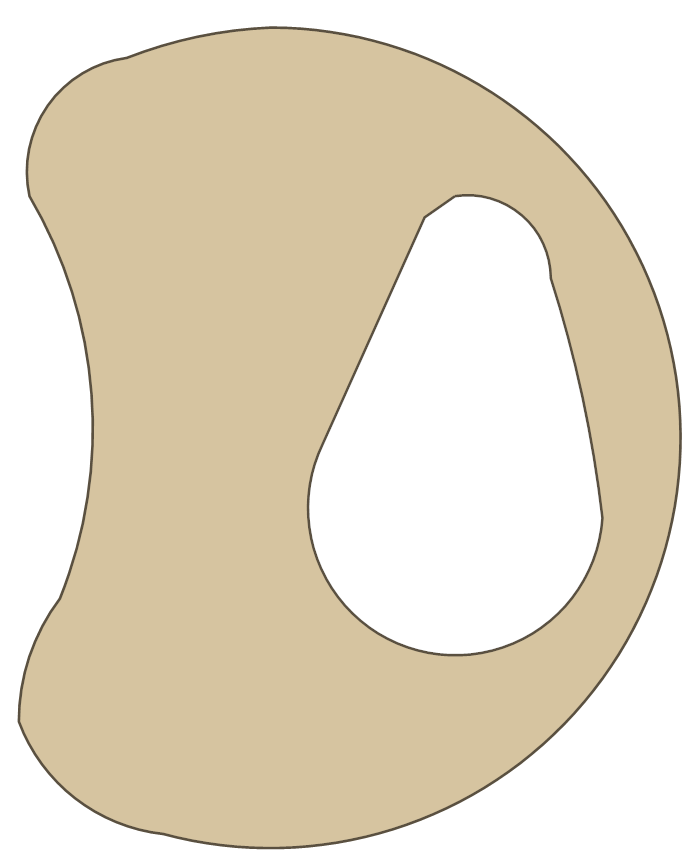

Element | 256-13445-10 | A | 20 mm | 1975 - 1981 |
|
|

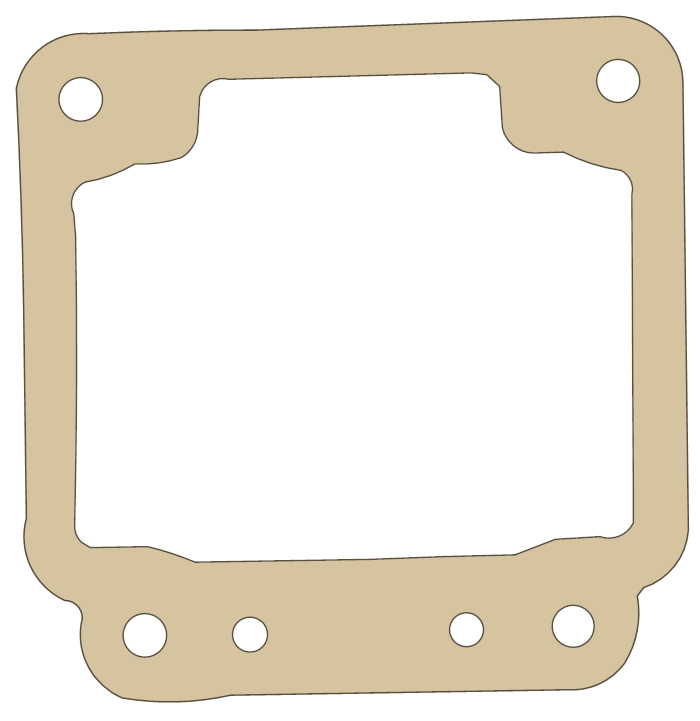

Float Bowl | 4H7-14984-00 | A | 20 mm | 1980 - 1983 |
Ready-to-cut files for every gasket listed here are available to subscribers. Specifications are free to view.
