2 gasket sets and 21 individual gaskets for the Honda TRX250R. Material, thickness and OEM cross-reference for each.
| Set | Gaskets in Set | Material | Years |
|---|---|---|---|
| SET B | 1 | B | 1986 - 1989 |
| SET A - ADD ON | 1 | A | 1986 - 1989 |
| Gasket | OEM Number | Material | Thickness | Years | |
|---|---|---|---|---|---|
|
|

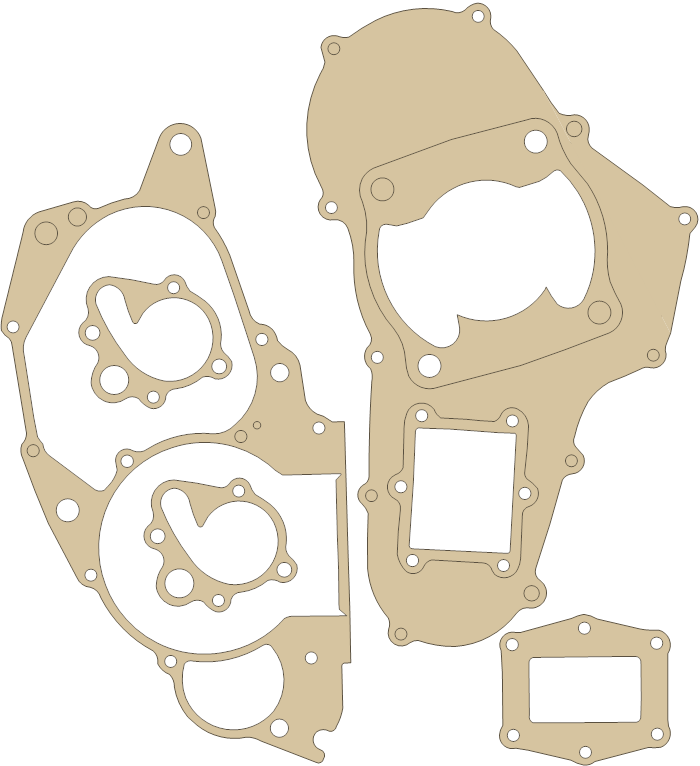

A Set | Custom | A | 0.02 mm | 1986 - 1989 |
|
|

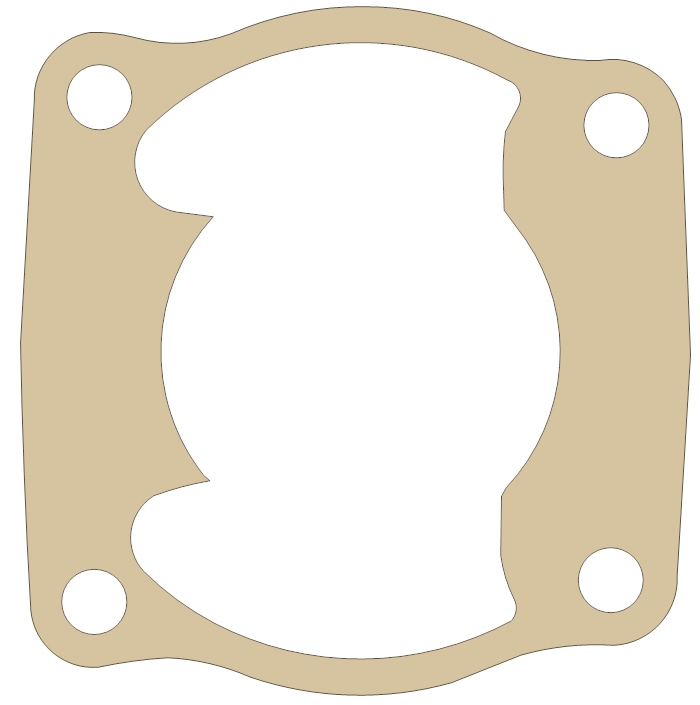

Base "B" | 12191-HA2-306 | B | 0.03 mm | 1986 - 1989 |
|
|
Base "D" | 12191-HA2-306 | D | 0.015 mm | 1986 - 1989 |
|
|

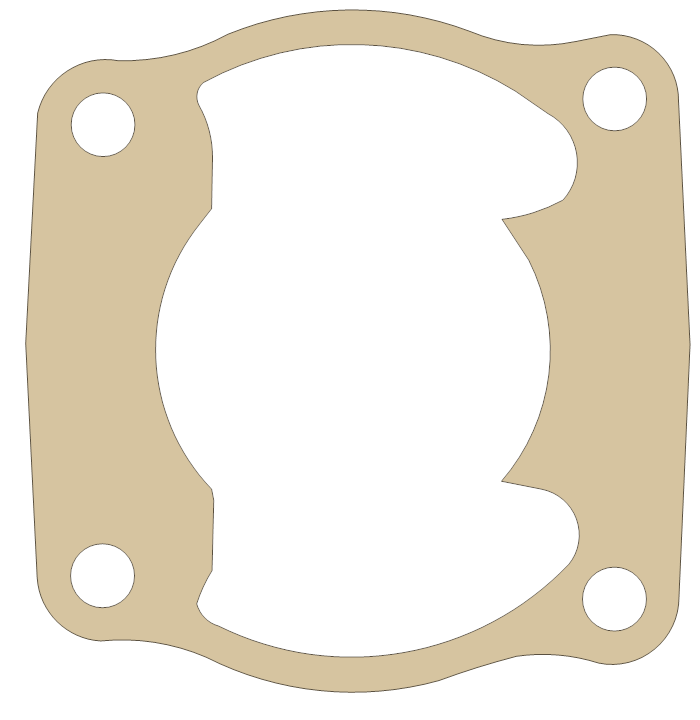

BaseB & BaseD Not OEM… | 12191-HA2-306 | A | 0.02 mm | 1986 - 1989 |
|
|

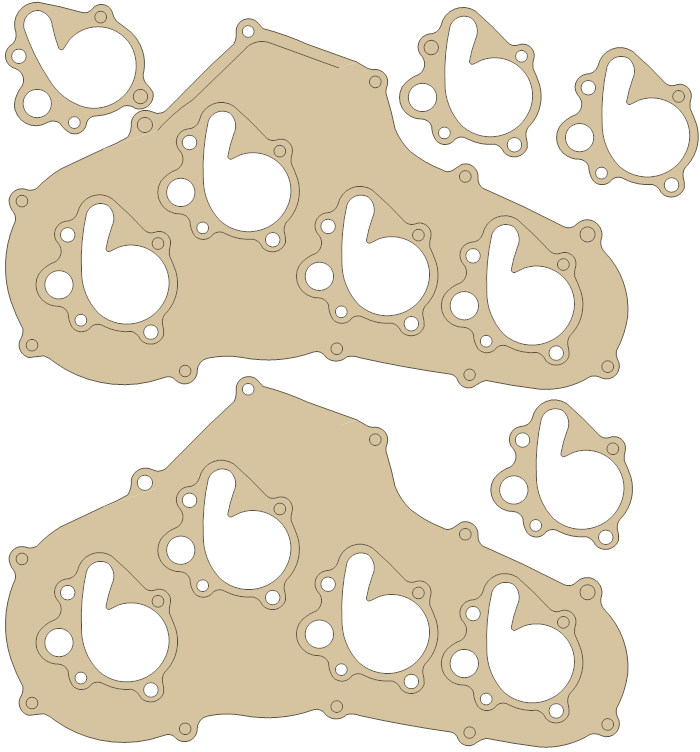

Cover & Pump Set | — | A | 20 mm | 1986 - 1989 |
|
|

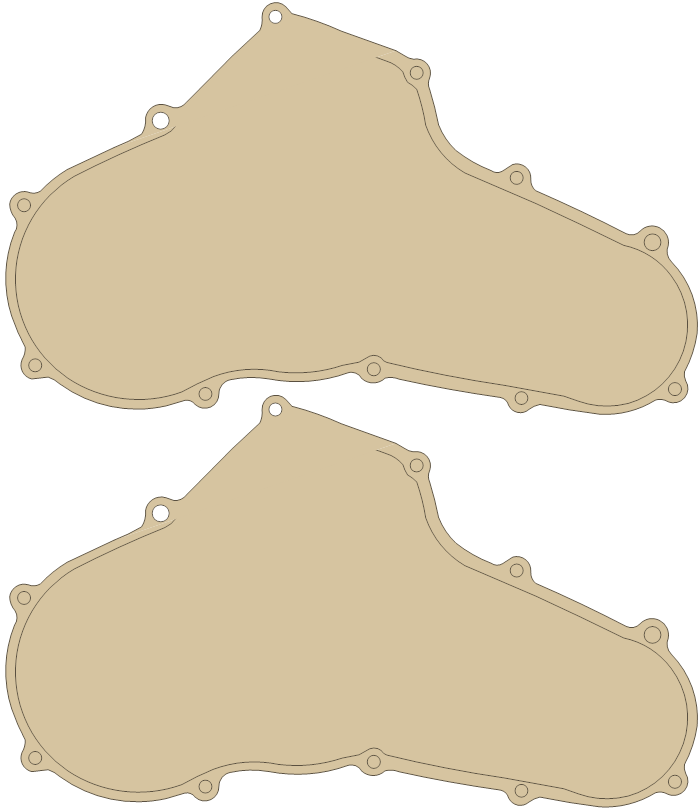

Cover Set | 11352-HA2-000 | A | 20 mm | 1986 - 1989 |
|
|
Cover Set | 11352-HA2-000 | B | 0.03 mm | 1986 - 1989 |
|
|

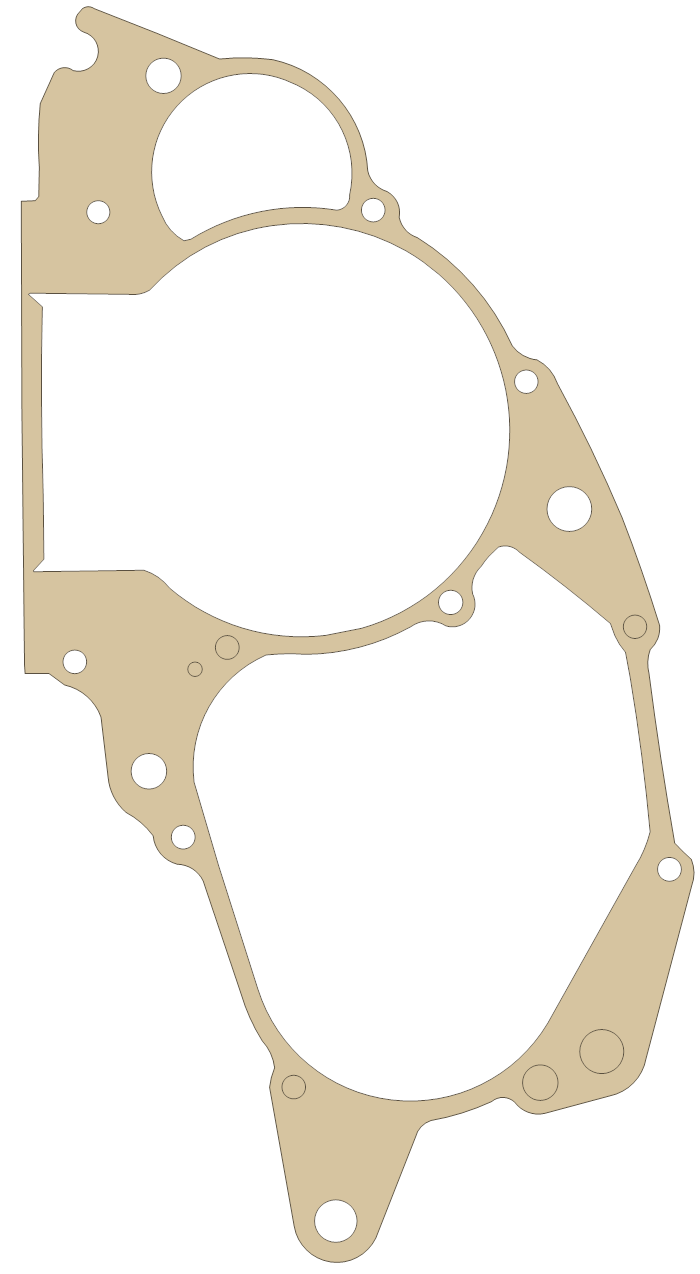

Crankcase | 11191-HA2-000 | A | 20 mm | 1986 - 1989 |
|
|
Crankcase | 11191-HA2-000 | B | 0.03 mm | 1986 - 1989 |
|
|
Custom Set C | Custom Set C | A | 0.02 mm | 1986 - 1989 |
|
|
Cylinder Base | 12191-HA2-306 | A | 20 mm | 1986 - 1989 |
|
|
cylinder base | 12191-ha2-003 | B | 0.03 mm | 1986 - 1989 |
|
|
Cylinder base | 12191-ha2-003 | D | 0.015 mm | 1986 - 1989 |
|
|

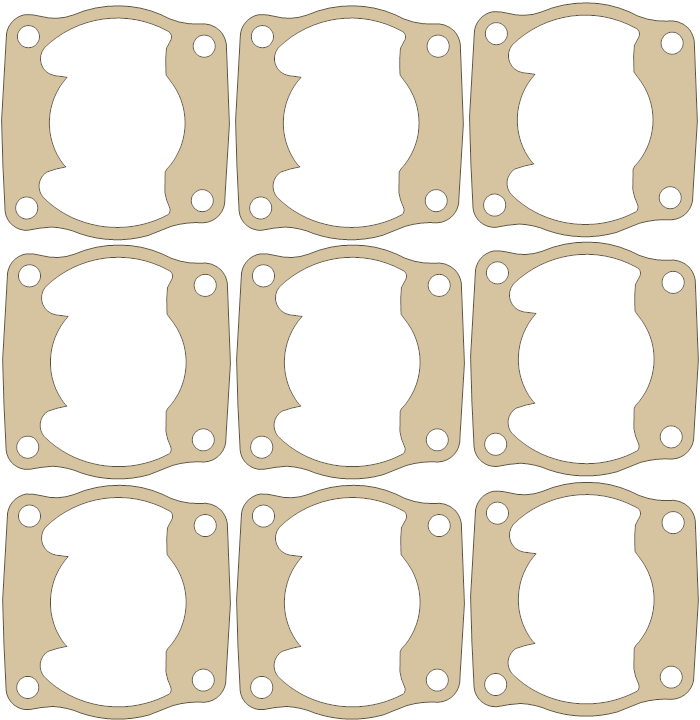

Cylinder Base Set | 12191-HA2-003 SET | A | 20 mm | 1986 - 1989 |
|
|

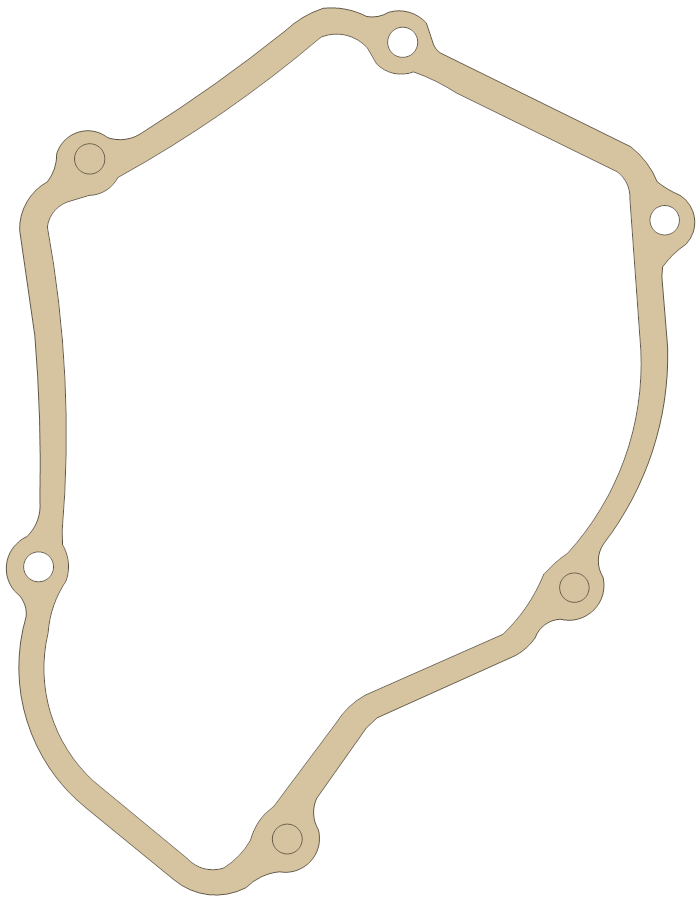

Left Cover | 11352-HA2-306 | B | 40 mm | 1986 - 1989 |
|
|

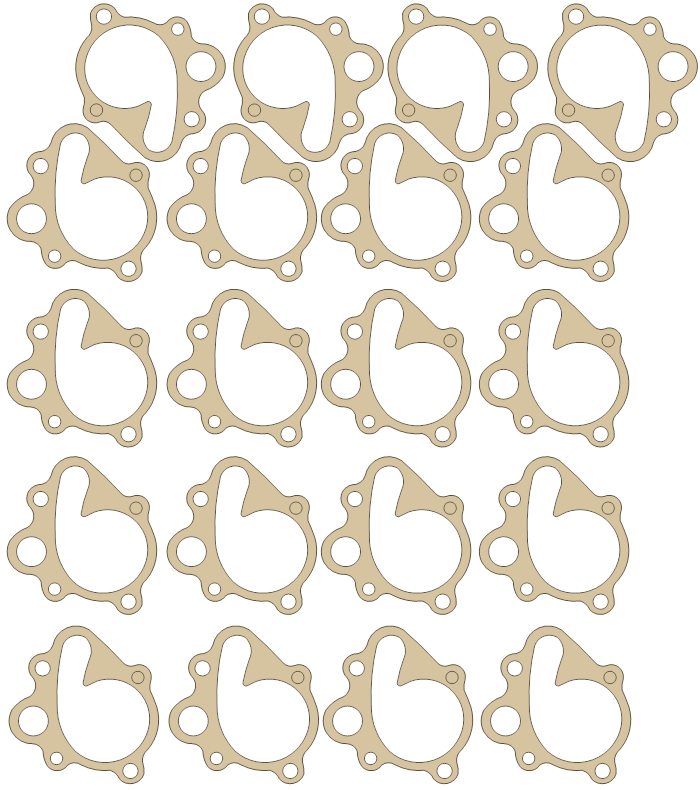

Pump Set | 19229-HA2-000 | A | 20 mm | 1986 - 1989 |
|
|

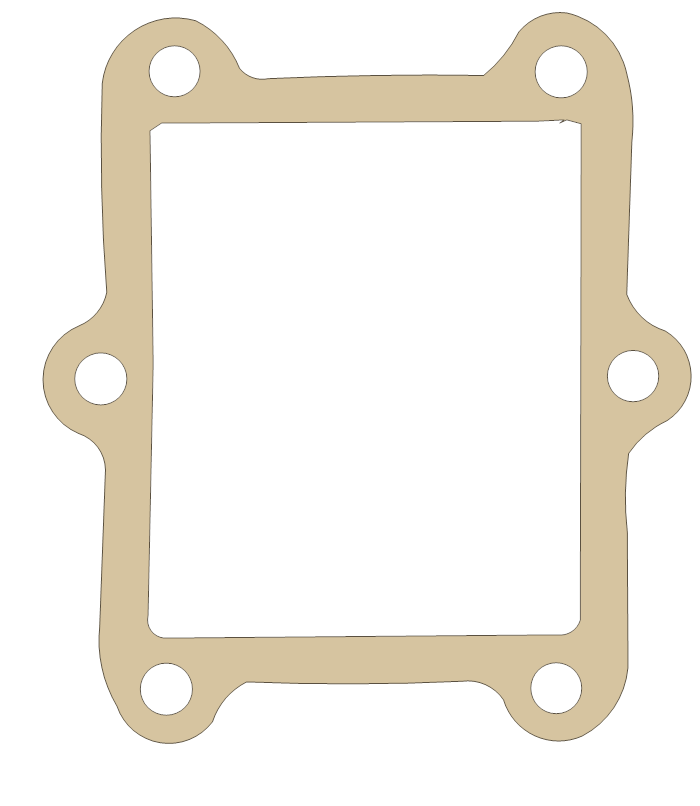

Reed Valve A | 14132-KZ3-880 | A | 20 mm | 1986 - 1989 |
|
|

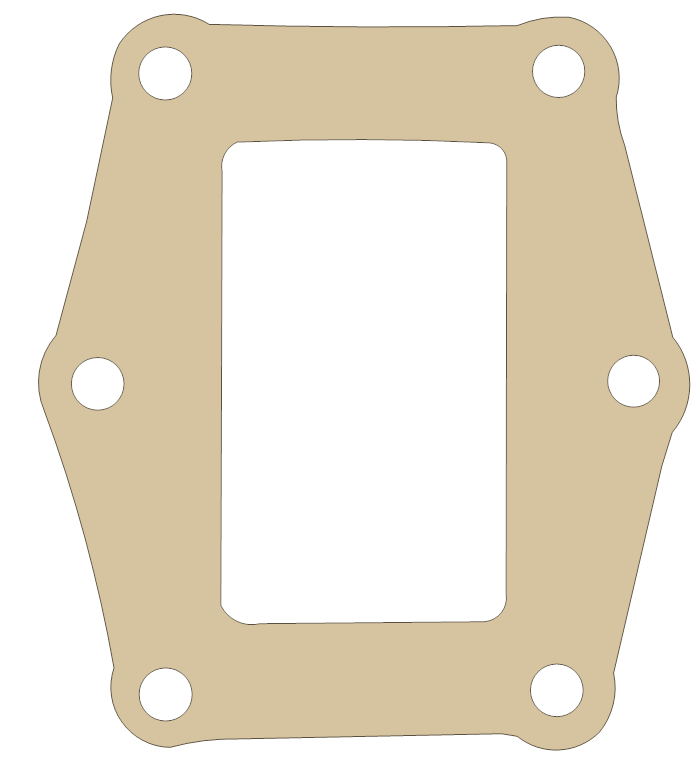

Reed Valve B | 14133-430-000 | A | 20 mm | 1986 - 1989 |
|
|
Right Cover | 11395-HA2-306 | A | 20 mm | 1986 - 1989 |
|
|

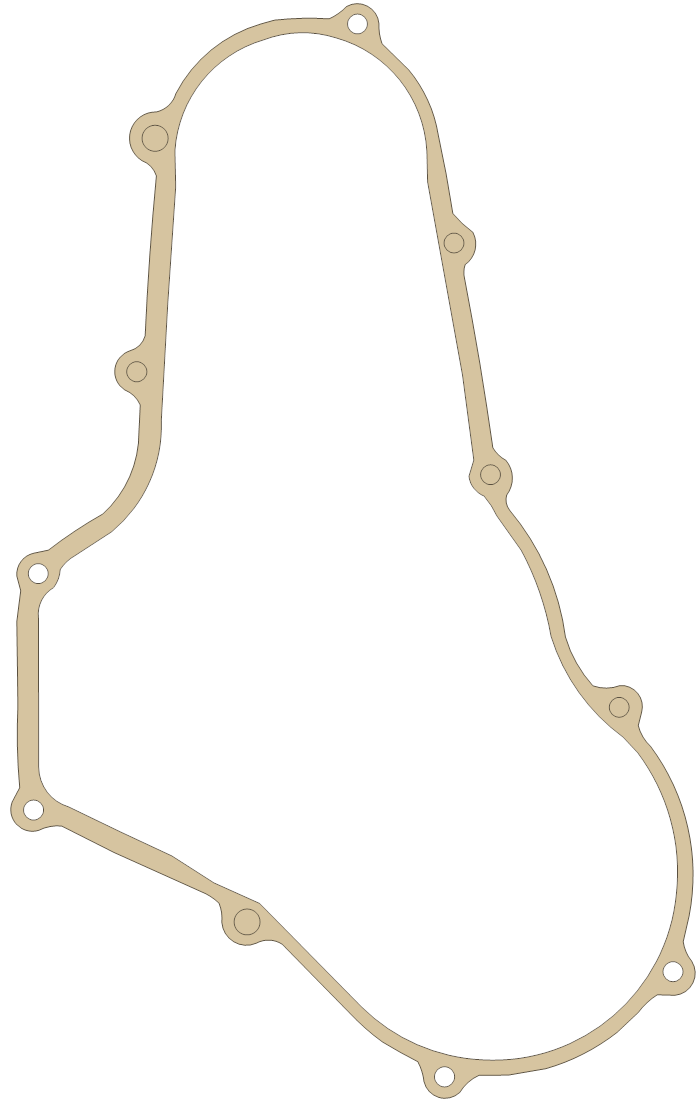

Right Cover B Mat. | 11395-HA2-306 | B | 0.03 mm | 1986 - 1989 |
|
|
Water Pump Cover | 19229-HA2-306 | A | 20 mm | 1985 - 1989 |
Ready-to-cut files for every gasket listed here are available to subscribers. Specifications are free to view.
