1 gasket sets and 6 individual gaskets for the Kawasaki KX400. Material, thickness and OEM cross-reference for each.
| Set | Gaskets in Set | Material | Years |
|---|---|---|---|
| SET A | 3 | A | 1975 - 1976 |
| Gasket | OEM Number | Material | Thickness | Years | |
|---|---|---|---|---|---|
|
|

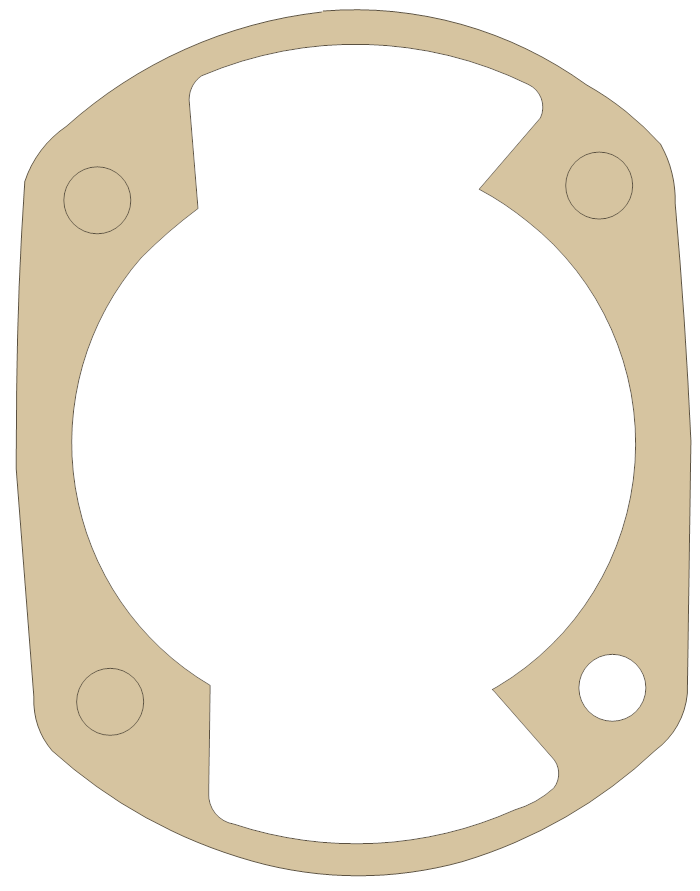

Cylinder Base | 11009-035 | A | 20 mm | 1975 - 1976 |
|
|

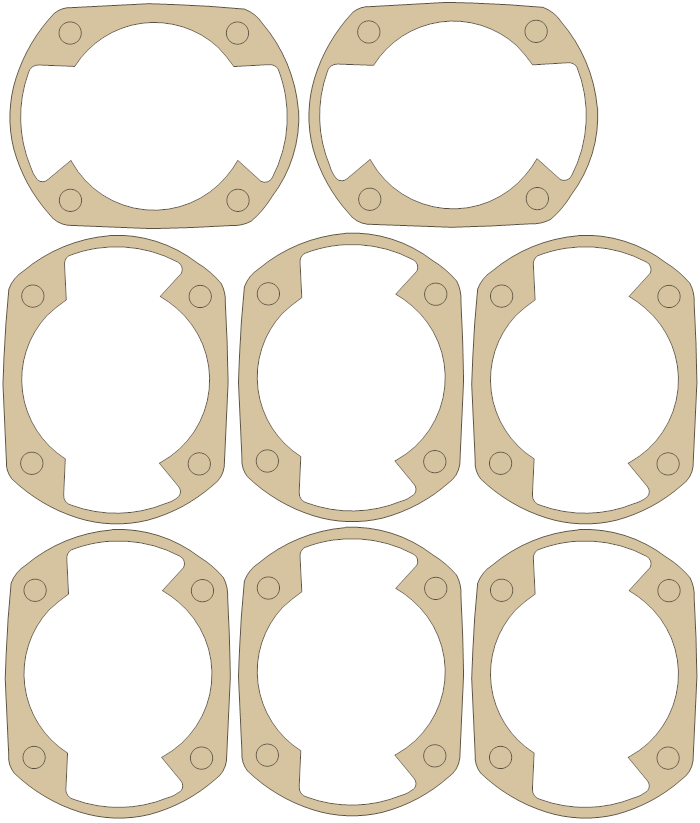

Cylinder Base "A" Gskt Sht | 11009-035 | A | 20 mm | 1975 - 1976 |
|
|
Cylinder Base "D" Gskt Sht | 11009-035 | D | 15 mm | 1975 - 1976 |
|
|

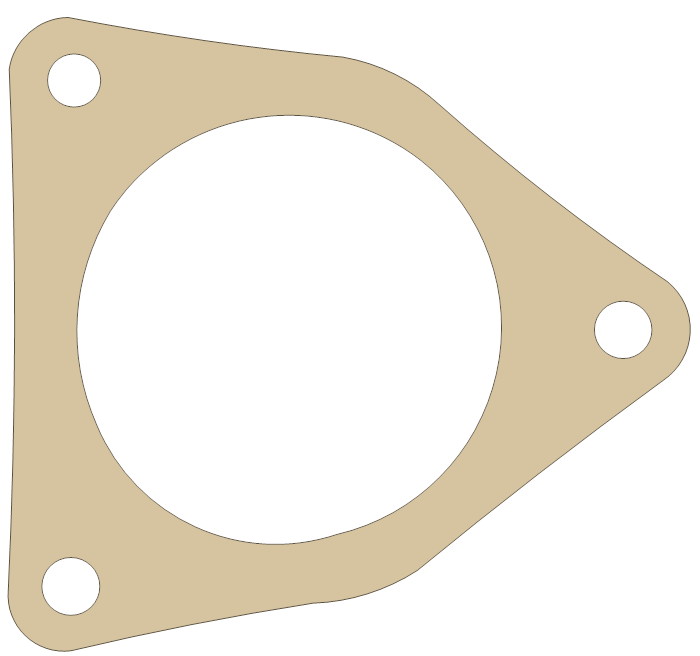

Exhaust | 18050-010 | B | 50 mm | 1975 - 1976 |
|
|

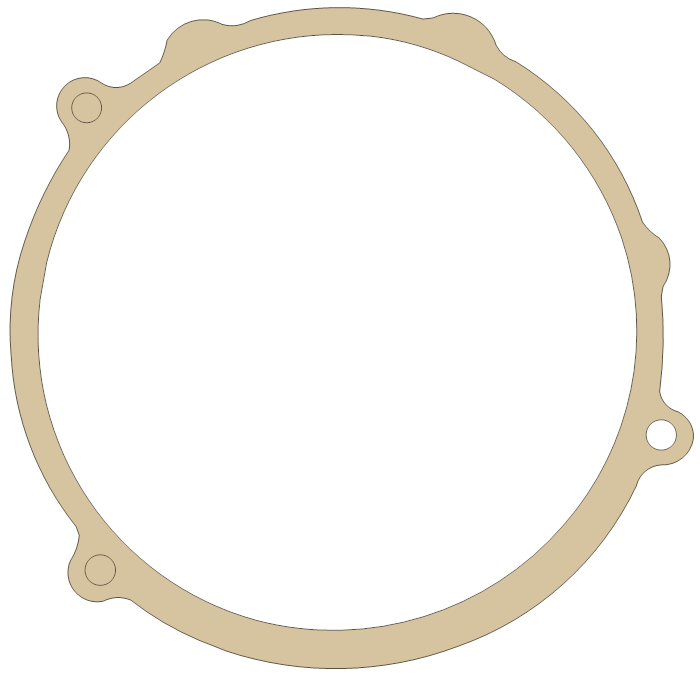

LH, Engine Cover | 14045-016 | A | 20 mm | 1975 - 1976 |
|
|

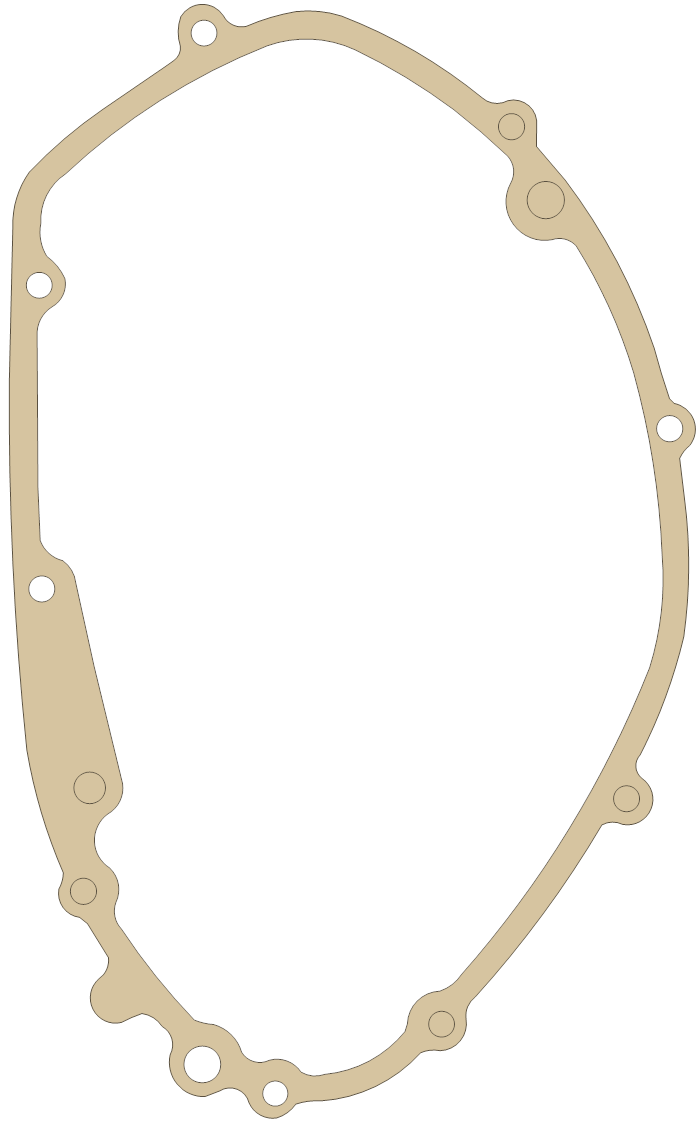

RH, Engine Cover | 14046-027 | A | 20 mm | 1975 - 1976 |
Ready-to-cut files for every gasket listed here are available to subscribers. Specifications are free to view.
Subscribe
