4 gasket sets and 10 individual gaskets for the Kawasaki ZN1100. Material, thickness and OEM cross-reference for each.
| Set | Gaskets in Set | Material | Years |
|---|---|---|---|
| SET A | 5 | A | 1984 - 1985 |
| SET B | 2 | A | 1984 - 1985 |
| SET C | 1 | A | 1984 - 1985 |
| SET D | 2 | B | 1984 - 1985 |
| Gasket | OEM Number | Material | Thickness | Years | |
|---|---|---|---|---|---|
|
|

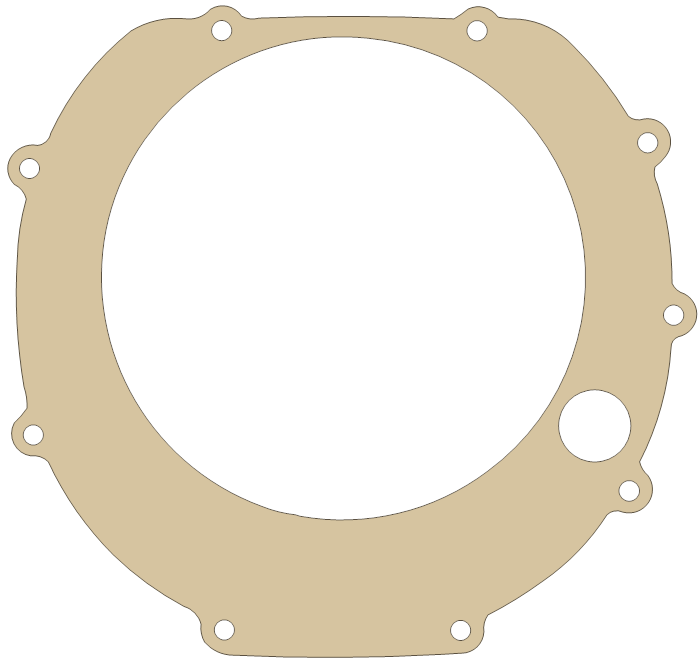

Clutch | 11009-1210 | B | 30 mm | 1984 - 1985 |
|
|

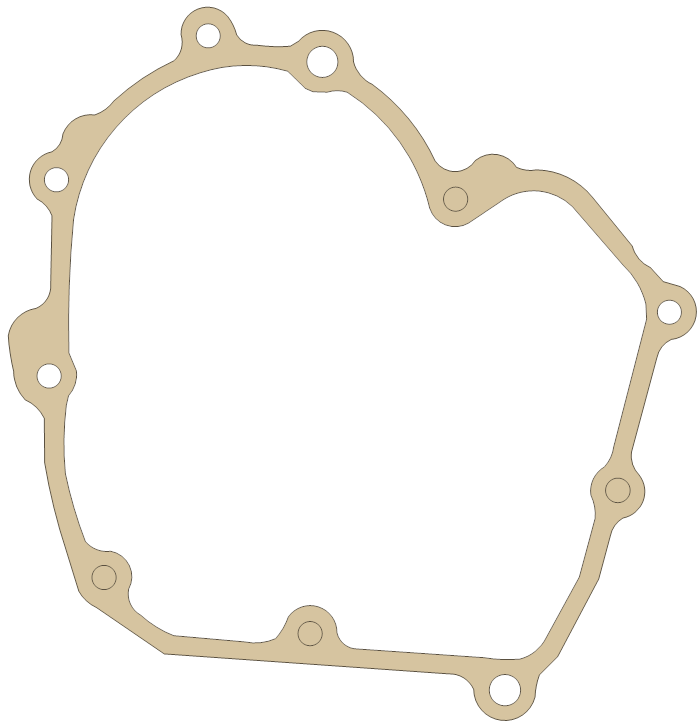

Clutch Cover | 11060-1069 | A | 20 mm | 1984 - 1985 |
|
|

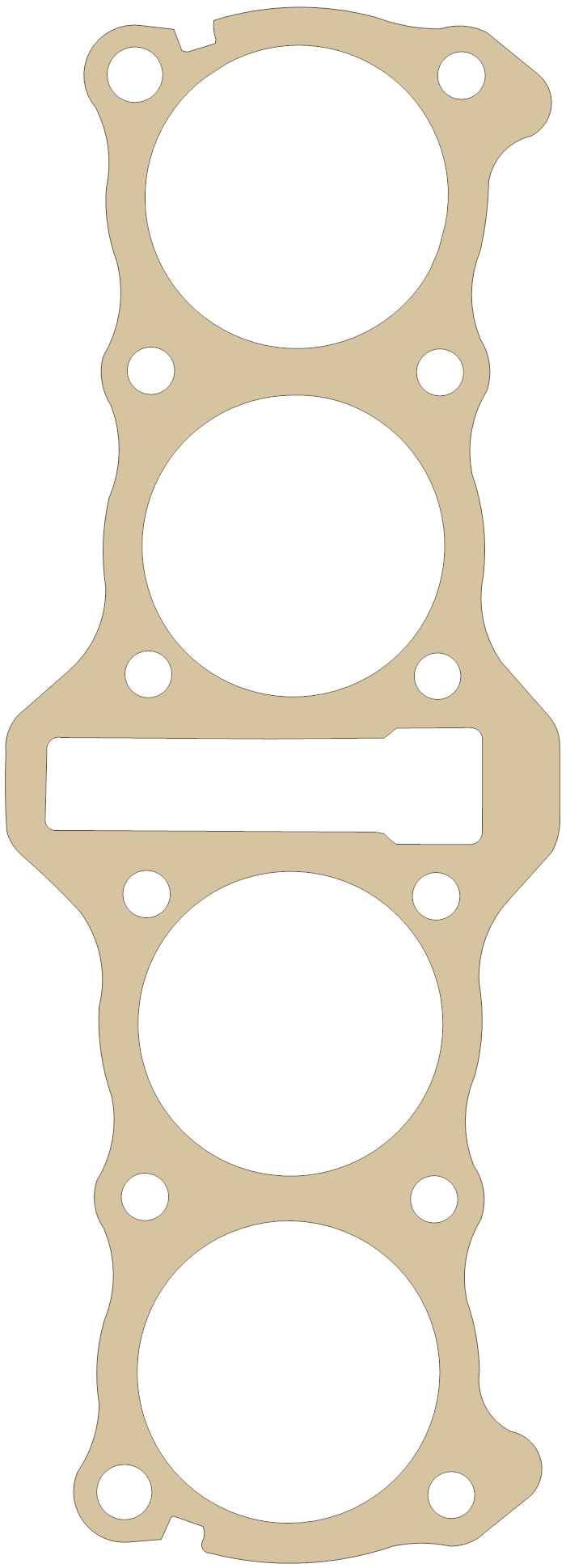

Cylinder Base | 11009-1207 | A | 20 mm | 1984 - 1985 |
|
|

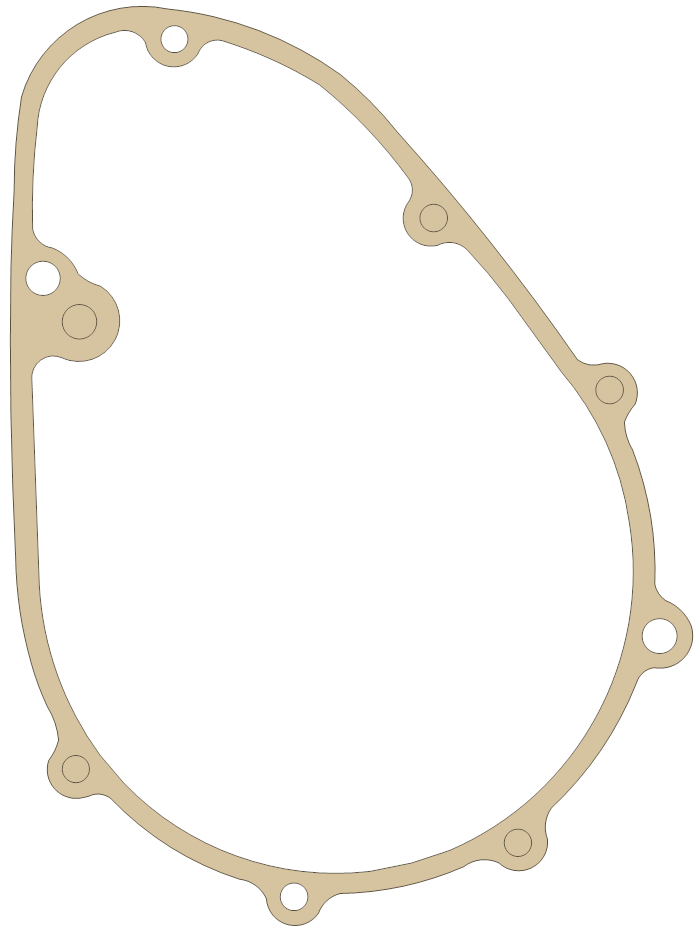

LH, Engine Cover | 11060-1075 | A | 20 mm | 1984 - 1985 |
|
|

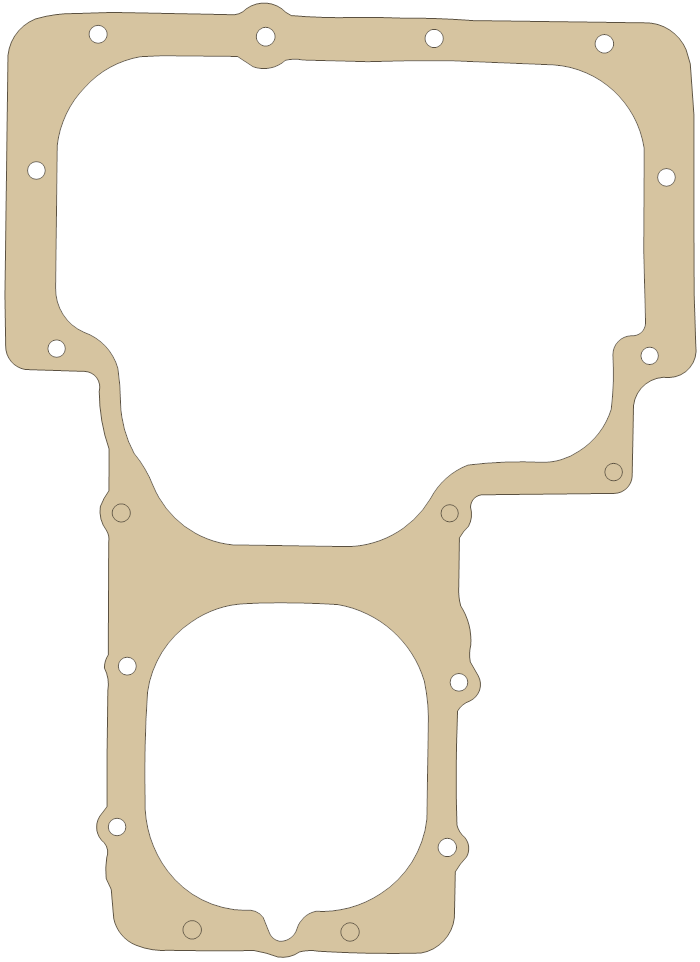

Oil Pan | 11060-1074 | A | 20 mm | 1984 - 1985 |
|
|

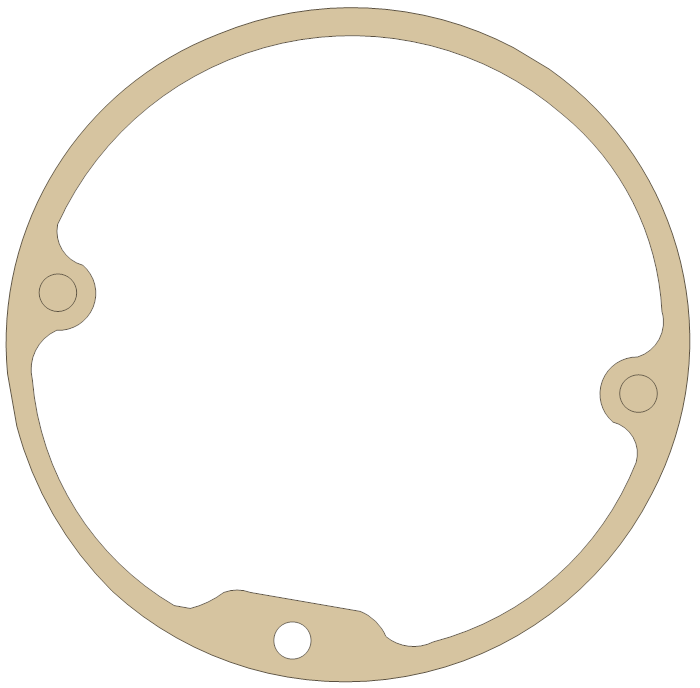

Pulsing Coil | 11009-1220 | B | 40 mm | 1984 - 1985 |
|
|

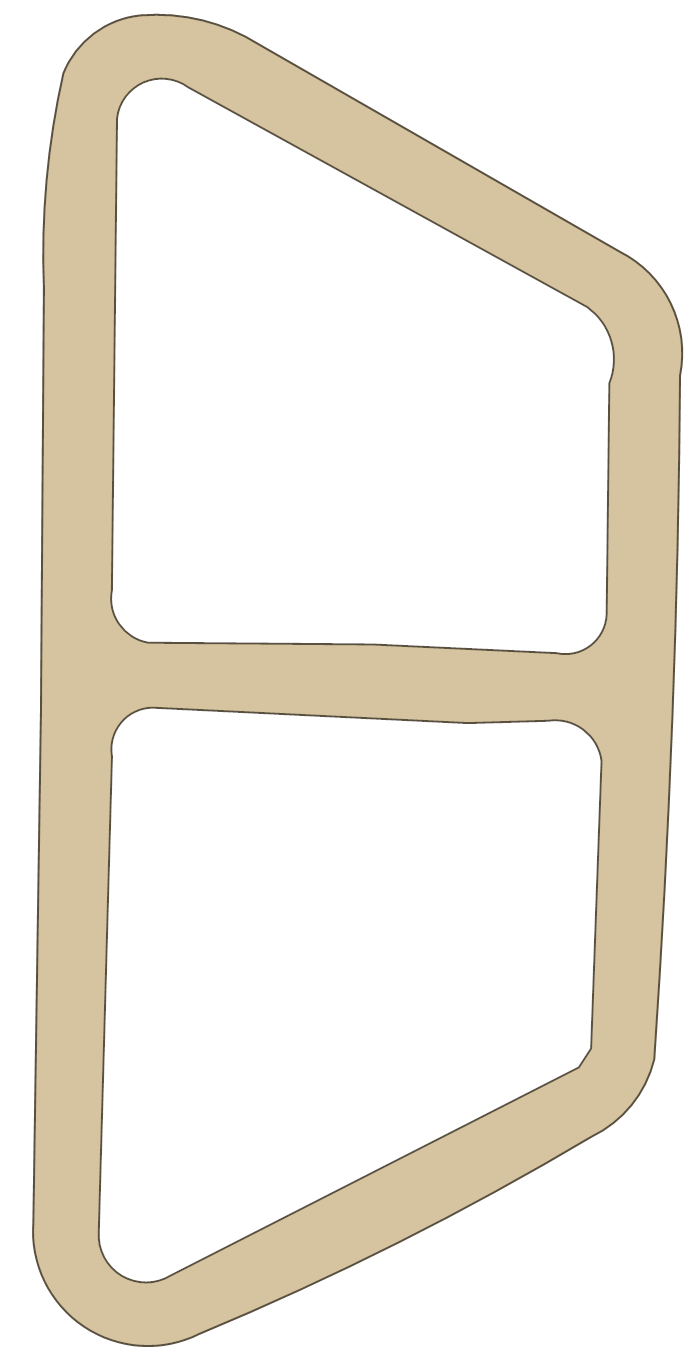

Reed Cover | 11009-1206 | B | 30 mm | 1984 - 1985 |
|
|

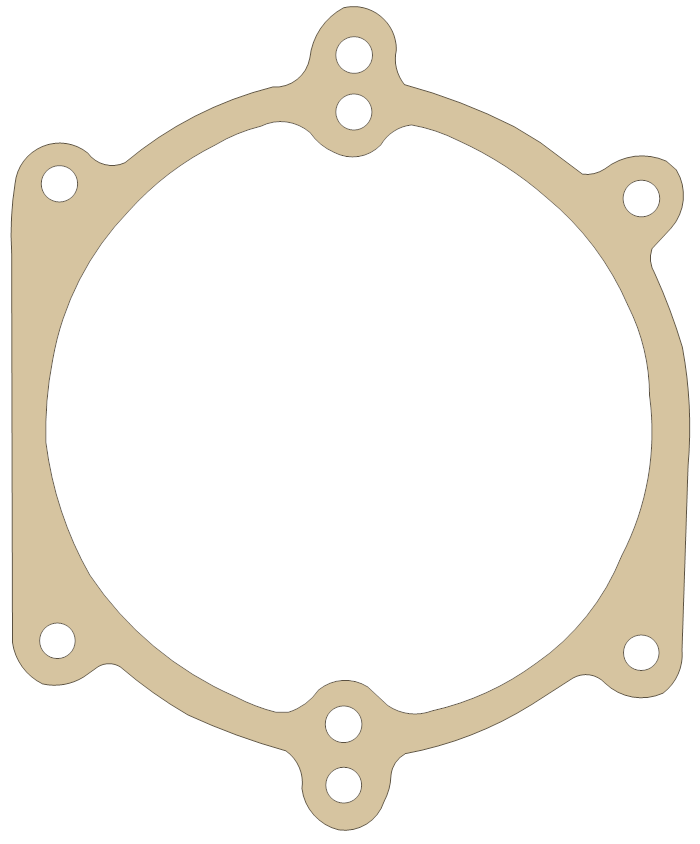

RH, Engine Cover | 11060-1071 | A | 20 mm | 1984 - 1985 |
|
|

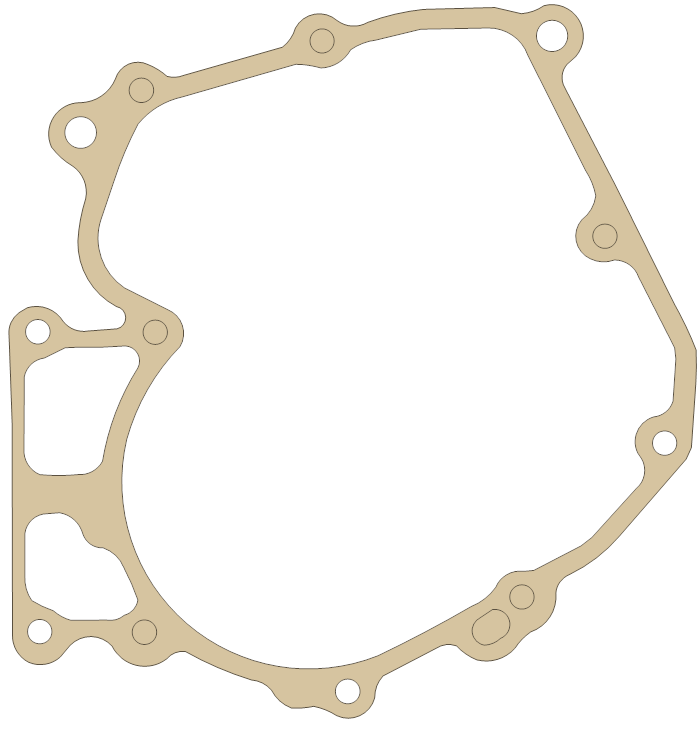

Transmission Cover | 11009-1112 | A | 20 mm | 1984 - 1985 |
|
|

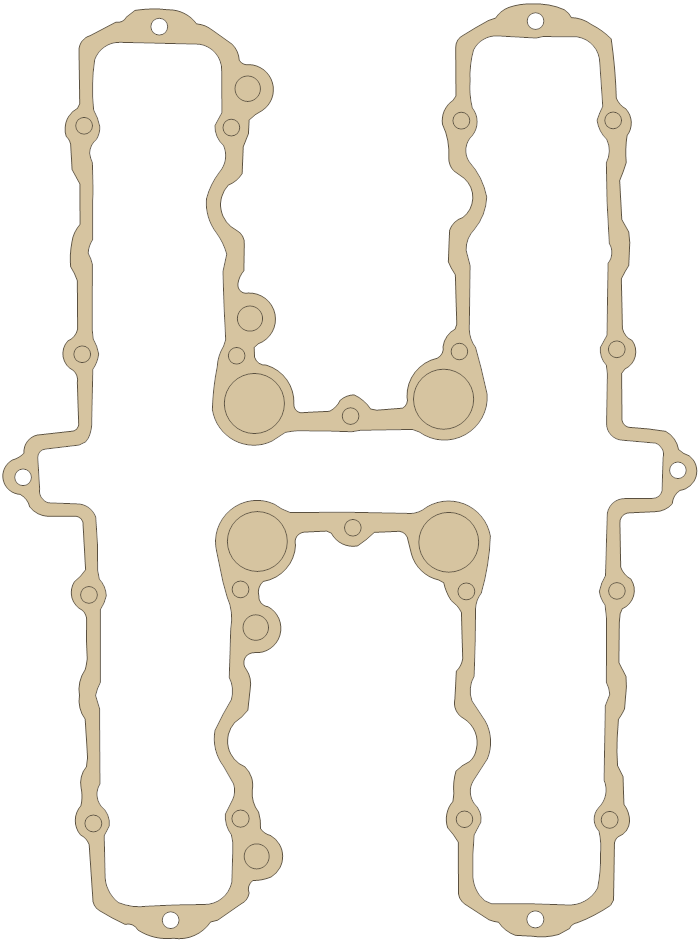

Valve Cover | 11009-1205 | A | 20 mm | 1984 - 1985 |
Ready-to-cut files for every gasket listed here are available to subscribers. Specifications are free to view.
