6 gasket sets and 22 individual gaskets for the Kawasaki ZX1100. Material, thickness and OEM cross-reference for each.
| Set | Gaskets in Set | Material | Years |
|---|---|---|---|
| SET A | 5 | A | 1983 - 1985 |
| SET A | 7 | A | 1990 - 2001 |
| SET B | 2 | B | 1990 - 2001 |
| SET B | 2 | A | 1983 - 1985 |
| SET C | 1 | A | 1983 - 1985 |
| SET D | 2 | B | 1983 - 1985 |
| Gasket | OEM Number | Material | Thickness | Years | |
|---|---|---|---|---|---|
|
|

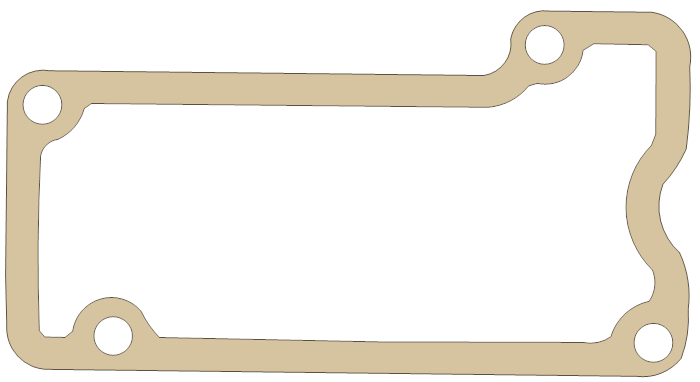

Breather Body | 11060-1339 | A | 20 mm | 1990 - 2001 |
|
|

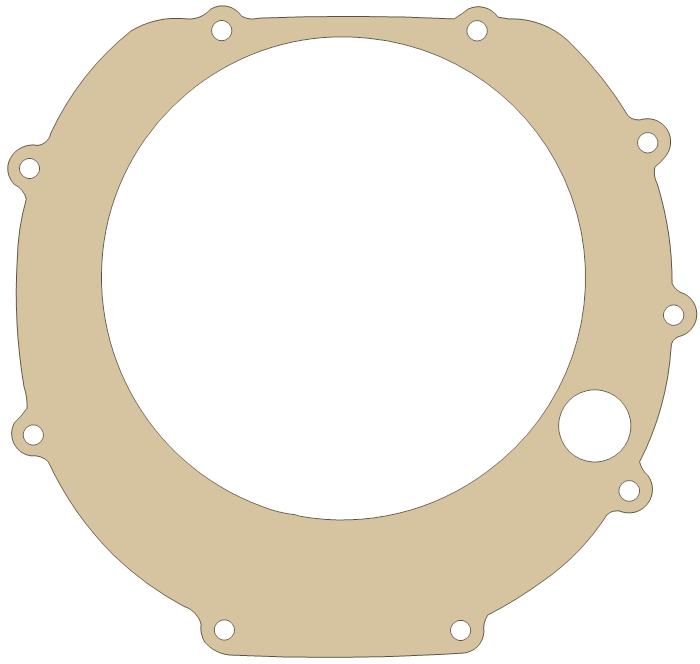

Clutch | 11009-1210 | B | 30 mm | 1983 - 1985 |
|
|

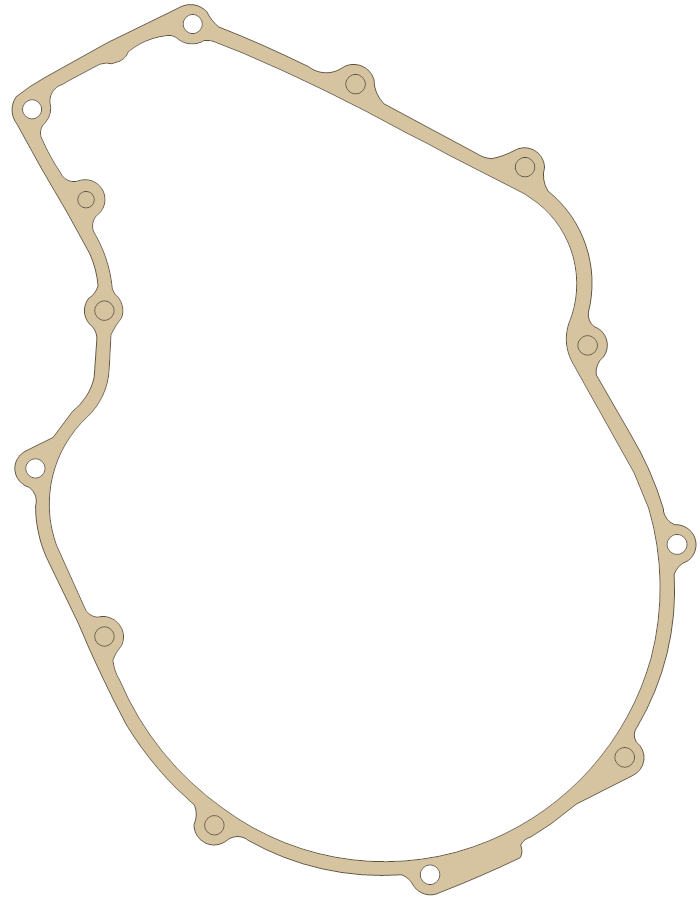

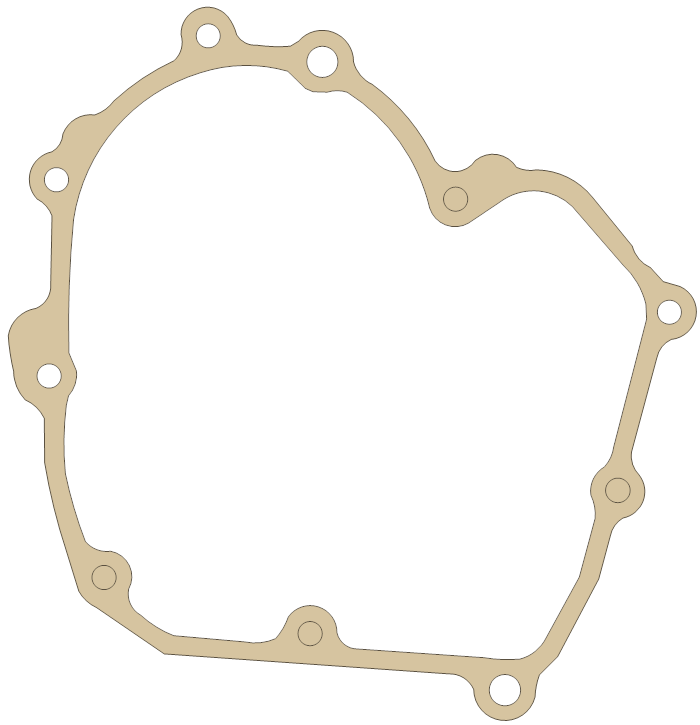

Clutch Cover | 11060-1069 | A | 20 mm | 1983 - 1985 |
|
|
Clutch Cover | 11009-1860 | A | 20 mm | 1990 - 2001 |
|
|

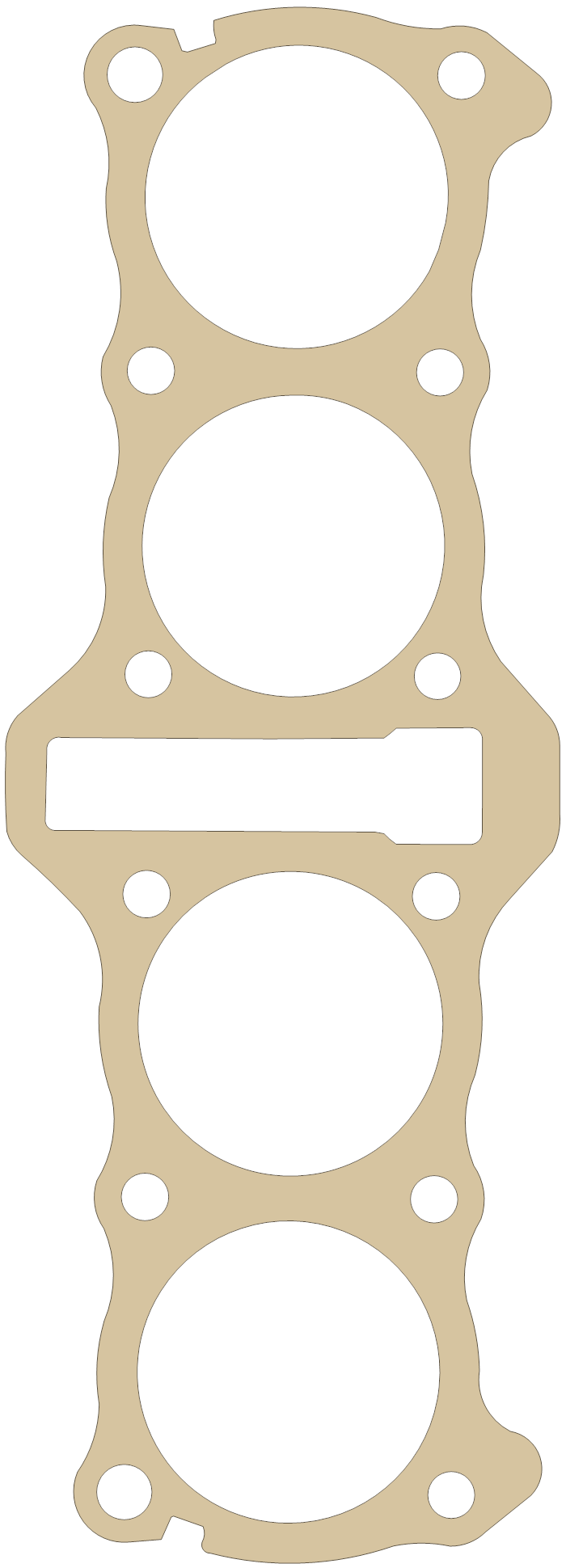

Cylinder Base | 11009-1207 | A | 20 mm | 1983 - 1985 |
|
|

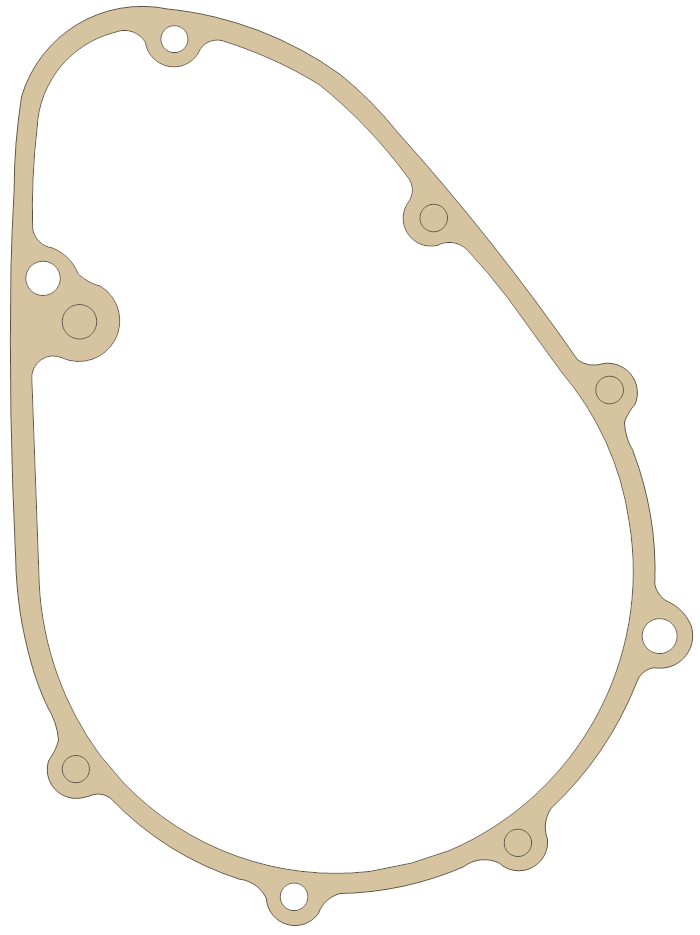

LH, Engine Cover | 11060-1075 | A | 20 mm | 1983 - 1985 |
|
|
LH, Engine Cover | 11009-1863 | A | 20 mm | 1990 - 2001 |
|
|

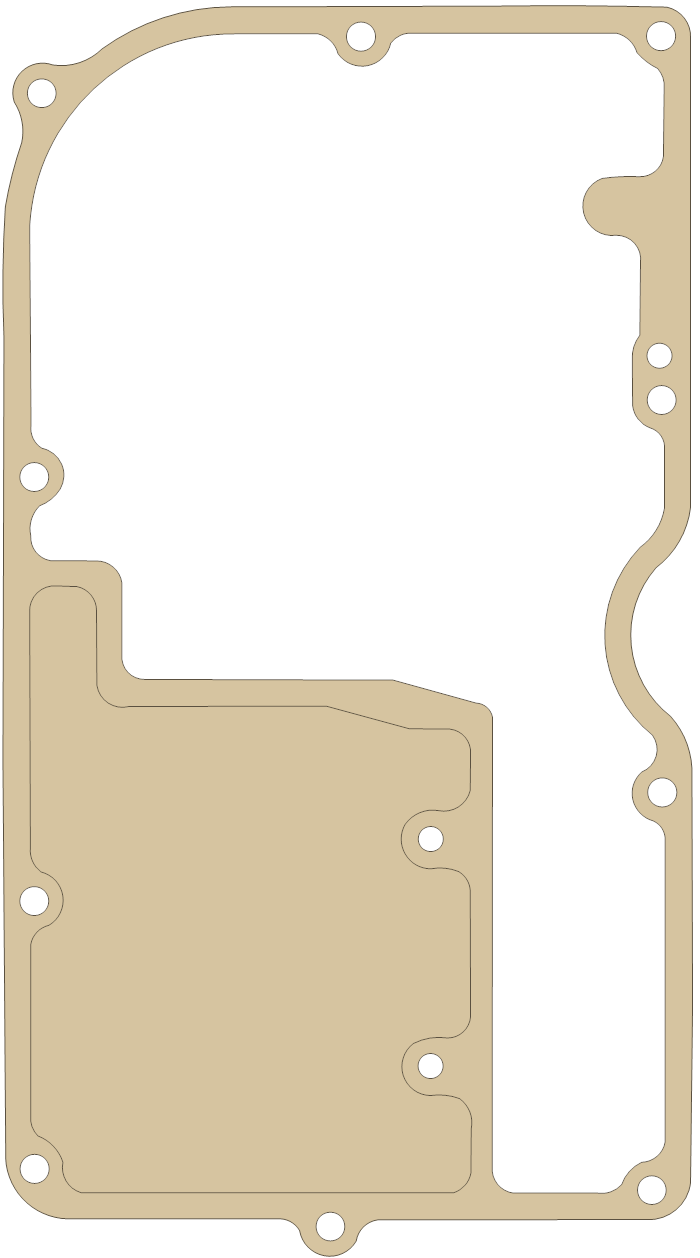

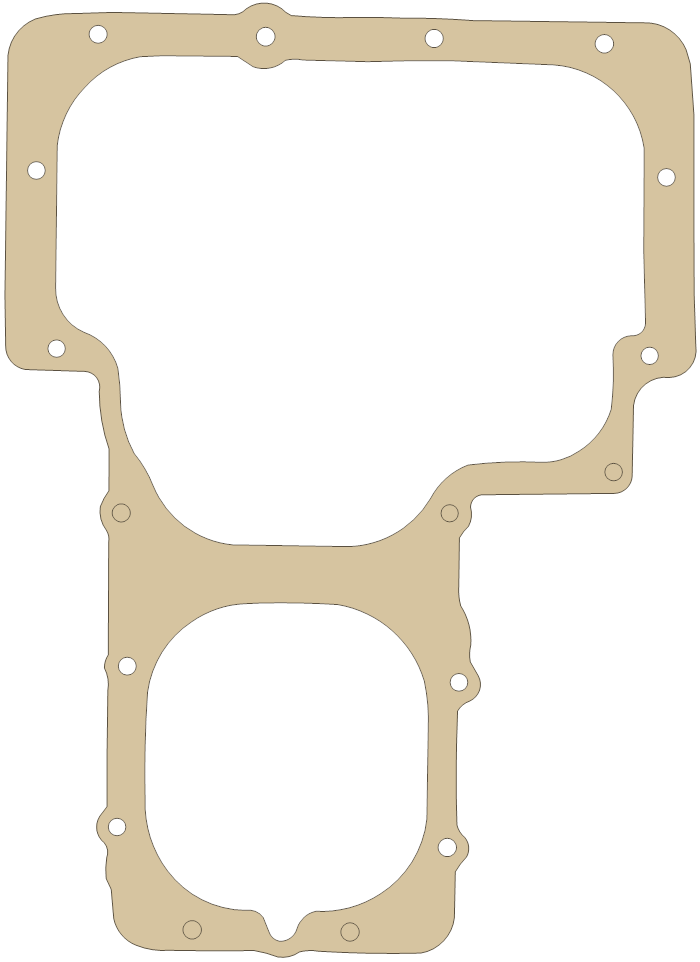

Oil Pan | 11060-1074 | A | 20 mm | 1983 - 1985 |
|
|
Oil Pan | 11009-1981 | A | 20 mm | 1990 - 2001 |
|
|

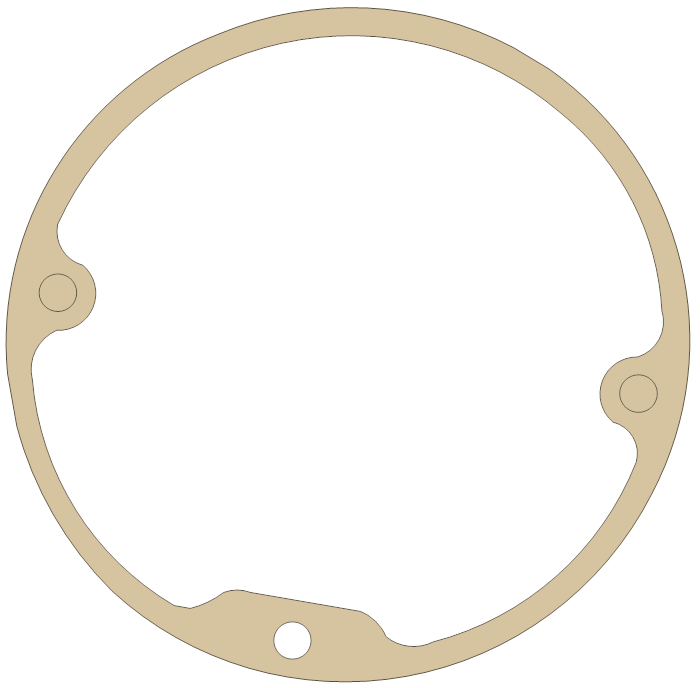

Pulsing Coil | 11009-1220 | B | 40 mm | 1983 - 1985 |
|
|

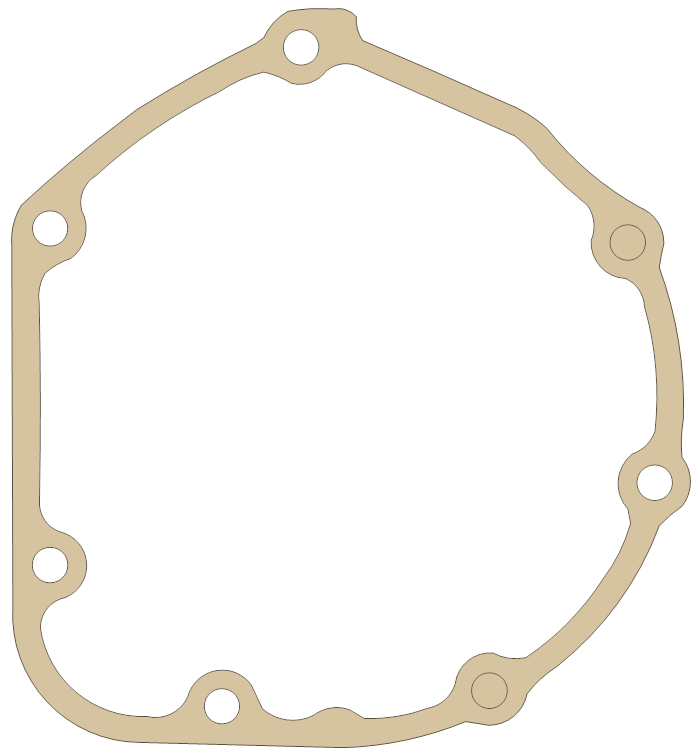

Pulsing Cover | 11060-1695 | A | 20 mm | 1996 |
|
|

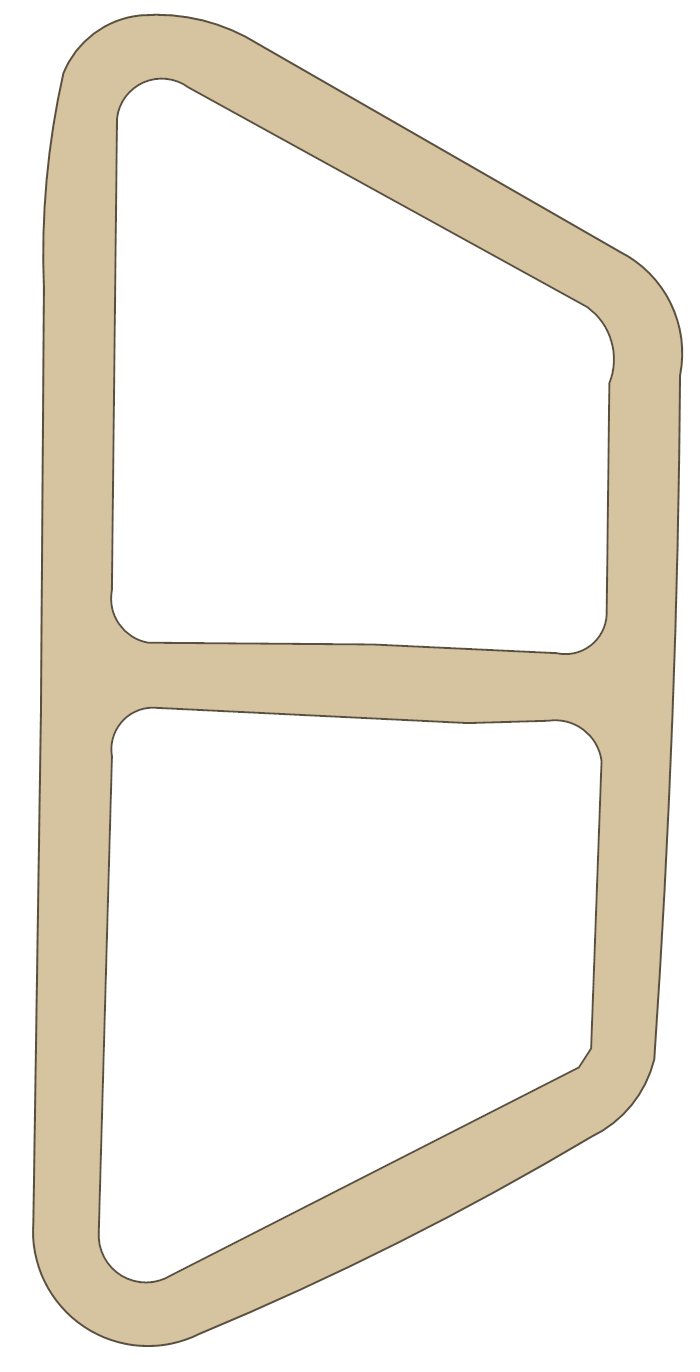

Reed Cover | 11009-1206 | A | 30 mm | 1983 - 1985 |
|
|

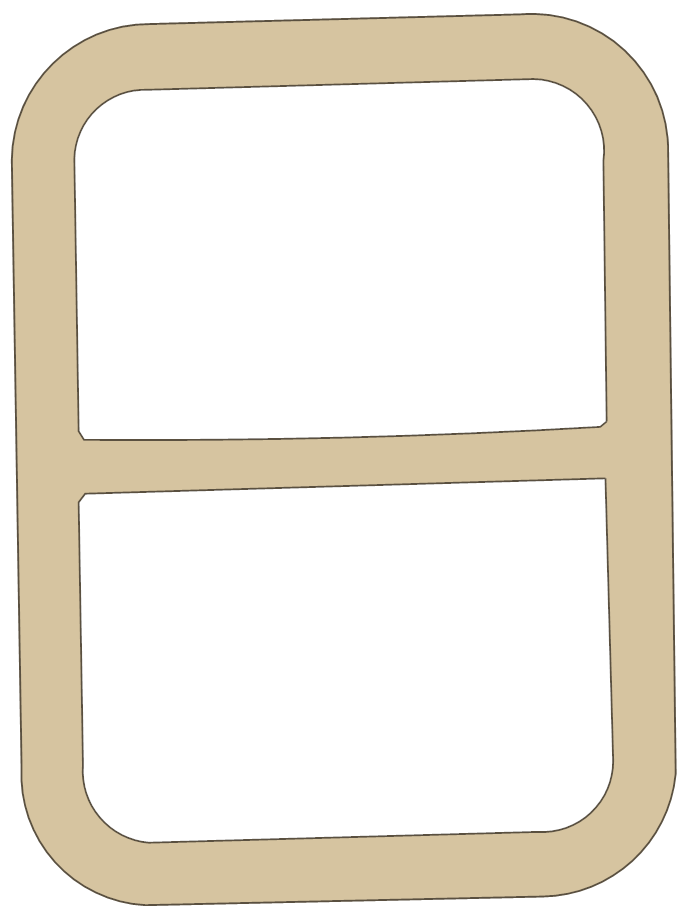

Reed Valve | 11009-1857 | B | 60 mm | 1990 - 2001 |
|
|

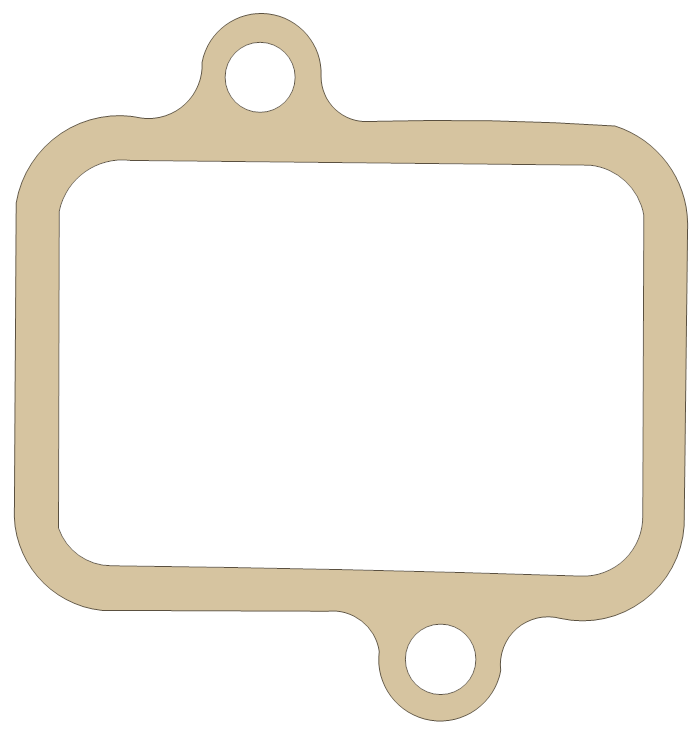

Reed Valve Cap | 11060-1688 | A | 20 mm | 1995 - 2001 |
|
|

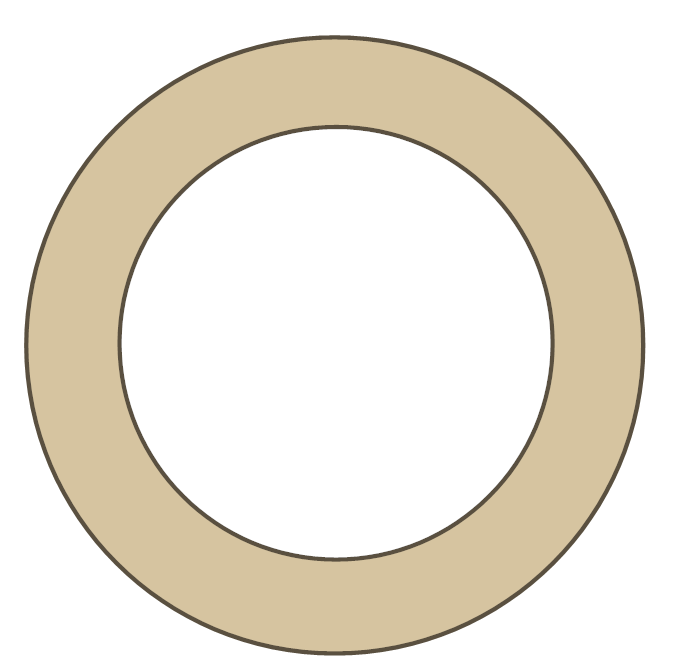

Releif Valve Fit | 11009-1182 | B | 40 mm | 1983 - 1984 |
|
|
Releif Valve Fit | 11009-1182 | B | 40 mm | 1983 - 1984 |
|
|

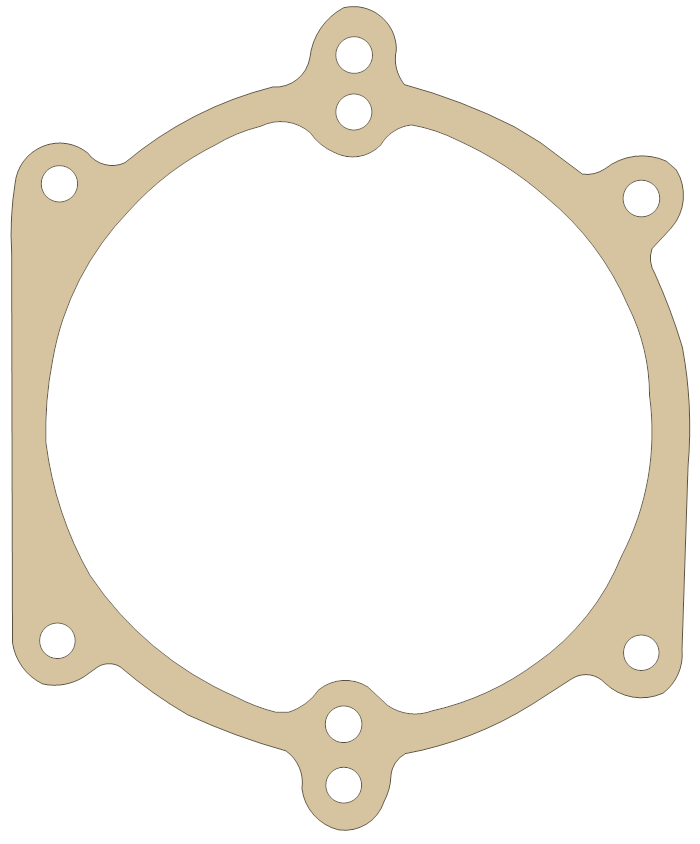

RH, Engine Cover | 11060-1071 | A | 20 mm | 1983 - 1985 |
|
|

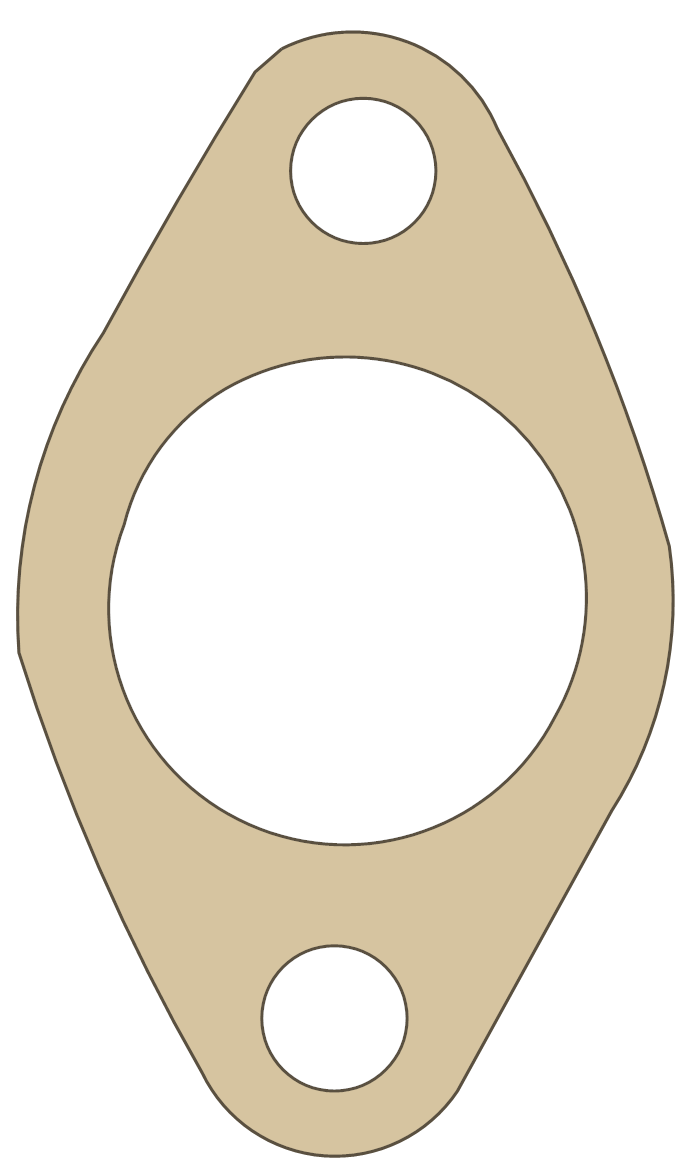

Tensioner | 11009-1858 | A | 20 mm | 1990 - 2001 |
|
|

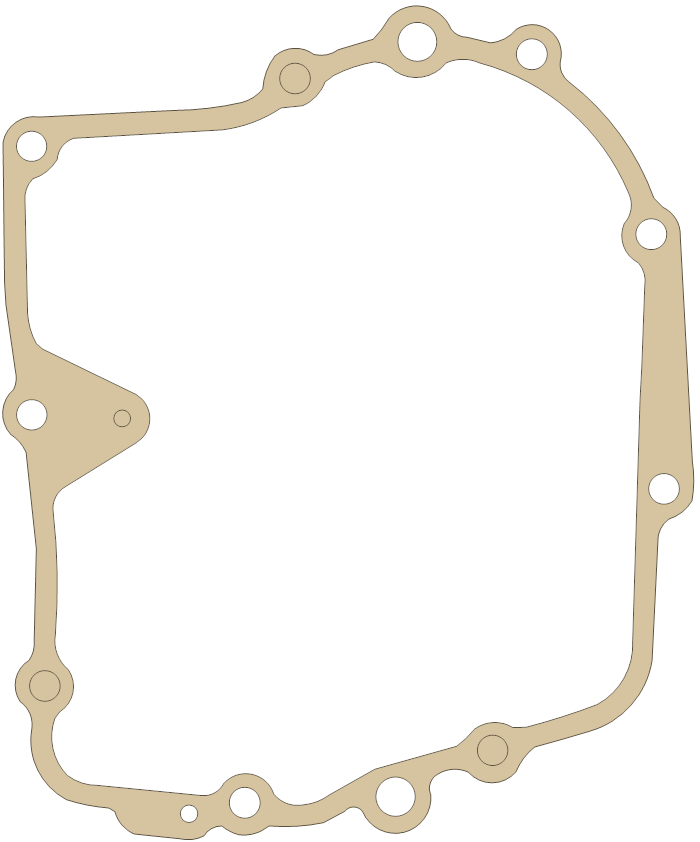

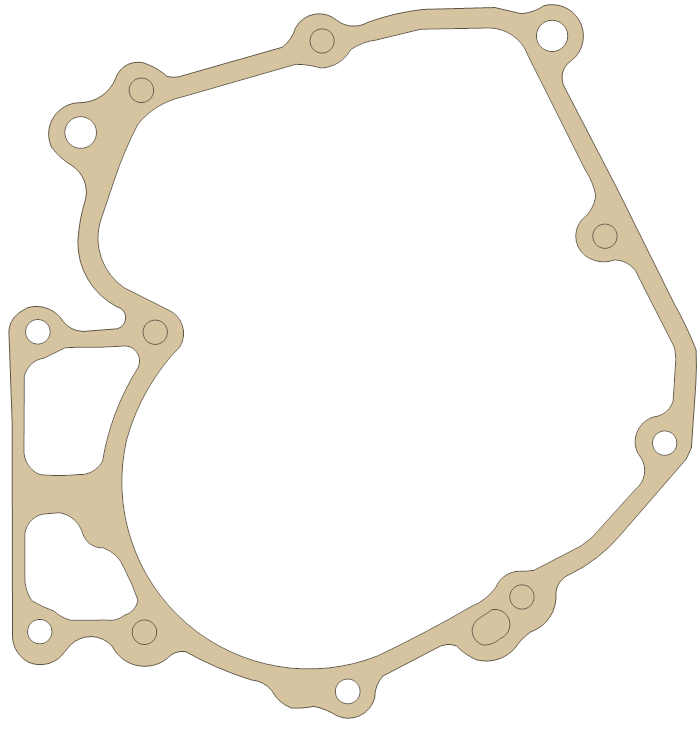

Transmission Cover | 11009-1982 | A | 20 mm | 1990 - 2001 |
|
|
Transmission Cover | 11009-1982 | A | 20 mm | 1986 - 1987 |
|
|
Transmission Cover | 11009-1112 | A | 20 mm | 1983 - 1985 |
|
|

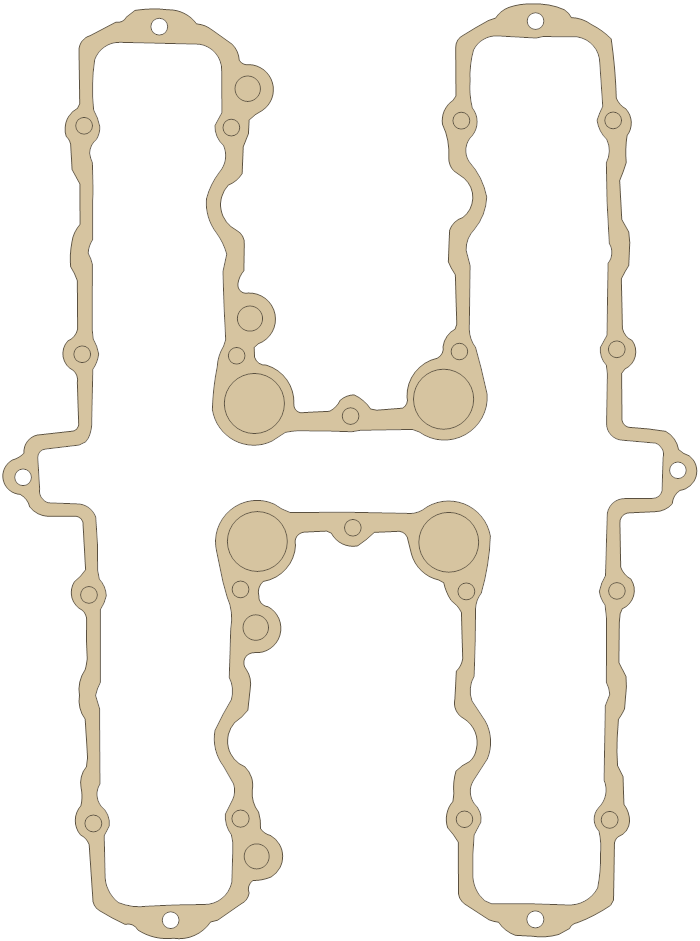

Valve Cover | 11009-1205 | A | 20 mm | 1983 - 1985 |
Ready-to-cut files for every gasket listed here are available to subscribers. Specifications are free to view.
