9 gasket listings for the KTM 200SX. Material, thickness, number in set and OEM cross-reference for each.
| Gasket | OEM Number | Material | Thickness | Years | |
|---|---|---|---|---|---|
|
|

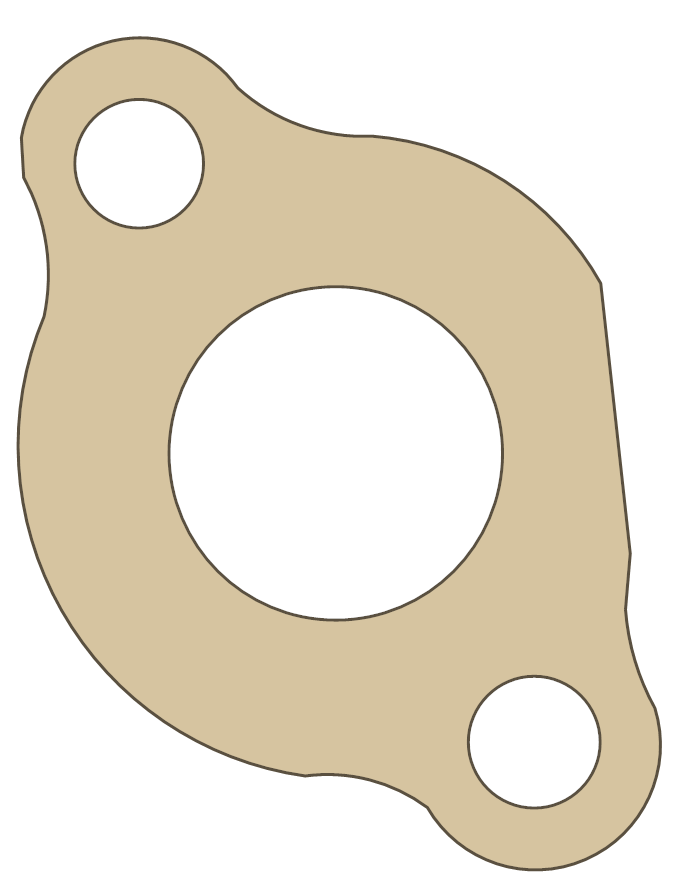

Closing Cover | 50337035050 | B | 40 mm | 2000 |
|
|

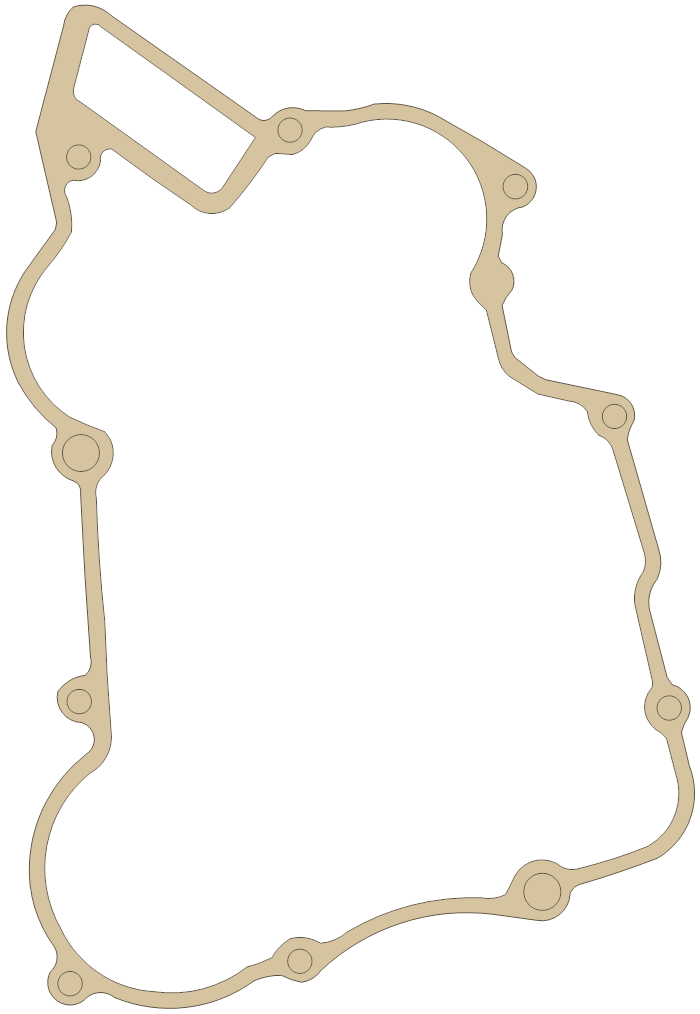

Clutch Cover | 50330025000 | A | 20 mm | 2001 - 2002 |
|
|

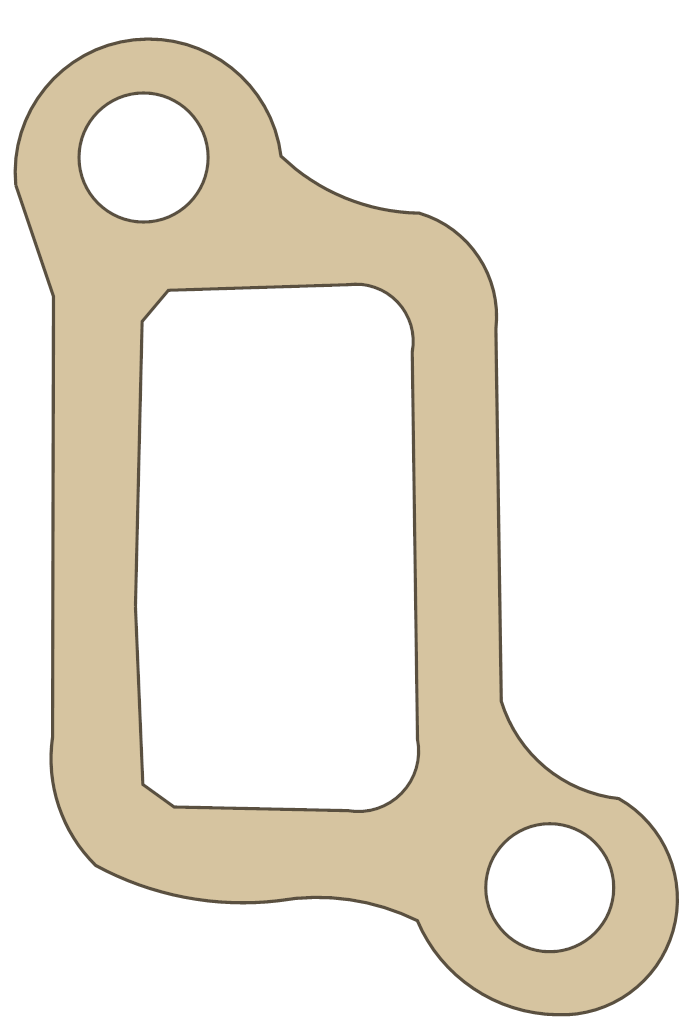

Control Volume | 50337006000 | B | 40 mm | 2000 |
|
|

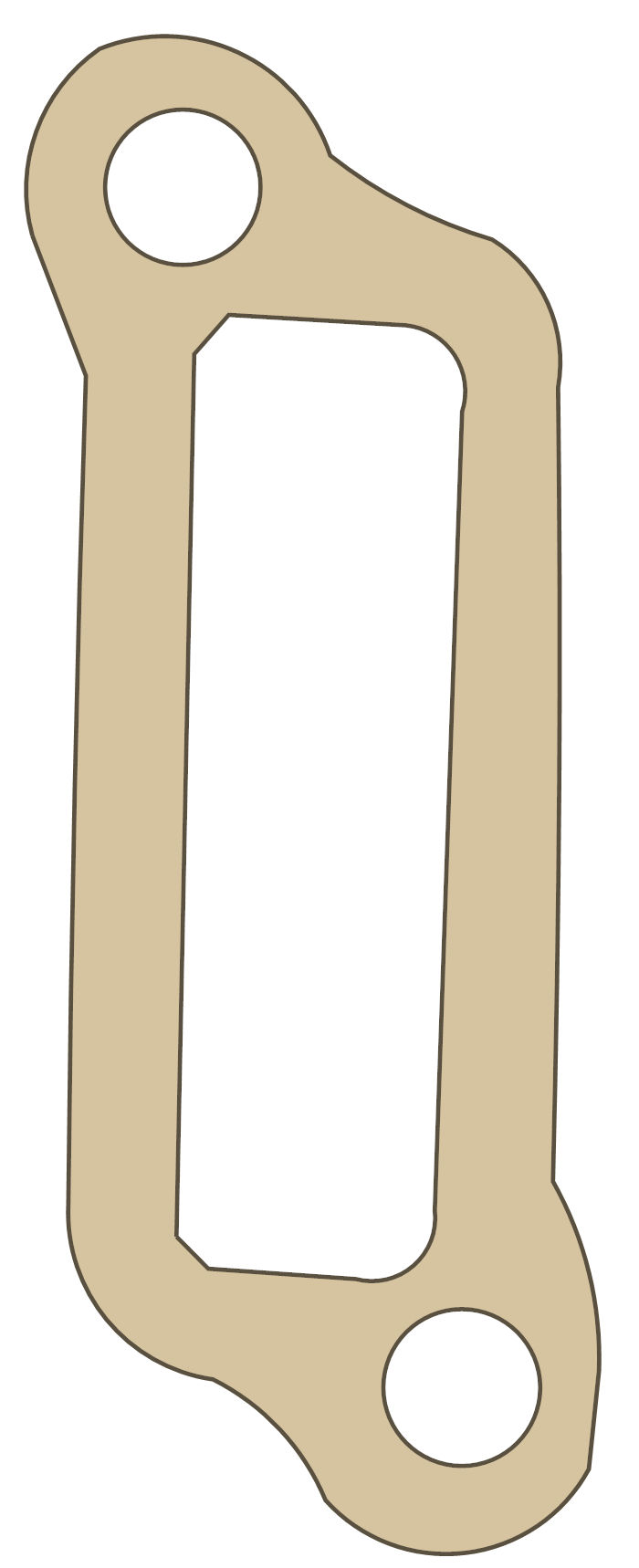

Control Volume LH | 50337008000 | A | 20 mm | 2000 |
|
|

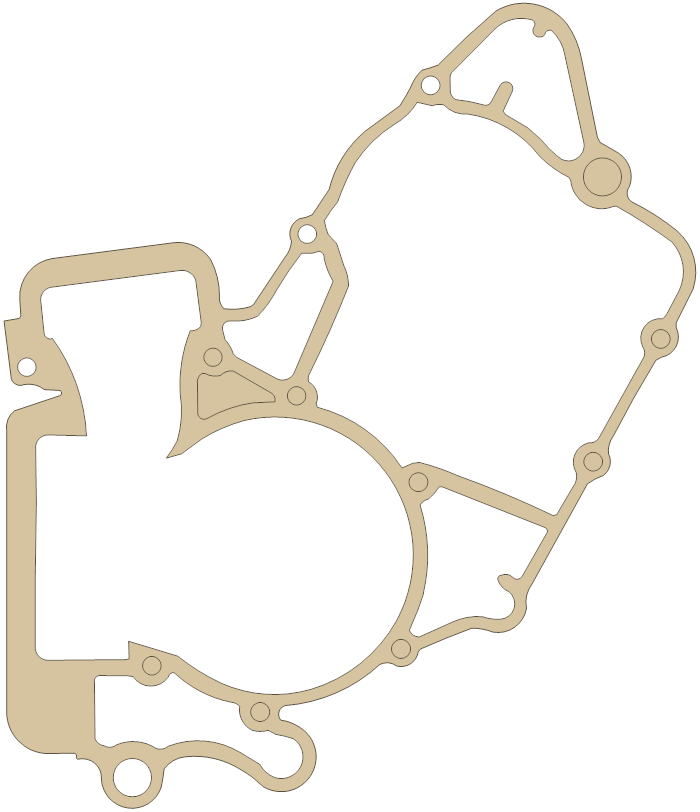

Engine Case | 50330039000 | A | 20 mm | 2000 - 2002 |
|
|

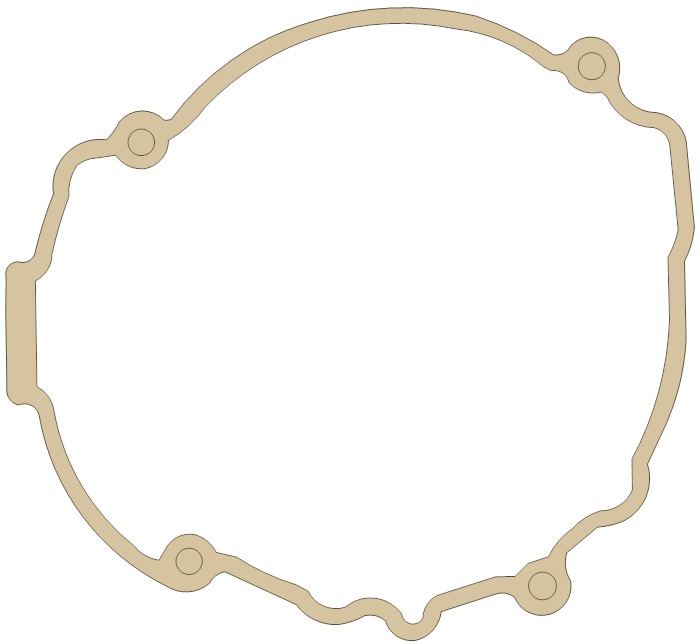

Ignition Case | 50330040100 | B | 40 mm | 2000 - 2002 |
|
|

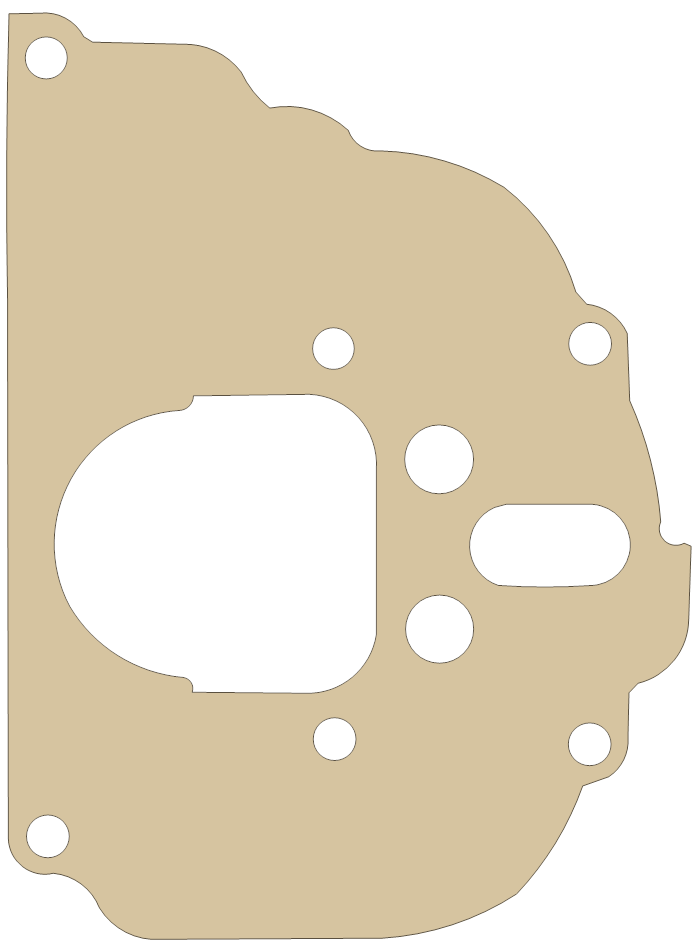

Intermediate 125 | 50337046100 | B | 40 mm | 2000 - 2002 |
|
|

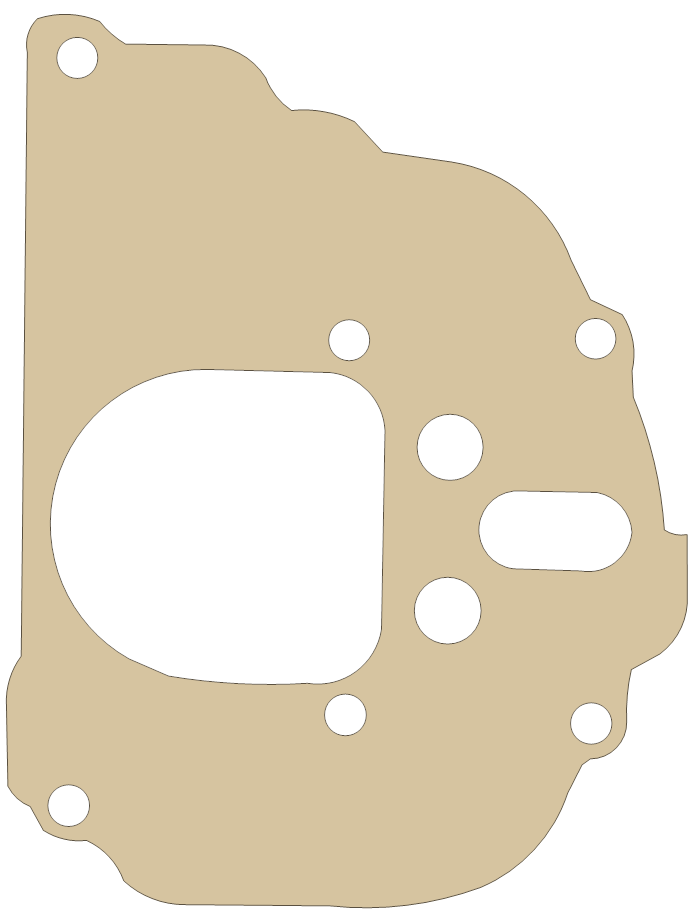

Intermediate 200 | 52337046100 | B | 40 mm | 2000 - 2002 |
|
|

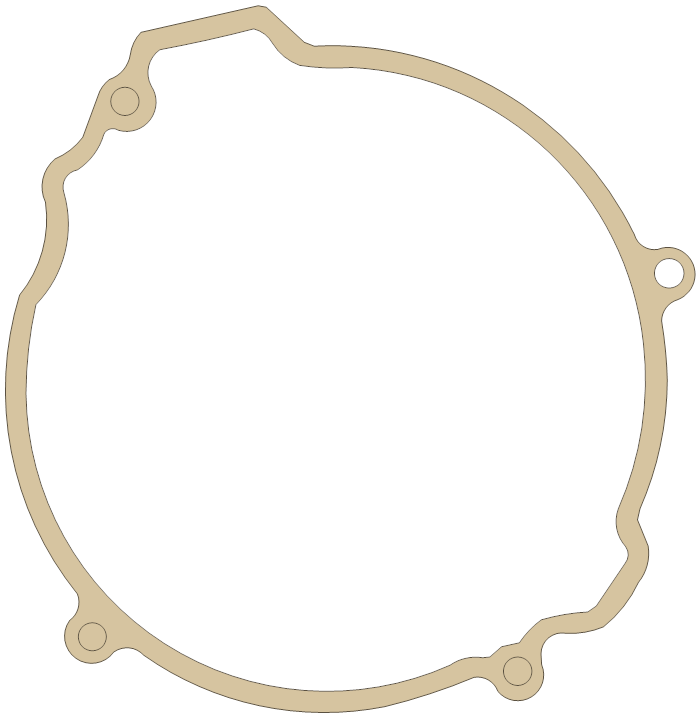

Outer Clutch Cover | 50330027000 | B | 30 mm | 2000 - 2002 |
Ready-to-cut files for every gasket listed here are available to subscribers. Specifications are free to view.
