2 gasket sets and 11 individual gaskets for the KTM 250MXC. Material, thickness and OEM cross-reference for each.
| Set | Gaskets in Set | Material | Years |
|---|---|---|---|
| SET A | 3 | A | 2000 - 2002 |
| SET B | 7 | B | 2000 - 2002 |
| Gasket | OEM Number | Material | Thickness | Years | |
|---|---|---|---|---|---|
|
|

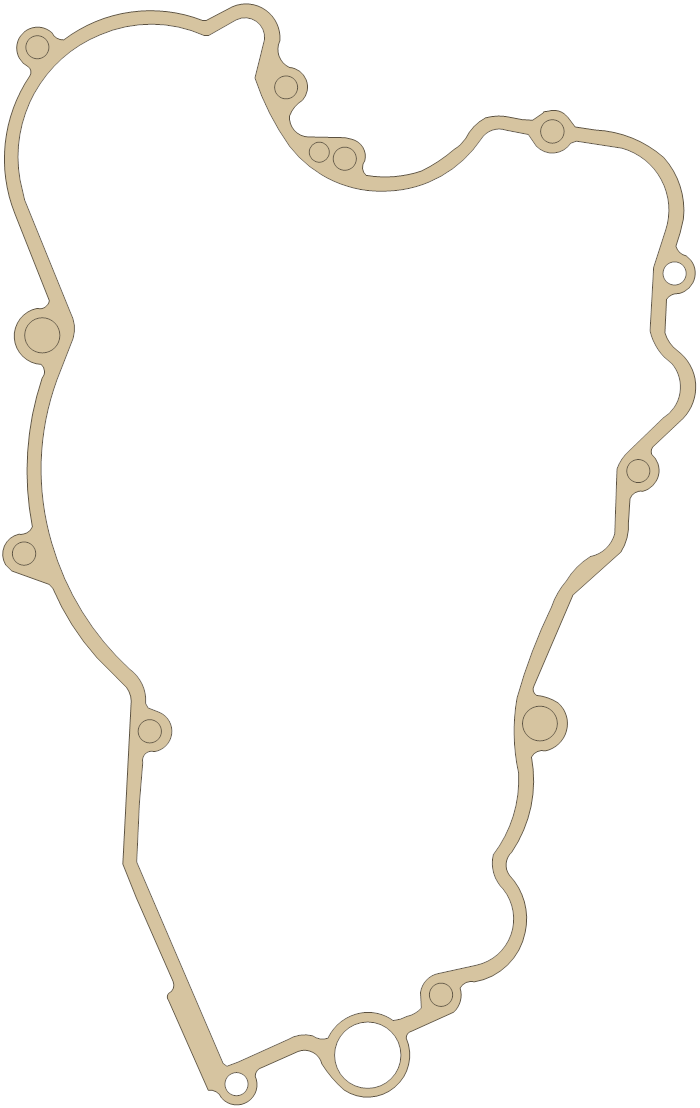

Clutch Cover | 54630025100 | A | 20 mm | 2000 - 2002 |
|
|

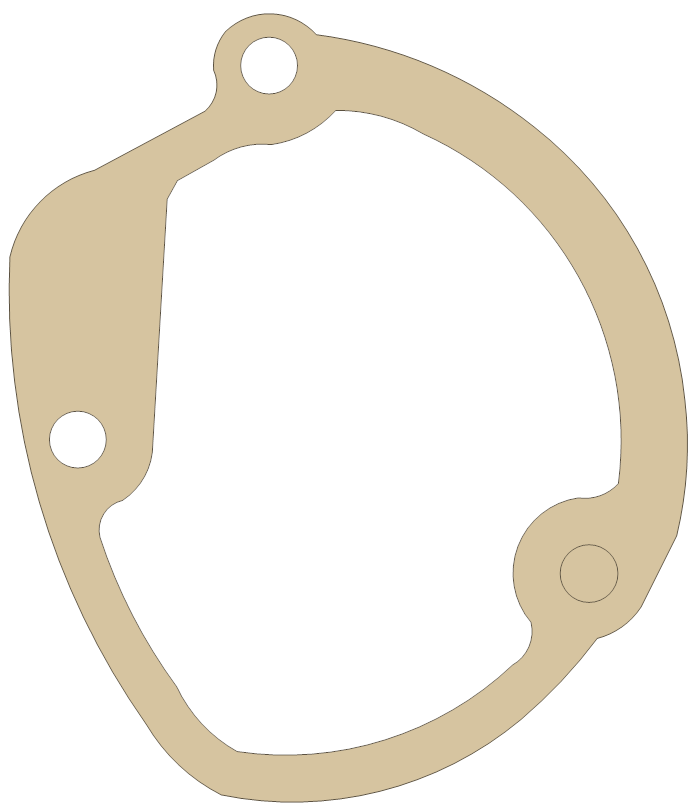

Control Cover LH | 54737006000 | B | 40 mm | 2000 - 2002 |
|
|

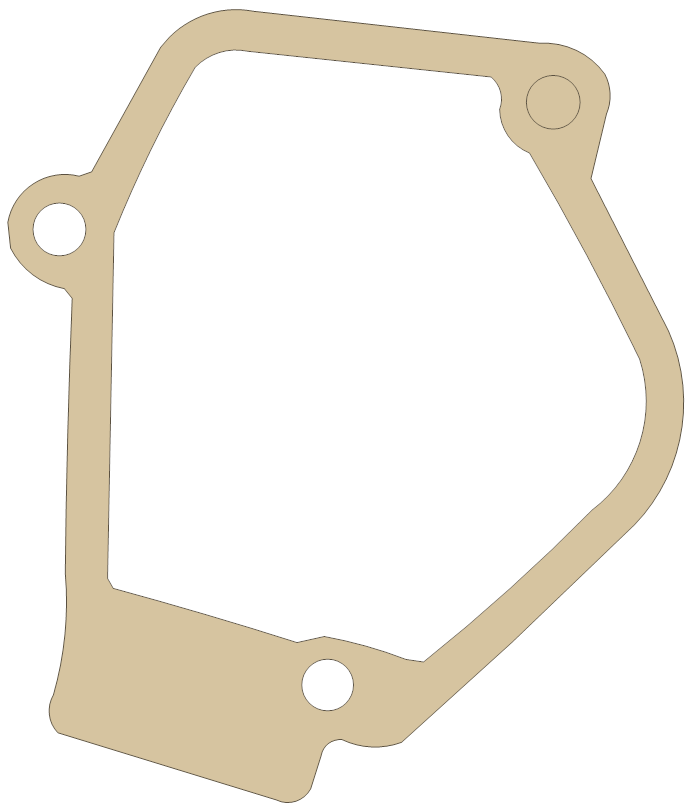

Control Cover RH | 54737008000 | B | 40 mm | 2000 - 2002 |
|
|

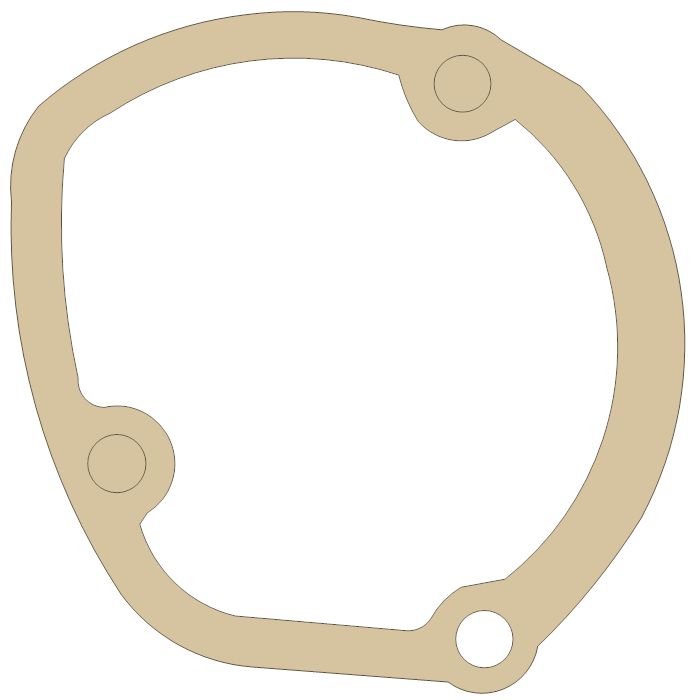

Control Cover RH | 54637006100 | B | 40 mm | 2000 - 2002 |
|
|

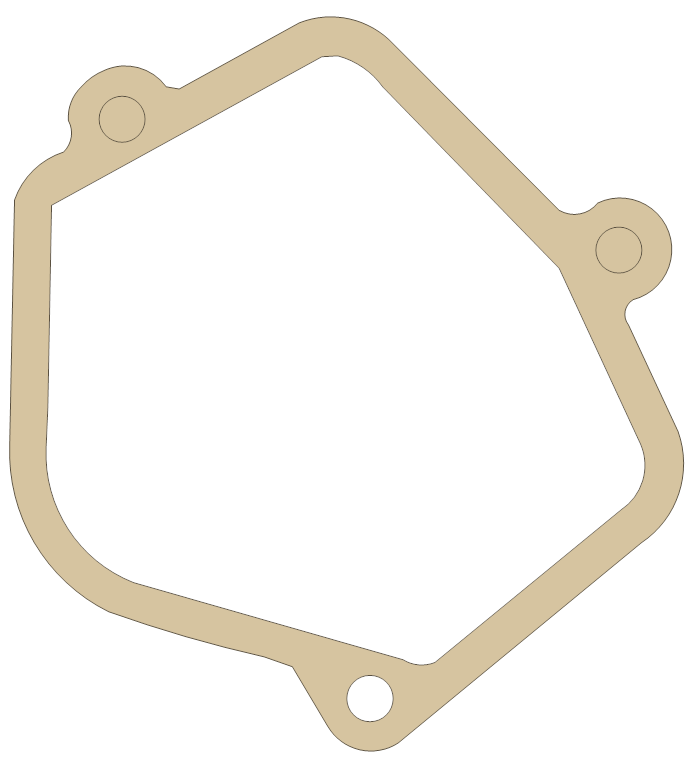

Control Valve LH | 54637106000 | B | 40 mm | 2000 - 2002 |
|
|

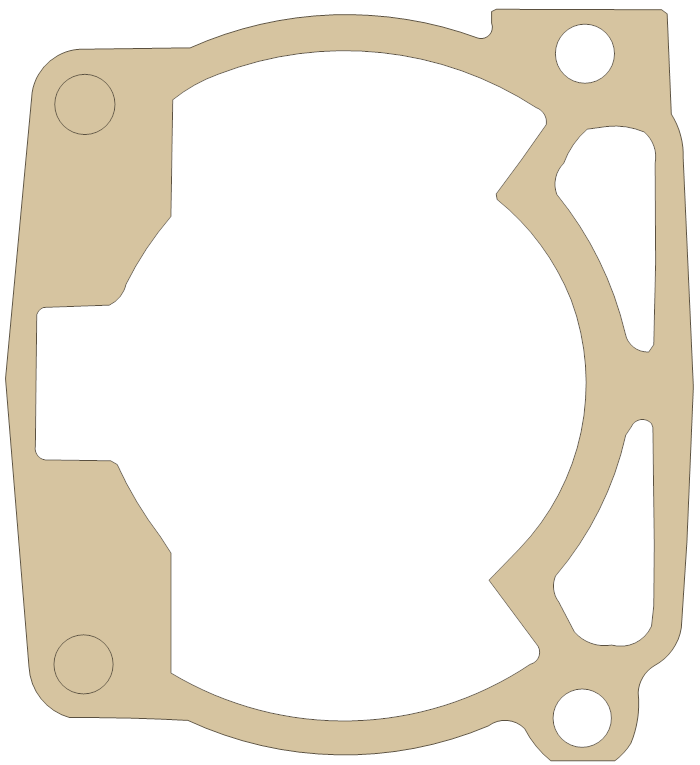

Cylinder Base | 54630030105 | A | 20 mm | 2000 - 2002 |
|
|
Cylinder Base | 54630030107 | B | 30 mm | 2000 - 2002 |
|
|

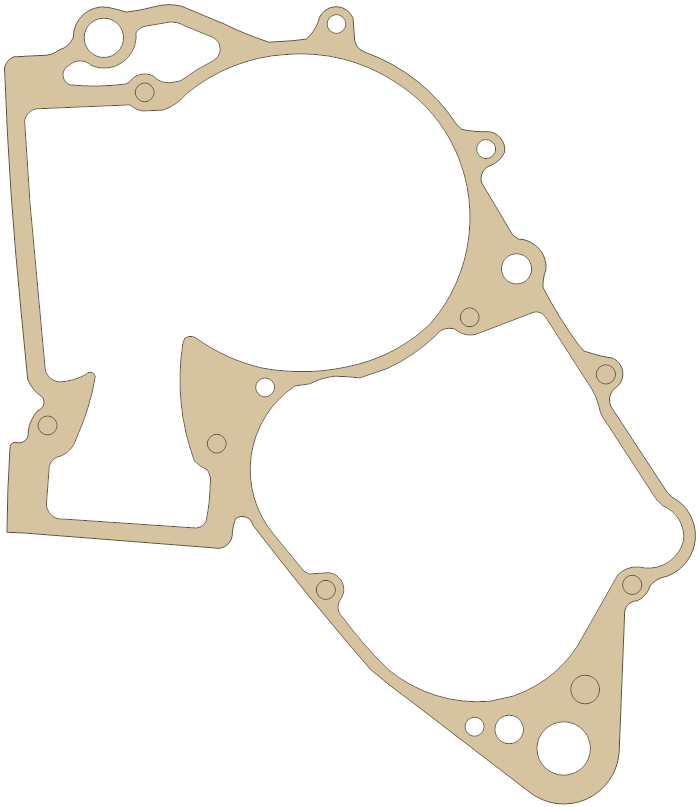

Engine Cover | 54630039200 | A | 20 mm | 2000 - 2002 |
|
|

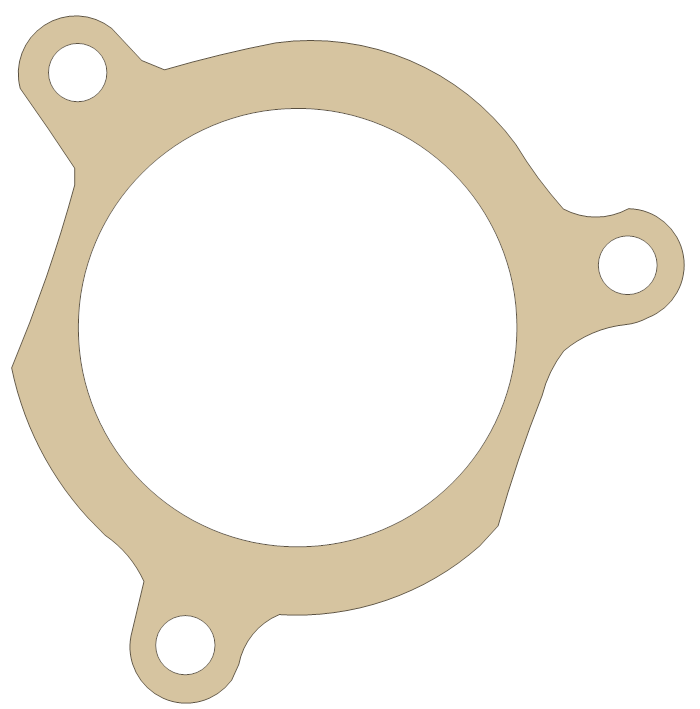

Exhaust Flange | 54630046000 | B | 55 mm | 2000 - 2002 |
|
|

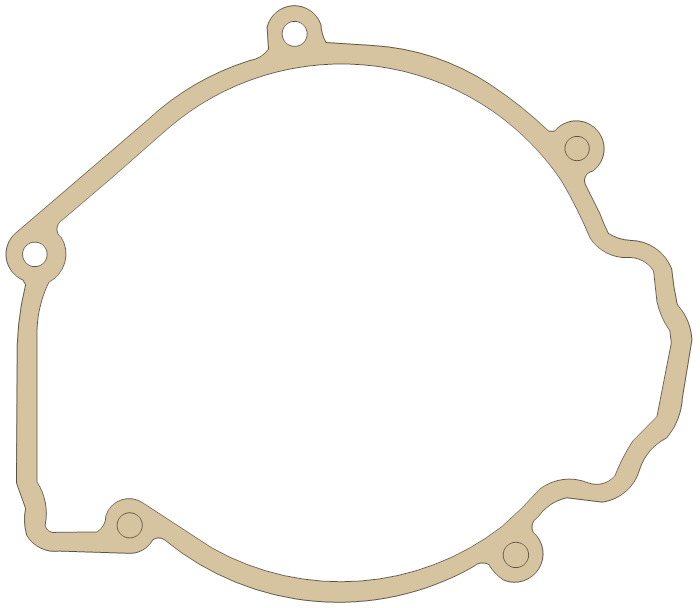

Ignition Cover | 54730040100 | B | 40 mm | 2000 - 2002 |
|
|

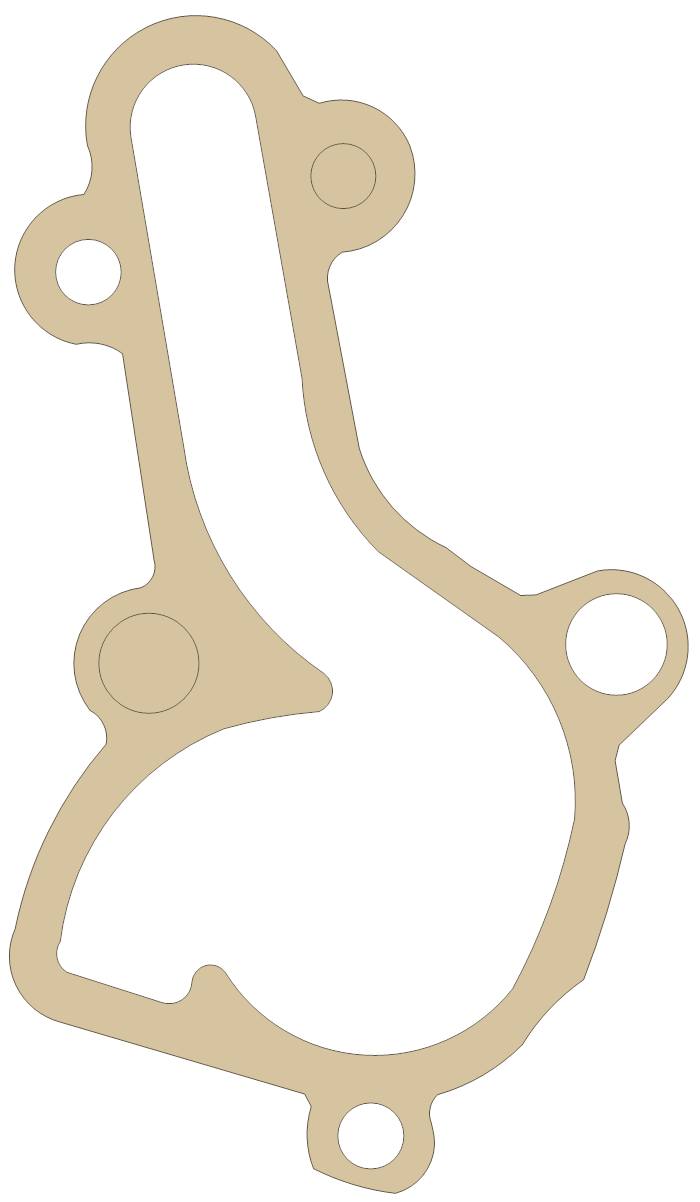

Water Pump | 54635003200 | B | 40 mm | 2000 - 2002 |
Ready-to-cut files for every gasket listed here are available to subscribers. Specifications are free to view.
