KTM 300 Gaskets

3 gasket sets and 7 individual gaskets for the KTM 300. Material, thickness and OEM cross-reference for each.

Gasket Sets 3 available

Set Gaskets in Set Material Years
SET A 2 A 1990 - 1998
SET B 3 B 1990 - 1998
SET C 2 D 1990 - 1998

Individual Gaskets

Gasket OEM Number Material Thickness Years

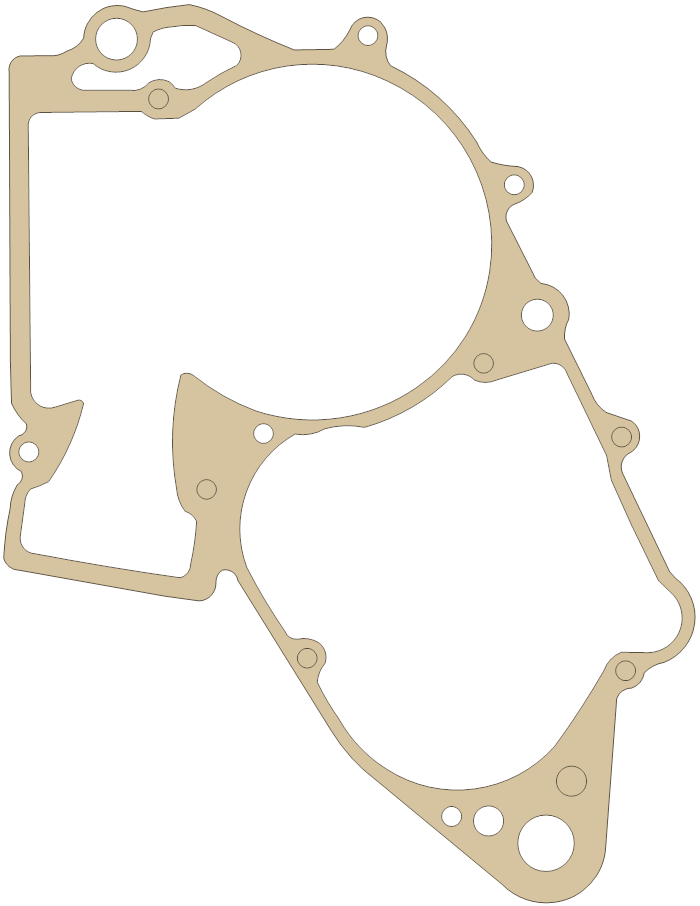

KTM 300 Crankcase gasket outline Crankcase KTM-1 A 20 mm 1990 - 1998

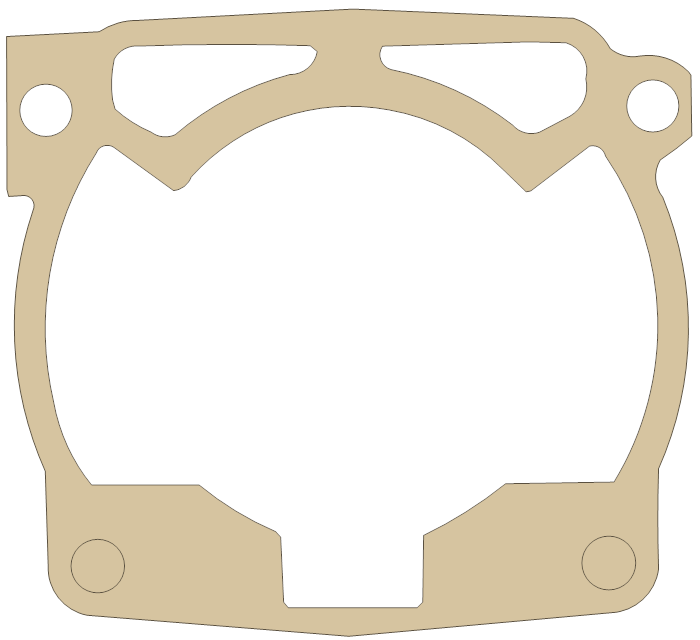

KTM 300 Cylinder gasket outline Cylinder KTM-3 D 15 mm 1990 - 1998
KTM 300 Cylinder gasket outline Cylinder KTM-4 A 20 mm 1990 - 1998

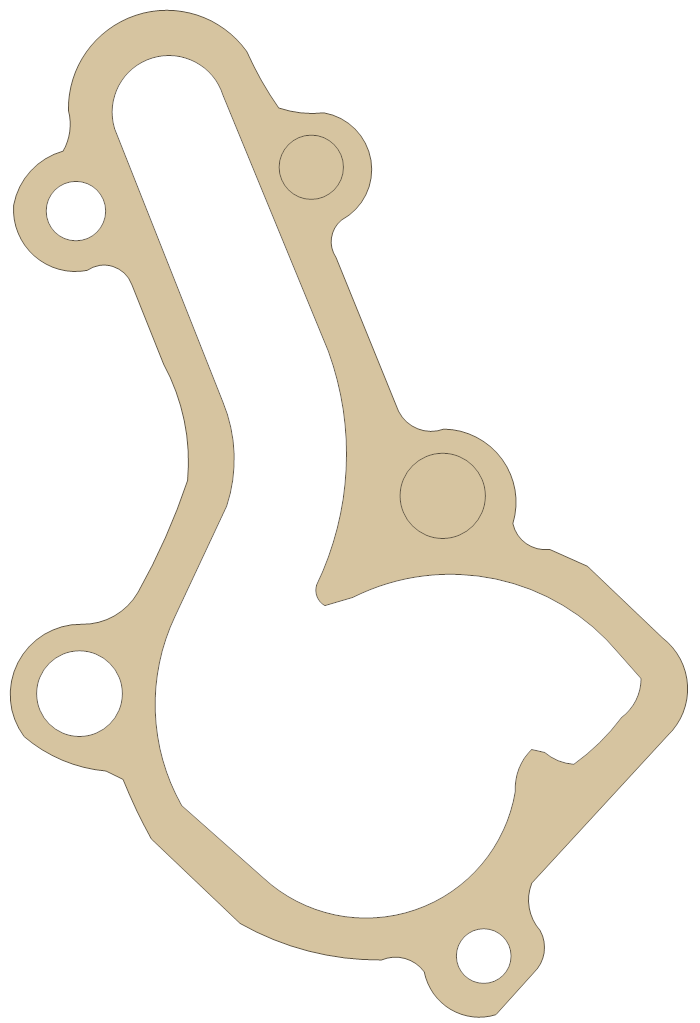

KTM 300 Gasket gasket outline Gasket KTM-5 B 40 mm 1990 - 1998

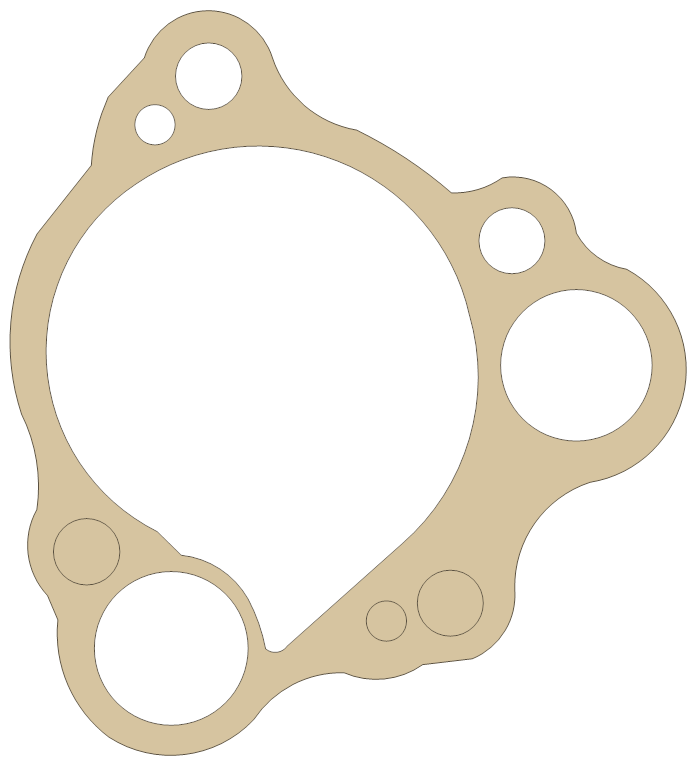

KTM 300 Gasket gasket outline Gasket KTM-6 D 15 mm 1990 - 1998
KTM 300 Gasket gasket outline Gasket KTM-7 B 40 mm 1990 - 1998

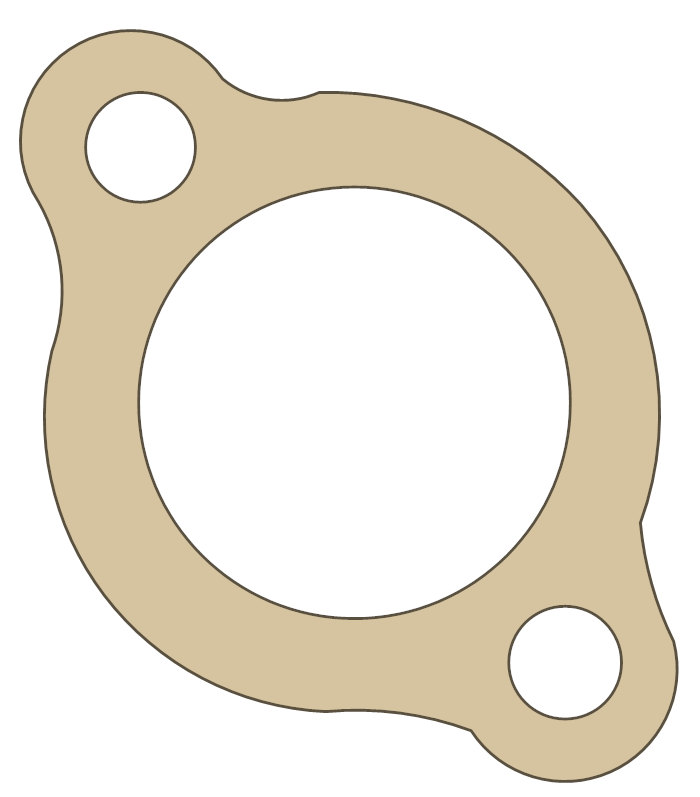

KTM 300 Gasket gasket outline Gasket KTM-8 B 40 mm 1990 - 1998

Cut Files

Ready-to-cut files for every gasket listed here are available to subscribers. Specifications are free to view.
