2 gasket sets and 13 individual gaskets for the Yamaha YFM350X Warrior. Material, thickness and OEM cross-reference for each.
| Set | Gaskets in Set | Material | Years |
|---|---|---|---|
| SET A | 5 | A | 1987 - 2004 |
| SET B | 1 | B | 1987 - 2004 |
| Gasket | OEM Number | Material | Thickness | Years | |
|---|---|---|---|---|---|
|
|

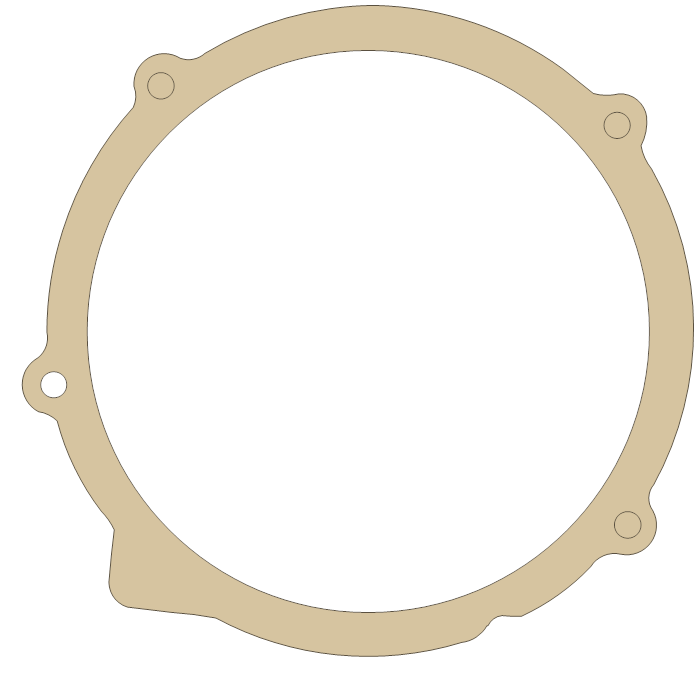

Carburetor Cover | 1UY-15461-00 | A | 0.02 mm | 1987 - 2004 |
|
|
Carburetor Cover | 1UY-15461-00 | B | 30 mm | 1987 - 2004 |
|
|

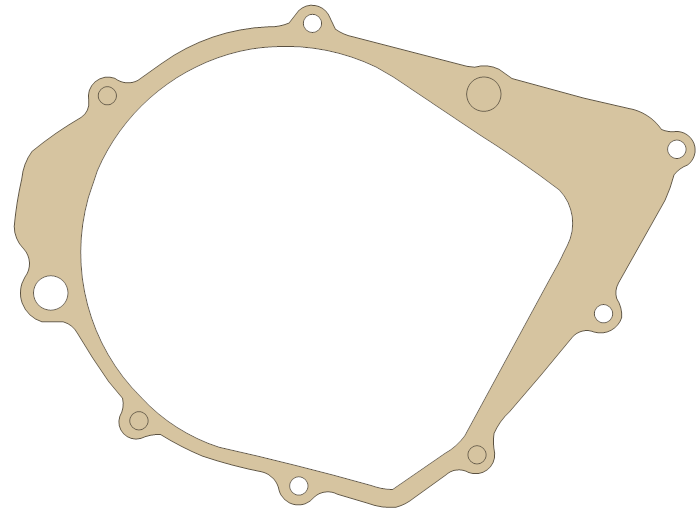

Crankcase Cover 1 | 1UY-15451-00 | A | 20 mm | 1987 - 2003 |
|
|
Crankcase Cover 1 | 3GD-15451-00 | A | 20 mm | 2004 |
|
|

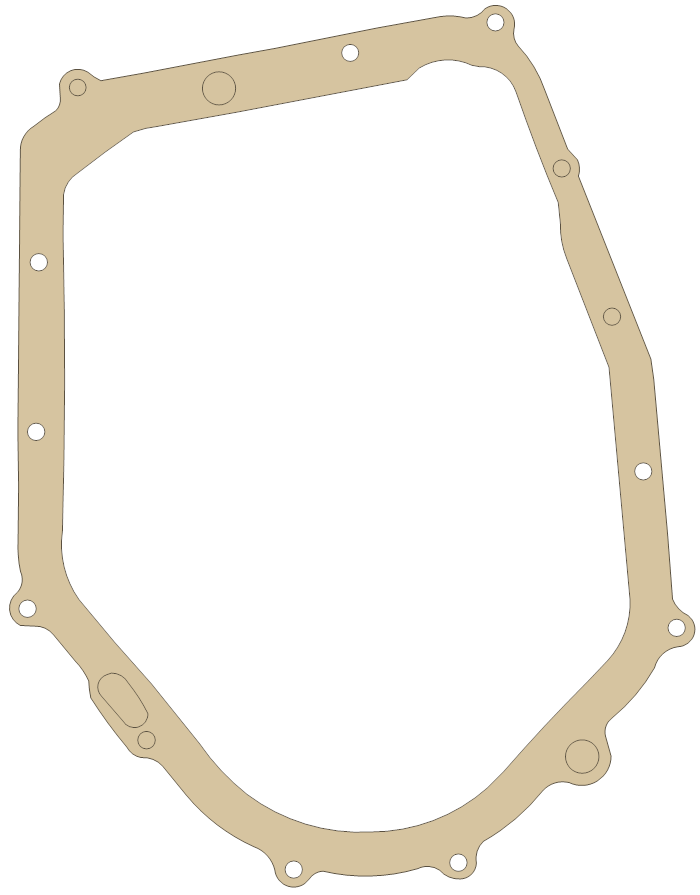

Crankcase Cover 2 | 1UY-15461-00 | A | 20 mm | 1987 - 2003 |
|
|
Crankcase Cover 2 | 3GD-15461-00 | A | 20 mm | 2004 |
|
|

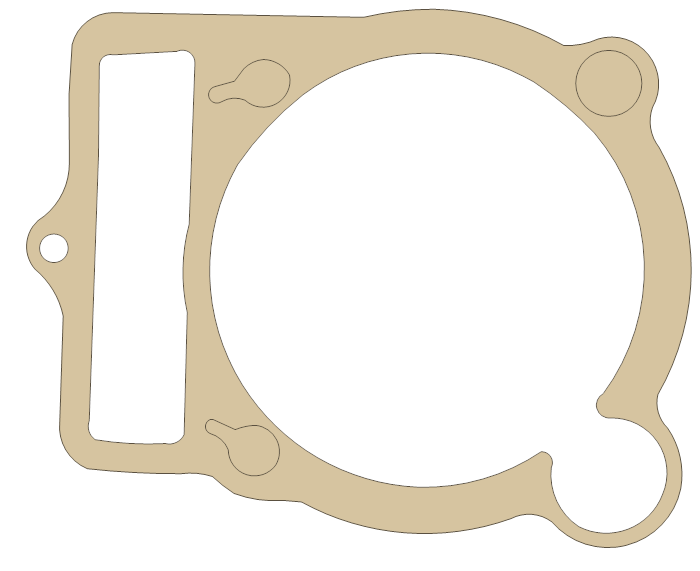

Cylinder Base | 4KB-11351-00 | A | 20 mm | 2004 |
|
|
Cylinder Base | 1UY-11351-00 | A | 20 mm | 1987 - 2003 |
|
|

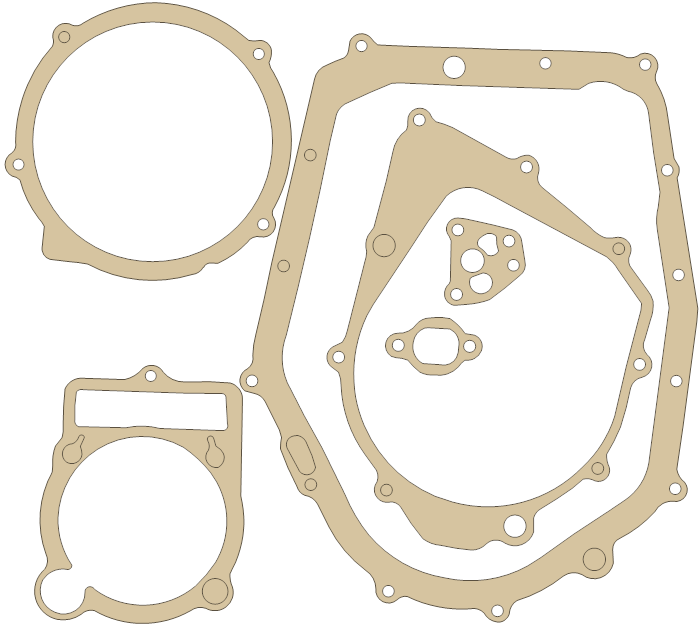

New Set A | Custom | A | 0.02 mm | 1987 - 2004 |
|
|

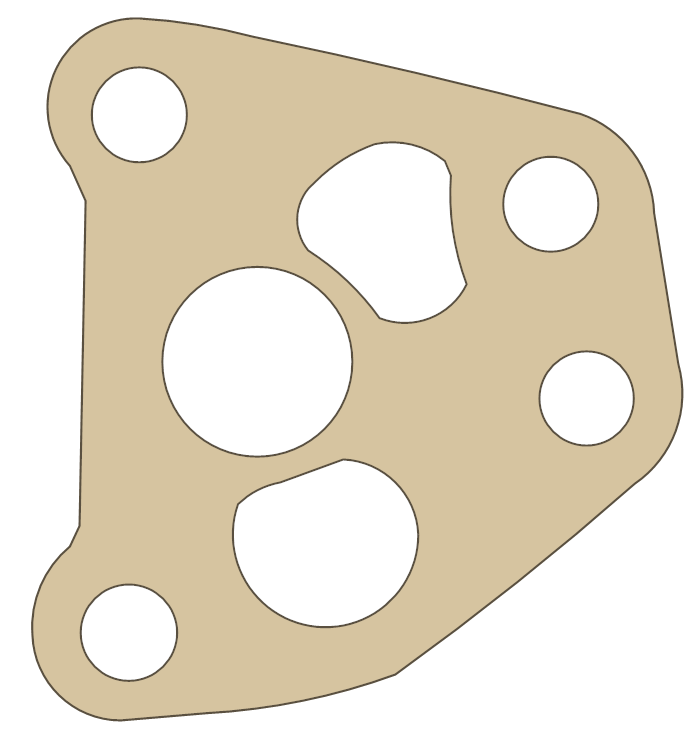

Pump Cover | 3GD-13329-00 | A | 20 mm | 2004 |
|
|
Pump Cover | 1UY-13329-00 | A | 20 mm | 1987 - 2003 |
|
|

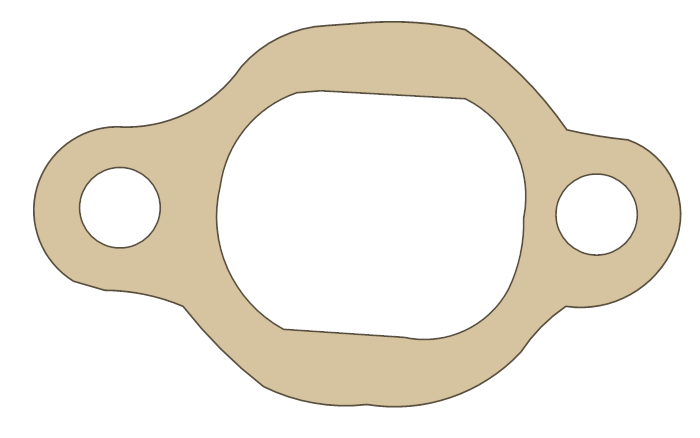

Tensioner Case | 31G-12213-00 | A | 20 mm | 1987 - 2003 |
|
|
Tensioner Case | 3GD-12213-00 | A | 20 mm | 2004 |
Ready-to-cut files for every gasket listed here are available to subscribers. Specifications are free to view.
