14 gasket listings for the Kawasaki KE100. Material, thickness, number in set and OEM cross-reference for each.
| Gasket | OEM Number | Material | Thickness | Years | |
|---|---|---|---|---|---|
|
|

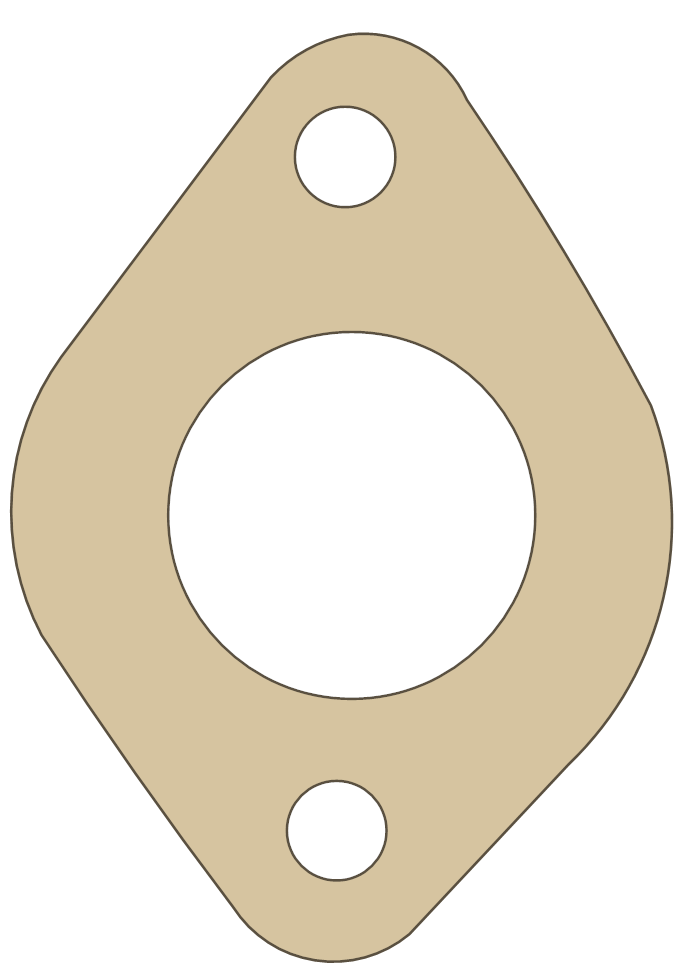

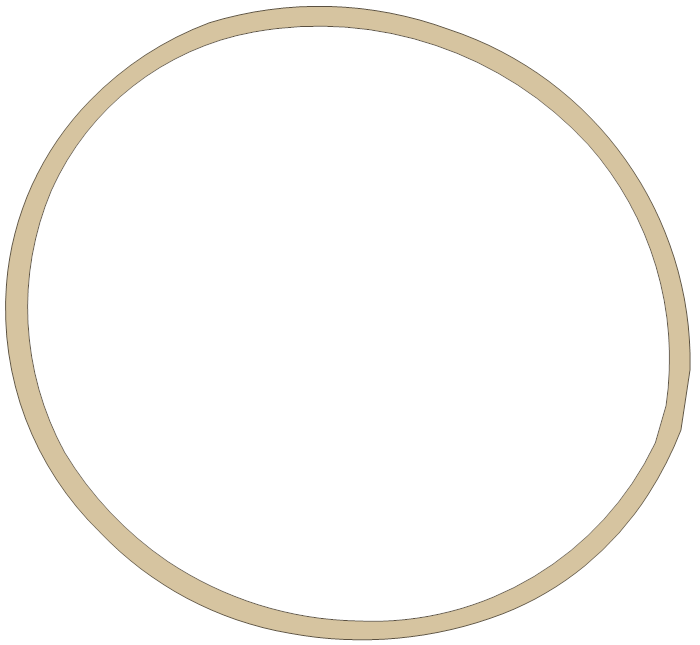

Breaker Cover | 16094-002 | A | 20 mm | 1987 - 1991 |
|
|
Breaker Cover | 14050-002 | A | 20 mm | 1976 - 1981 |
|
|

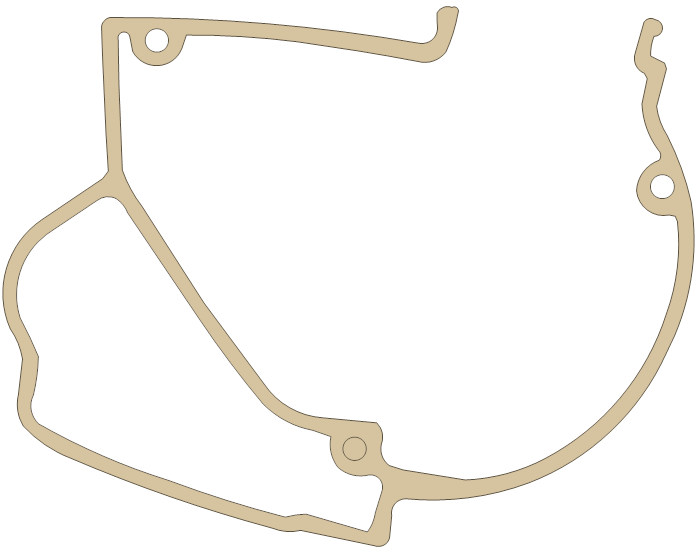

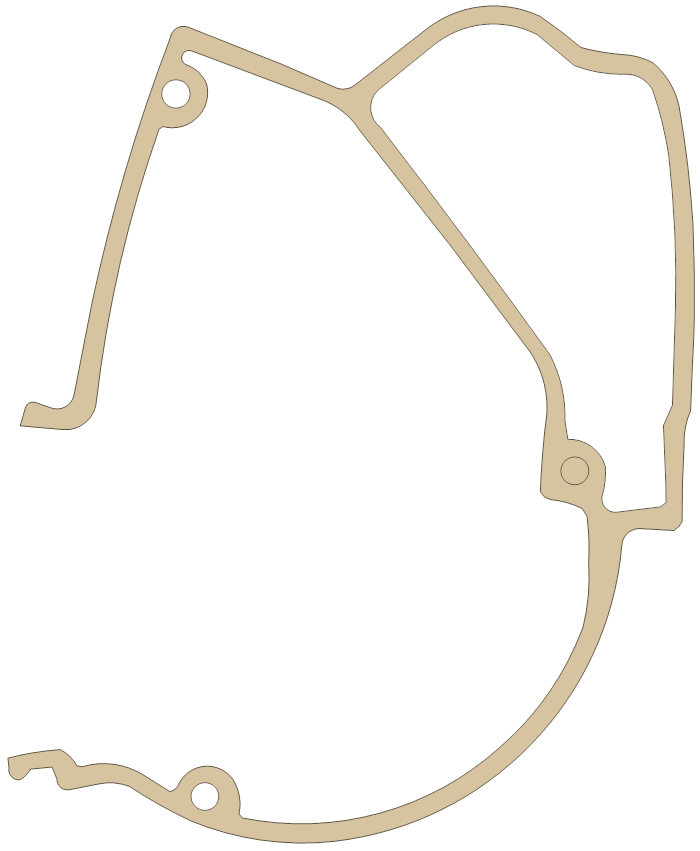

Carburetor Cover | 11060-1201 | A | 20 mm | 1976 - 1987 |
|
|
Carburetor Cover | 11060-1201 | A | 20 mm | 1992 - 1999 |
|
|
Carburetor Cover | 14048-004 | B | 40 mm | 1987 - 1991 |
|
|

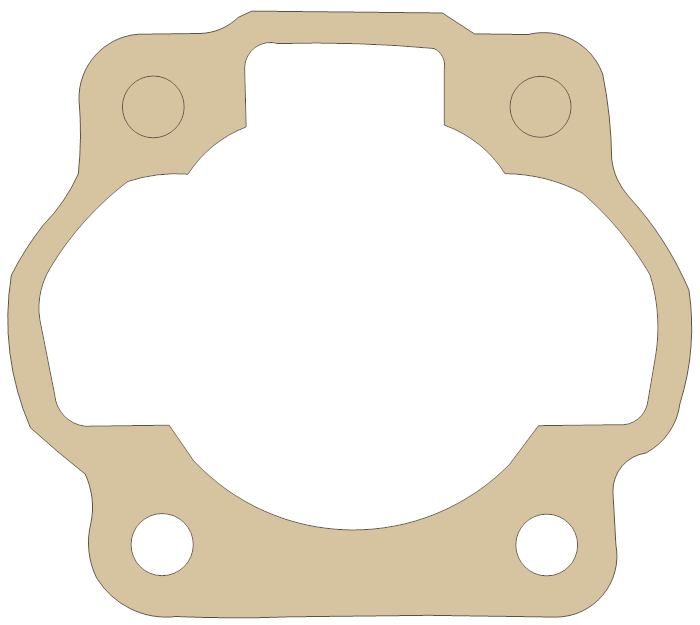

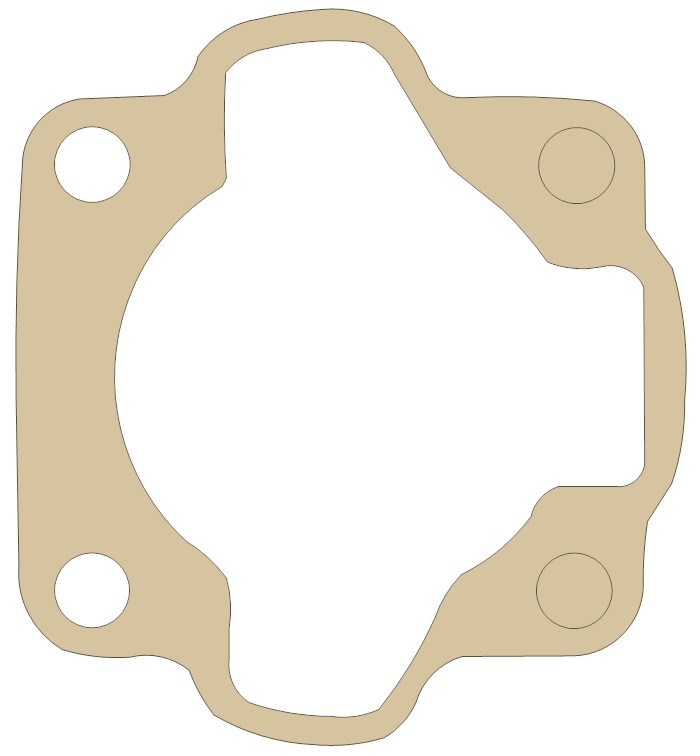

Cylinder Base | 11009-031 | A | 20 mm | 1987 - 1991 |
|
|
Cylinder Base | 11060-1200 | A | 20 mm | 1976 - 1986 |
|
|
Cylinder Base | 11060-1200 | A | 20 mm | 1992 - 1999 |
|
|

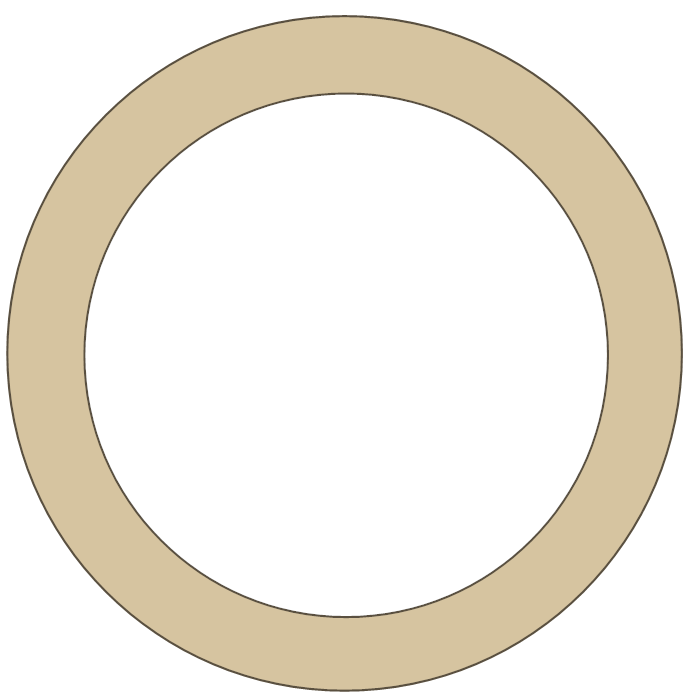

Exhaust Pipe | 18067-003 | B | 40 mm | 1976 - 1991 |
|
|
Float Valve | 11009-1160 | B | 40 mm | 1976 - 1986 |
|
|
Gasket | 11060-1617 | B | 40 mm | 1976 - 1986 |
|
|

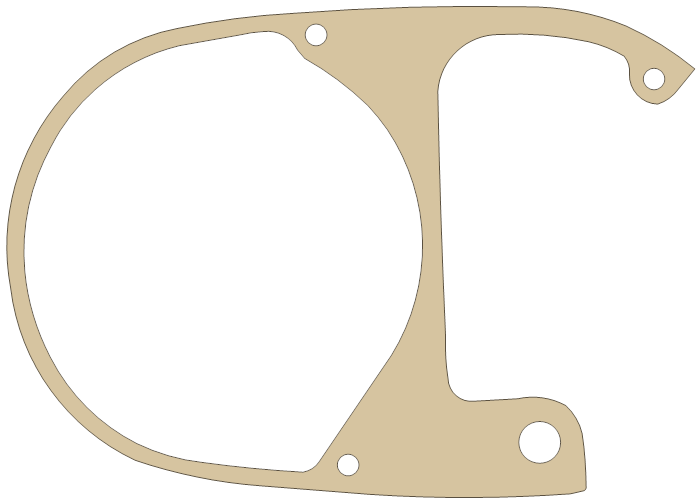

LH, Engine Cover | 14045-020 | A | 20 mm | 1987 - 1991 |
|
|

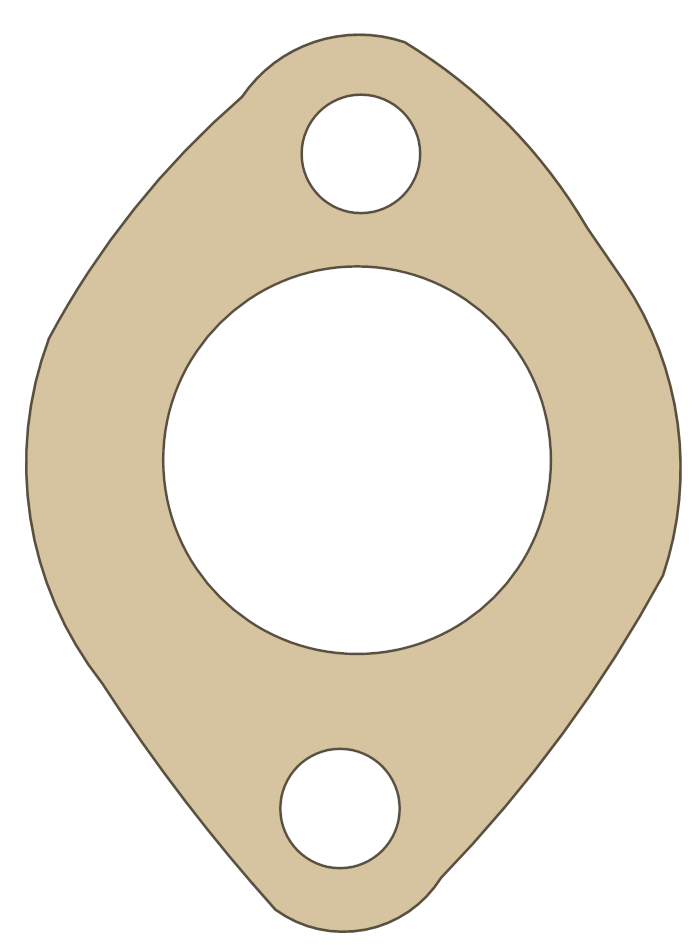

Oil Pump | 11060-1160 | A | 20 mm | 1976 - 1999 |
|
|

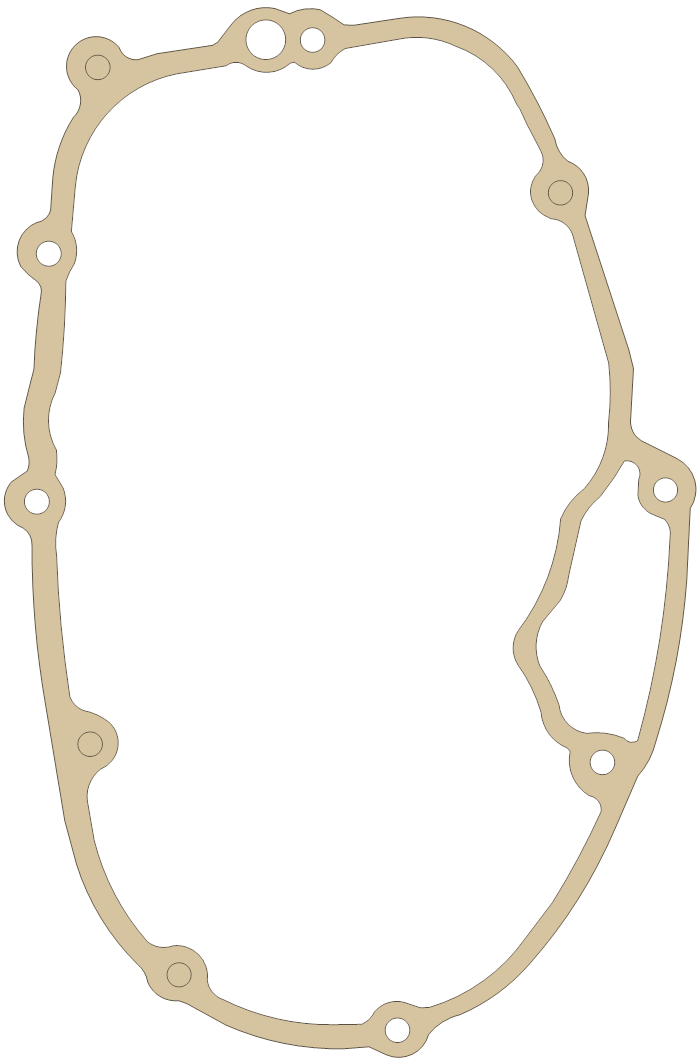

RH, Engine Cover | 14046-006 | A | 20 mm | 1987 - 1991 |
Ready-to-cut files for every gasket listed here are available to subscribers. Specifications are free to view.
